Elkay  |  SKU: LZWSMDK

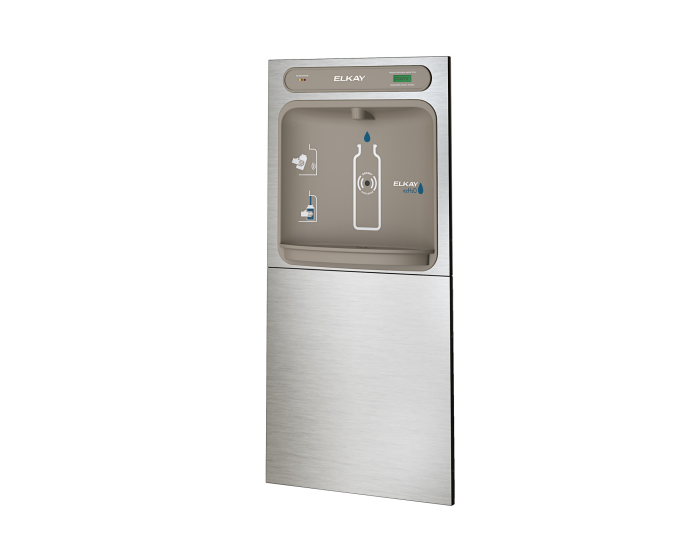

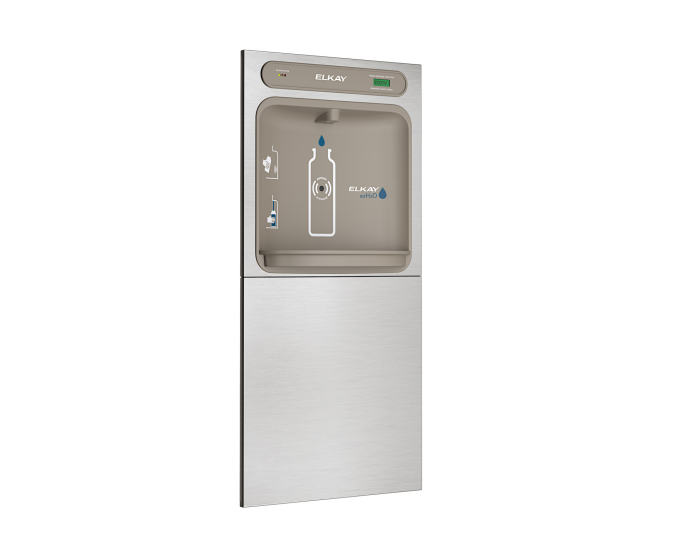

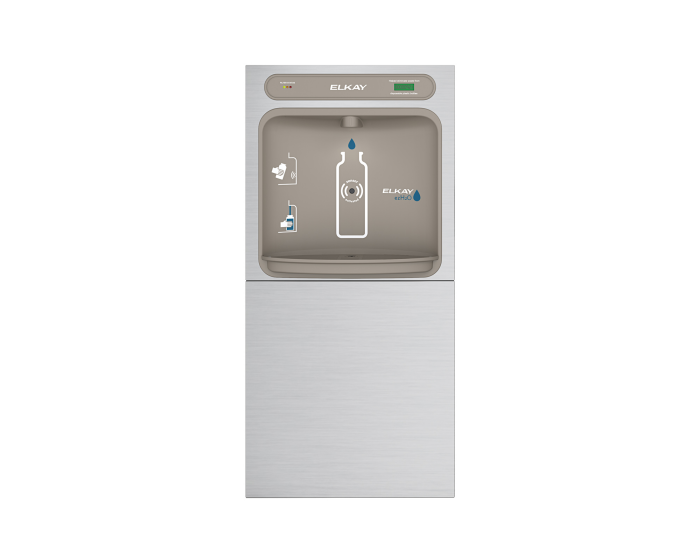

Elkay LZWSMDK | In-wall Bottle Filler | Filtered, Non-refrigerated, Hands-free (comes with Mounting Frame)

$ 1,309.85
Shipping calculated at checkout.


In Stock
Free Shipping

Product Care Information

Installation


  • Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.

ezH2O Installation Video:


Maintenance


It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit.  It is also recommended to clean the flexible fill mat.  Remove the four screws to wipe beneath and on top of the mat.

ezH2O Maintenance Video:


Filter Replacement


When filter status light turns to red, the filter needs to be changed.  Here are some detailed instructions.

ezH20 Filter Change Video:

Requires a minimum of 8" of wall depth for installation.

The LZWSMDK is an in-wall, filtered bottle filler. This model has a Stainless Steel color finish.

One of the most popular models, the Elkay LZWSMDK bottle filling station makes drinking water more practical, safe, and appealing than ever before.

Being a ‘hands-free’ unit, the LZWSMDK stands out as one of the most sanitary options for clean drinking water thanks to their hands-free sensor activation that minimizes the risks of spreading germs, bacteria, or viruses.

  • Fully recessed in-wall design
  • Hands-free sensor activation
  • ADA compliant
  • Sanitary bottle fill created from hands-free sensor activation and recessed spout with 20 second auto shut-off system.
  • Quick fill rate of 1.1 Gallons Per Minute
  • Green Ticker™ tracks number of plastic bottles saved from waste.
  • Filtered - 3000 gallon capacity WaterSentry® Plus filtration with visual LED Filter Monitor to indicate when replacement is necessary
  • Includes MFWS100 mounting frame

Elkay LZWSMDK resources:


FILTERED?

Yes

COOLER CABINET FINISH

Stainless Steel

POWER

115V/60Hz

MOUNTING DETAILS

Wall Mount (In-Wall Frame/Plate)

CHILLING DETAILS

Non-Refrigerated

INSTALLATION LOCATION

INDOOR

NUMBER OF STATIONS

One station (one bottle filler, no drinking fountain)

DIMENSIONS

L: 19-3/4″

W: 3-1/2″

H: 40-13/16″

SHIPPING WEIGHT

36 lbs

Elkay LZWSMDK

PRODUCT COMPLIANCE

  • GreenSpec
  • ADA Compliant
  • CAN/CSA 22.2 120
  • ASME A112.19.3/CSA B45.4
  • Buy American Act
  • UL 399
  • NSF 61
  • NSF 53
  • NSF 42
  • NSF 372 (no lead)

Warranty

Electrical Parts & Water System

Elkay LZWSMDK warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first.  View more warranty details here.

Installation Notes

  • Elkay LZWSMDK requires installation from licensed plumber. Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.
  • View detailed Elkay LZWSMDK INSTALLATION INSTRUCTIONS.

Maintenance

Cleaning

It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit.  Routine cleaning is also suggested.

Filter Replacement (IF APPLICABLE)

When filter status light turns to red, the filter needs to be changed.  Follow these steps:

1) Remove the bottom access panel.

2) Unplug unit

3) Unscrew old filter

4) Install new WaterSentry Plus filter.

5) Reset filter light back to green by removing top cover and pressing the black reset button.  Select "reset filter".  The light should appear green.  Detailed instructions on filter light reset are included in the product package.

View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.

FAQ

Q: How do I access the filter status and bottle counter button?

A: To access the program button, the lower panel of the unit must be opened. The programming button is located at the bottom right corner of the upper panel. This area of the unit is concealed by the lower panel.

Q: Does this model come with a Mounting Frame?
A:  Yes, this model comes with an MLP100 In-wall Carrier Mounting Frame.



*MADE IN THE UNITED STATES.

Experience the benefits of the very popular Elkay LZWSMDK Water Bottle Filling Station. Best Support, Fast Shipping, & Low Prices. CONTACT US NOW!
