Elkay MLP100 | In-Wall Carrier | For use with single-level EZ; LZ; ...
The Elkay MLP100 is a heavy-duty in-wall carrier designed to support single-station on-wall bottle fillers, coolers, and fountains. Built from galvanized steel with a black protective finish, it provides secure mounting and ADA flexibility for long-term reliability in commercial installations.
Key Specifications:
- Design: In-wall carrier for single-station on-wall bottle fillers, coolers, and fountains.
- Material: Galvanized steel construction with black finish.

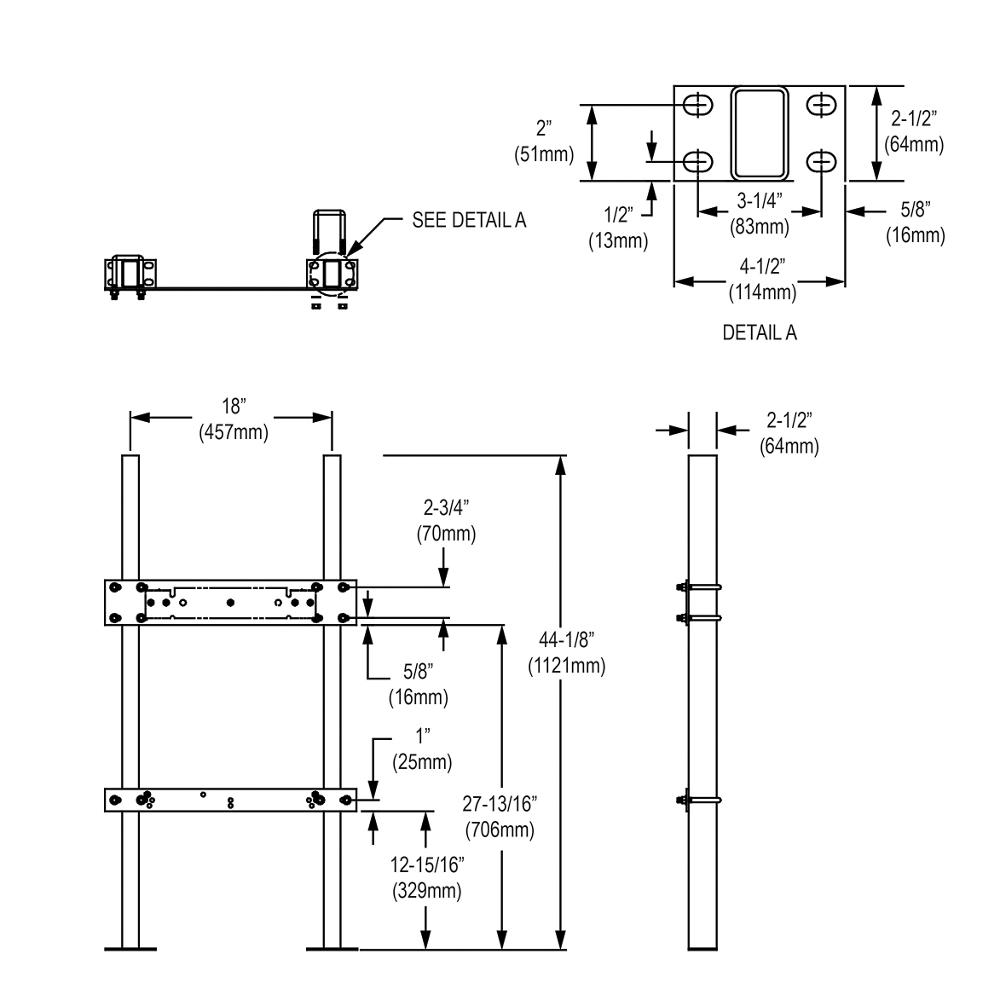

- Dimensions: 20-3/4" L x 2-11/16" W x 44-1/8" H.
- Load Capacity: Supports up to 500 lbs on load-bearing surfaces.
- Installation: Fits within standard 2" x 4" wall construction; adjustable height for adult or child ADA compliance.
Features & Benefits:
- Universal Support: Provides reinforcement for single-station on-wall hydration units.
- ADA Flexibility: Adjustable height settings allow adult or child ADA installation.
- Durable Build: Heavy-gauge steel ensures long-term strength and stability.
- Easy Integration: Secures directly to a variety of load-bearing surfaces.
What's Included:
- MLP100 Mounting Carrier Assembly
- Installation hardware and instructions
- Warranty coverage per Elkay specifications
FAQ
Q: What units are compatible with the MLP100?
A: The MLP100 is designed for single-station on-wall bottle fillers, coolers, and fountains across Elkay’s EMA, EZ, HAC, HTVZ, HVR, and VRC series.
Q: Does the MLP100 provide ADA compliance?
A: Yes. The adjustable height settings allow installation for both adult and child ADA requirements.
Q: How much weight can the MLP100 support?
A: The carrier is engineered to support up to 500 lbs when properly installed on load-bearing surfaces.
Q: Can the MLP100 be used in standard wall construction?
A: Yes. It can be installed in as little as a 2" x 4" wall cavity, making it suitable for most commercial building layouts.
Q: What is the difference between MLP100 and MLP200?
A: The MLP100 is designed for single-station units, while the MLP200 is engineered for bi-level on-wall bottle fillers, coolers, and fountains, providing the same heavy-duty support for dual-station installations.
NOTICE: Ensure installation is performed on load-bearing surfaces and in compliance with ADA requirements. Improper installation may reduce performance or safety.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
- Position the upper and lower mounting plates behind the finished wall at the correct height for your cooler model.
- Secure support columns, threaded rods, U‑bolts, nuts, and washers as shown in the kit instructions.
- Ensure the hanger bracket furnished with the cooler is aligned to the proper mounting height.
- Drill mounting holes as required and fasten the frame securely to wall studs.
- Trim U‑bolts and threaded rods if needed after installation.
- For ADA installations, reduce mounting height by 3" for children’s coolers.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber.
- Inspect mounting hardware periodically to ensure cooler remains securely supported.
- Tighten nuts and bolts if any loosening occurs over time.
- Check wall integrity around the frame during routine service of the cooler.
- Clean exposed surfaces with a soft cloth and mild cleaner.
- For service or repairs, consult the manual or a licensed technician.
