Elkay EZ8WSSSMC | Surface Mount Bottle Filler | Filterless, Refrige...

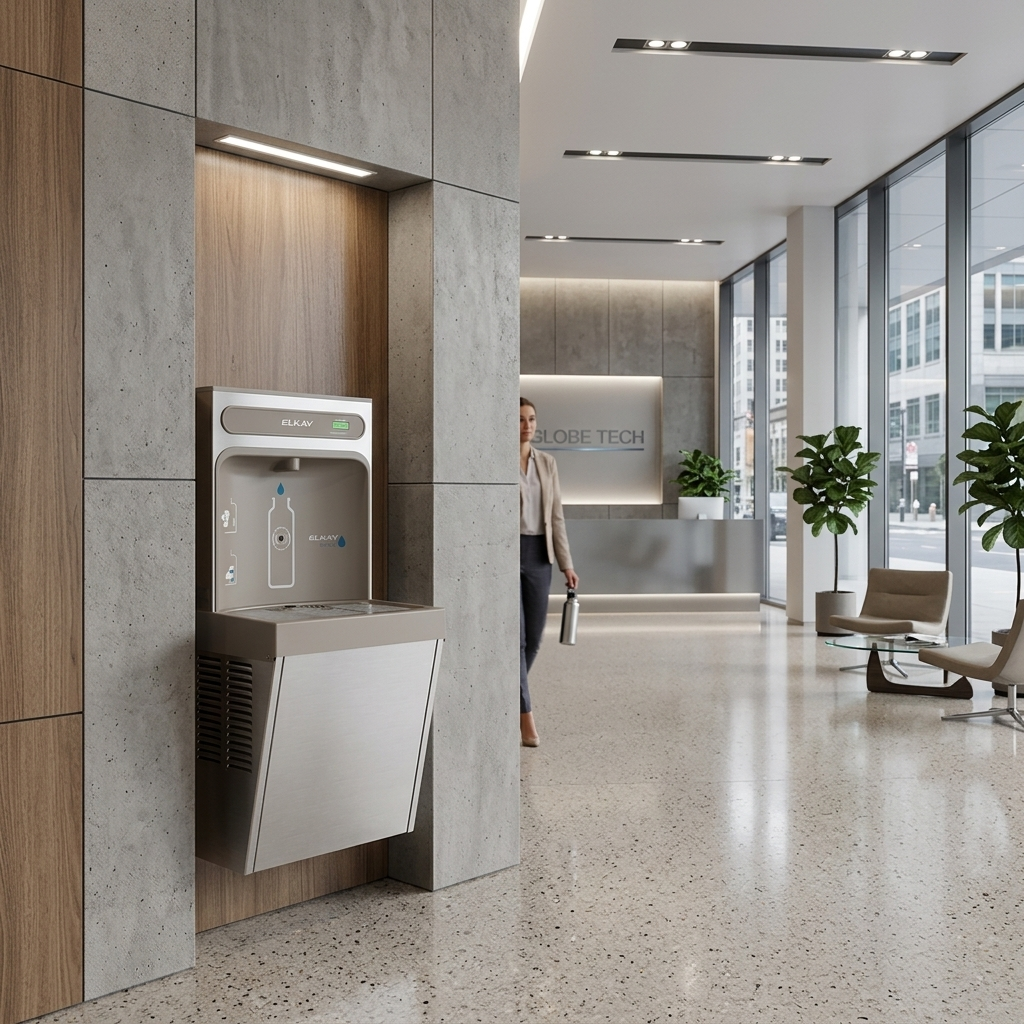

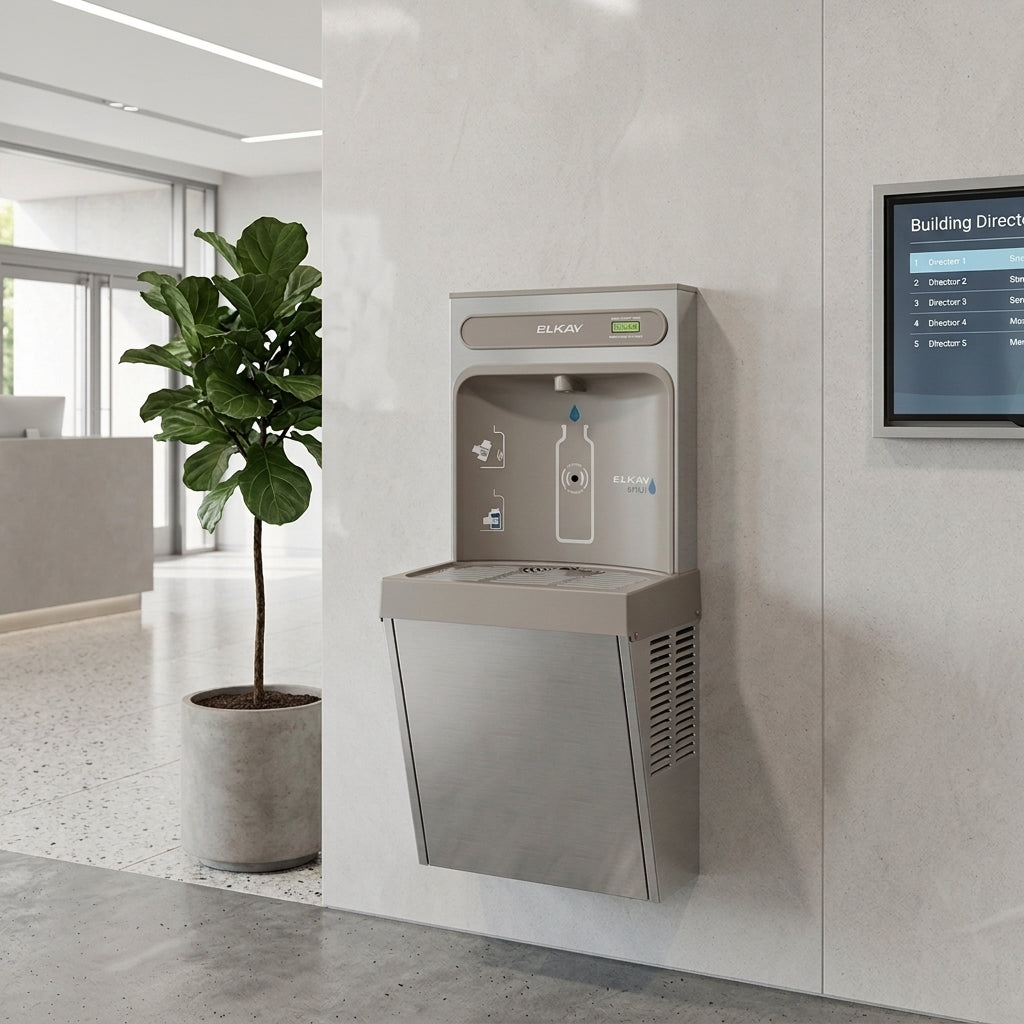

The Elkay EZ8WSSSMC ezH2O® Refrigerated Surface Mount Bottle Filling Station provides hands-free bottle filling with 8.0 GPH chilled water performance in a compact wall-mounted design. Ideal for schools, offices, healthcare facilities, and commercial spaces, this unit features sensor activation, antimicrobial protection, laminar flow delivery, and a Real Drain System for improved hygiene and user convenience.
Key Specifications:
| Design | Surface-mount refrigerated bottle filling station with sensor activation and no bubbler. |
| Finish | Stainless Steel. |
| Filtration | Non-filtered. For a filtered refrigerated option, choose the LZ8WSSSMC. |
| Refrigeration | 8.0 GPH chilled water capacity delivering 50°F drinking water based on 80°F inlet water and 90°F ambient temperature. |
| Stations Served | 1 station (bottle filler only). |
Features & Benefits:
- Hands-Free Operation: Sensor activation provides hygienic bottle filling with minimal user contact.
- Laminar Flow Delivery: Provides a clean fill with reduced splashing.
- Antimicrobial Protection: Key plastic components help resist staining and odors.
- Real Drain System: Eliminates standing water for improved cleanliness.
- 8.0 GPH Refrigeration: Delivers chilled drinking water for high-traffic environments.
What's Included:
- Elkay EZ8WSSSMC Refrigerated Surface Mount Bottle Filling Station
- Factory-installed refrigeration system
- Wall mounting bracket
- Installation instructions
Comparison of Elkay Surface Mount Bottle Filling Stations:
| Feature | EZ8WSSSMC (This Model) | EMASM |
|---|---|---|
| Design | Surface-Mount Refrigerated Bottle Filler | Surface-Mount Bottle Filler |
| Finish | Stainless Steel | Stainless Steel |
| Filtration | Non-Filtered | Non-Filtered |
| Refrigeration | 8.0 GPH Chilled Water | Non-Refrigerated |
| Power Requirement | 115V Electrical Service Required | No Electrical Service Required |
| Stations Served | 1 Bottle Filling Station | 1 Bottle Filling Station |
| Best For | Facilities needing chilled drinking water and touchless bottle filling | Locations requiring a bottle filler without electrical service |
FAQ
Q: Does The Elkay EZ8WSSSMC Include Filtration?
A: No. The Elkay EZ8WSSSMC is a non-filtered model. For built-in filtration, choose the LZ8WSSSMC.
Q: Is The Elkay EZ8WSSSMC ADA Compliant?
A: Yes. The Elkay EZ8WSSSMC complies with ADA and ICC A117.1 accessibility requirements when installed according to applicable guidelines.
Q: What Is The Chilling Capacity Of The Elkay EZ8WSSSMC?
A: The Elkay EZ8WSSSMC delivers 8.0 gallons per hour of 50°F chilled drinking water based on 80°F inlet water and 90°F ambient conditions.
Q: What Are The Installation Requirements For The Elkay EZ8WSSSMC?
A: Installation requires a dedicated 115V/60Hz electrical outlet, GFCI protection, a 3/8" O.D. copper water supply line, and a 1-1/4" waste outlet with proper wall support.
Q: What Is The Difference Between The Elkay EZ8WSSSMC And Elkay LZ8WSSSMC?
A: Both units provide 8.0 GPH chilled water and hands-free operation. The LZ8WSSSMC adds built-in filtration, while the EZ8WSSSMC is non-filtered.
Q: What Is The Difference Between The Elkay EZ8WSSSMC And Elkay EMASM?
A: The EZ8WSSSMC is refrigerated and requires electrical service, delivering 8.0 GPH chilled water. The EMASM is a non-refrigerated, non-electric surface-mount bottle filler designed for locations where power is unavailable.
Q: Does The Elkay EZ8WSSSMC Use Touchless Activation?
A: Yes. The bottle filler uses an electronic sensor that automatically activates water flow when a bottle is placed within the sensing range.
Q: Can The Elkay EZ8WSSSMC Be Installed Outdoors?
A: No. The EZ8WSSSMC is designed for indoor applications only.
Q: Does The Elkay EZ8WSSSMC Include A Drinking Fountain?
A: No. This model is a bottle filler only and does not include a bubbler or drinking fountain.
Q: What Features Help Keep The Elkay EZ8WSSSMC Clean?
A: The unit incorporates antimicrobial-treated components, laminar flow water delivery, and a Real Drain System that eliminates standing water in the basin area.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
The Elkay EZ8WSSSMC is a surface‑mount, refrigerated bottle filling station featuring hands‑free sensor activation and a filterless design. Ideal for schools, offices, healthcare facilities, and commercial environments where recessed installation is not practical, it provides chilled drinking water while minimizing maintenance associated with filter replacement.
Key Installation Requirements:
- Surface‑mount installation on a properly supported wall structure
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connection required for proper operation
- Provide adequate clearance for refrigeration service and maintenance
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Unit is filterless and delivers chilled water only
- Always depressurize the water line before servicing
- Ensure the sensor activation area remains unobstructed for reliable operation
- Provide adequate ventilation clearance around refrigeration components
- Inspect all plumbing and electrical connections before placing the unit into service
Basic Installation Overview:
- Prepare the mounting location and verify wall support requirements
- Install the mounting hardware and secure the surface‑mount frame
- Connect the cold water supply line and flush plumbing thoroughly
- Connect the drain line to the building drainage system
- Mount the bottle filling station assembly securely to the frame
- Connect electrical power to a grounded outlet
- Pressurize the system and inspect all plumbing connections for leaks
- Test sensor activation, water flow, and cooling performance
- Install access panels and complete final adjustments
For complete specifications and installation guidelines, download the official EZ8WSSSMC Spec Sheet and the Installation Manual.
