Elkay EMASM | Surface Mount Bottle Filler | Filterless, Non-refrige...

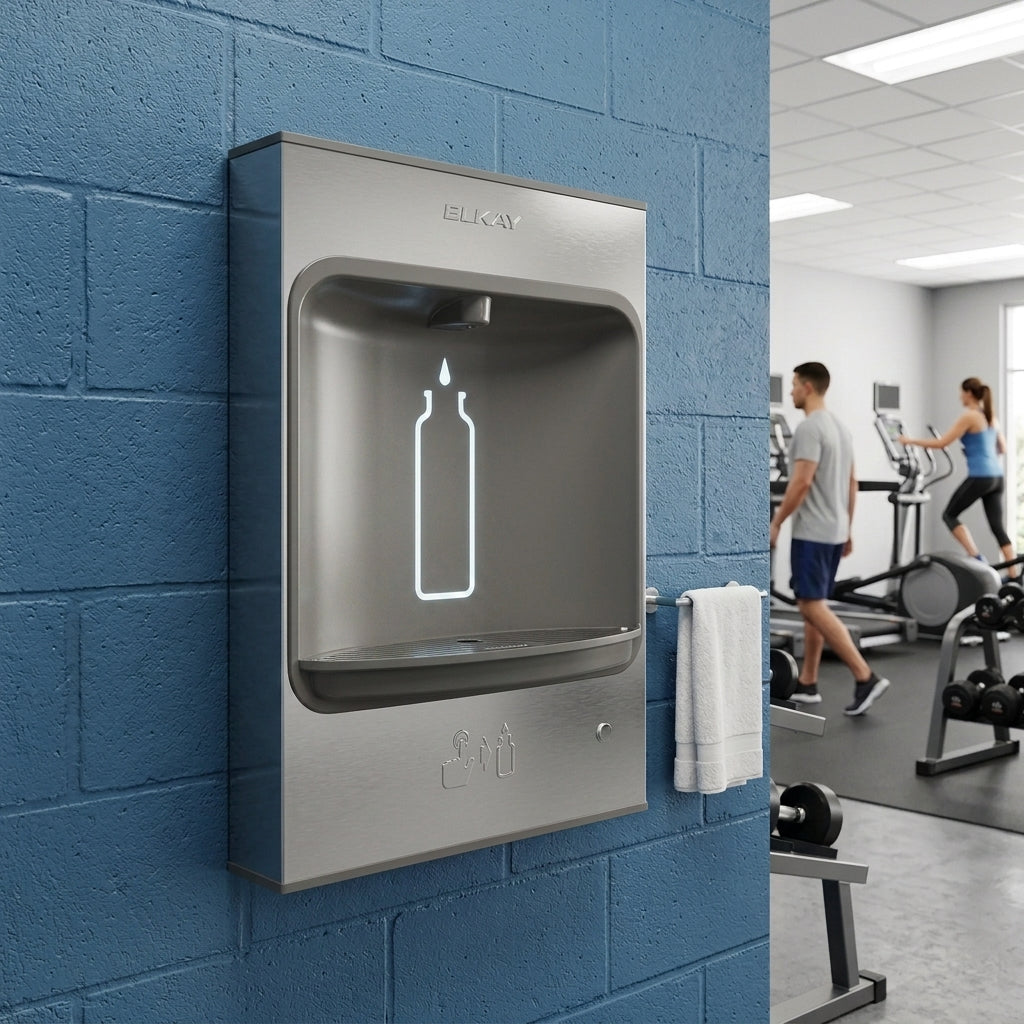

The Elkay EMASM is a mechanically-activated, surface-mount bottle filling station designed for indoor environments. It provides quick, hygienic fills via push-button activation and requires no electricity, making it ideal for locations with limited wall depth or electrical access.
Key Specifications:
- Design: Surface-mount, mechanically activated bottle filler
- Finish: Stainless steel
- Filtration: Not included. For filtered option, choose the LMASMB
- Refrigeration: Non-refrigerated (compatible with ECH8 or ECH8GRN remote chillers)
- Stations Served: 1 (single bottle filler)
Features & Benefits:
- Eco-Friendly Hydration: Encourages reusable bottles, reducing plastic waste.
- Antimicrobial Protection: Key plastic components feature silver ion antimicrobial agents for cleaner surfaces.
- Laminar Flow: Provides a clean, splash-free fill for a superior user experience.
- Real Drain System: Eliminates standing water, enhancing hygiene and reducing maintenance.
- ADA Compliant: When properly installed, ensures accessibility for all users.
FAQ
Q: Does the EMASM Come With a Chiller?
A: No. However, the EMASM can be paired with a remote chiller installed within 15 ft. Use the ECH8 or ECH8GRN remote chillers for chilled water applications.
Q: Does the EMASM Include Drainage?
A: Yes. The EMASM includes a real drain system to eliminate standing water.
Q: Can Someone Drink Directly From the EMASM Without a Bottle?
A: No. Unlike stations with a bubbler, such as the LZS8WSLP, the EMASM is intended only for filling reusable bottles, cups, or containers.
Q: Does the EMASM Require Electricity or Batteries?
A: No. The EMASM is fully mechanical, requiring no electricity or batteries, ensuring continued water supply even during power outages. For a battery‑powered option, choose the EMASMB.
Q: Is the EMASM Filtered, and Can Filtration Be Added?
A: No, the standard EMASM does not include filtration. For a filtered option, select the LMASMB.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
- Ensure the wall is structurally sound to bear the load of the Elkay EMASM surface‑mount bottle filler; install a wall support carrier if required.
- Confirm ambient operating temperature is between 50°F–100°F (10℃–38℃); indoor use only.
- Shut off the building water supply and attach a service stop valve with 3/8" compression outlet; purge line and check for leaks.

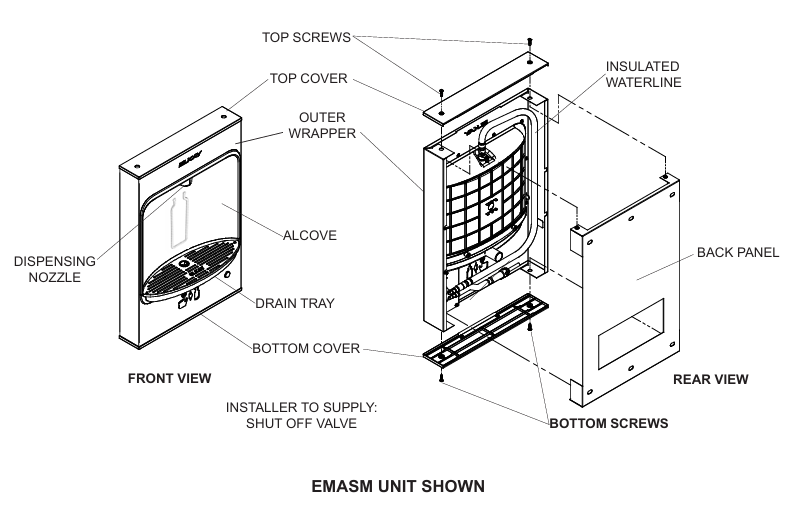

- Remove the top cover (two screws) and bottom cover (two screws) using a 5/32" hex wrench; remove the back panel.

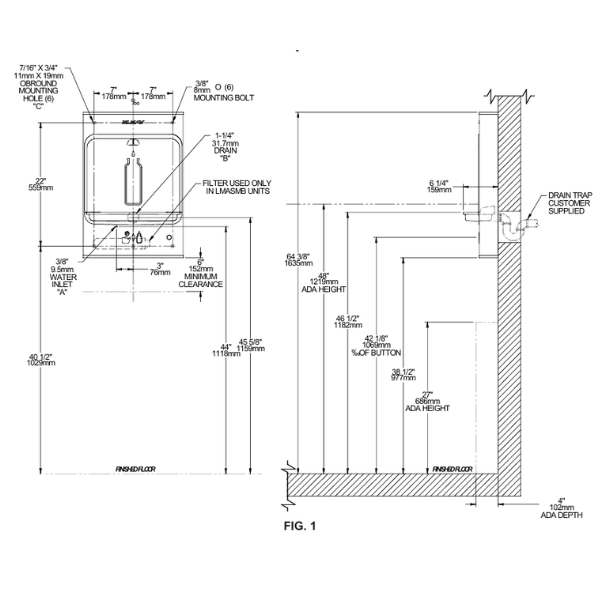

- Fasten the back panel to the wall through five 7/16" obround mounting holes using fasteners appropriate for wall type; align with rough‑in dimensions.
- Route the insulated waterline inside the wrapper before hanging the unit; reposition if necessary.
- Hang the bottle filler onto the back panel, aligning tabs at the top; secure by reinstalling the top cover and fastening with two screws.
- Replace the bottom cover and fasten with two screws; ensure proper fit over water and drain lines.
- Connect the 3/8" O.D. copper waterline from the in‑line strainer to the service stop valve.
- Connect the 1‑1/4" O.D. drain tray outlet to the in‑wall drain line using a slip joint union or compression clamp (not supplied).
- Turn on water supply, inspect for leaks, and correct any leaks before use.
- For detailed steps, refer to the Elkay EMASM installation manual or contact a licensed plumber.
- Inspect water connections regularly for leaks; tighten or reseal as needed.
- Clean exterior surfaces with mild soap and water; avoid abrasive cleaners that may damage finish.
- Check bubbler or actuator button for proper operation; adjust regulator screw if stream height varies.
- Clean aerator and nozzle periodically to remove mineral deposits; replace regulator or aerator kit if flow is restricted.
- Disconnect water supply before servicing internal components to avoid hazards.
- For service or repairs, consult the manual or a certified service representative.
