Elkay EMABFTLDDLC | Wall-mount Bi-Level Drinking Fountain | Filterl...
The Elkay EMABFTLDDLC is a non‑refrigerated, bi‑level ADA cooler designed to convert standard wall‑mount installations into accessible hydration stations. With mechanical front bubbler button activation and Flexi‑Guard® safety bubblers, it provides reliable service for two stations without requiring electrical power.
Key Specifications:
- Design: Bi‑level ADA wall‑mount cooler with mechanical activation
- Finish: Light Gray Granite, with stainless steel option available as EMABFTLDDSC
- Filtration: Non‑filtered, but can be retrofitted using the EWF172 Watersentry VII Filter Kit, or selected in a filtered configuration such as LMABFTLDDWSLK
- Refrigeration: Non‑refrigerated, mechanical activation continues to supply water during service disruptions
- Stations Served: 2
Features & Benefits:
- ADA Compliant: Meets ADA & ICC A117.1 accessibility requirements when installed properly
- Durable Construction: Rust‑resistant granite finish with optional stainless steel upgrade
- Reliable Hydration: Mechanical activation ensures water flow even during power outages
- Compact Installation: Wall‑mount design suitable for indoor commercial spaces
- Flexible Filtration: Compatible with Elkay retrofit kits and filtered model options
What's Included:
- EMABFTLDDLC Bi‑Level ADA Cooler
- Flexi‑Guard® Safety Bubblers
- Installation instructions (PDF)
- Warranty documentation
FAQ
Q: What Applications Are Best Suited for the EMABFTLDDLC?
A: This cooler is ideal for schools, offices, and public facilities needing a durable, non‑refrigerated bi‑level ADA compliant drinking solution.
Q: Does the EMABFTLDDLC Require Electrical Power?
A: No. It is mechanically activated and continues to supply water even during service disruptions.
Q: Can the EMABFTLDDLC Be Converted into a Refrigerated Cooler?
A: Yes. It can be paired with a remote chiller such as the Elkay ER101Y to provide chilled water service.
Q: What Accessories Are Available?
A: Optional accessories include the MLP200 In‑Wall Carrier, 98313C Cane Apron, and Elkay filtration kits (EWF172, EWF3000).
Q: Is the EMABFTLDDLC ADA Compliant?
A: Yes. It complies with ADA & ICC A117.1 accessibility standards when installed according to guidelines.
Q: What Is the Station Capacity?
A: The EMABFTLDDLC serves two stations simultaneously, making it suitable for high‑traffic areas.
Q: Can the Bubbler Be Upgraded to a Vandal‑Resistant Option?
A: Yes. The Flexi‑Guard® bubbler can be replaced with the Elkay 97446C Vandal‑Resistant Bubbler Kit for added durability in high‑traffic environments.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

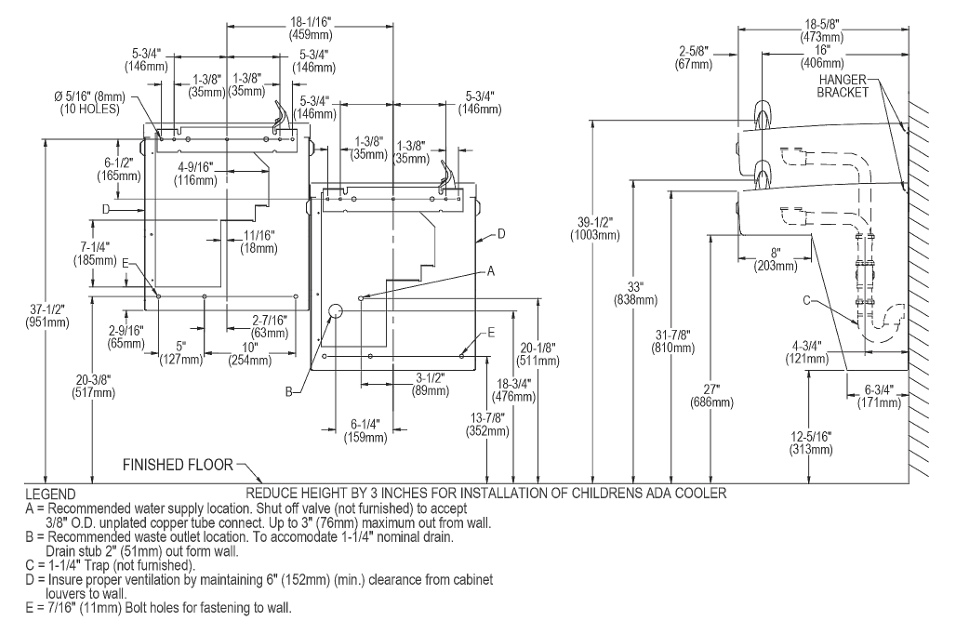

- Prepare wall framing and hanger bracket per rough‑in dimensions provided in the package manual.
- Mount hanger bracket securely using all designated holes; add support carrier if wall will not provide adequate support.
- Hang cooler on bracket, ensuring proper engagement with slots on the back panel.
- Remove front panel to access connections; connect water inlet line and install trap on waste outlet.
- If available, connect filter assembly and ensure proper orientation.
- If available, connect refrigeration components and verify ventilation clearance.
- Reconnect panel after plumbing is complete and check for leaks.
- Adjust bubbler stream height as needed; factory set at 35 psi.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber.
- Inspect bubbler orifice and regulator periodically; clean or adjust if flow is irregular.
- Check quick‑connect fittings and tubing for leaks; reseat if necessary.
- Clean basin and exterior surfaces with mild, non‑abrasive cleaner.
- If available, replace filter at recommended intervals.
- If available, service refrigeration components as required.
- For service or repairs, consult the manual or a licensed technician.
