Elkay EDFP214C | Wall-mount Soft-sides Drinking Fountain | Filterle...

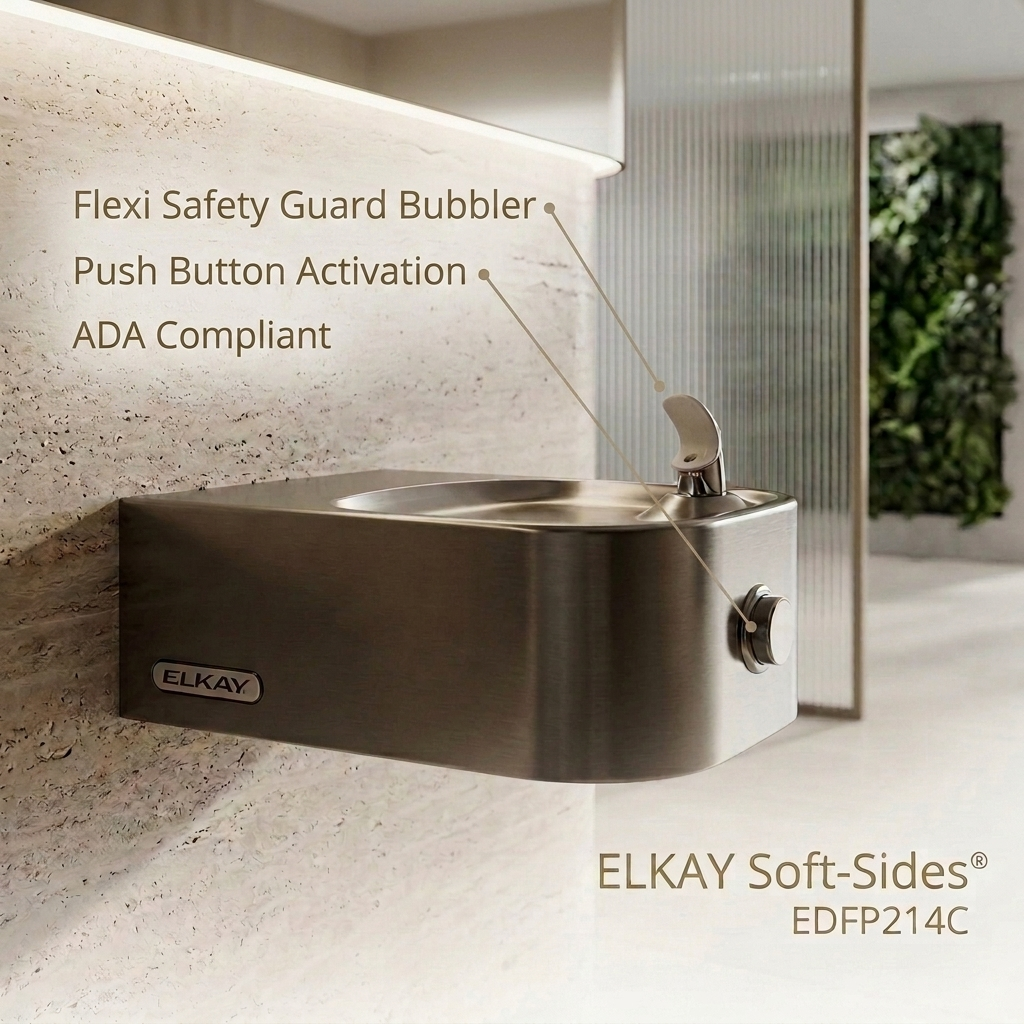

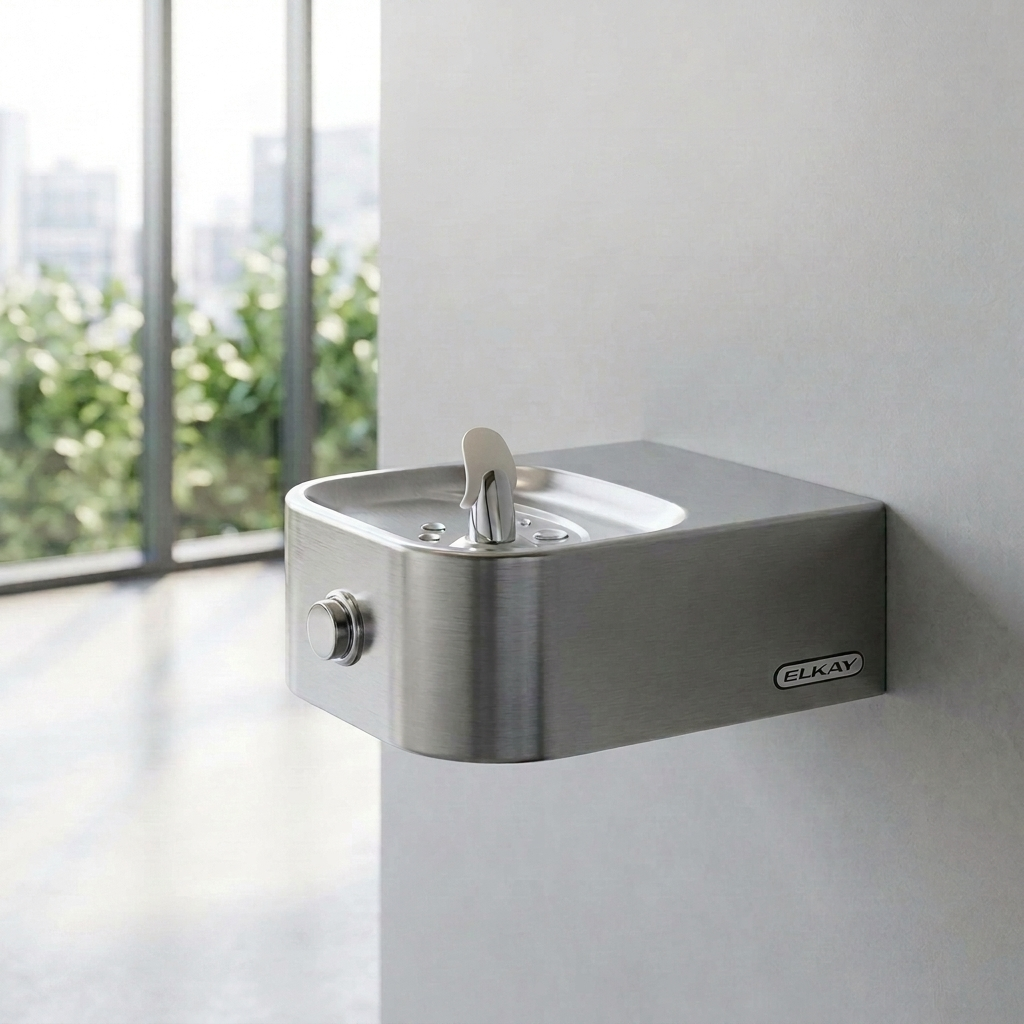

The Elkay EDFP214C Soft Sides® Single ADA Fountain is a non‑filtered, non‑refrigerated stainless steel drinking fountain designed for indoor and outdoor use. With its Flexi‑Guard® Safety Bubbler and mechanical front push‑button activation, this wall‑mounted fountain provides safe, reliable hydration while meeting ADA accessibility requirements.
Key Specifications:
| Design | Single‑station ADA fountain with mechanical front bubbler button |
| Finish | Stainless Steel |
| Filtration | Non‑filtered; compatible with optional retrofit kits (EWF172 Watersentry VII Filter Kit) |
| Refrigeration | Non‑refrigerated; mechanical activation continues to supply water during service disruptions |
| Stations Served | 1 |
Features & Benefits:
- ADA Compliant: Meets ADA and ICC A117.1 accessibility requirements when installed correctly.
- Durable Build: Stainless steel body with Flexi‑Guard® Safety Bubbler for added protection.
- Reliable Operation: Mechanical activation ensures water supply even during electrical service interruptions.
- Indoor/Outdoor Use: Suitable for both environments when properly winterized or protected from extreme heat.
What's Included:
- EDFP214C fountain unit
- Flexi‑Guard® Safety Bubbler
- Mechanical front push‑button assembly
- Installation instructions
Comparison of ADA Fountains:
| Feature | EDFP214C | EDFP214FPK | EDFP214FC |
|---|---|---|---|
| Finish | Stainless Steel | Stainless Steel | Stainless Steel |
| Filtration | Non‑filtered; retrofit option available | Non‑filtered | Non‑filtered |
| Special Features | Flexi‑Guard® Safety Bubbler, mechanical activation | Freeze‑Resistant system for outdoor climates | Glass Filler Prepped, vandal‑resistant bubbler |
| Best For | Indoor/outdoor ADA hydration with optional filtration | Cold‑climate installations requiring freeze protection | Indoor ADA installations needing vandal‑resistant bubbler and glass filler prep |
FAQ
Q: Is The Elkay EDFP214C ADA Compliant?
A: Yes. The Elkay EDFP214C complies with ADA and ICC A117.1 standards when installed at the proper height and clear floor space.
Q: Does The Elkay EDFP214C Require Electricity?
A: No. The Elkay EDFP214C is mechanically activated and does not require electrical power.
Q: Can Filtration Be Added To The Elkay EDFP214C?
A: Yes. The Elkay EDFP214C is compatible with the EWF172 Watersentry VII Filter Kit (1500‑gallon capacity).
Q: Can The Elkay EDFP214C Be Installed Outdoors?
A: Yes. The Elkay EDFP214C is suitable for indoor and outdoor use when properly winterized or protected from extreme heat.
Q: What Accessories Are Available For The Elkay EDFP214C?
A: Accessories include the MPW101 In‑Wall Mounting Plate and the AP99 Access Panel, which support installation and maintenance needs.
Q: Is There A Wall Plate Available For The Elkay EDFP214C?
A: Yes. The Elkay WP2 Wall Plate is designed specifically for use with the EDFP210C and EDFP214C models, providing added support and a clean installation finish.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact Us

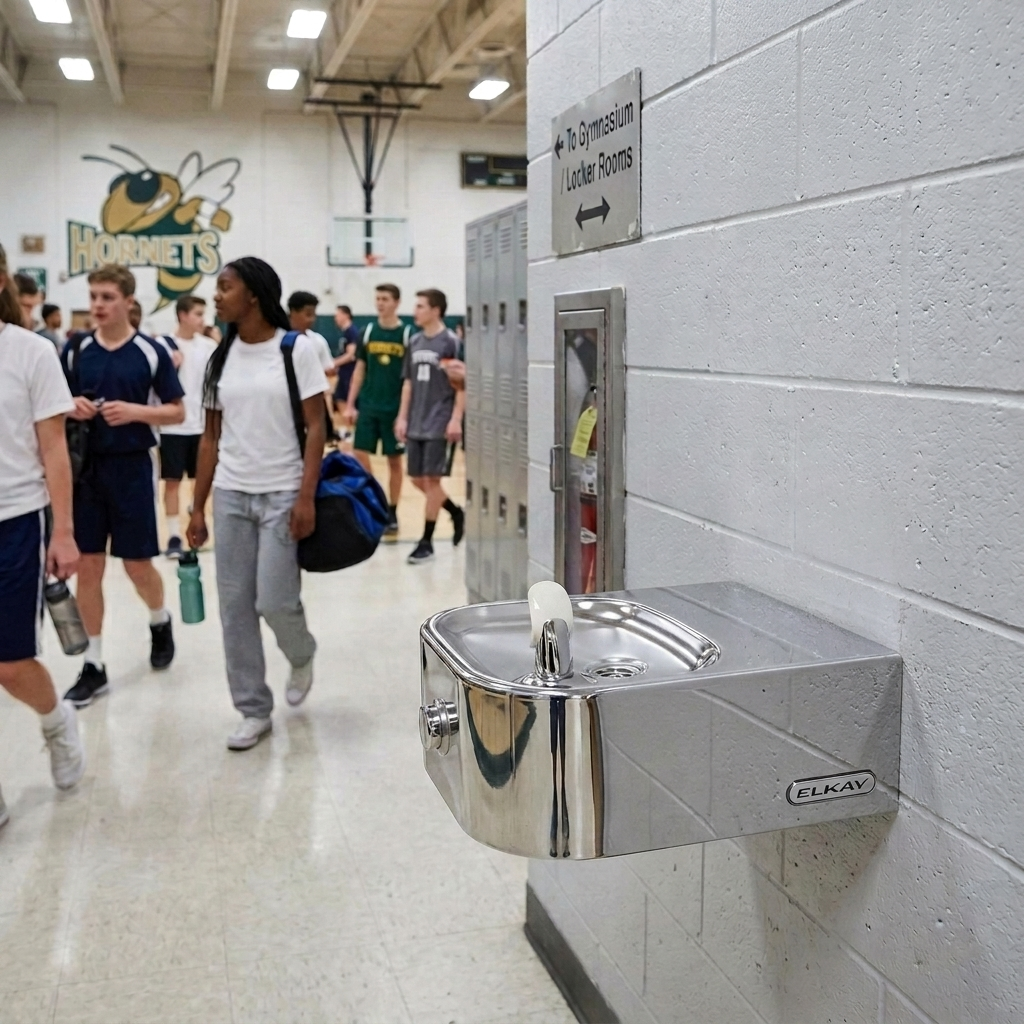

The Elkay EDFP214C Soft Sides® Wall‑Mount Drinking Fountain provides non‑filtered, non‑refrigerated water service in a durable stainless steel design. Featuring the Flexi‑Guard® Safety Bubbler and ADA compliance, it is ideal for schools, offices, and public facilities.
Key Installation Requirements:
- Wall‑mounted installation with proper carrier support
- Cold water line only (40–100°F operating temperature)
- Supply line pressure: 20–105 PSI (regulator required if above 105 PSI)
- Drain connection required for fountain basin
- Maintain clearance for servicing and accessibility
- Follow ADA guidelines for installation height and reach ranges
Important Notes Before Installing:
- Do not connect to hot water lines
- Unit is non‑filtered; optional retrofit filtration kits are available separately
- Always depressurize water line before servicing
- Indoor installation only; protect from freezing conditions
- Ensure proper drainage to avoid water damage from spillage
- Use genuine Elkay accessories for compatibility and compliance
Basic Installation Overview:
- Mount in‑wall carrier securely to support fountain weight
- Position fountain and secure to wall structure
- Connect cold water supply line to inlet
- Connect drain line from basin to building drain system
- Pressurize system slowly and check for leaks
- Test bubbler stream height; adjust regulator if needed
- Install bottom cover plate and finish trim
For complete specifications and installation guidelines, download the official EDFP214C Spec Sheet and the Installation & Maintenance Manual.
