Elkay EDF15R | Bracket Drinking Fountain | Filterless, Non-refriger...

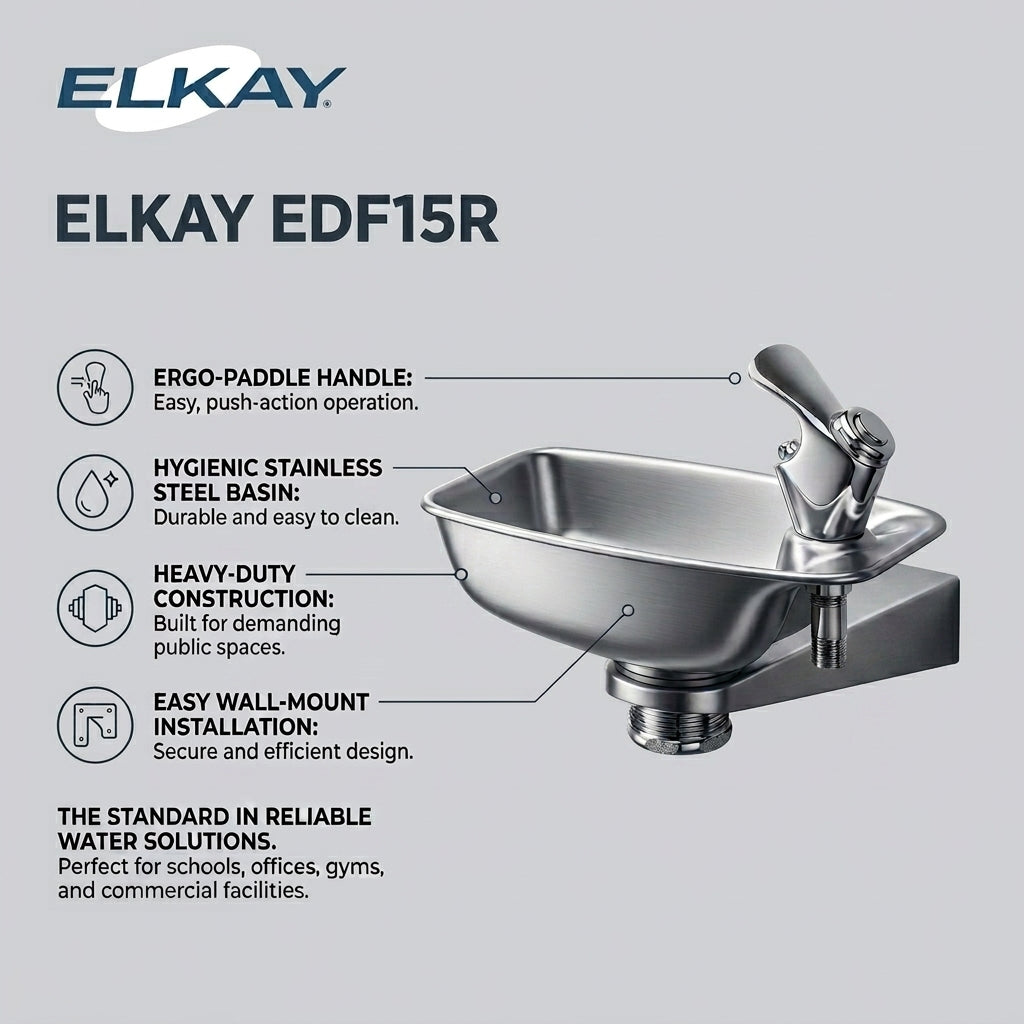

The Elkay EDF15R is a non‑filtered, non‑refrigerated stainless steel bracket fountain designed for wall‑mount installation. With mechanical top push‑button activation, it provides dependable hydration for single‑station use in both indoor and outdoor environments.
Key Specifications:
- Design: Wall‑mount bracket fountain with mechanical activation
- Finish: Stainless Steel
- Filtration: Non‑filtered
- Refrigeration: Non‑refrigerated
- Stations Served: 1
Features & Benefits:
- Indoor + Outdoor Use: Suitable for a variety of environments when properly winterized or protected in extreme climates
- Durable Construction: Stainless steel finish resists corrosion and wear
- Compact Design: Small footprint ideal for tight installation spaces
- Reliable Hydration: Mechanical push‑button activation ensures water flow without electricity
- Certified Compliance: Meets ASME A112.19.3/CSA B45.4 and NSF/ANSI 61 & 372 standards
What's Included:
- EDF15R Bracket Fountain
- Push‑button bubbler assembly
- Installation instructions (PDF)
- Warranty documentation
FAQ
Q: What Is the Recommended Water Pressure for the EDF15R?
A: The fountain is rated for inlet water pressure of 20–90 psi. If supply pressure exceeds 90 psi, a pressure reducing regulator should be used.
Q: How Is the Bubbler Stream Height Adjusted?
A: The stream regulator is factory set at 45–50 psi. To adjust, remove the retaining nut and button from the bubbler assembly and turn the screw on the regulator. Clockwise raises the stream height, counterclockwise lowers it. A stream height of approximately 1" (25 mm) is recommended.
Q: What Maintenance Is Required?
A: Mineral deposits in the orifice can be removed using a round file or small diameter wire. Care must be taken not to damage the orifice assembly.
Q: Where Can the EDF15R Be Installed?
A: It is designed for wall‑mount installation on smooth, flat, finished wall surfaces with adequate support. Suitable for indoor and outdoor use when properly winterized or protected in extreme climates.
Q: What Is the Station Capacity?
A: The EDF15R serves one station.
Q: Can the Bubbler Be Replaced?
A: Yes. The bubbler assembly can be replaced with the Elkay LK142 Pushbutton Bubbler for continued reliable operation.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
- Mount the Elkay EDF15R fountain on a smooth, flat, finished wall surface with adequate support structure.
- Establish the rim height at which the fountain is to be mounted, following ADA or local requirements if applicable.

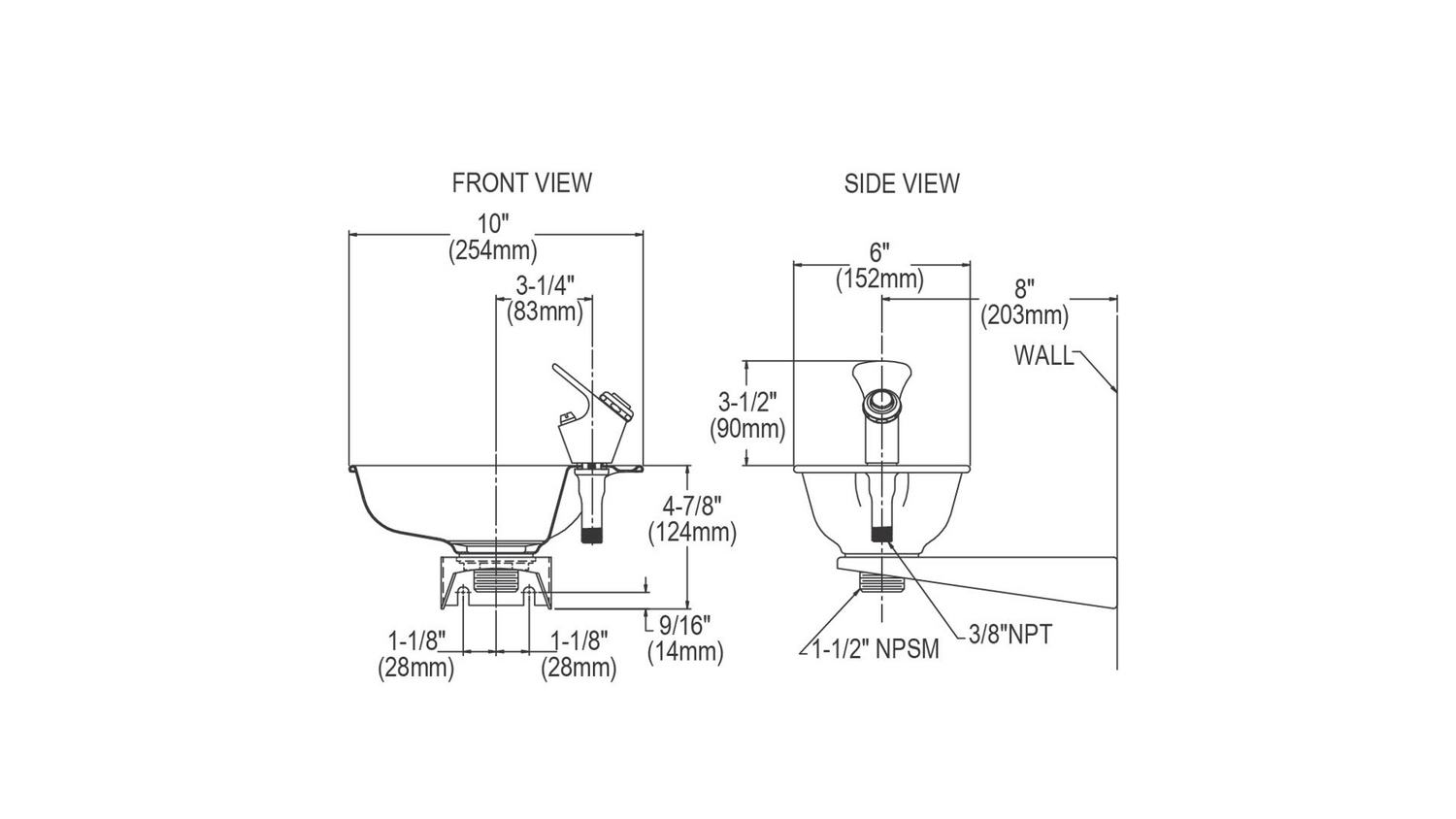

- Refer to the rough‑in diagram for plumbing layout and dimensions.
- Locate and install the trap (not included) beneath the fountain.
- Install a shut‑off valve (not included) on the building water supply line.
- Secure the fountain to the wall using 1/4" (6 mm) lag screws or bolts (not included).
- Connect the fountain to the building supply line by running a water line between the shut‑off valve and the fountain inlet.
- Turn on the water supply and check all connections for leaks.
- Adjust the bubbler stream height using the regulator screw; recommended stream height is approximately 1" (25 mm).
- For detailed steps, refer to the Elkay EDF15R installation manual or contact a licensed plumber.
- Inspect the bubbler orifice periodically for mineral deposits; clean using a round file or small diameter wire.
- Adjust the stream regulator if supply pressure varies; clockwise raises stream height, counterclockwise lowers it.
- Recommended stream height is 1" (25 mm) at 45–50 psi supply pressure.
- Check all water connections regularly for leaks and reseal if necessary.
- Clean exterior surfaces with mild soap and water; avoid abrasive cleaners that may damage the finish.
- Disconnect water supply before servicing internal components to avoid hazards.
- For service or repairs, consult the manual or a certified Elkay service representative.
