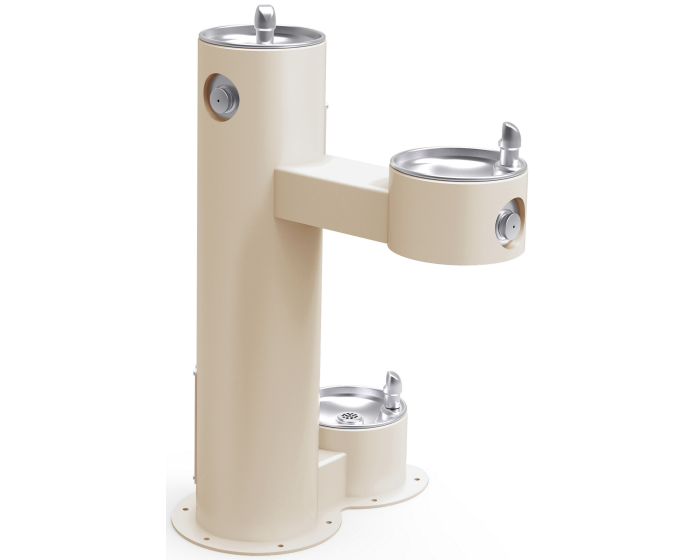

Elkay LK4420DB | Freestanding Outdoor Drinking Fountain | Includes a Dog-bowl / Pet fountain
Elkay LK4420DB | Freestanding Outdoor Drinking Fountain | Includes a Dog-bowl / Pet fountain - evergreen is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
To install Elkay Freestanding, Outdoor Bottle Filling Stations, ensure the surface is smooth, flat, and finished, capable of supporting at least 300 lbs. Protect the unit from extreme temperatures if it’s in a non-temperature-controlled environment. A licensed plumber should perform the installation, and a shut-off valve must be installed on the water supply (not included).
- Refer to the rough-in for plumbing.
- Secure the unit with 3/8" fasteners (not included).
- Connect the water supply and drain lines, adhering to local codes. Use a 3/8" O.D. unplated copper tube for the water supply and a 1-1/2" IPS for waste.
- Flush the copper lines to remove debris before connecting. Push tubes straight into fittings without soldering.
- Position the drain pipe and aesthetic collar correctly, then secure the bottle filler with the provided hardware.
Maintenance
To keep your Elkay Bottle Filling Station in optimal condition:
- Clean the exterior regularly with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Inspect water connections for leaks regularly.
- Ensure the water inlet pressure is between 20-105 PSI. Use a pressure-reducing regulator if it exceeds 105 PSI.
- Winterize the unit if it’s in a non-temperature-controlled environment.
- Flush the supply lines regularly to prevent sediment buildup.
Refer to the product manual for detailed installation and maintenance tips.
Elkay LK4420DB | Freestanding Outdoor Drinking Fountain | Includes ...
*PLEASE NOTE: Colors besides Evergreen, Black, Blue, & Gray require a minimum order quantity of 10 units. Contact us for more details.
Hydrate Everyone, Everywhere - Including Your Furry Friends!

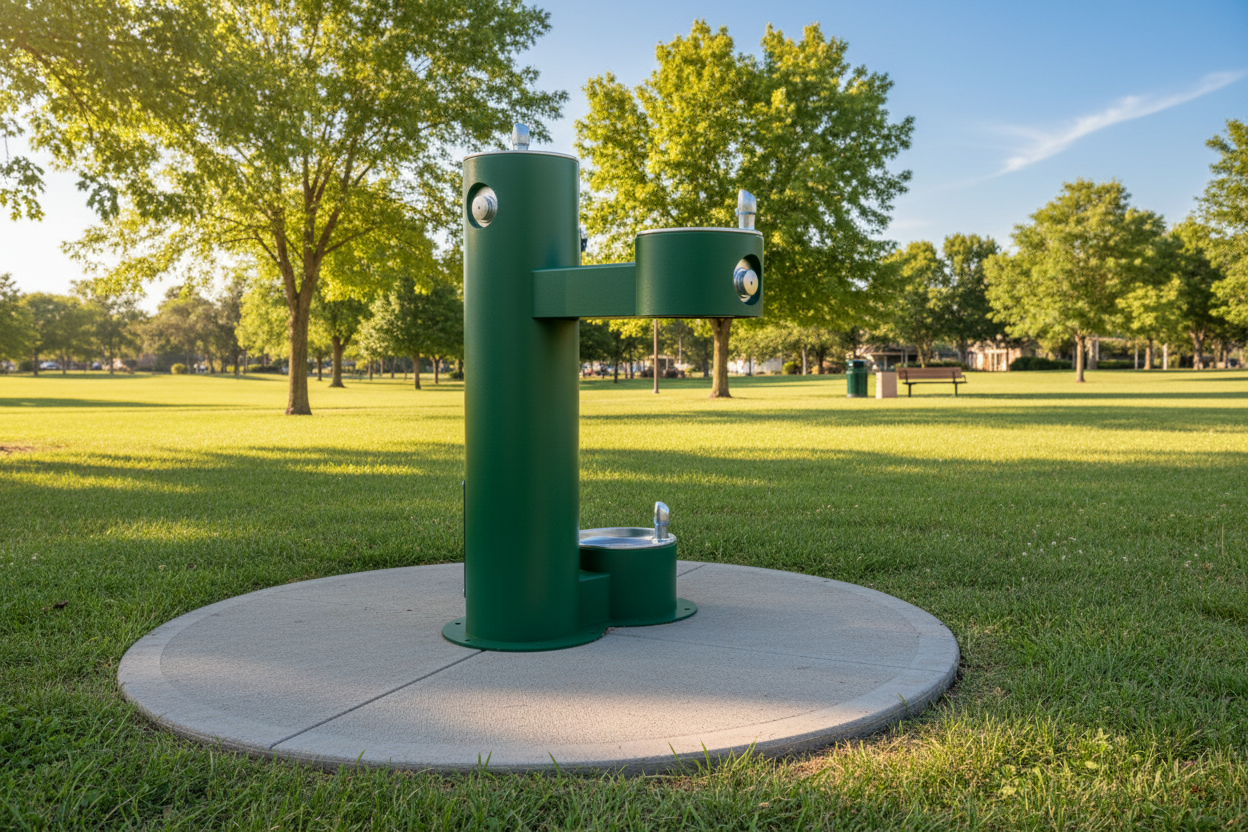

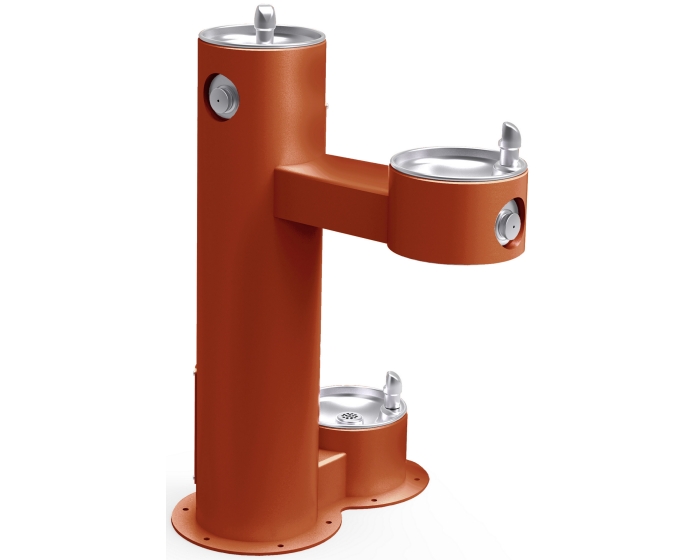

The Elkay LK4420DB Outdoor Pedestal Drinking Fountain with Pet Station is the perfect hydration solution for parks, playgrounds, and outdoor recreational areas. Designed for durability and ease of use, this fountain ensures fresh, cool water for all visitors, including pets.
Key Specifications
- Two (2) Fountains
- One (1) Dog / Pet Bowl
- Non-refrigerated (add remote chiller under proper conditions)
- Non-filtered (select EF3000VRBC "Add On" for in-line filtration)

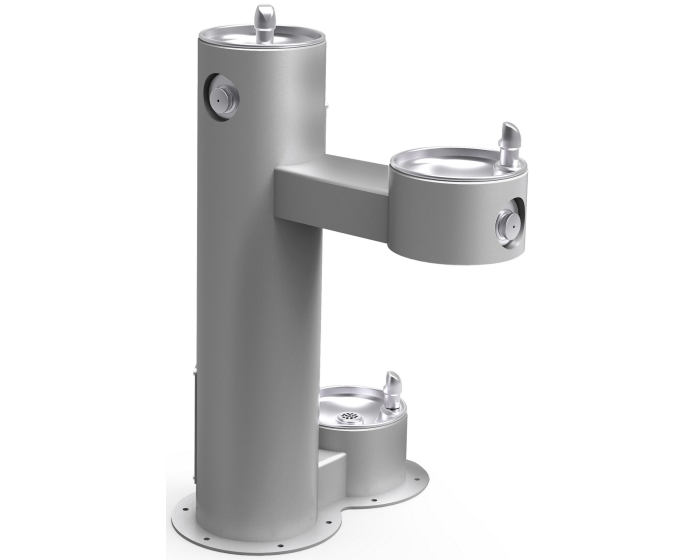

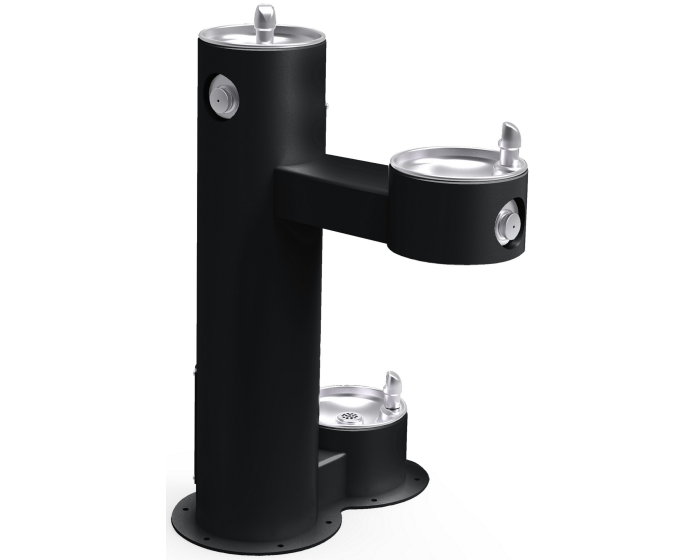

- Evergreen, Black, Blue, Gray color options (others require minimum order of 10 units)
Key Features & Benefits
- Dual Drinking Fountains: Two drinking fountains at different heights to accommodate both adults and children, ensuring accessibility for all.
- Durable Construction: Built with heavy-gauge stainless steel with a powder-coated finish, this fountain withstands the harshest weather conditions and resists vandalism.
- Pet Station: Includes a lower pet bowl, making it easy to keep your four-legged companions hydrated.
- Corrosion protection from E-Coat immersion process coat.
FAQ
Q: Are Filtered versions of the LK4420DB drinking fountain available?
A: Outdoor Fountains & Bottle Fillers do not come with filters, because water could freeze if you live in a cold climate.
However, you can set up an in-line filtration in a wall or a close-by building with suitable temperatures.
Select the EF3000VRBC filtration kit "Add-On" to supply filtered water.
Contact us at support@bottlefillingstations.com or (855) 558-9600 if you have any questions.
Q: Are Refrigerated versions of the LK4420DB drinking fountain available?
A: Outdoor Fountains do not come included with chillers.
However, you can supply refrigerated water by installing a remote chiller within 15 feet of the fountain. Proper housing conditions must apply to assure the remote chiller is protected from any elements.
Add to Cart the ECH8 (8 Gallon / Hour) or ER101Y (10 Gallon / Hour) remote chiller to provide cold water.
Q: What colors are available for the Elkay LK4420DB?

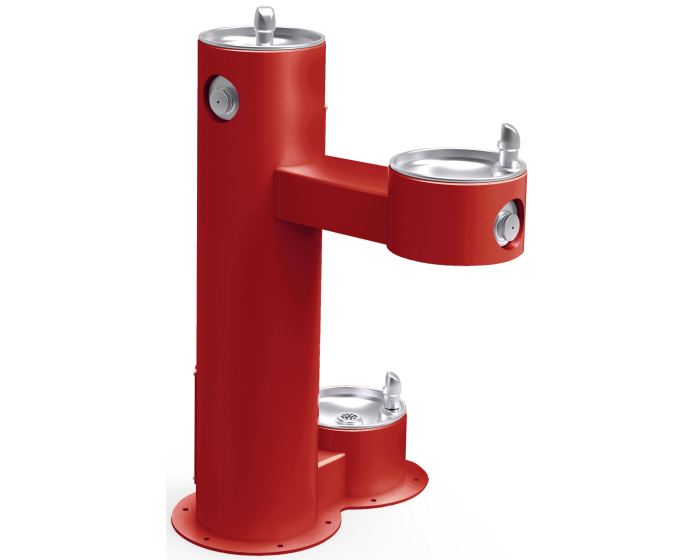

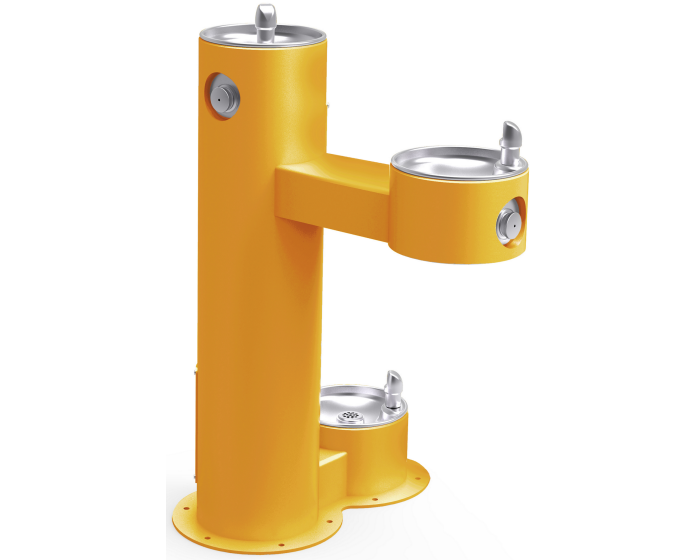

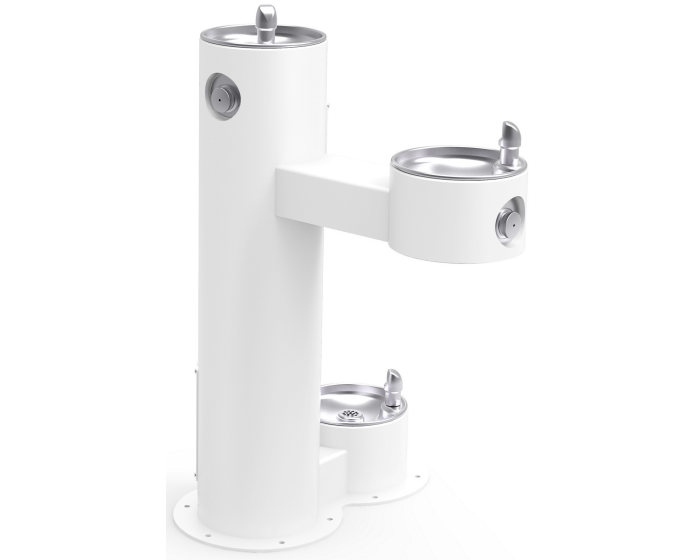

A: This outdoor drinking fountain comes standard in Evergreen, Black, Blue, and Gray. Other color options below require a minimum order of 10 units.
Q: Are Outdoor drinking fountains durable?
A: Yes, Elkay outdoor drinking fountains are very durable. They are made with heavy-duty steel with textured powder-coat finish and E-coat immersion for year-round protection with minimum maintenance.
*MADE IN THE UNITED STATES.
