Elkay  |  SKU: LZWSRK

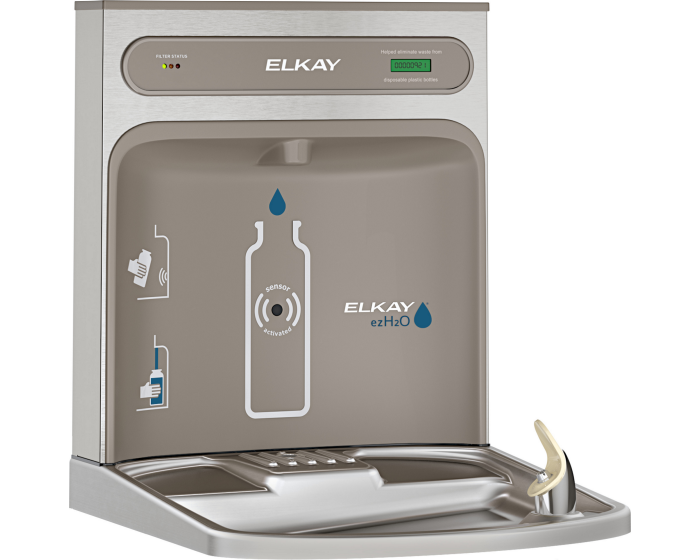

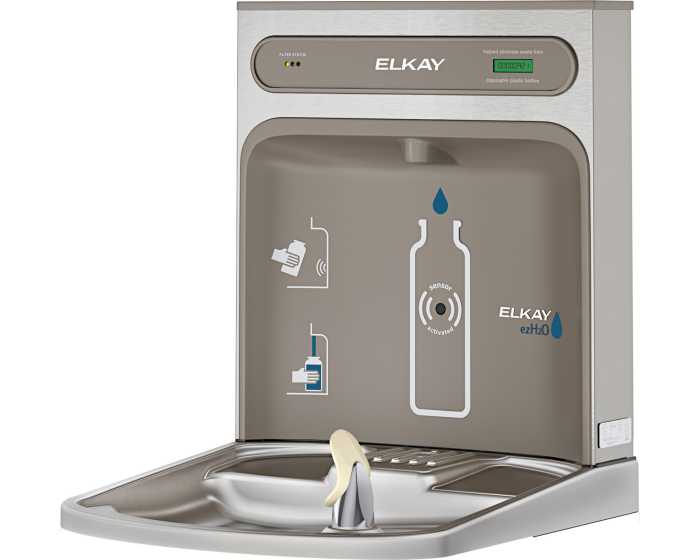

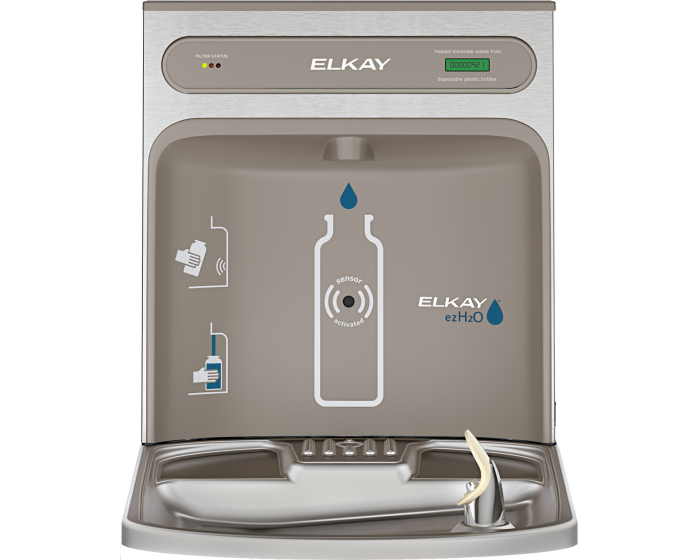

Elkay LZWSRK | Retrofit Bottle Filler | Filtered (For use with EZ-style fountains)

$ 846.00
Shipping calculated at checkout.


In Stock
Free Shipping

Product Care Information

Installation

  • Elkay Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of of service professionals cover your area.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.

Maintenance

Cleaning

It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit.  It is also recommended to clean the flexible fill mat.  Remove the four screws to wipe beneath and on top of the mat.



Video on Cleaning



Video on Fil Mat

Filter Replacement

When filter status light turns to red, the filter needs to be changed.  Here are some detailed instructions.

Video on Filter Change

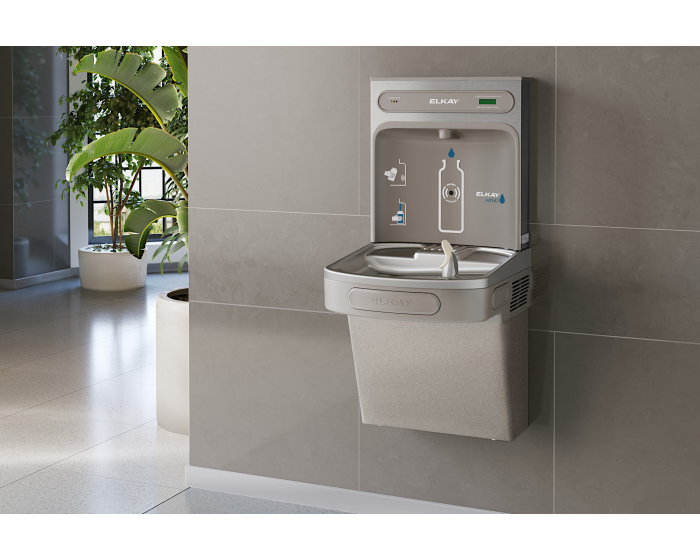

Do you have an existing 115V/60Hz EZ style pushbar-activated model that is non-filtered that you'd like to turn into a filtered unit? If so, the Elkay LZWSRK Retrofit is a great option to transform your drinking fountain into a Bottle Filling Station.

We advise that NON-CHILLED fountains less than 10 years old are suitable for a retrofit. We advise that CHILLED fountains less than 5 years are suitable for a retrofit. Not sure how old your model is?  We can find out for you. Email support@bottlefillingstations.com with your existing fountain’s serial #, which you can find at the bottom of your fountain. Please note existing fountain(s) must have been installed per spec.

  • ADA compliant design
  • Sanitary bottle fill created from hands-free sensor activation and recessed spout with 20 second auto shut-off system.
  • Quick fill rate of 1.1 Gallons Per Minute
  • Green Ticker™ tracks number of plastic bottles saved from waste.
  • Chilled if installed on a refrigerated EZ fountain



Elkay LZWSRK resources:

Elkay LZWSRK

FILTERED?

Yes

COOLER CABINET FINISH

Stainless Steel

POWER

115V/60Hz

BUBBLER OPTION


None

MOUNTING DETAILS

Wall Mount (On-Wall)

CHILLING DETAILS

None -- Chilled if installed on a refrigerated EZ fountain

Elkay LZWSRK

INSTALLATION LOCATION

INDOOR

NUMBER OF FOUNTAINS

Single Bottle Filler

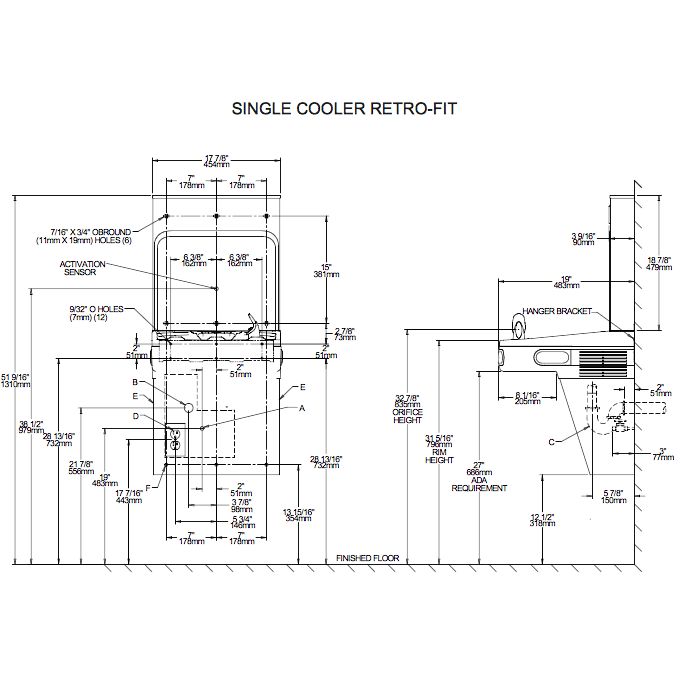

DIMENSIONS

L: 17-7/8"

W: 3-9/16"

H: 18-7/8"

SHIPPING WEIGHT

22 lbs

Elkay LZWSRK

PRODUCT COMPLIANCE

  • GreenSpec
  • ADA Compliant
  • NSF/ANSI 61
  • NSF 372
  • NSF 42
  • NSF 53
  • UL 399
  • Safe Drinking Water Act





Elkay LZWSRK Includes

  • Bottle Filler
  • Water Sentry Filter

Warranty

Refrigeration System (IF APPLICABLE)

Elkay LZWSRK refrigeration system includes 5 year limited warranty.

Electrical Parts & Water System

Elkay LZWSRK warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first.  View more warranty details here.

Installation Notes

  • Elkay LZWSRK requires installation from licensed plumber.  Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.
  • View detailed Elkay LZWSRK MANUAL.
  • How to install Elkay EZWSRK Retrofit (Video)

Maintenance

Cleaning

It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit.  Routine cleaning is also suggested.

Filter Replacement (IF APPLICABLE)

When filter status light turns to red, the filter needs to be changed.  Follow these steps:

1) Remove the bottom access panel.

2) Unplug unit

3) Unscrew old filter

4) Install new WaterSentry Plus filter.

5) Reset filter light back to green by removing top cover and pressing the black reset button.  Select reset filter.  The light should appear as green.  Detailed instructions on filter light reset are included in produce package.

View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.

How to Replace an Elkay EZH20 Filter (Guide)

How to Maintain Filtered Bottle Filling Stations (Guide)



FAQ

Q: How long does it take to install this retrofit?

A: It varies, but the typical Bottle Filling Station retrofit install takes 1-2 hours.

Q: Does the retrofit come with a chiller?

A: No. The retrofit will utilize the compressor from your existing fountain (if applicable).

Q: How do I know if this is the most appropriate retrofit for my setup?

A: Please send the serial # of your existing fountain to support@bottlefillingstations.com. If you’re unable locate, please email us a picture of your existing fountain.



*ASSEMBLED IN THE UNITED STATES.

Experience the benefits of the very popular Elkay LZWSRK Retrofit Water Bottle Filling Station. Best Support, Fast Shipping, & Low Prices. CONTACT US NOW!
