Elkay LMABFTL8WSLK | Wall-mount Bi-level Bottle Filling Station | Filtered, Refrigerated, EMAB-style fountains, Light Gray
Elkay LMABFTL8WSLK | Wall-mount Bi-level Bottle Filling Station | Filtered, Refrigerated, EMAB-style fountains, Light Gray is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LMABFTL8WSLK | Wall-mount Bi-level Bottle Filling Station | F...

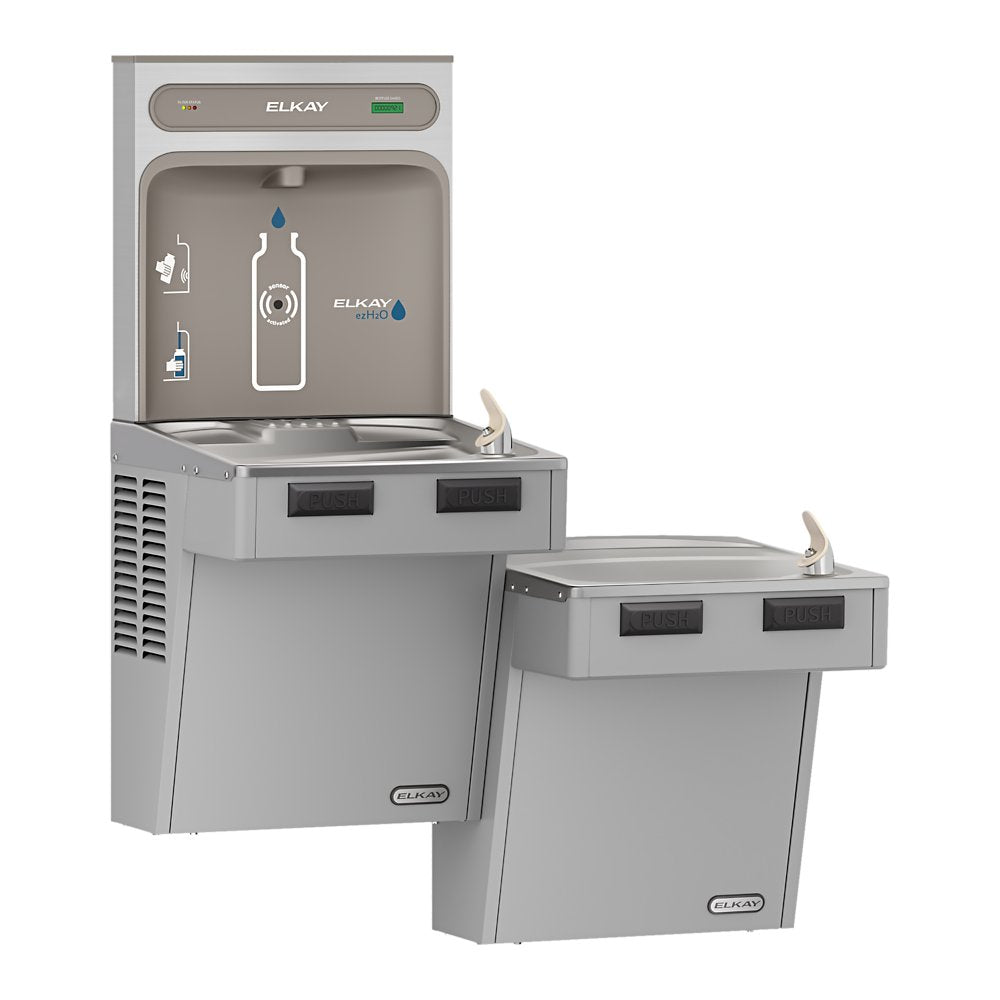

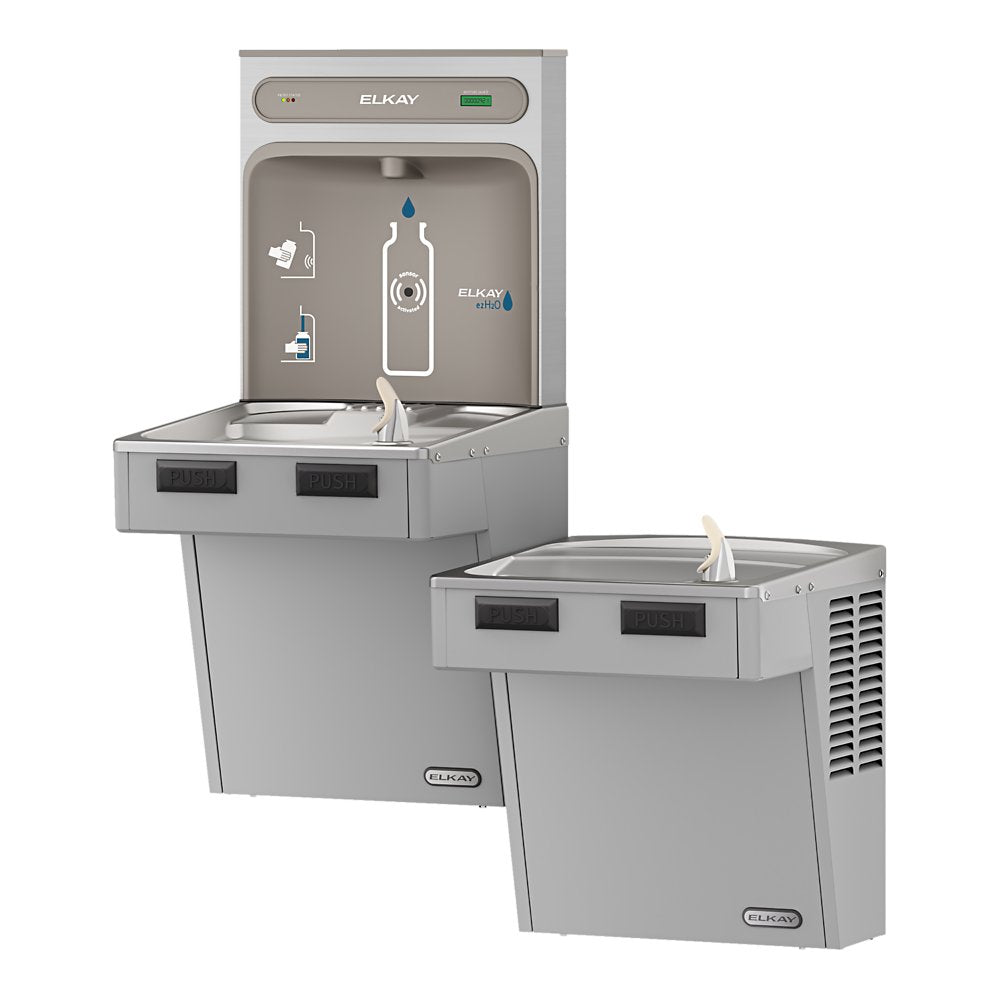

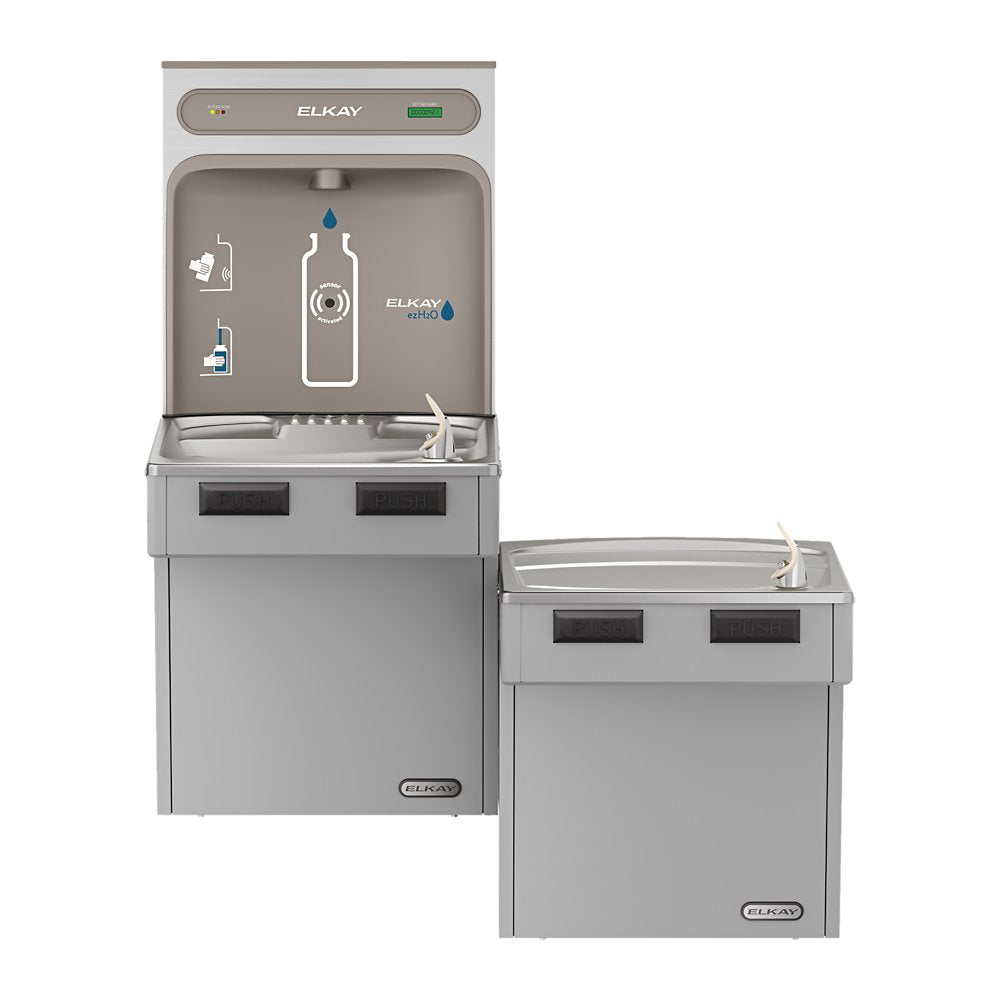

The Elkay LMABFTL8WSLK ezH2O® Bottle Filling Station with Mechanically Activated Bi-Level ADA Cooler provides filtered, refrigerated hydration in a durable light gray granite finish. Featuring dual-station access, mechanical pushbar activation, and advanced WaterSentry® filtration, this model is ideal for schools, healthcare facilities, and public spaces seeking reliable, ADA-compliant hydration with enhanced safety and sustainability.
Key Specifications:
- Design: Bi-Level ADA cooler with integral bottle filling station, serving 2 stations.
- Finish: Light Gray Granite. Also available in Stainless Steel (LMABFTL8WSSK)
- Chilling Capacity: 8.0 GPH of 50°F drinking water (ASHRAE 18 tested, based on 80°F inlet and 90°F ambient).
- Activation: Electronic bottle filler sensor with mechanical front and side bubbler pushbar.
- Bubbler Style: Flexi-Guard® Safety Bubbler.
- Power: 115V/60Hz, 370W, 6 full load amps.
- Filtration: Includes WaterSentry® Plus filter tested and certified to NSF/ANSI 42, 53, 372, and 401 for reduction of lead, microplastics, particulates, cysts, and chlorine taste and odor. 3,000-gallon capacity or 1 year after installation. Compatible replacement filter: 51300C.
Features & Benefits:
- Mechanically Activated: Pushbar activation ensures water delivery even during service disruptions.
- Filtered Hydration: WaterSentry® Plus filter reduces lead, microplastics, particulates, cysts, and chlorine taste and odor.
- Visual Filter Monitor: LED indicator alerts users when filter replacement is needed.
- Green Ticker™: Displays the number of 20 oz. plastic bottles saved from waste.
- Laminar Flow: Provides a clean, splash-free fill.
- Real Drain System: Eliminates standing water in the basin.
- Antimicrobial Components: Key plastic parts manufactured with silver ion antimicrobial agent to resist stains and odors.
- Dual Accessibility: Bi-level ADA design provides inclusive hydration for all users.
- Durable Construction: Light gray granite finish ensures long-lasting performance in high-traffic environments.
What's Included:
- LMABFTL8WSLK Bottle Filling Station & Bi-Level ADA Cooler
- WaterSentry® Plus Filter (included)
- Installation hardware
- Owner’s manual and warranty guide
FAQ
Q: How often should the filter be replaced?
A: The included WaterSentry® Plus filter should be replaced every 3,000 gallons or 12 months. Compatible replacement filter: 51300C.
Q: Is this unit ADA compliant?
A: Yes, the LMABFTL8WSLK meets ADA & ICC A117.1 accessibility requirements when installed according to standards.
Q: What warranty is included?
A: Elkay provides a 5-year limited warranty on the refrigeration system and 1-year coverage on electrical and water components.
Q: Are accessories available?
A: Yes. Optional accessories include the MLP200 In-Wall Carrier for secure mounting support, the 98313C Cane Apron for ADA compliance, and the 36292C Power Block for multi-station installations.
Detailed Features & Benefits
Filtered Hydration: Certified to reduce lead, microplastics, particulates, cysts, and chlorine taste and odor, ensuring cleaner, safer water.
Mechanical Reliability: Pushbar activation ensures water delivery even during electrical service interruptions.
Energy Efficiency: Refrigerated cooling system delivers chilled water efficiently, lowering operating costs.
ADA Accessibility: Bi-level configuration provides inclusive access for all users, including children and wheelchair users.
Durability: Light gray granite finish and stainless steel basin ensure long-lasting performance in demanding environments.
Sustainability: Green Ticker™ promotes environmental awareness by tracking bottles saved from waste.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
