Elkay EZSTL8WSVRSK | Bi-Level Versatile Wall-mounted Bottle Filling Station | Filterless, Refrigerated, Stainless Steel
Elkay EZSTL8WSVRSK | Bi-Level Versatile Wall-mounted Bottle Filling Station | Filterless, Refrigerated, Stainless Steel is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay EZSTL8WSVRSK | Bi-Level Versatile Wall-mounted Bottle Filling...

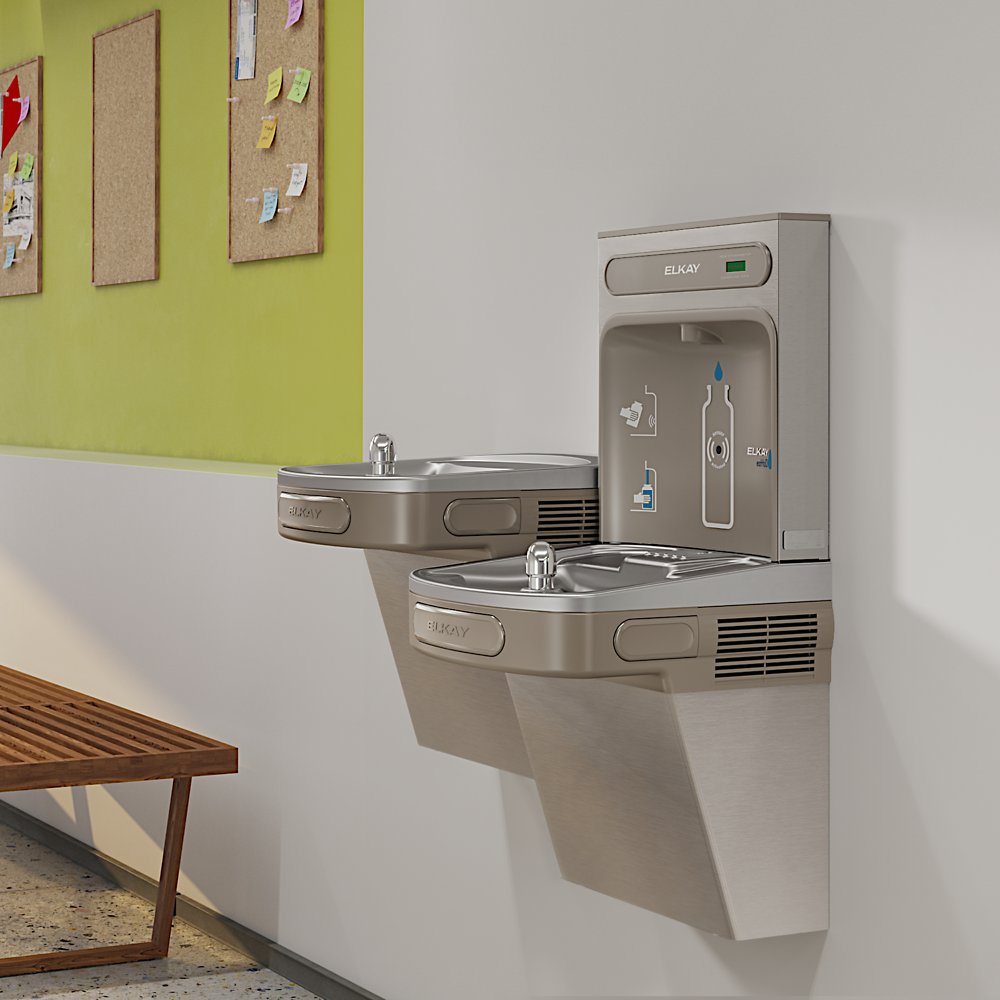

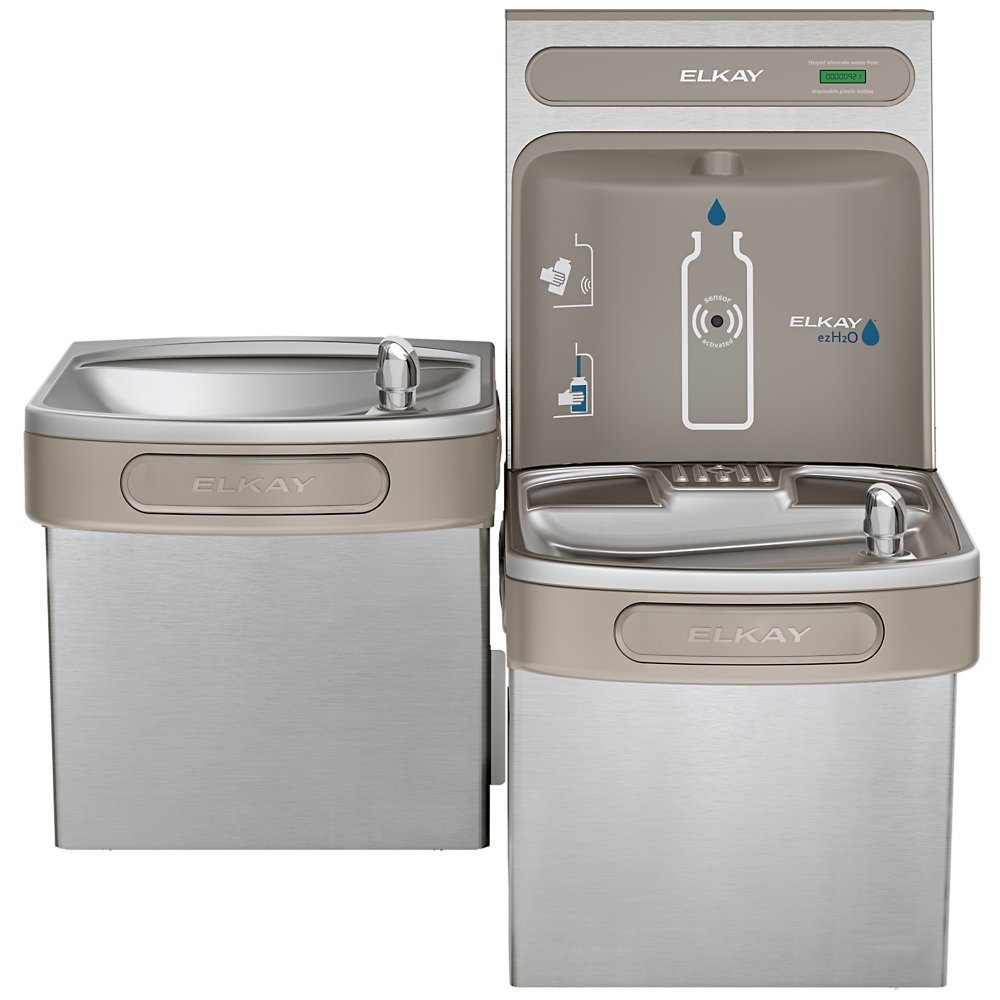

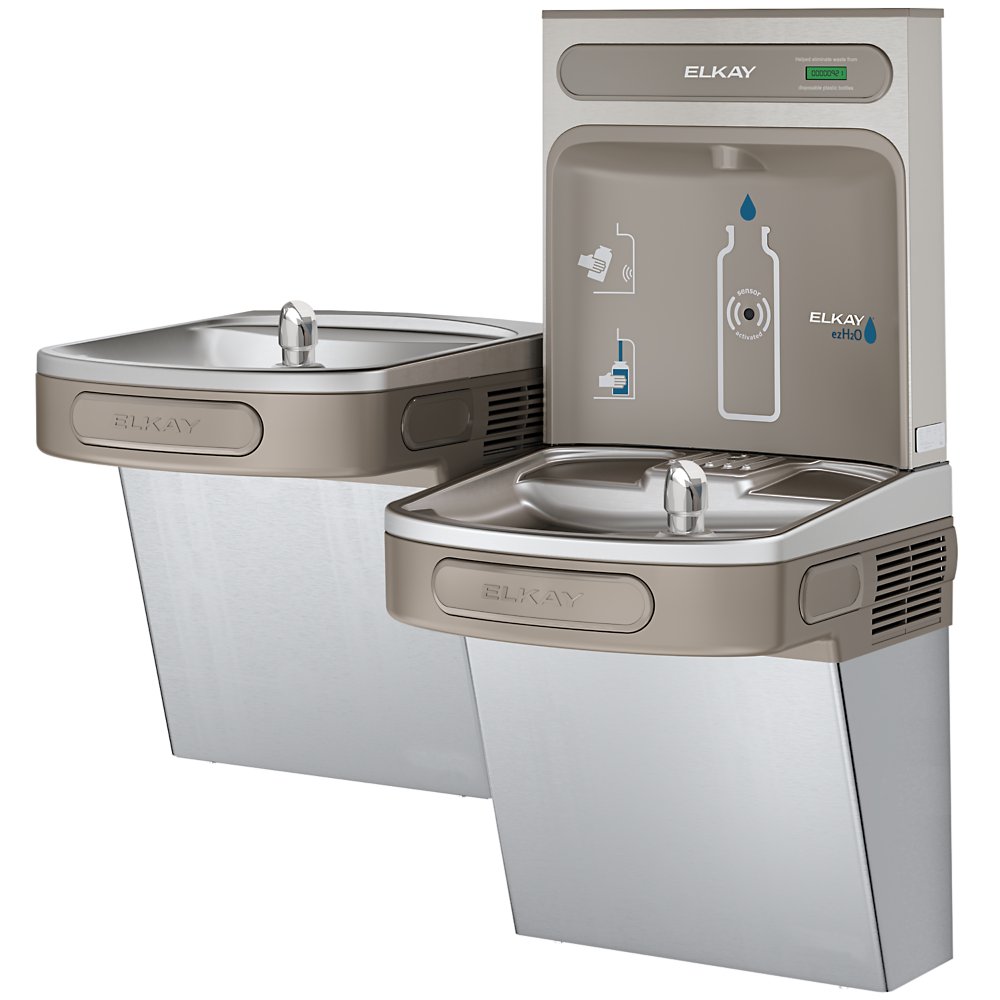

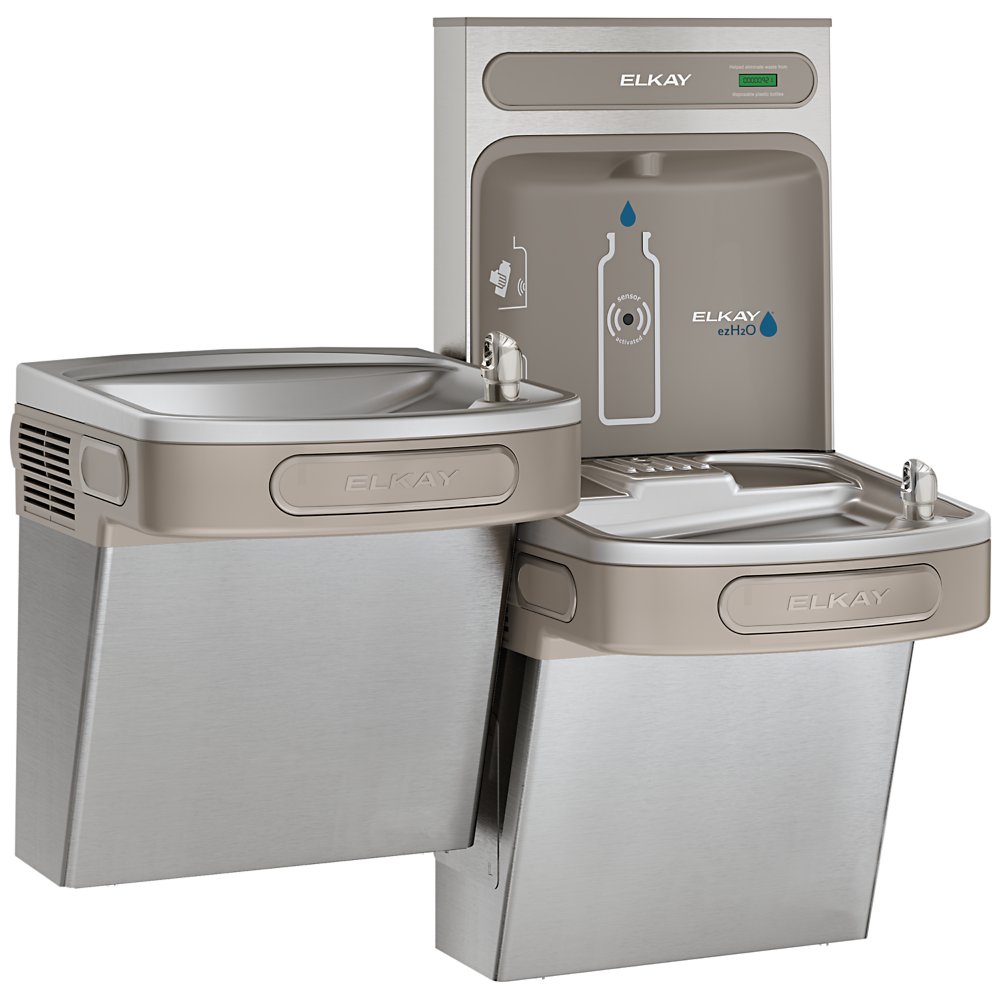

Elkay EZSTL8WSVRSK is an ezH2O® Bottle Filling Station with a versatile bi-level ADA vandal-resistant cooler. This stainless steel unit delivers 8.0 GPH of chilled water, combining hands-free convenience, vandal-resistant durability, and sustainable hydration for schools, transit hubs, and public facilities.
Key Specifications:
- Chilling Capacity: 8.0 GPH of 50°F drinking water.
- Design: Versatile bi-level ADA cooler with integrated bottle filler, wall-mounted indoor installation.
- Finish: Stainless Steel.
- Filtration: This model is non-filtered. For facilities requiring filtration, choose the LZSTL8WSVRSK filtered version.
- Refrigeration: Hermetically-sealed compressor, fan-cooled condenser, EPS-insulated copper tubing. Uses R-134a refrigerant.
- Stations Served: 2.
Features & Benefits:
- Hands-Free Operation: Electronic sensor activation for bottle filler and pushbar activation for bubblers.

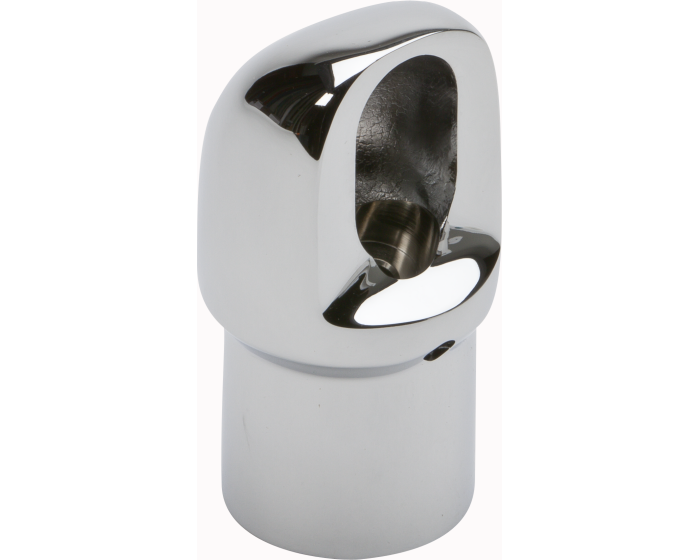

- Vandal-Resistant Design: Heavy-duty stainless steel construction with vandal-resistant bubbler ensures durability in high-traffic areas.
- ADA Accessibility: Bi-level design provides hydration access for all users, including children and wheelchair users.
- Sustainability: Green Ticker™ displays bottles saved from waste, encouraging reusable bottle use.
- Laminar Flow & Real Drain: Provides clean, splash-free bottle filling while eliminating standing water.
FAQ
Q: Does the EZSTL8WSVRSK include filtration?
A: This model is non-filtered. For filtration, select the LZSTL8WSVRSK filtered version.
Q: What warranty is included?
A: Elkay provides a 5-year limited warranty on the refrigeration system and a 12-month warranty on electrical components and the water system.
Q: Can this unit be installed outdoors?
A: No. The EZSTL8WSVRSK is rated for indoor use only.
Q: Are accessories available for installation and accessibility?
A: Yes. Elkay offers the MLP200 In‑Wall Carrier for secure installation, and the LKAPREZL Cane Apron to improve ADA accessibility compliance.
Q: Is the EZSTL8WSVRSK part of a larger collection?
A: Yes. It belongs to the ezH2O® Original Collection, which includes multiple models and finishes designed for sustainable hydration solutions.
Detailed Features & Benefits
Cooling System: The EZSTL8WSVRSK uses a hermetically-sealed reciprocating compressor with lifetime lubrication, fan-cooled condenser, and EPS-insulated copper tubing. It delivers consistent 8.0 GPH chilled water at 50°F, with a factory-preset thermostat requiring minimal adjustment.
Durable Vandal-Resistant Design: Built with heavy-duty stainless steel and a vandal-resistant bubbler, this model is engineered for high-traffic public environments where durability and security are essential.
Sustainability & Hygiene: Green Ticker™ tracks bottles saved from waste, while laminar flow and real drain eliminate standing water. Key plastic components are manufactured with silver ion antimicrobial agents to resist stains and odors.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
