Elkay EZSDWSLK | Wall-mount Bottle Filling Station | Filterless, Non-refrigerated, EZ-style fountain, Granite Gray
Elkay EZSDWSLK | Wall-mount Bottle Filling Station | Filterless, Non-refrigerated, EZ-style fountain, Granite Gray is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay EZSDWSLK | Wall-mount Bottle Filling Station | Filterless, No...
Ships within 24 hours.

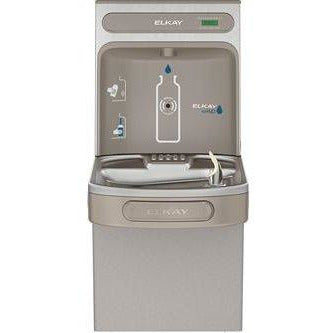

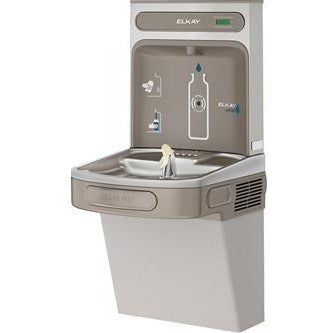

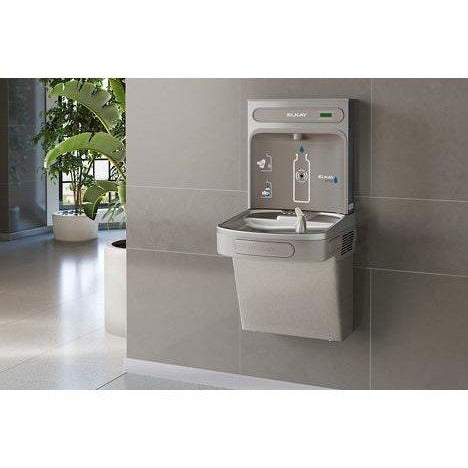

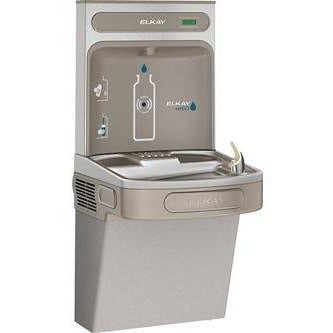

The Elkay EZSDWSLK is a non-refrigerated ezH2O® Bottle Filling Station with Single ADA Cooler, designed for hygienic, sustainable hydration in high-traffic indoor environments. This non-filtered unit features hands-free activation, ADA compliance, and antimicrobial protection, making it ideal for schools, offices, and public spaces.
Key Specifications:
- Chilling Capacity: Non-refrigerated
- Power Requirements: 115V/60Hz, 15 Watts, 1.1 Amp full load

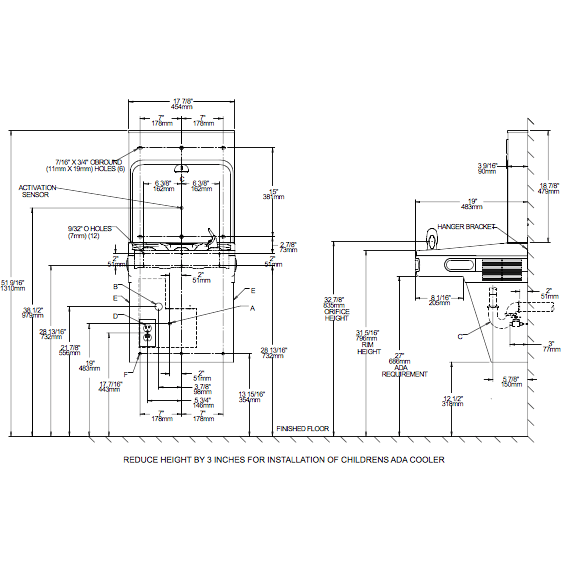

- Dimensions: 18-3/8" L x 19" W x 39-1/16" H, suitable for wall-mount installation
- Weight: Approximately 52 lbs shipping weight
Features & Benefits:
- Hands-Free Operation: Electronic sensor for bottle filler and electronic pushbars for bubblers, promoting hygiene and ease of use
- Green Ticker™: Displays the number of 20 oz. plastic water bottles saved from waste, encouraging environmental consciousness
- ADA Compliant Design: Single-level configuration meets accessibility standards for inclusive hydration
- Antimicrobial Protection: Key plastic components feature silver ion antimicrobial properties, enhancing cleanliness and reducing odors
- Laminar Flow: Provides a clean fill with minimal splash
- Real Drain System: Eliminates standing water, improving hygiene and reducing maintenance needs
What’s Included:
- Elkay EZSDWSLK Bottle Filling Station & Single ADA Cooler unit
- Flexi-Guard® Safety Bubbler
Options Available:
- LZSDWSLK: Filtered single bottle filling station model with enhanced filtration features.
FAQ
Q: What is included in the Cooler Combo?
A: The Cooler Combo includes both the Bottle Filler (EZWSR) and Water Cooler (EZSDWSL), shipped in separate boxes.
Q: Does the shipment include everything for installation?
A: The shipment does not include the shut-off valve or the 1-1/4” trap, which must be provided separately.
Q: Does this product come with a Mounting Frame?
A: Cooler units come with hanger brackets. For added structural support, the In-Wall Carrier Mounting Frame (MLP100) can be ordered separately.
Q: Is there a filtered version of this model?
A: Yes, the EZSDWSLK is compatible with the EWF3000 Universal Filtration Kit, which can be added separately.
Detailed Features & Benefits
Streamlined Hydration: The EZSDWSLK offers a non-refrigerated solution for clean, efficient water dispensing. Its laminar flow minimizes splash, while the real drain system prevents standing water, reducing maintenance and improving hygiene.
ADA Accessibility: Designed to meet ADA and ICC A117.1 standards, this single-level cooler ensures hydration access for users of all abilities. Its compact footprint and wall-mount design make it ideal for tight indoor spaces.
Antimicrobial Assurance: Key plastic components are infused with silver ion antimicrobial agents, helping maintain stain- and odor-free surfaces even in high-use environments.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
