Hoshizaki DB-130H | Hotel Ice Dispenser | 22″ W, 130 lbs Capacity, ...

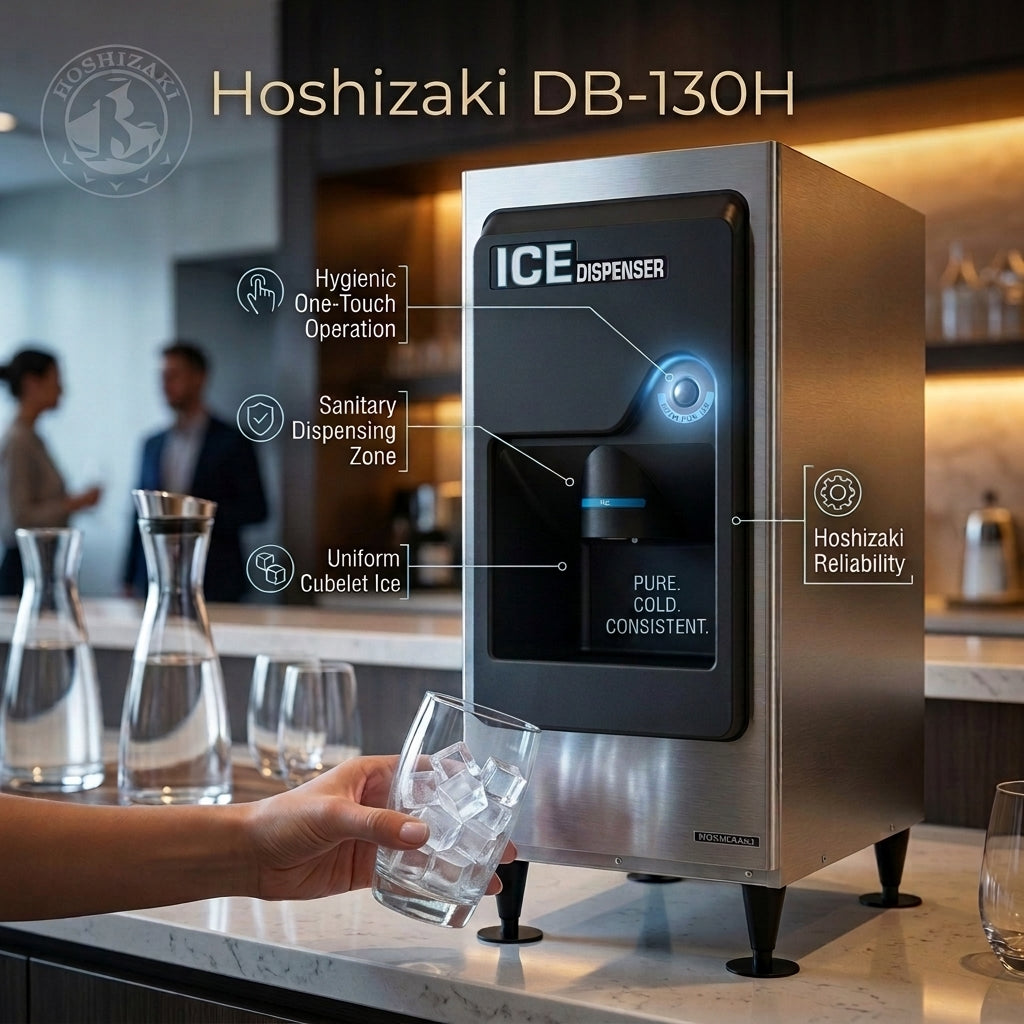

The Hoshizaki DB‑130H is a sanitary cube dispenser designed for hotel and motel applications. With a 130‑lb insulated storage bin and a push‑button single auger agitator that dispenses ice at 20 lbs per minute, it provides quick, efficient, and ADA‑compliant ice access for high‑traffic environments.
Key Specifications:
- Storage Capacity: 130 lbs of ice in an insulated polyethylene‑lined bin

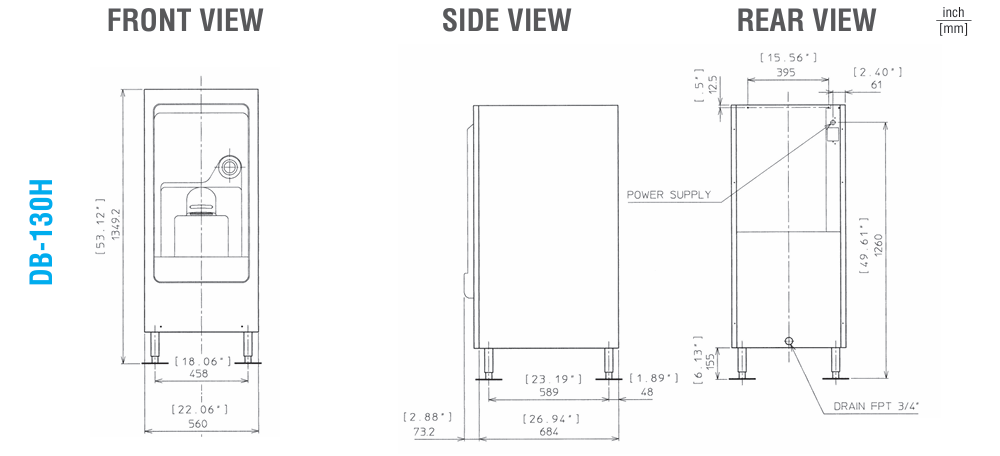

- Dimensions: 22" W × 30" D × 53" H (with 6" legs)
- Dispensing Rate: 20 lbs of ice per minute
- Electrical: 115V/60Hz/1 phase, 1.4A
- Net/Ship Weight: 178 / 195 lbs
Features & Benefits:

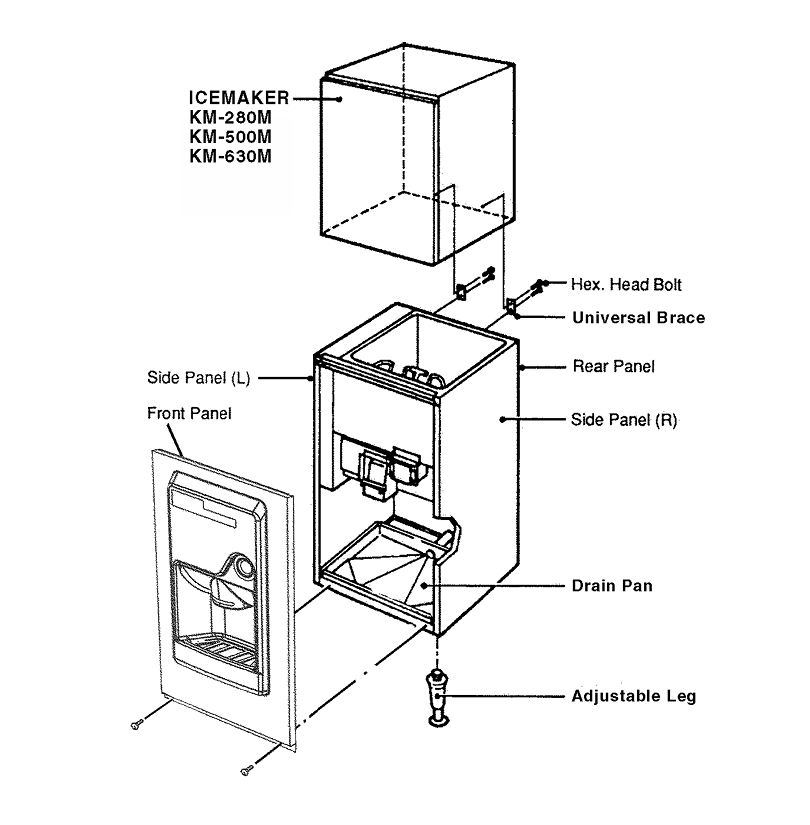

- Versatile Compatibility: Works with KM‑350, KM‑520, KM‑660, or KMD‑410 series cubers for 414–669 lbs of ice production per day
- ADA Compliant: Ice dispensing area meets accessibility standards
- Efficient Dispensing: Push‑button single auger agitator provides controlled ice dispensing
- Sanitary Design: Insulated polyethylene‑lined bin maintains ice quality and hygiene
- Compact Footprint: Combines storage and dispensing in a space‑efficient design
Comparison of Hoshizaki Dispensers:
| DB‑130H | DB‑200H | DCM‑500BAH | |
|---|---|---|---|
| Storage Capacity | 130 lbs | 200 lbs | 40 lbs built‑in |
| Dispensing Rate | 20 lbs/min | 13 lbs/min | Ice & water dispensing |
| Dimensions | 22" W × 30" D × 53" H | 30" W × 30" D × 53" H | 26" W × 22.5" D × 40" H |
What's Included:
- DB‑130H Sanitary Cube Dispenser unit
- 6" adjustable legs
- Installation and operation manual
- Warranty documentation
FAQ
Q: What Are the Plumbing Requirements for the DB‑130H?
A: The DB‑130H requires a minimum 3/4" Nominal ID Hard Pipe or equivalent for the drain line. Proper drainage ensures sanitary operation and prevents water accumulation.
Q: Which Ice Machines Are Compatible With the DB‑130H?
A: The DB‑130H is designed to pair with Hoshizaki KM‑350MAJ, KM‑520MAJ, KM‑660MAJ, and KMD‑410MAJ series cubers. Always confirm compatibility before installation.
Q: What Is the Warranty Coverage for the DB‑130H?
A: Hoshizaki provides a 3‑year parts and labor warranty on the entire DB‑130H. Warranty is valid in the U.S., Canada, Puerto Rico, and U.S. Territories.
Q: How Does the DB‑130H Differ From the DB‑200H and DCM‑500BAH?
A: The DB‑130H offers a 130‑lb bin with faster dispensing (20 lbs/min). The DB‑200H has a larger 200‑lb bin but slower dispensing (13 lbs/min). The DCM‑500BAH is a self‑contained ice machine/dispenser producing cubelet ice with built‑in 40‑lb storage and water dispensing.
Q: What Accessories Are Available for the DB‑130H?
A: Recommended accessories include the LP‑6 Flange Leg Kit (set of 6 stainless steel legs) and the HS‑2109 Chute Grill for DB‑130H and DB‑200H dispensers. These accessories enhance installation flexibility and maintain sanitary dispensing.
NOTICE: Ensure proper maintenance and cleaning of your dispenser to guarantee sanitary operation and machine longevity.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
INSTALLATION
- Choose a flat, stable surface with adequate ventilation near a water source and electrical outlet.
- Carefully remove the water dispenser from the packaging and check for visible damage.
- Attach the water supply line to the inlet valve at the back of the dispenser, ensuring a secure connection to prevent leaks.
- Connect the dispenser to a grounded electrical outlet, avoiding the use of extension cords for safety.
- Open the water supply valve, allow water to fill the system, check for leaks, and dispense water to ensure proper flow and remove any air pockets.
MAINTENANCE
- Regularly wipe external surfaces with a damp cloth and clean the drip tray to prevent mold and odors.
- Weekly, clean the water dispensing nozzle using a mild detergent and sanitize the water reservoir along with the internal components using a diluted bleach solution (one tablespoon of bleach per gallon of water). Ensure to rinse thoroughly.
- Ensure efficient operation by checking and cleaning the condenser coils monthly.
