Hoshizaki HS-5061 | Drain Pump Kit for Undercounter Icemaker | Chec...

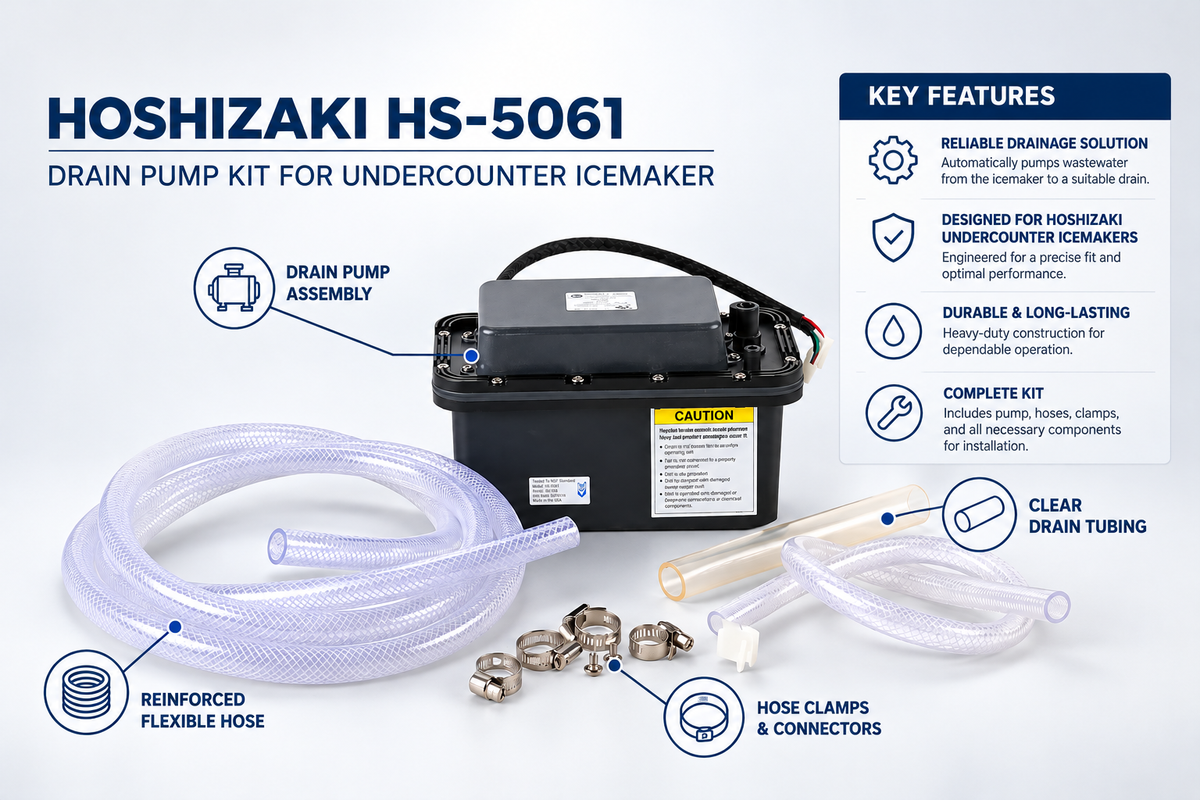

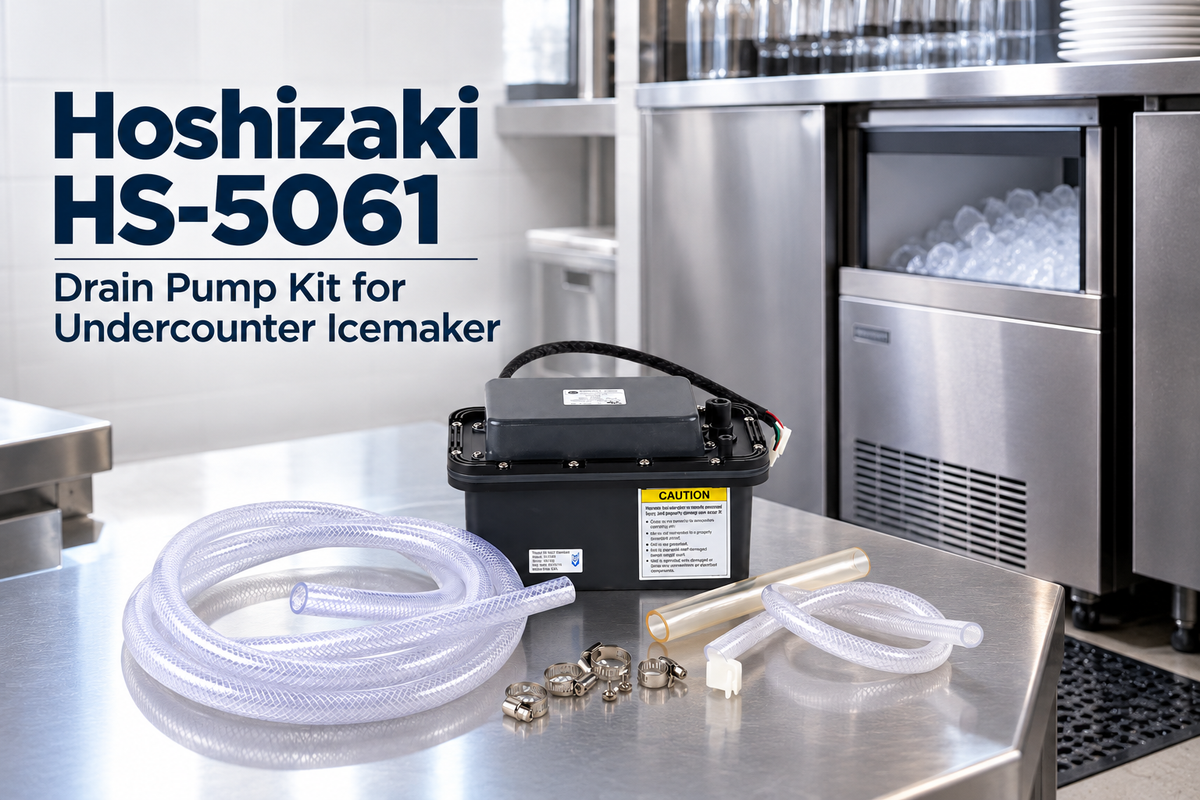

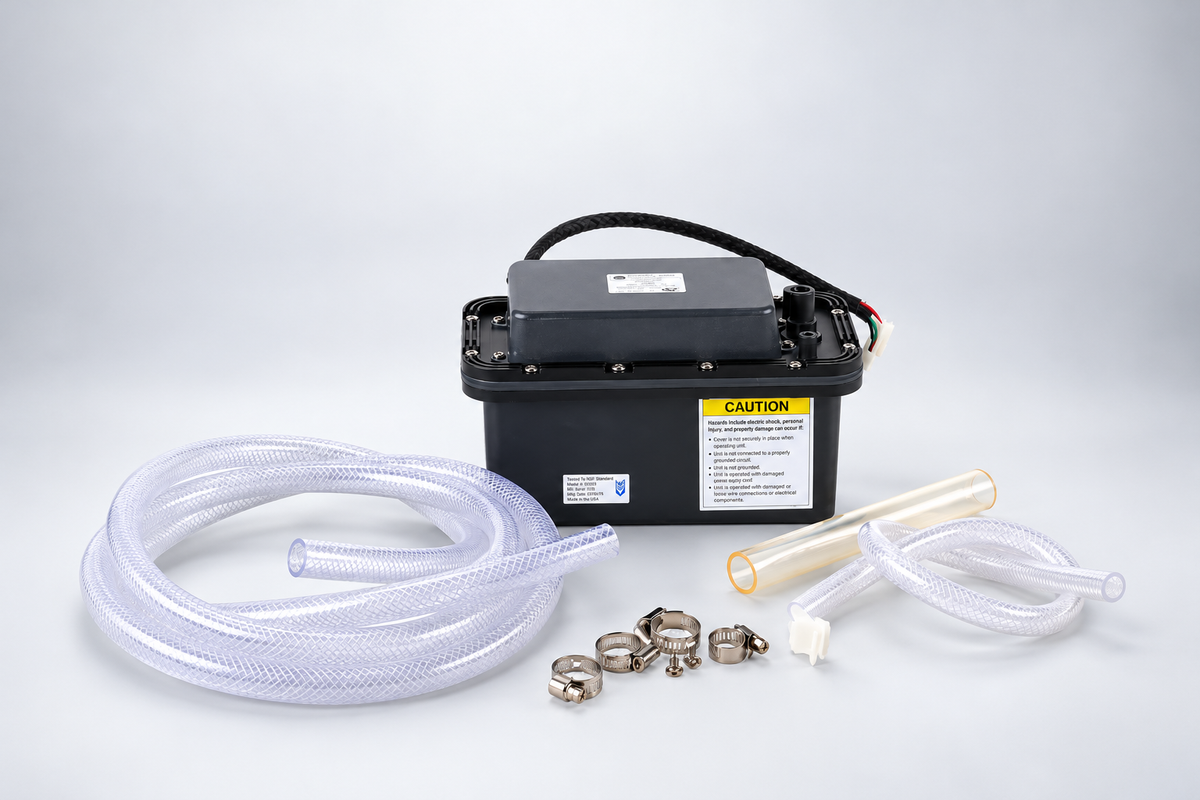

The Hoshizaki HS-5061 drain pump is a complete kit for Hoshizaki undercounter icemakers installed in spaces without a floor drain. It removes purged and melted water through a factory-installed check valve and includes all hoses, clamps, and screws for installation.
Key Specifications:
| Design | Drain pump kit for undercounter icemakers without direct drain access, with a factory-installed check valve and an internal safety switch that stops ice production if the pump fills |
| Compatibility | Compatible with Hoshizaki undercounter models including AM-50 Series, C-100 Series, C-101 Series, KM-61BAH, and KM-101BAH and related models such as certain C-80 and KM-80/81/115/116BAJ series |
| Pump Performance | Maximum vertical lift approximately 8 inches and maximum horizontal run approximately 20 inches. |
| Included Hoses | 5/8" ID × 6.5" vinyl drain hose, 3/8" ID × 27.5" vinyl vent hose, and 1/2" ID × 10' high-pressure clear PVC discharge hose |
| Hardware & Warranty | 1 small clamp (vent hose), 1 medium clamp (discharge hose), 2 large clamps (drain hose/elbow connections), 2 hose clips, and 2 stainless steel truss-head screws (4×8). 1-year parts and labor warranty. |
Features & Benefits:
- Versatile Application: Solves drainage issues for icemakers in locations without access to gravity drains, expanding installation possibilities.
- Complete Kit: Includes all necessary components for installation, simplifying the setup process for technicians.
- Safety Compliance: Designed to meet safety standards and regulations, ensuring safe operation in commercial environments.
- Reliable Performance: Engineered specifically for Hoshizaki icemakers, guaranteeing compatibility and efficient drainage.
What's Included:
- 1 Drain Pump Assembly
- 1 Vinyl Hose (drain hose) (5/8" ID×6.5")
- 1 Vinyl Hose (vent hose) (3/8" ID×27.5")
- 1 High Pressure Clear PVC Hose (discharge hose) (1/2" ID×10')
- Various clamps and clips for secure hose connections
- 2 Truss Head Screws (4×8, SS)
- Installation instructions
FAQ
Q: Does the Hoshizaki HS-5061 Drain Pump Require Professional Installation?
A: Yes. Hoshizaki states that only qualified service technicians should install and service the HS-5061 drain pump. A plumbing permit and a licensed plumber may be required in some areas.
Q: How Far and How High Can the HS-5061 Pump Drain Water?
A: The HS-5061 ice machine drain pump supports a Maximum vertical lift approximately 8 inches and maximum horizontal run approximately 20 inches. Keep the discharge hose free of traps and kinks to maintain proper flow.
Q: How Is the HS-5061 Drain Pump Powered?
A: The HS-5061 plugs directly into the icemaker's drain pump connector after the factory jumper plug is removed, so no separate outlet is needed for the pump. The icemaker itself must be plugged into a properly grounded, independent 3-prong wall outlet.
Q: What Happens If the HS-5061 Drain Pump Backs Up or Fails?
A: An internal safety switch shuts off the icemaker if the drain pump fills to capacity, while the pump keeps running. The icemaker restarts automatically once the water level drops, which helps prevent overflows and water damage.
Q: Can the HS-5061 Discharge Hose Connect Directly to a Floor Drain?
A: No. Hoshizaki requires a minimum 2" air gap between the end of the discharge hose and the floor drain or drain piping. The pump has a factory-installed check valve, so do not install any additional check valves.
Q: What Warranty Comes with the Hoshizaki HS-5061 Drain Pump?
A: The HS-5061 carries a 1-year parts and labor warranty that begins on the drain pump's installation date. Be sure to register your icemaker for warranty validation.
Q: Where Does the HS-5061 Drain Pump Mount on the Icemaker?
A: The HS-5061 sits in the open space at the rear of the icemaker and overhangs the base slightly. It must be level, and the icemaker's copper tubing should be moved carefully if needed so it doesn't touch the pump or hoses.
Q: How Do You Test the HS-5061 Drain Pump After Installation?
A: Slowly pour 24 to 30 oz of water over the storage bin drain hole and confirm it discharges through the hose, then check that the pump shuts off and there are no leaks. At least 24 oz of water is needed to activate the pump.
Q: Why Is the Vent Hose Important on the HS-5061?
A: The drain pump will not operate correctly with a blocked or kinked vent hose. On these undercounter models, the supplied 3/8" ID × 27.5" vent hose must be cut to 19.5" and secured to the icemaker with the included hose clips and screws. A blocked or kinked vent hose will prevent correct pump operation and can cause water damage.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
The Hoshizaki HS-5061 drain pump installs inside the rear of approved Hoshizaki undercounter icemakers and plugs directly into the icemaker's drain pump connector. Hoshizaki requires installation by a qualified service technician, and a plumbing permit and licensed plumber may be required in some areas.
Key Installation Requirements:
- Approved icemaker: AM-50, C-100, or C-101 Series, KM-61/101BAH, or KM-80/81/115/116BAJ
- Icemaker plugged into a properly grounded, independent 3-prong wall outlet
- Suitable drain within a 20 ft maximum discharge hose length and 8 ft maximum lift height
- Minimum 2" air gap at a floor drain, or an air gap device (not included) where code requires it for a sink drain pipe
- Drain pump installed level inside the icemaker
Important Notes Before Installing the HS-5061:
- The pump has a factory-installed check valve. Do not install any additional check valves.
- KM models require an inlet hose (472482R01), joint pipe (472483P01), and nylon ties (8911-0200). These come in the KM-81BAJ and KM-116BAJ accessory bag but must be ordered separately for KM-61/101BAH and KM-80/115BAJ.
- On AM-50 and C Series units, the 3/8" ID vent hose is cut to 19.5". The 5/8" ID drain hose is cut to 5" on -AD/-ADDS units and to 4" on C-101BAH units.
- Leave enough extra tubing so the icemaker can be pulled out for service, and keep all hoses free of traps and kinks.
- Always refer to the official Hoshizaki HS-5061 Spec Sheet for model-specific steps, parts, and warranty information.
Basic Installation Overview:
- Turn the icemaker control switch to "OFF" and unplug the unit.
- Remove the rear cover and panels, then remove the original drain fitting.
- Connect the drain hose or inlet hose and place the drain pump level inside the icemaker.
- Connect the vent hose with the small clamp and the discharge hose with the medium clamp, then secure the vent hose to the icemaker with the hose clips and screws.
- Remove the jumper plug and connect the drain pump to the icemaker's drain pump connector.
- Route the discharge hose to a suitable drain with the required air gap.
- Pour 24 to 30 oz of water into the bin, confirm discharge and pump shut-off, then test the internal safety switch.
For complete step-by-step instructions, download the Hoshizaki HS-5061 KM Series Installation Guide.
