Elkay LZSG8WSSK | Wall-mount Bottle Filling Station | Filtered, High-efficiency chiller, Stainless Steel
Elkay LZSG8WSSK | Wall-mount Bottle Filling Station | Filtered, High-efficiency chiller, Stainless Steel is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LZSG8WSSK | Wall-mount Bottle Filling Station | Filtered, Hig...

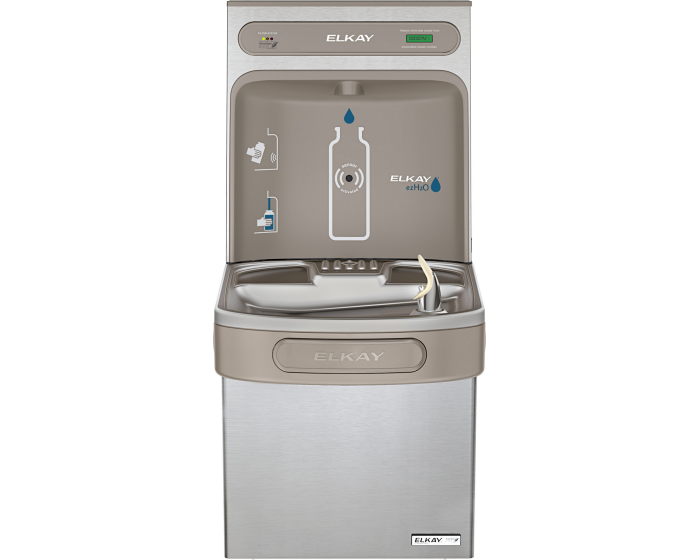

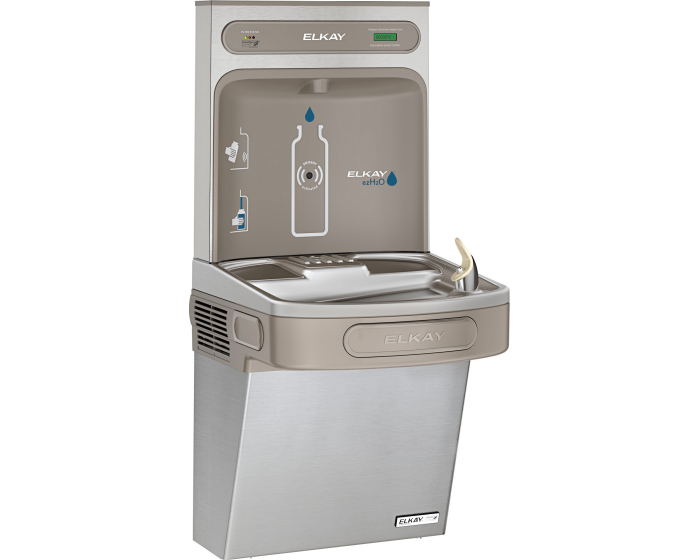

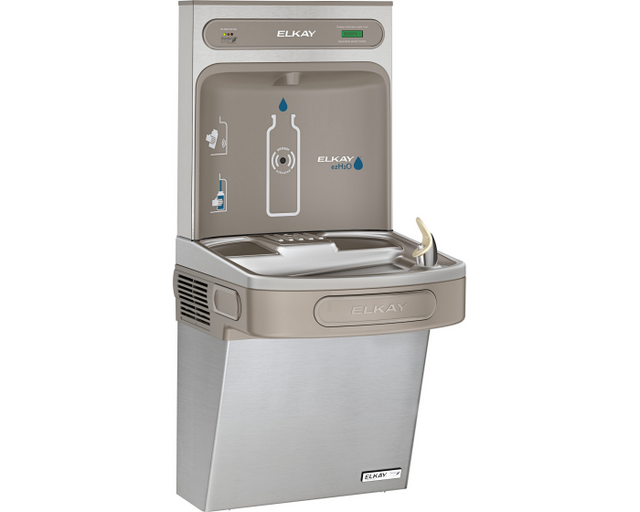

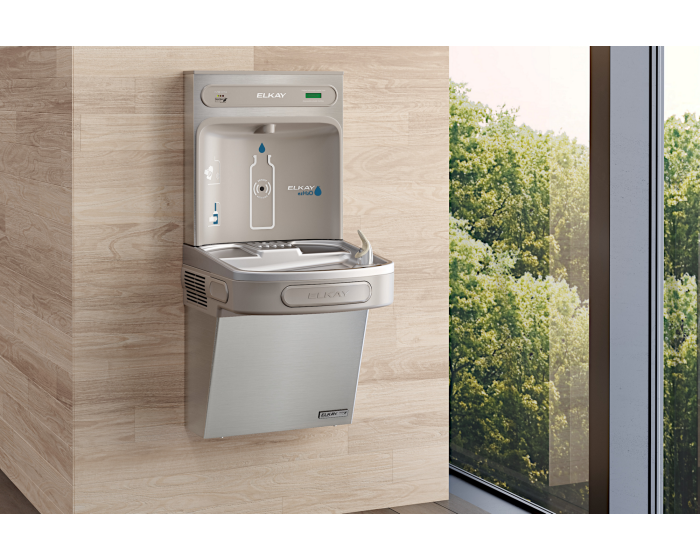

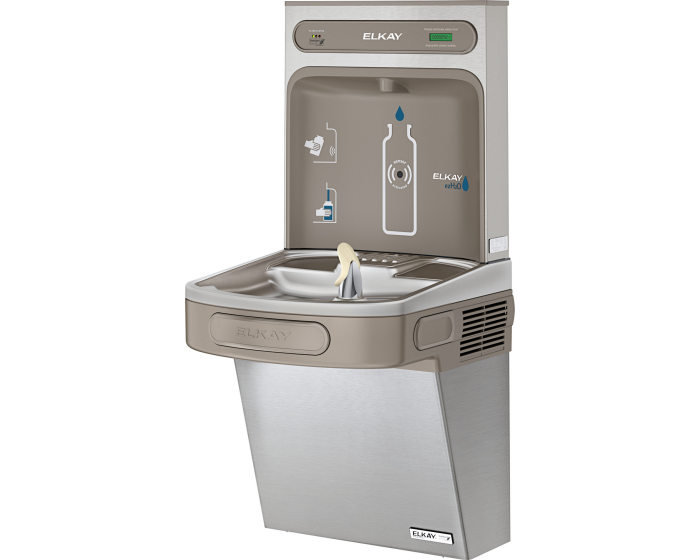

Elkay LZSG8WSSK is a high-efficiency ezH2O® Bottle Filling Station with Single ADA Cooler, designed for indoor wall-mounted installation. This filtered and refrigerated stainless steel unit delivers chilled, clean water through hands-free activation and a Flexi-Guard® StreamSaver™ bubbler, making it ideal for schools, offices, and public facilities that prioritize sustainability, hygiene, and accessibility.
Key Specifications:
- Design: Wall-mounted, single-station ADA cooler with integrated bottle filler.
- Finish: Stainless steel.
- Chilling Capacity: 8.0 GPH of 50°F drinking water (based on 80°F inlet water and 90°F ambient).
- Refrigeration: Hermetically-sealed compressor, fan-cooled condenser, and EPS-insulated copper tubing. Uses R-134a refrigerant with factory-preset thermostat.
- Filtration: Includes 51300C WaterSentry® Plus filter, certified to NSF/ANSI 42, 53, 372, and 401. Reduces lead, chlorine taste and odor, microplastics, cysts, and particulates. 3,000-gallon capacity or 12 months.
- Activation: Electronic bottle filler sensor with electronic front and side bubbler pushbars.
- Bubbler Style: Flexi-Guard® StreamSaver™ bubbler.
- Stations Served: 1.
- Power: 115V/60Hz, 360 rated watts, 6 full load amps.
Features & Benefits:
- Filtered Water: WaterSentry® Plus filter reduces lead, chlorine taste and odor, microplastics, cysts, and particulates.
- Hands-Free Bottle Fill: Sensor-activated with laminar flow for clean, splash-free filling.
- Green Ticker™: Displays number of 20 oz. plastic bottles saved from waste.
- Energy Efficiency: High-performance compressor and insulation reduce energy consumption.
- Antimicrobial Protection: Key plastic components manufactured with silver ion antimicrobial agent for cleaner surfaces.
- Real Drain System: Eliminates standing water for improved hygiene.
- ADA Compliant: Accessible design for all users.
- Durable Construction: Stainless steel cabinet and vandal-resistant bubbler for long-term reliability.
What's Included:
- LZSG8WSSK Bottle Filling Station & Single ADA Cooler unit
- WaterSentry® Plus 3,000-gallon filter cartridge (51300C)
- Flexi-Guard® StreamSaver™ bubbler
- Wall mounting plate and hardware
- Installation instructions
FAQ
Q: What warranty does the LZSG8WSSK include?
A: Elkay provides a 5-year limited warranty on the refrigeration system and a 12-month warranty on electrical components and the water system. Warranty applies to drinking water applications only.
Q: Which replacement filter does this model use?
A: The LZSG8WSSK comes standard with the 51300C WaterSentry® Plus filter (3,000-gallon capacity).
Q: Are there accessories available for this model?
A: Yes. Elkay offers several accessories for the LZSG8WSSK, including the LKAPREZL Cane Apron for ADA compliance, and the MLP100 In-Wall Carrier for enhanced installation support.
Detailed Features & Benefits
Advanced Filtration: Certified to NSF/ANSI 42, 53, 372, and 401, the WaterSentry® Plus filter reduces lead, chlorine taste and odor, microplastics, cysts, and particulates. Visual Filter Monitor with LED indicator alerts when replacement is needed.
Efficient Cooling System: Hermetically-sealed compressor, fan-cooled condenser, and tube-tank cooling unit deliver consistent chilled water at 8.0 GPH. Uses R-134a refrigerant with factory-preset thermostat.
Durability & Safety: Stainless steel construction resists wear and tampering. UL 399 and CAN/CSA C22.2 No. 120 certified for electrical safety. NSF 61 and NSF 372 certified for water safety.
Sustainability: Green Ticker™ encourages reusable bottle use. Energy-efficient design reduces environmental footprint.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
