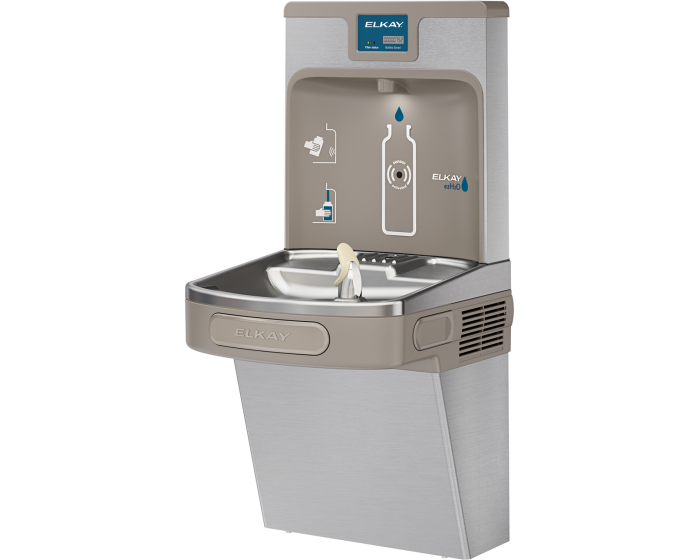

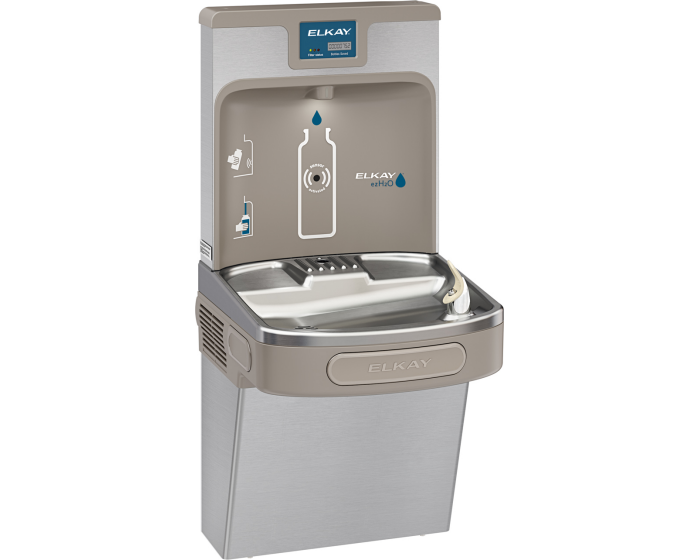

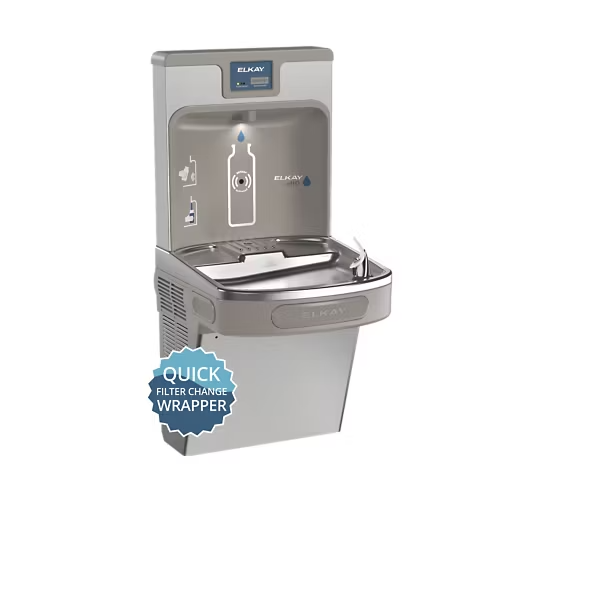

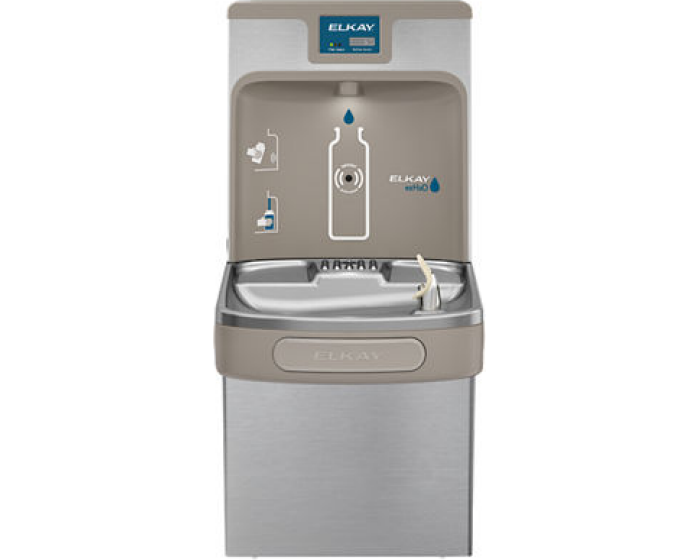

Elkay LZS8WSSP | Enhanced EZH2O Bottle Filling Station | Filtered, Refrigerated, Stainless Steel

The Elkay LZS8WSSP EZH2O bottle filling station comes with an sensor-activated bottle filler and single ADA drinking fountain. As an Enhanced model, it offers superior features that make it one of our top selling products.

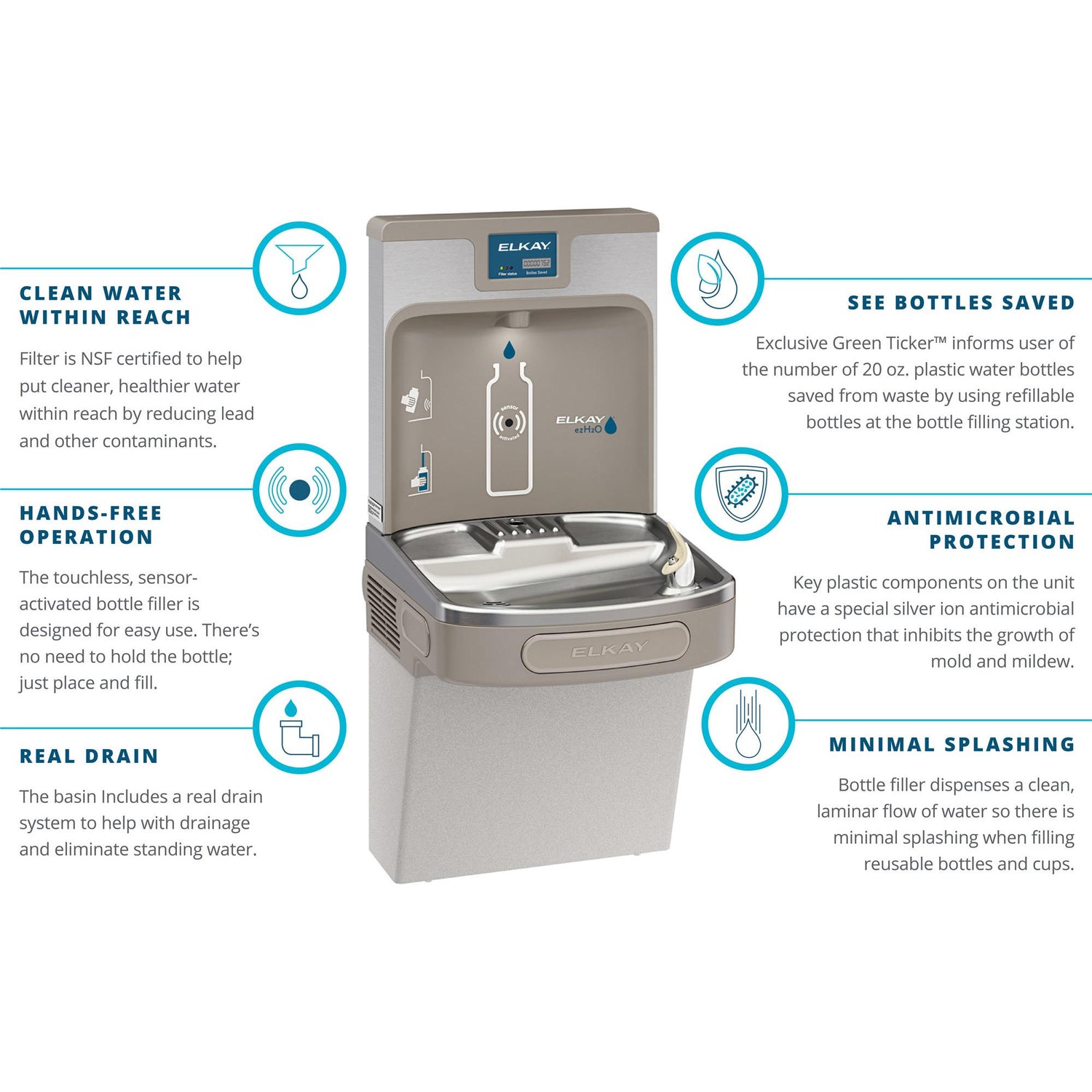

What makes the Enhanced EZH2O different from other models?

• Fillsafe recognition technology allows the LZS8WSSP to automatically recognize new filters and to update the LED light back to green upon replacement.
• New LED Screen showcases Filter Status and Green Ticker™ that tracks each plastic bottle saved from waste.
• Easier Filter Replacement - filter light automatically resets upon replacement.
• Visually Appealing LED Light activates when bottle is full to minimize spillage.
• Energy Savings System for saving on utility cost when not in use.
• Built in Diagnostics for easier troubleshoot


Key Specifications

• Chilling Capacity: 8.0 Gallons Per Hour (GPH)
• Filter Specs: Filters Lead, particulates, chlorine, & microplastics
• Number of Stations: One (1) Drinking Fountain & one (1) Bottle Filler
• Material: Stainless Steel finish

Features & Benefits

• Sensor-activated bottle filler for touchless, sanitary operation
• Green Ticker™ counting bottles saved from waste
• WaterSentry® Plus 3000-gallon capacity filter with visual monitor
• Flexi-Guard® bubbler for enhanced sanitation
• ADA compliant for universal access
• Sleek and Modern appearance elevates your space

What’s Included

• LZS8WSSP Bottle Filling Station and Cooler unit
• WaterSentry® Plus 3000-gallon capacity filter
• Flexi-Guard® bubbler
• Installation instructions

FAQ

Q: What type of Filter goes with the Enhanced Bottle Filling Station? How much does it cost?

A: The Elkay 51300C WaterSentry Replacement Filter matches with the Enhanced EZH20 Water Bottle Filling Station. Shop now.

Q: How often should the filter be replaced?
A: The filter should be replaced after 3000 gallons or 1 year after installation, whichever comes first.

Q: Is this unit suitable for outdoor installation?
A: No, the LZS8WSSP is designed for indoor use only. Elkay offers separate models specifically designed for outdoor installations.

Q: What is the power consumption of this unit?
A: The Elkay LZS8WSSP operates on a 120V/60Hz power supply and typically consumes about 370 watts during operation.

Q: Is there a drain required for installation?
A: Yes, a drain is required for proper installation and operation of this unit.

Q: How does the visual filter monitor work?
A: The visual filter monitor uses LED lights to indicate the filter status: green for good, yellow when replacement is approaching, and red when the filter needs to be changed.

Q: Does this model have any energy-saving features?
A: Yes, it includes a programmable energy-saving feature that allows the refrigeration system to be automatically powered off when not in use

Q: How long do filters last?

A: The WaterSentry Filters have a 3,000 Gallon Capacity. Depending on usage and your water condition, this typically lasts from 6-12 months. It is recommended to replace filter at least once per year.

Q: What water pressure is needed for the Enhanced Bottle Filling Station?

A: Single-level Bottle Filling Stations require 20 psi to 105 psi supply line pressure.

Detailed Features & Benefits

Bottle Filler:
• Sensor-activated for touchless, sanitary operation
• Automatic 20-second shut-off timer
• 1.1 GPM fill rate
• Laminar flow to minimize splashing
• Visual user interface display with Green Ticker™

Cooler:
• 8.0 GPH cooling capacity
• Flexi-Guard® bubbler with antimicrobial protection
• Easy-to-operate front pushbar activation
• Stream height regulator

Filtration:
• WaterSentry® Plus 3000-gallon capacity filter (NSF 42 and 53)
• Reduces lead, particulates, chlorine taste and odor and emerging contaminants
• Visual monitor indicates when replacement is necessary

Construction & Installation:
• Heavy-duty steel construction with light gray powder coat finish
• Vandal-resistant bubbler and pushbar
• One-piece stainless steel back panel for durability

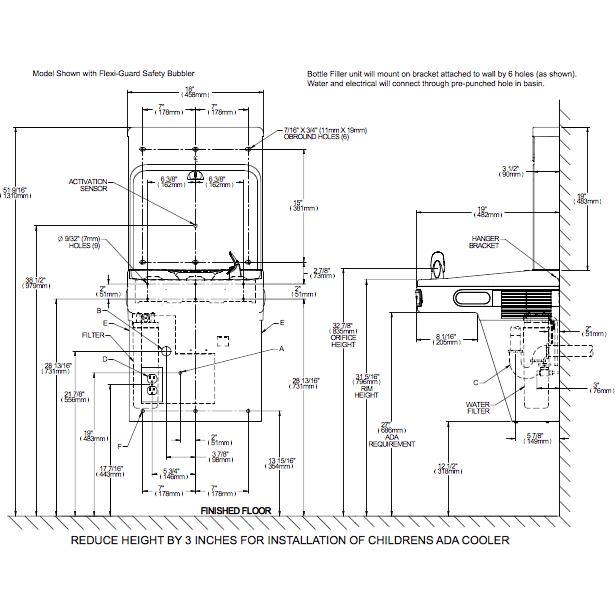

• Wall-mount design with mounting frame for easy installation

Energy Efficiency:
• Energy-efficient compressor
• Hermetically-sealed, reciprocating type compressor
• Controlled by an electronically calibrated sensing device

Sanitation:
• Silver Ion Anti-microbial protection on key plastic components. The unit features a Flexi-Guard® safety bubbler, which is a flexible antimicrobial mouthguard to protect against accidental mouth contact and contamination.
• Real Drain system eliminates standing water

The hands-free feature allows for hygienic filling of water bottles without touching the unit, reducing the risk of germ transmission and making it more convenient for users, especially in high-traffic areas.

Compliance:
• ADA compliant for frontal and side approach
• Meets UL 399 and CAN/CSA 22.2 No. 120 standards
• Certified to NSF/ANSI 42, 53, and 61

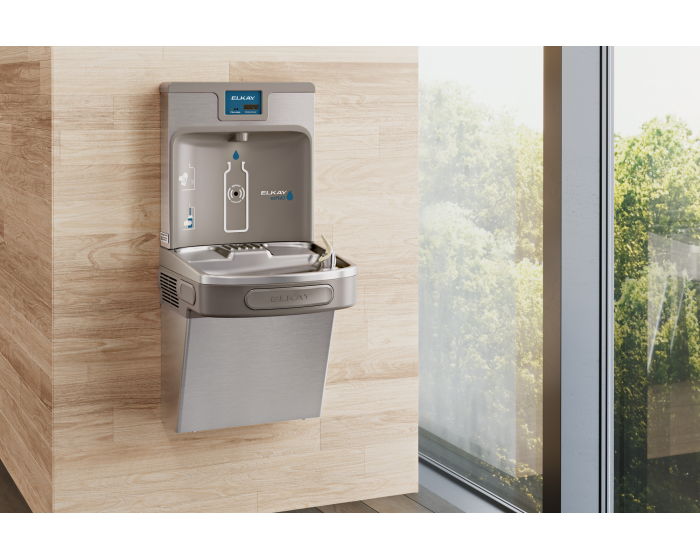

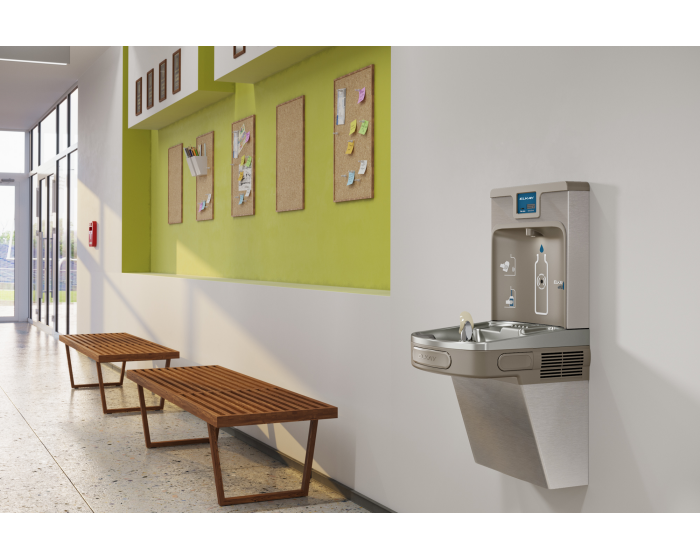

The Elkay LZS8WSSP EZH2O Bottle Filling Station & Single ADA Cooler offers a comprehensive hydration solution that combines sustainability, hygiene, and accessibility. Its robust features make it an ideal choice for schools, offices, and other commercial indoor environments where reliable, clean drinking water is essential. Replace your old drinking fountain or add a new clean water access point that your building patrons will love.
