Elkay LZWSM8K | In-wall Bottle Filler | Filtered, Refrigerated, Han...
The Elkay LZWS‑LRPBM8K is an ezH2O® Bottle Filling Station with Integral SwirlFlo® Fountain, designed for indoor applications. This filtered and refrigerated stainless steel unit combines a hands-free bottle filler with a Flexi‑Guard® safety bubbler, offering chilled, clean drinking water with advanced antimicrobial protection and sustainability features.
Key Specifications:
| Design | Wall-mounted bottle filling station with integral SwirlFlo® fountain and mounting frame |
| Finish | Stainless steel construction for durability and easy cleaning |
| Filtration | Includes 51300C WaterSentry® Plus Filter, NSF 42/53/372/401 certified, 3,000-gallon capacity |
| Refrigeration | Provides 8.0 GPH of 50°F chilled water, hermetically sealed R‑134a refrigeration system |
| Stations Served | 1 station (bottle filler with bubbler) |
Features & Benefits:
- Hands-Free Bottle Filling: Electronic sensor activation for hygienic, touchless use
- Flexi‑Guard® Safety Bubbler: Provides added safety and mechanical activation
- Green Ticker™: Displays bottles saved from waste, promoting sustainability
- Visual Filter Monitor: LED indicator signals when filter replacement is required
- Antimicrobial Protection: Silver ion antimicrobial components help maintain clean surfaces
- Laminar Flow: Provides a clean, splash-free fill
What's Included:
- LZWS‑LRPBM8K Bottle Filling Station with SwirlFlo® Fountain
- MFWSF110 Mounting Frame
- ECH8 Chiller
- 51300C Filter Cartridge
- Installation instructions and user manual
Comparison With Other Bottle Filling Station Models:
| LZWSM8K | LBWD00WHC | LZWS‑LRPBM8K | |
|---|---|---|---|
| Finish | Stainless Steel | Aspen White | Stainless Steel |
| Filtration | 51300C WaterSentry® Plus Filter, 3,000 gal capacity | 71300C WaterSentry® PFAS Filter, 2,250 gal capacity | 51300C WaterSentry® Plus Filter, 3,000 gal capacity |
| Features | In‑wall refrigerated bottle filler only, laminar flow | Ambient water only, automatic filter reset, compact built‑in design | Flexi‑Guard® bubbler, refrigerated cooling, real drain system |
How to Install the LZWSM8K:
- Turn off the water supply and disconnect power to the unit before starting installation.
- Secure the MFWS100 mounting frame inside the wall cavity using proper fasteners.
- Attach the chiller shelf and connect drain fittings with plastic components to isolate from building plumbing.
- Connect the filter head and tubing following the quick‑connect instructions, ensuring tight seals.
- Mount the upper and lower panels to the frame, lock in place, and restore water and power supply.
How to Maintain the LZWSM8K:
- Inspect the filter status LED regularly; replace the 51300C filter when the indicator turns red.
- Reset the filter monitor by pressing the program button for 2 seconds until “RST FLTR” appears, then confirm reset.
- Flush the system for 2–5 minutes after each filter replacement to remove air and carbon particles.
- Clean the exterior surfaces with a soft cloth and mild detergent; avoid abrasive cleaners.
- Check for leaks and water pressure during routine maintenance to ensure optimal performance.
FAQ
Q: How Often Should the LZWSM8K Filter Be Replaced?
A: The included 51300C WaterSentry® Plus Filter should be replaced every 3,000 gallons or 12 months, whichever comes first. The LED status indicator will signal when replacement is required.
Q: How Do I Reset the Filter Monitor?
A: Open the lower panel and press the program button for 2 seconds until “RST FLTR” appears. Press again to reset the filter status LED. The green LED will illuminate, confirming reset.
Q: Does the LZWSM8K Come With a Mounting Frame?
A: Yes. The LZWSM8K includes the MFWS100 In-Wall Carrier Mounting Frame for secure installation.
Q: What Is the Difference Between the LZWS8K and the LZWSM8K?
A: The LZWS8K does not include a mounting frame. The LZWSM8K comes with the MFWS100 mounting frame, making it a complete in-wall installation solution.
Q: Is the LZWSM8K ADA Compliant?
A: Yes. When installed according to ADA & ICC A117.1 standards, the unit meets accessibility requirements for universal use.
Q: What Accessories Are Available for the LZWSM8K?
A: Optional accessories include replacement filters such as the 51300C WaterSentry® Plus and compatible installation kits for specific applications.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

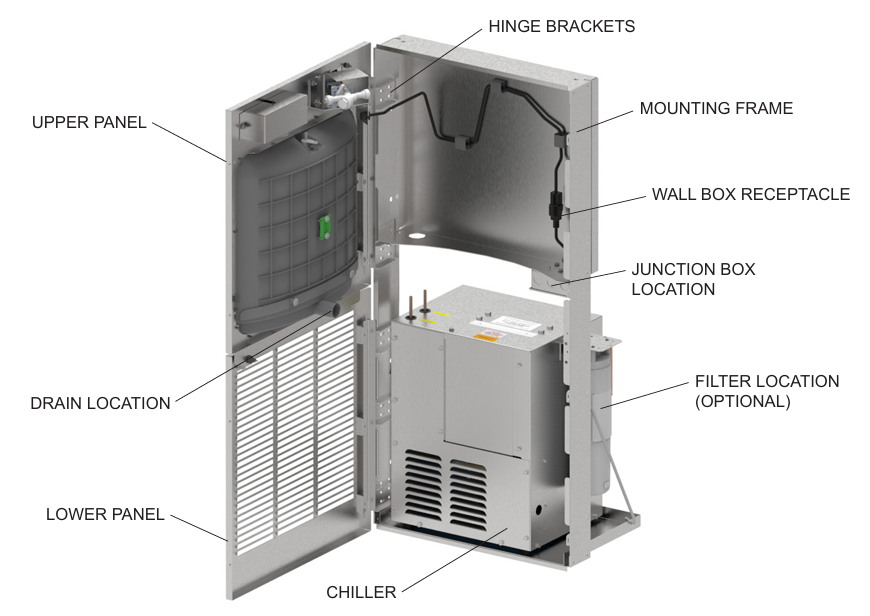

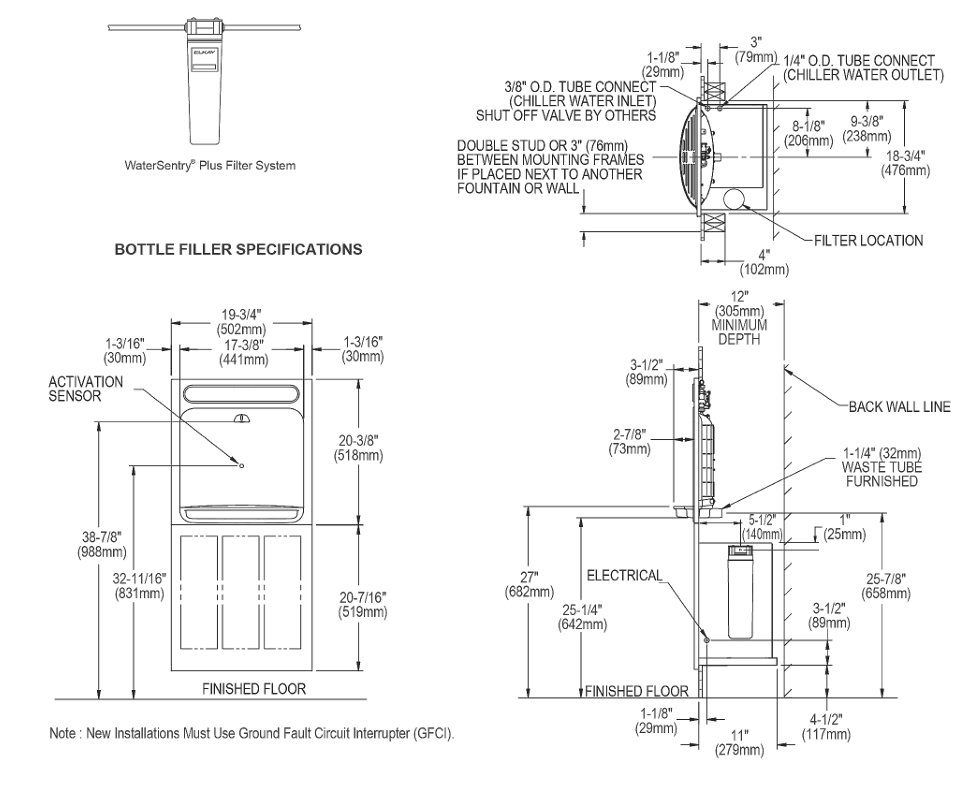

- Install mounting frame and chiller shelf securely; verify wall cavity dimensions match rough‑in requirements.
- Mount the upper bottle filler panel to the frame using hinge brackets and screws; ensure lock brackets align with slots and panel covers the frame.
- Mount the lower chiller panel to the frame; adjust hinges if necessary and lock panels in place with set screws and bolts.
- Attach drain fittings to the furnished 1‑1/4" waste tube; connect elbow to P‑trap and cut tube to required length.
- Install remote chiller (if applicable); maintain minimum 4" clearance on top/sides and 12" depth for service access.
- Connect building water supply to service stop valve (installer supplied); connect 3/8" copper tubing to filter head or strainer.
- For filtered units: mount WaterSentry® Plus EWF3000 filter head to chiller side panel; connect outlet to chiller inlet with 1/4" tubing.
- Insert filter cartridge into filter head; rotate clockwise until secure; label should face forward.
- For non‑filtered units: install in‑line strainer between valve and chiller inlet; flush line thoroughly before connection.
- Connect bottle filler water line from chiller outlet using 1/2" poly tubing union; connect electrical harness to wall box receptacle.
- Turn on water supply; flush at least 1 gallon through bottle filler to purge air and carbon particles; check all connections for leaks.
- Plug unit into grounded outlet; verify green LED filter status and LCD bottle counter display.
- Test dispensing by placing bottle or hand in front of sensor; confirm proper water flow.
- Close and lock lower panel with set screws; installation complete.
- For detailed steps, refer to the Elkay LZWSM8K installation manual or contact a licensed plumber/electrician.
- Inspect water and drain connections regularly; reseal or tighten fittings as needed.
- Replace WaterSentry® Plus filter cartridge when LED indicator shows red or after rated capacity; reset filter monitor via program button.
- Clean stainless steel panels with mild detergent and soft cloth; avoid abrasive cleaners or chloride‑based chemicals.
- Clean plastic components with mild detergent and soft cloth; antimicrobial properties will not be harmed.
- Check bubbler stream height; adjust regulator screw to maintain approximately 1‑1/2" above guard.
- Factory temperature control is set at 50°F ± 5°F; adjust cold control if needed for altitude or local conditions.
- Disconnect power and water supply before servicing internal components to avoid hazards.
- For service or repairs, consult the manual or a certified service representative.
