Elkay LBWD06WHK | Liv Built-In Water Dispenser | Filtered, Aspen White

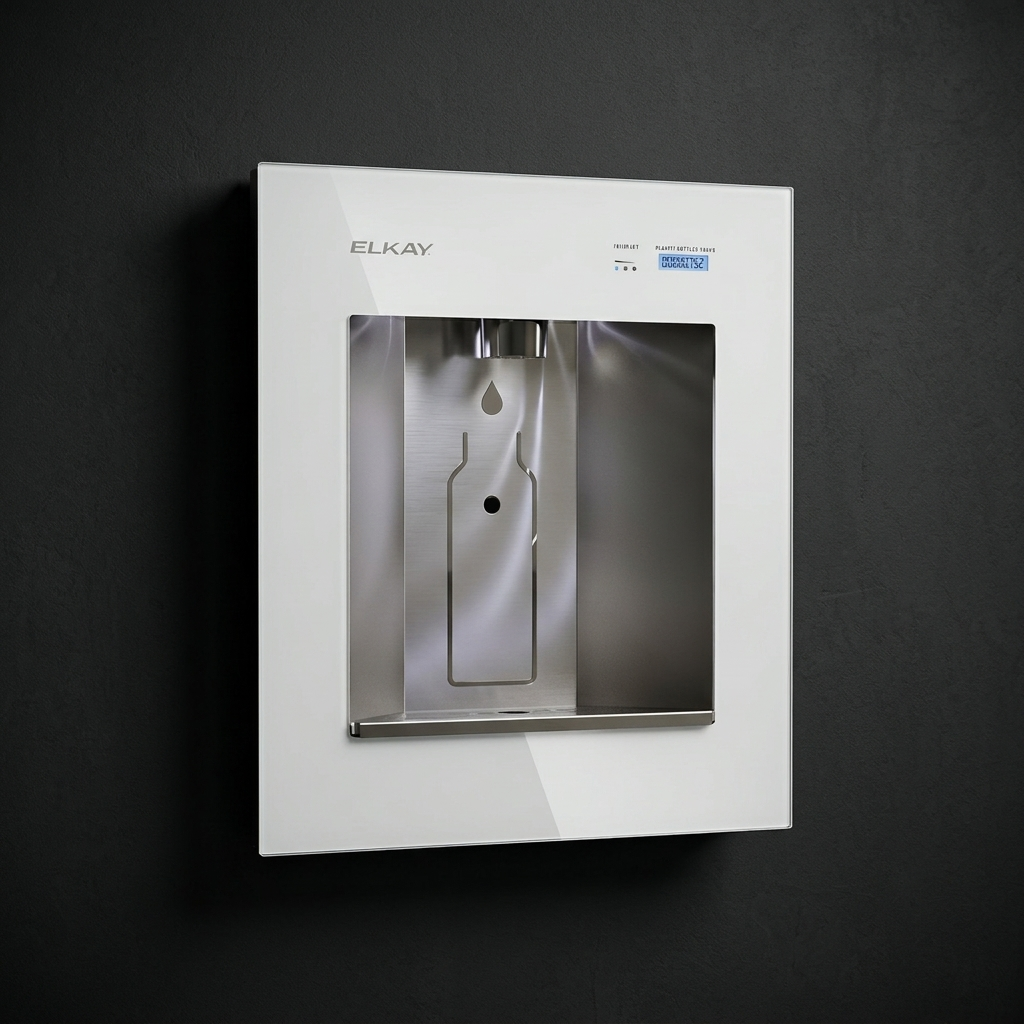

The Elkay LBWD06WHK Liv™ Built-In Water Dispenser delivers chilled, filtered water through a sleek in-wall design that complements modern residential spaces. Featuring hands-free sensor activation, PFAS reduction filtration, and integrated refrigeration, it provides convenient hydration while helping reduce reliance on bottled water.
Key Specifications:
| Design | Built-in filtered water dispenser with electronic sensor activation and chilling capability |
| Finish | Aspen White; also available in Midnight Black |
| Filtration | Includes the 71300C WaterSentry® PFAS + Lead Filter, certified to NSF/ANSI 42, 53, 372, and 401 standards for reduction of PFAS (PFOA/PFOS), lead, microplastics, chlorine taste & odor, cysts, and particulates |
| Refrigeration | 1.5 GPH chilling capacity (50°F water output, based on 80°F inlet and 90°F ambient) |
| Stations Served | 1 bottle filler |

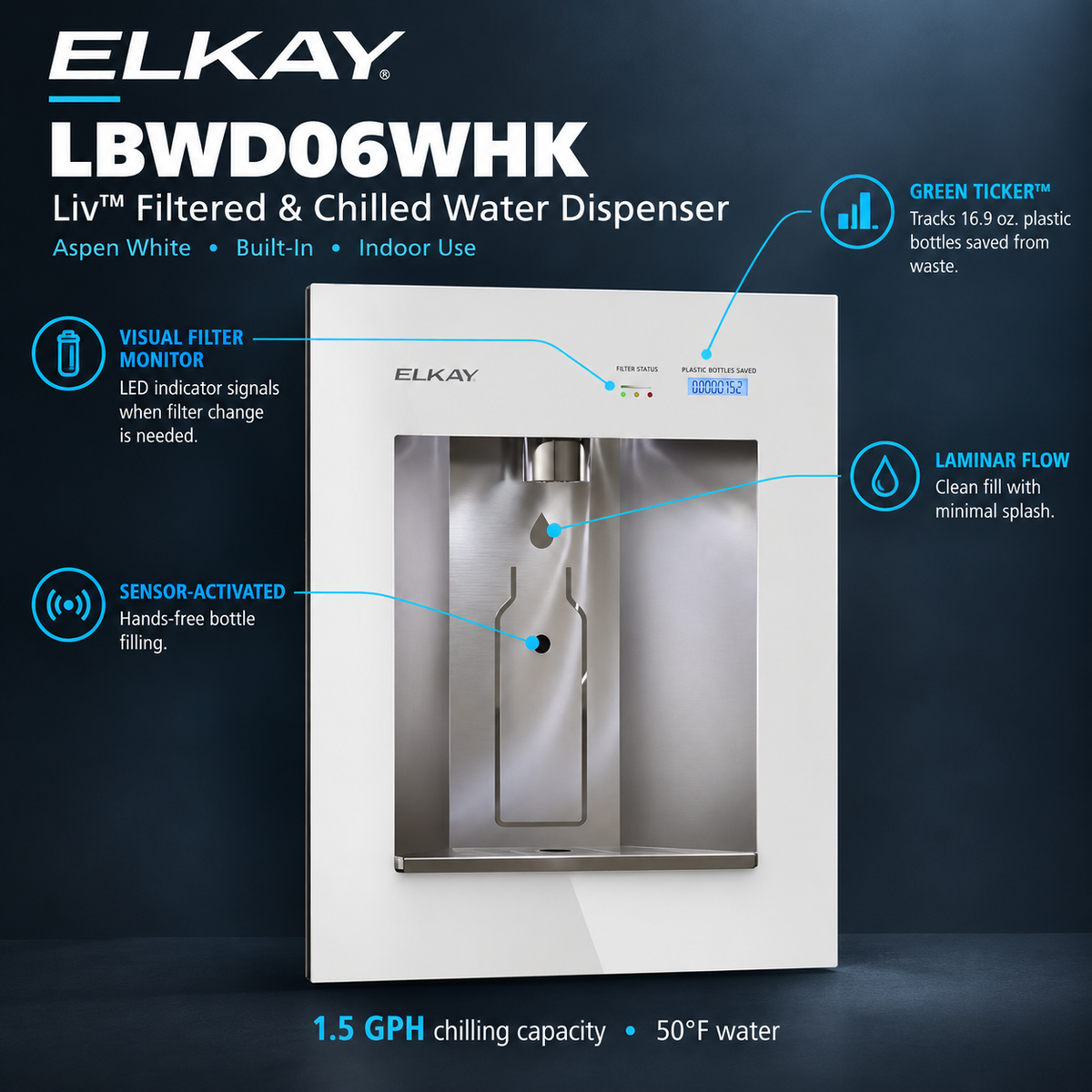

Features & Benefits:
- Advanced Filtration: Reduces PFAS, lead, microplastics, chlorine taste and odor, cysts, and particulates for cleaner drinking water.
- Chilled Water Delivery: Integrated ERS11Y chiller provides up to 1.5 gallons per hour of cold drinking water.
- Hands-Free Operation: Electronic sensor activation delivers water without touching controls.
- Green Ticker™: Displays the number of disposable plastic bottles saved from waste.
- Visual Filter Monitor: LED filter status indicator simplifies maintenance and replacement scheduling.
What's Included:
- Elkay LBWD06WHK Liv™ Water Dispenser
- ERS11Y 1.5 GPH Water Chiller
- Remote Filter Cable
- 71300C WaterSentry® PFAS + Lead Filter
FAQ
Q: Which Filter Does the Elkay LBWD06WHK Use?
A: The LBWD06WHK includes the 71300C WaterSentry® PFAS + Lead Filter, certified to reduce PFAS (PFOA/PFOS), lead, microplastics, chlorine taste and odor, cysts, and particulates.
Q: How Often Should the Filter Be Replaced in the Elkay LBWD06WHK?
A: The included 71300C filter has a capacity of 2,250 gallons or 12 months, whichever comes first. The Visual Filter Monitor alerts users when replacement is required.
Q: Is the Elkay LBWD06WHK ADA Compliant?
A: Yes. The LBWD06WHK complies with ADA and ICC A117.1 accessibility requirements when installed according to applicable standards.
Q: What Accessories Are Available for the Elkay LBWD06WHK?
A: Optional accessories include the AP99 Access Panel, PM3 On-Wall Chiller Shelf, and EFBLIVSC Liv™ Filter Box Kit.
Q: Are Multiple Finish Options Available for the Elkay LBWD06WHK?
A: Yes. The LBWD06WHK is available in Aspen White, and a matching LBWD06BKK Midnight Black version is also available.
Q: What Other Liv Models Are Available Besides the Elkay LBWD06WHK?
A: Additional options are available through the Elkay Liv™ Collection, including ambient and refrigerated models in multiple finishes.
Q: How Does Filtration Work in the Elkay LBWD06WHK?
A: The system uses the 71300C WaterSentry® PFAS + Lead Filter with activated carbon and advanced filtration media to reduce contaminants while improving taste and odor.
Q: Is Installation Difficult for the Elkay LBWD06WHK?
A: Installation requires in-wall mounting, electrical connections, plumbing, and connection to the remote filter and chiller components. Professional installation is recommended.
Q: How Do I Maintain the Elkay LBWD06WHK?
A: Replace the filter annually or when indicated, clean the exterior with mild soap and water, inspect the dispensing area regularly, and have refrigeration components serviced by qualified personnel when necessary.
Q: What Water Pressure Is Required for the Elkay LBWD06WHK?
A: The recommended operating pressure range is 40 to 105 PSI, with approximately 60 PSI considered optimal for performance.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
The Elkay LBWD06WHK is a Liv® built‑in water dispenser designed to provide convenient access to filtered water in residential and light commercial environments. Its compact undercounter design helps maximize countertop space while delivering clean drinking water on demand.

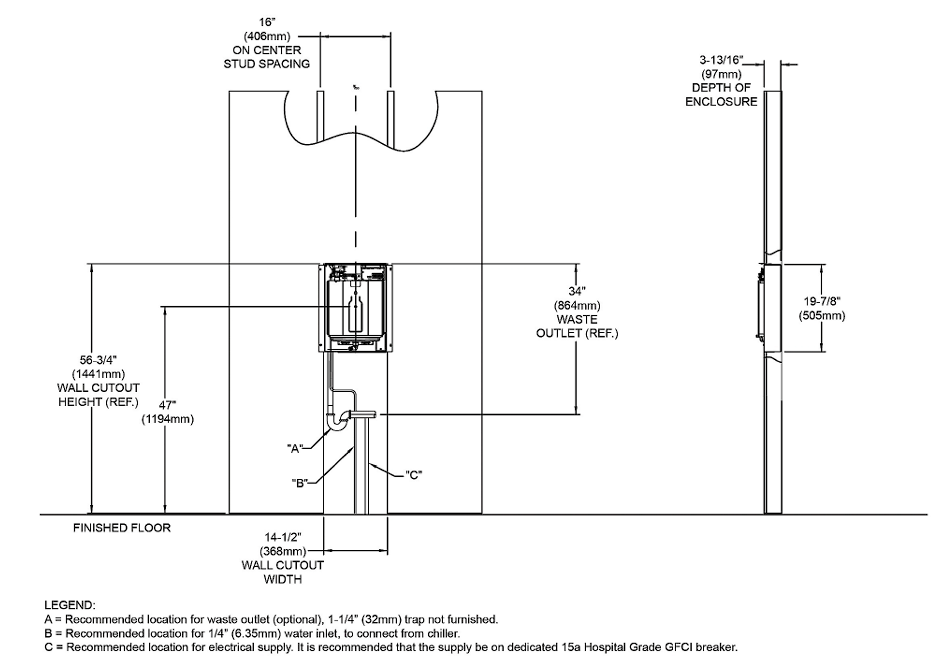

Key Installation Requirements:
- Built‑in installation with adequate cabinet space for the dispenser system
- Cold water supply connection required
- Electrical supply: 115V / 60Hz grounded outlet
- Allow sufficient clearance for filter replacement and servicing
- Install according to local plumbing and electrical codes
- Follow countertop cutout and mounting requirements provided by Elkay
Important Notes Before Installing:
- Do not connect to hot water lines
- Always shut off water supply before installation or service
- Use only genuine Elkay replacement filters to maintain performance
- Flush system thoroughly before first use
- Verify all plumbing connections are leak‑free before operation
- Keep installation area accessible for future maintenance
Basic Installation Overview:
- Prepare cabinet space and mounting location according to specifications
- Install dispenser assembly and secure mounting hardware
- Connect cold water supply line to the system inlet
- Install the filter cartridge and verify proper engagement
- Connect electrical supply to a grounded outlet
- Turn on the water supply and inspect all connections for leaks
- Flush the system according to manufacturer recommendations
- Test dispenser operation and verify proper water flow
For complete specifications and installation guidelines, download the official LBWD06WHK Spec Sheet and the Installation Manual.
