Elkay LBWDM06WHBC | Liv EZ Filtered & Chilled Water Dispenser |...

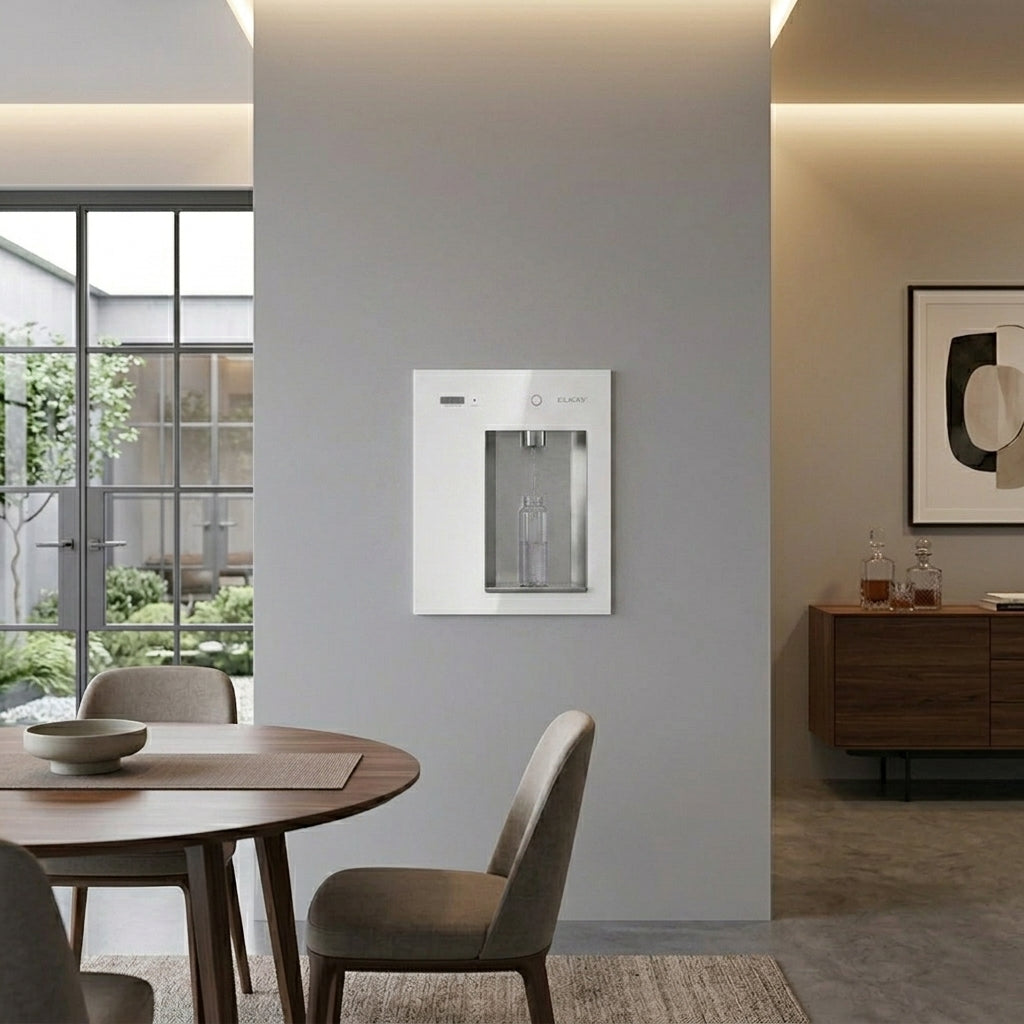

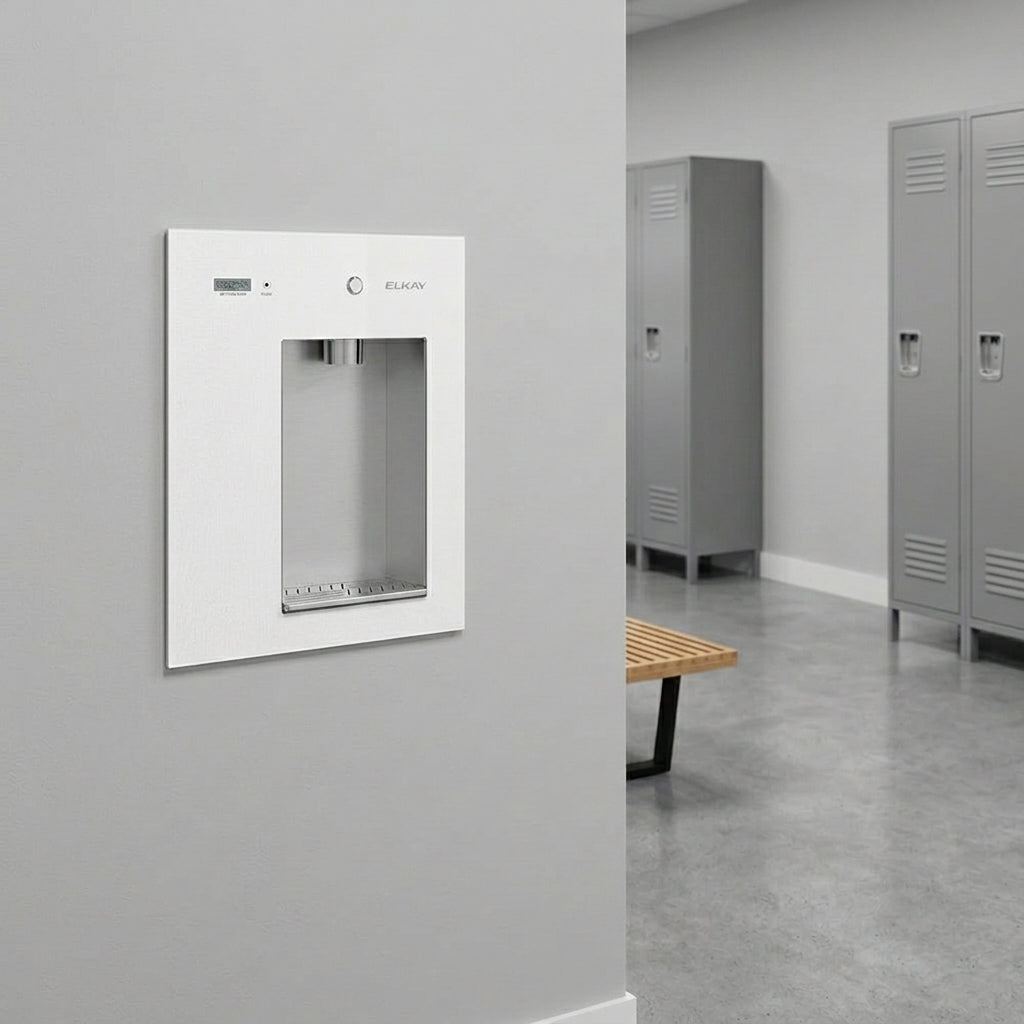

The Elkay LBWDM06WHBC Liv EZ is a built-in filtered and chilled water dispenser designed for modern indoor spaces. Compact and stylish, it delivers chilled, filtered water with mechanical push-button activation, making it ideal for homes, offices, and hospitality environments.
Key Specifications:
- Design: Built-in filtered and chilled water dispenser with mechanical activation

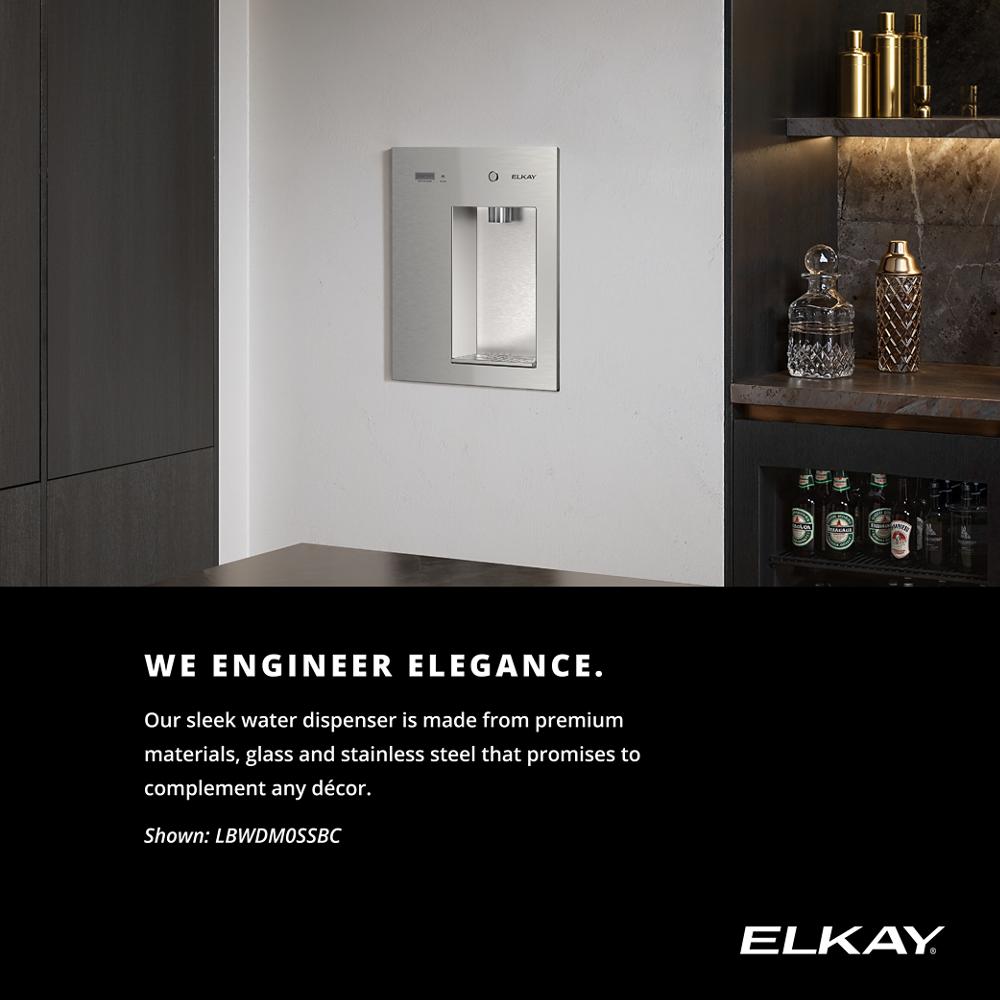

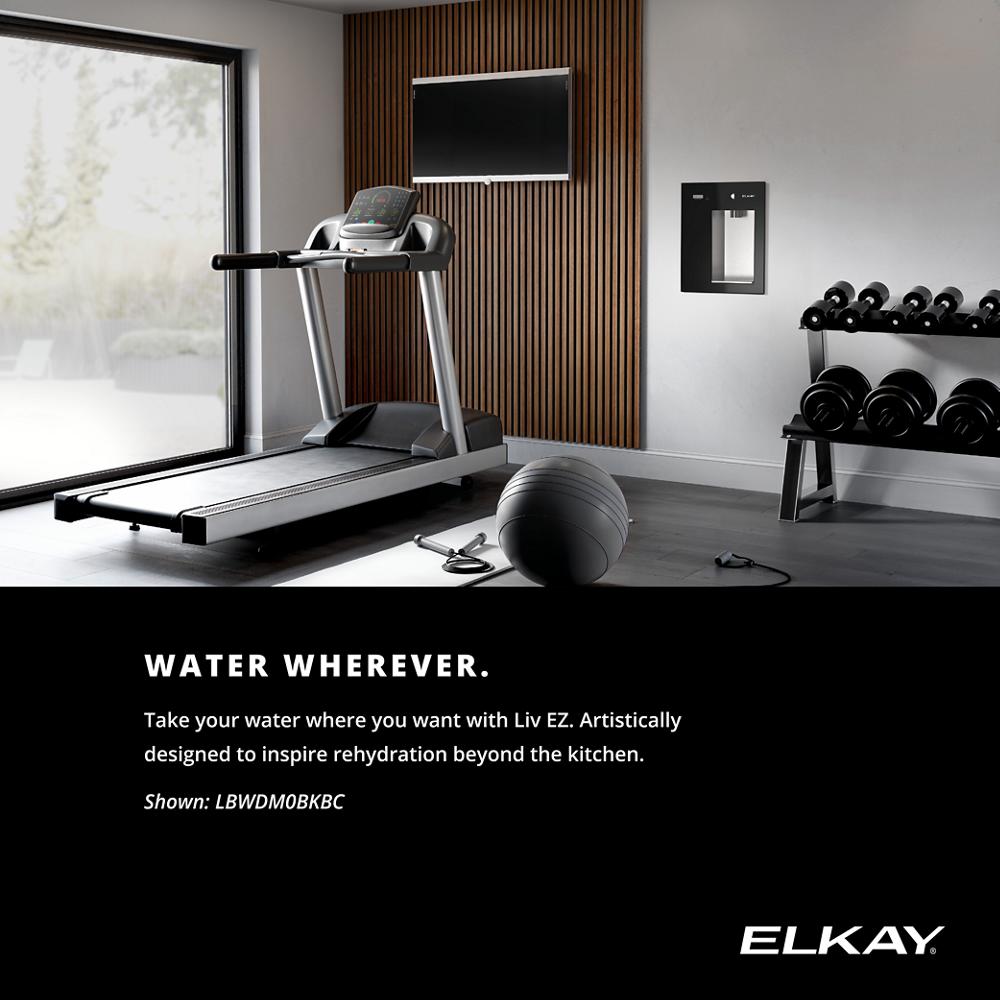

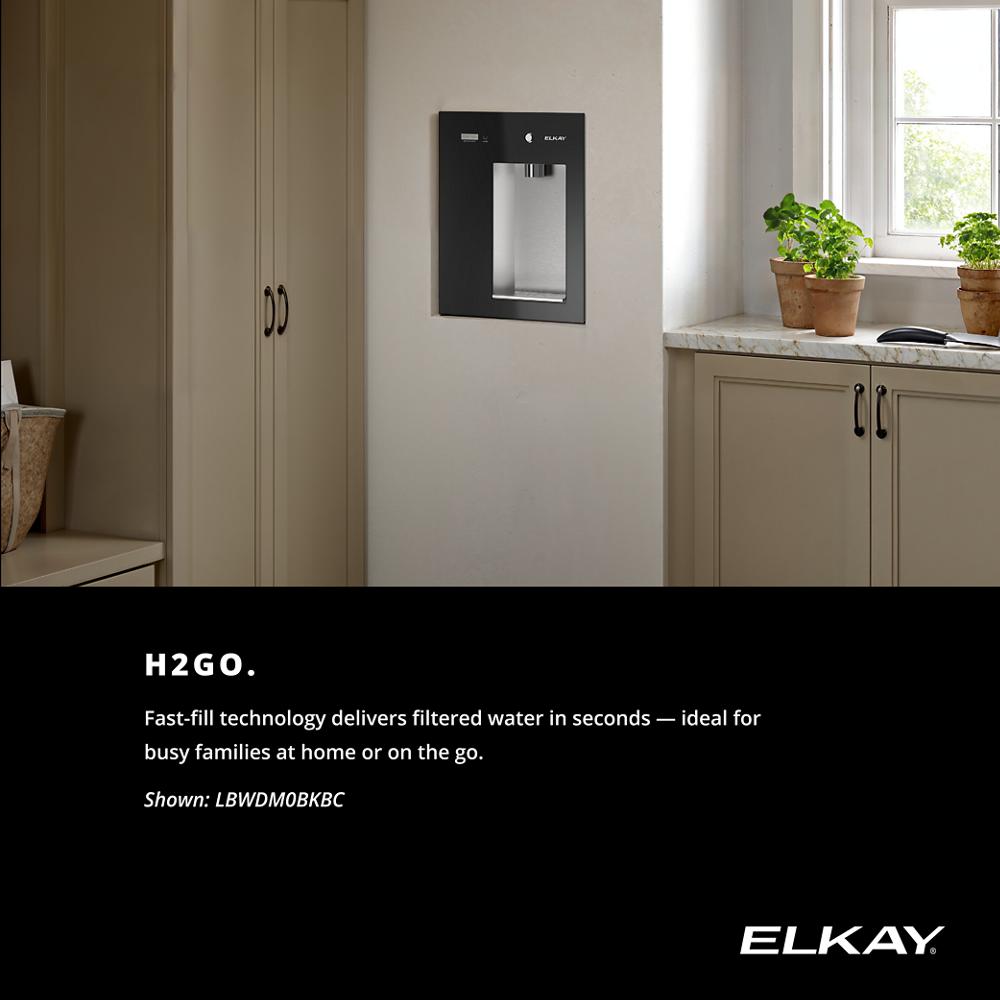

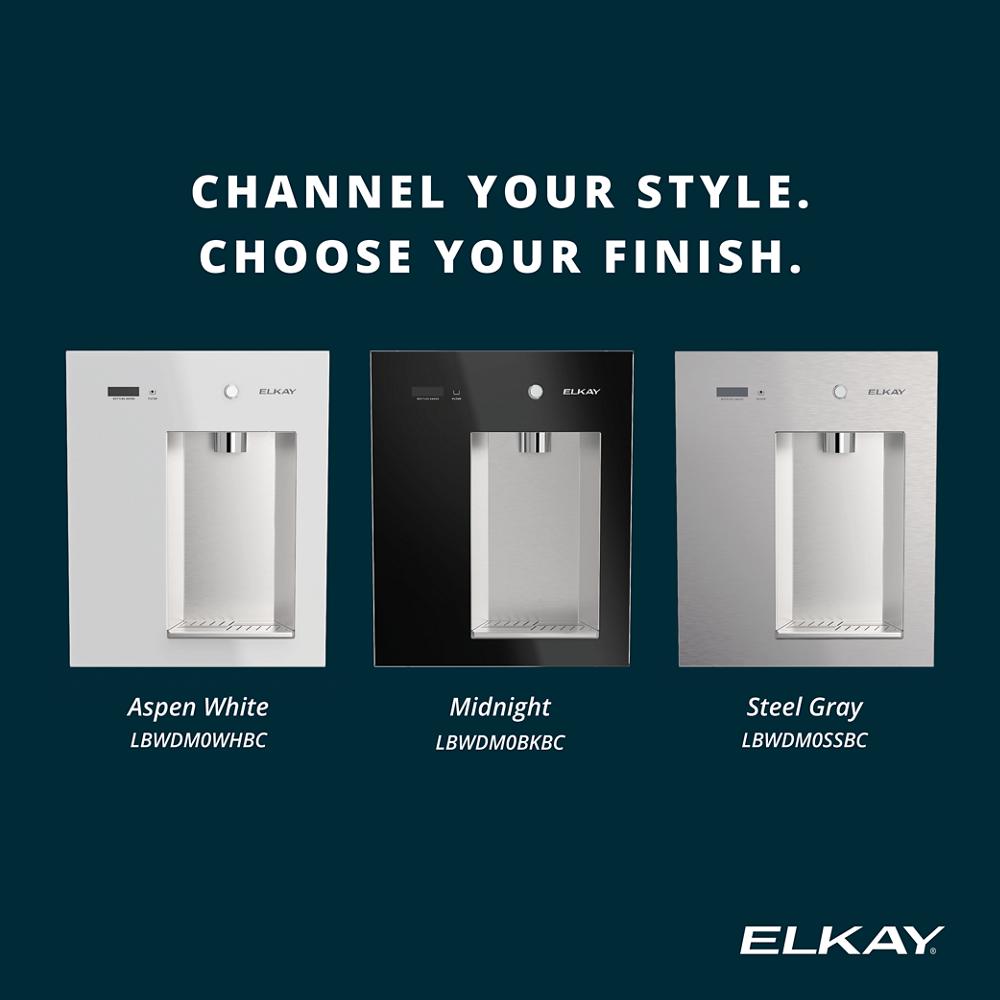

- Finish: Aspen White; also available in Midnight Black and Steel Gray
- Filtration: Equipped with the 71300C WaterSentry® PFAS + Lead Filter, NSF/ANSI 42, 53, 372, and 401 certified
- Refrigeration: 1.0 GPH chilling capacity (50°F water output, based on 80°F inlet and 90°F ambient)
- Stations Served: 1 bottle filler
Features & Benefits:
- Filtered Water: Certified to reduce PFAS, lead, microplastics, chlorine taste & odor, and cysts
- Compact Design: Built-in installation saves space and integrates seamlessly into walls
- Green Ticker™: Displays the number of plastic bottles saved from waste
- Laminar Flow: Provides clean, splash-free filling

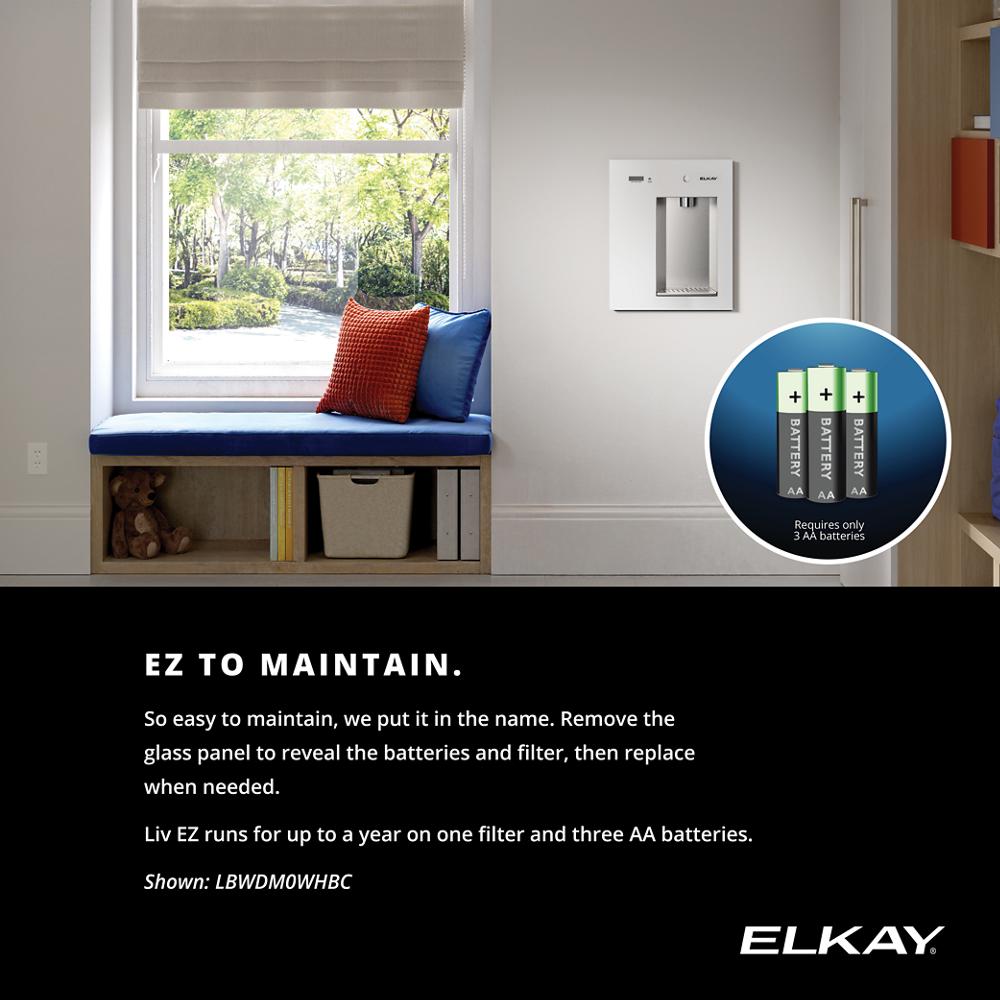

- Battery Powered: Operates with 3 AA batteries for convenience
What's Included:
- LBWDM06WHBC water dispenser

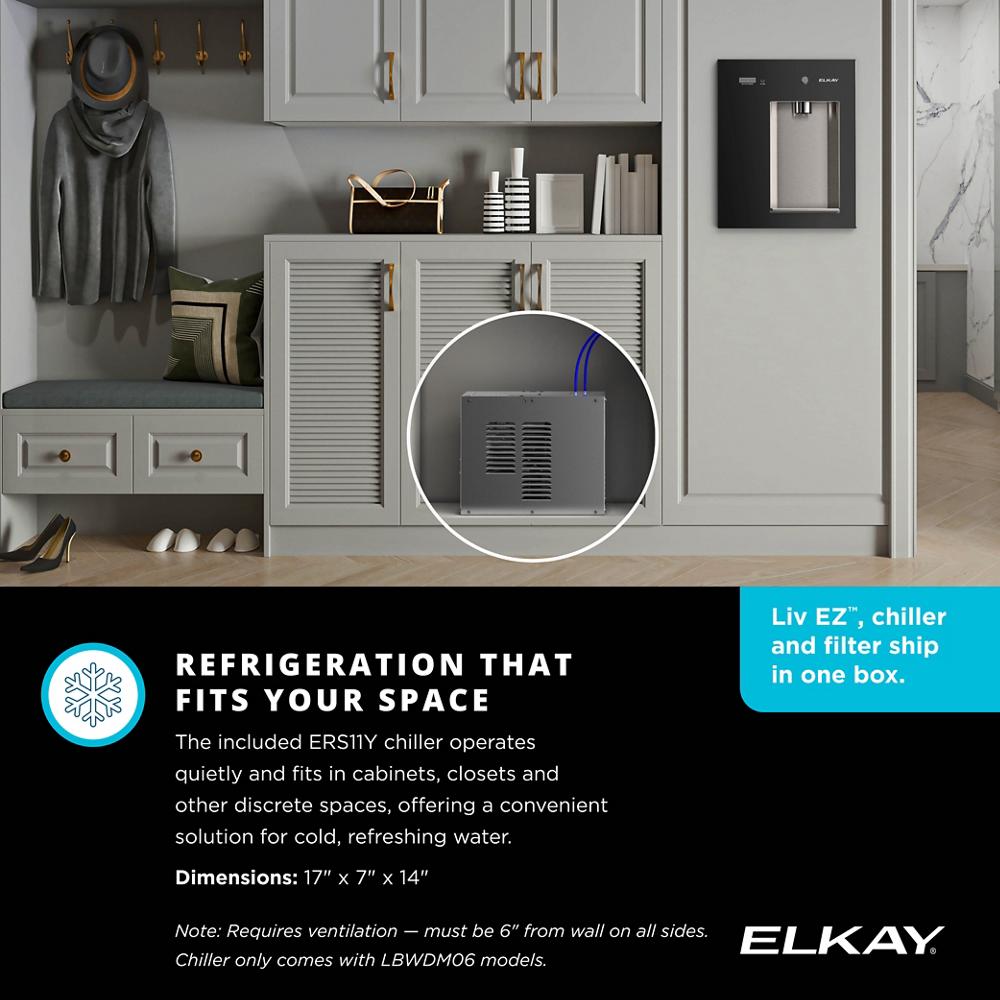

- 1.5 GPH water chiller ERS11Y
- 71300C WaterSentry® PFAS + Lead Filter (pre-installed)
- 51300C WaterSentry® Plus Filter (optional, shipped in box)
- 3 AA batteries
FAQ
Q: Which filter does the unit use?
A: The LBWDM06WHBC comes with the 71300C PFAS + Lead Filter installed for enhanced contaminant reduction. It also ships with a 51300C WaterSentry® Plus Filter as an optional alternative for standard lead and microplastics reduction.
Q: How often should the filters be replaced?
A: The 71300C lasts up to 2,250 gallons, while the 51300C lasts up to 3,000 gallons. Replace annually or when the LED indicator signals replacement.
Q: Is this unit ADA compliant?
A: Yes, when installed according to ADA guidelines, the push-button activation height meets accessibility requirements.
Q: Can this dispenser provide chilled water?
A: Yes, it includes a 1.5 GPH water chiller to deliver cold, filtered water.
Q: Are other finish options available?
A: Yes. Midnight Black and Steel Gray finishes are available for different design preferences.
Q: What other Liv EZ models are available?
A: Explore the full Elkay Liv EZ collection for ambient-only and chilled options in multiple finishes.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

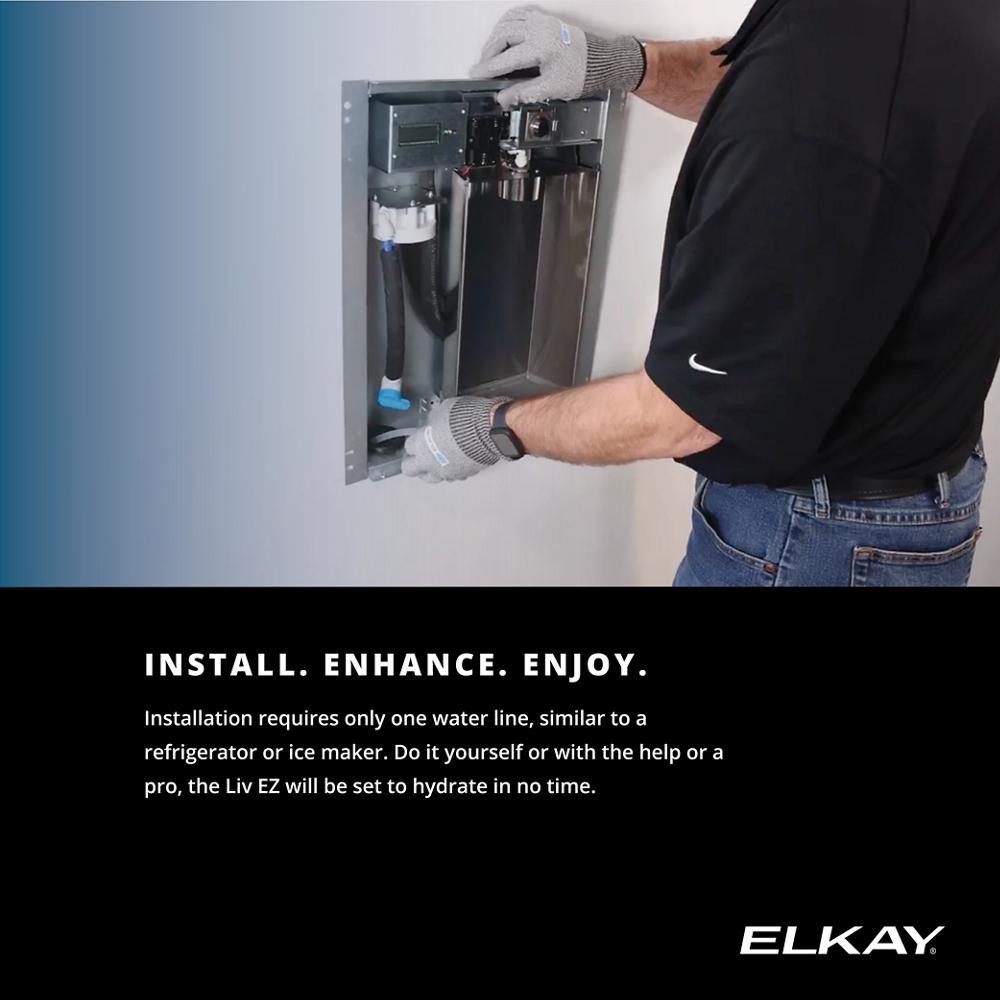

Installation
To install your Elkay LIV EZ Built-in Filtered Water Dispenser, ensure you have a water line available. A qualified plumber should perform the installation if you're unsure about making these connections.
- Cut a wall opening measuring 19-1/2"H x 14-1/2"W at approximately 59-2/5" from the floor.
- Verify the wall cavity depth is at least 3-1/2" (89 mm) to accommodate the unit.
- Route the 3/8" water line through the opening at the base of the dispenser.
- Level the unit and secure it to wall studs using 4 screws (not included).
- Install the 3 AA batteries in the battery compartment.
- Insert the filter into the filter head and turn clockwise to lock in place.
- Connect the water line to the shutoff valve at the filter's inlet.
- Open the water supply and check for leaks.
- Flush the system by dispensing at least one gallon of water before regular use.
- Attach the glass front cover using the included Phillips head screws.
Maintenance
To keep your Elkay LIV EZ in optimal condition:
- Replace the filter and batteries annually.
- Monitor the filter status light - pulsing red indicates 91.6% capacity used, solid red means immediate replacement needed.
- Remove the front panel screws when replacing the filter.
- Turn off the water supply before filter replacement.
- Rotate old filter counterclockwise to remove it.
- Install new filter by turning clockwise until locked.
- Turn water supply back on after filter replacement.
- Press the reset button above the battery compartment to reset the filter light.
- Maintain water pressure between 40-105 psi (60 psi optimal).
- Regularly check for leaks around connections.
- Clean exterior with mild detergent and soft cloth as needed.
Refer to the product manual for detailed installation and maintenance information.
