Elkay LZWS-LRPBM28K | In-wall Bottle Filling Station & SwirlFlo...
The Elkay LZWS-LRPBM28K ezH2O® Bottle Filling Station with Bi-Level SwirlFlo® Fountain delivers filtered, refrigerated hydration in a durable stainless steel design. Combining a touchless sensor-activated bottle filler with mechanical push-button bubblers, this in-wall unit is ideal for high-traffic indoor environments seeking ADA-compliant, sustainable hydration solutions.
Key Specifications:
- Design: In-wall bi-level fountain with integral bottle filler, electronic sensor activation, and mechanical bubbler push buttons
- Finish: Stainless steel construction with Flexi-Guard® safety bubblers

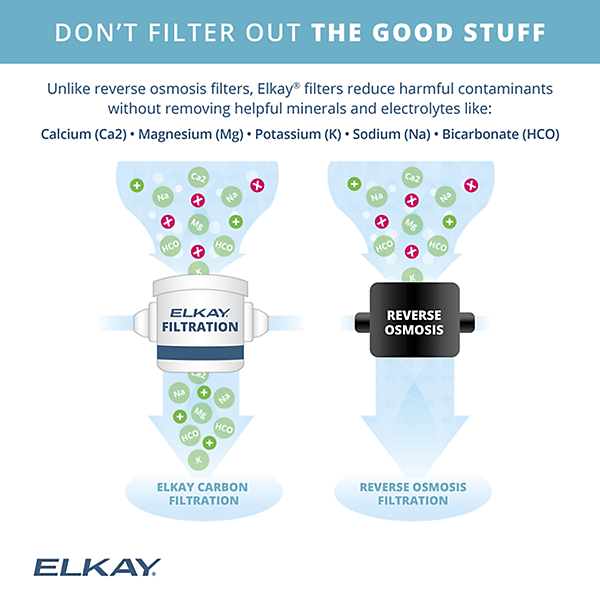

- Filtration: Includes 51300C WaterSentry® Plus Filter, NSF 42/53 certified for lead, particulates, chlorine, taste, and odor reduction (3,000-gallon capacity)
- Refrigeration: Provides 8.0 GPH of 50°F chilled water, tested to ASHRAE 18 standards
- Stations Served: 2 stations (dual-level fountains plus bottle filler)
Features & Benefits:
- Touchless Hygiene: Sensor-activated bottle filler reduces cross-contamination
- Green Ticker™: Displays the number of 20 oz. plastic bottles saved from waste
- Visual Filter Monitor: LED indicator alerts when filter replacement is needed
- Antimicrobial Protection: Key plastic components feature silver ion agents to resist mold and odors
- Real Drain System: Eliminates standing water for improved hygiene and reduced maintenance
What's Included:
- Fountain with Integral Bottle Filling Station (LRPBD28WSC)
- Mounting Frame (MFWS210)
- Remote Chiller (ECH8)
- 51300C WaterSentry® Plus Filter
- Installation hardware and guide
FAQ
Q: How Often Should the Filter Be Replaced?
A: The 51300C filter has a 3,000-gallon capacity. The LED visual monitor alerts when replacement is required.
Q: Is Elkay LZWS-LRPBM28K ADA Compliant?
A: Yes, the LZWS-LRPBM28K meets ADA & ICC A117.1 standards when installed according to guidelines.
Q: Can Elkay LZWS-LRPBM28K Be Installed Outdoors?
A: No, this model is designed for indoor applications only.
Q: What Warranty Is Provided?
A: Elkay offers a 5-year limited warranty on the refrigeration system and 1-year coverage on electrical and water components.
Q: What Accessories Are Available?
A: Optional accessories include the LKAPR1 Cane Apron, the ACCESS12X38-5 Access Panel.
Q: How Do I Reset the Filter Monitor?
A: Depress the program button for 2 seconds until “RST FLTR” appears, then press again to reset. The green LED will illuminate when reset is complete.
Q: What Makes This LZWS-LRPBM28K Unique?
A: The LZWS-LRPBM28K combines a dual-level SwirlFlo® fountain with a touchless bottle filler, offering filtered, refrigerated hydration in one ADA-compliant unit.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

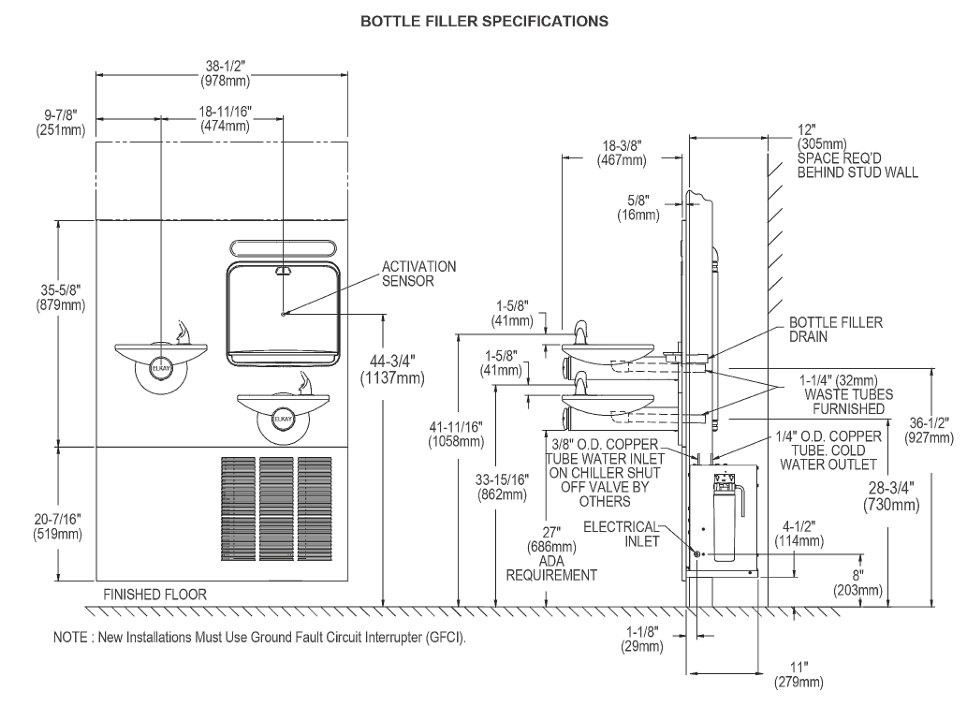

- Prepare wall framing to support unit weight and follow rough‑in dimensions provided in the package manual.
- Install water inlet and drain line per rough‑in guide.
- Mount back panel securely using hanger bracket or wall plate assembly.
- Attach fountain body with supplied hardware and tighten securely.
- Connect water supply line, flush thoroughly, and check for leaks.
- Adjust bubbler stream height as needed; factory set at 35 psi.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber.
- Inspect bubbler orifice periodically; clean if flow is irregular.
- Adjust stream regulator as needed to maintain proper flow.
- Check quick‑connect fittings for leaks and reseat tubing if necessary.
- Clean basin and exterior surfaces with non‑abrasive cleaner.
- For service or repairs, consult the manual or a licensed plumber.
