Elkay EMABFTLDDLC | Wall-mount Bi-Level Drinking Fountain | Filterl...

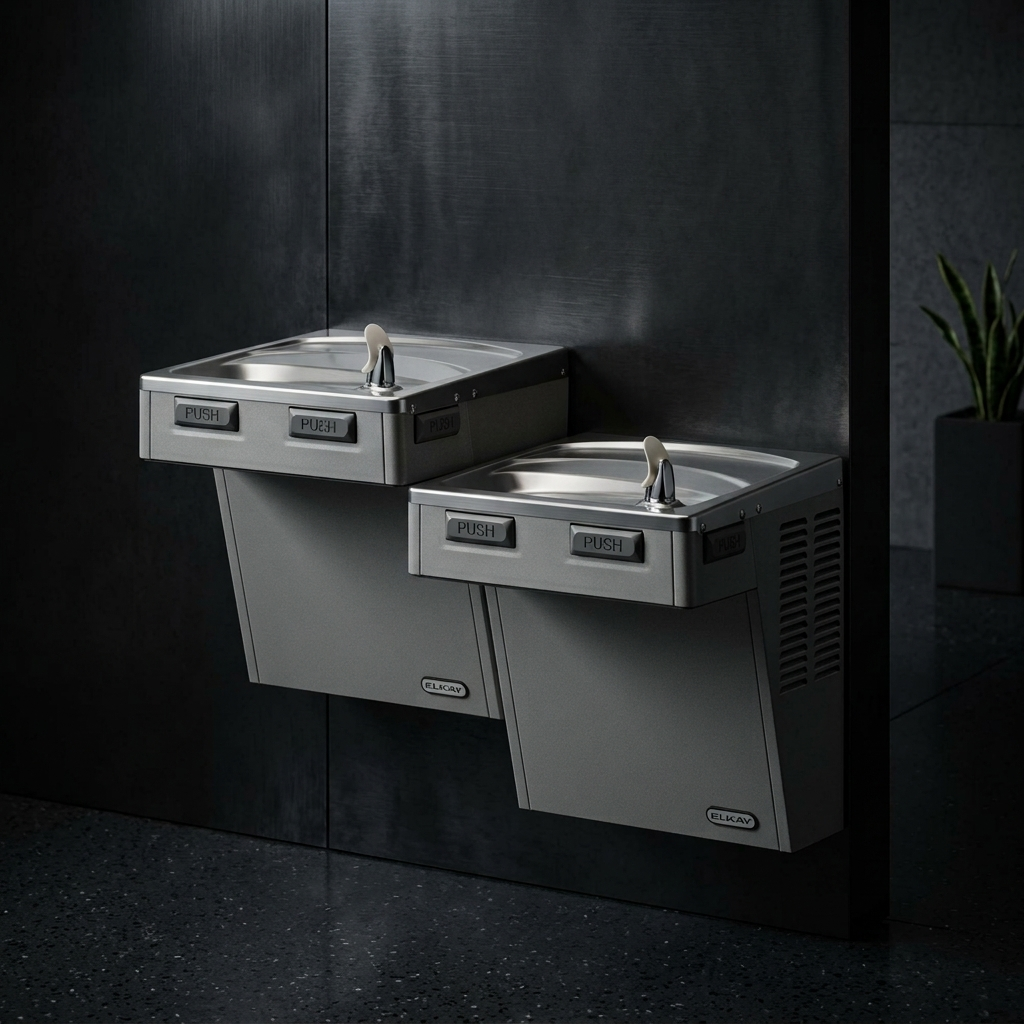

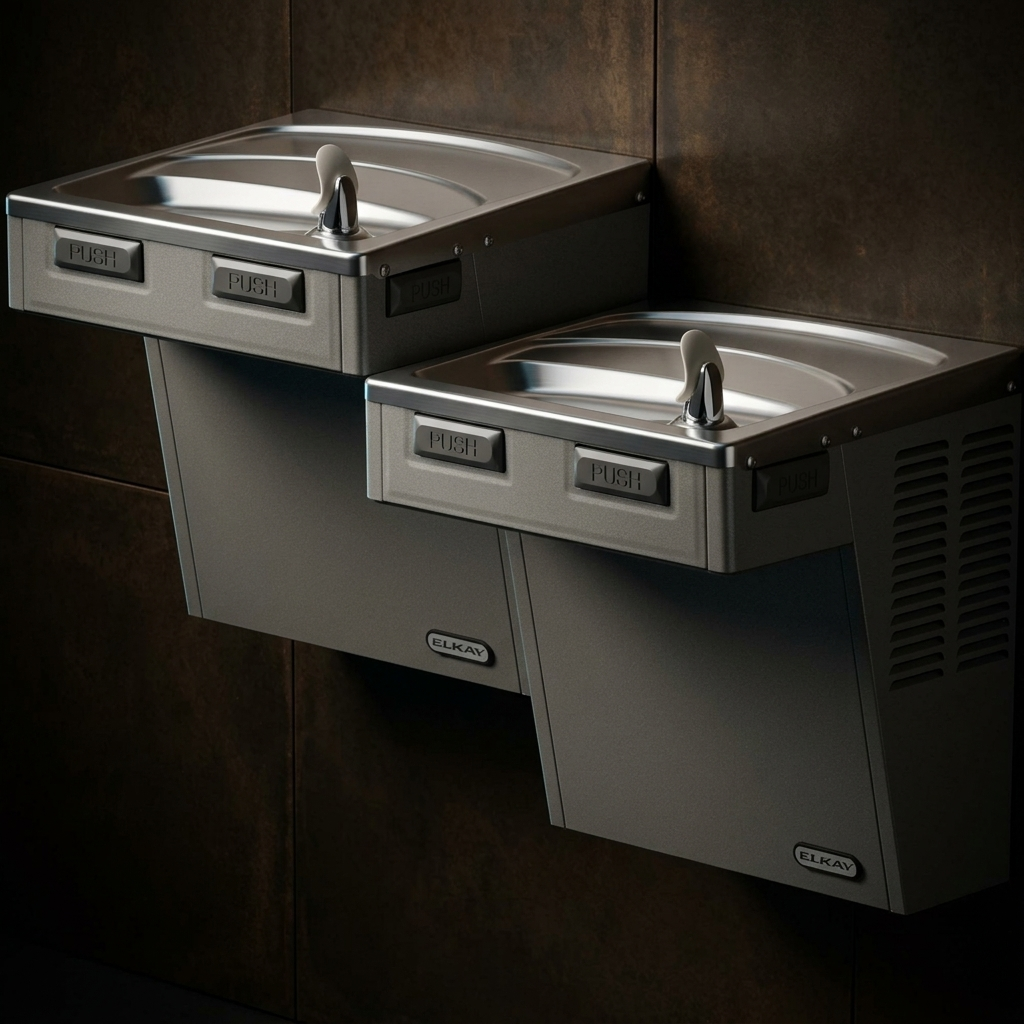

The Elkay EMABFTLDDLC is a non‑refrigerated, bi‑level ADA cooler designed to convert standard wall‑mount installations into accessible hydration stations. With mechanical front bubbler button activation and Flexi‑Guard® safety bubblers, it provides reliable service for two stations without requiring electrical power.
Key Specifications:
- Design: Bi‑level ADA wall‑mount cooler with mechanical activation
- Finish: Light Gray Granite, with stainless steel option available as EMABFTLDDSC
- Filtration: Non‑filtered, but can be retrofitted using the EWF172 Watersentry VII Filter Kit, or selected in a filtered configuration such as LMABFTLDDWSLK
- Refrigeration: Non‑refrigerated, mechanical activation continues to supply water during service disruptions
- Stations Served: 2 (drinking fountains)

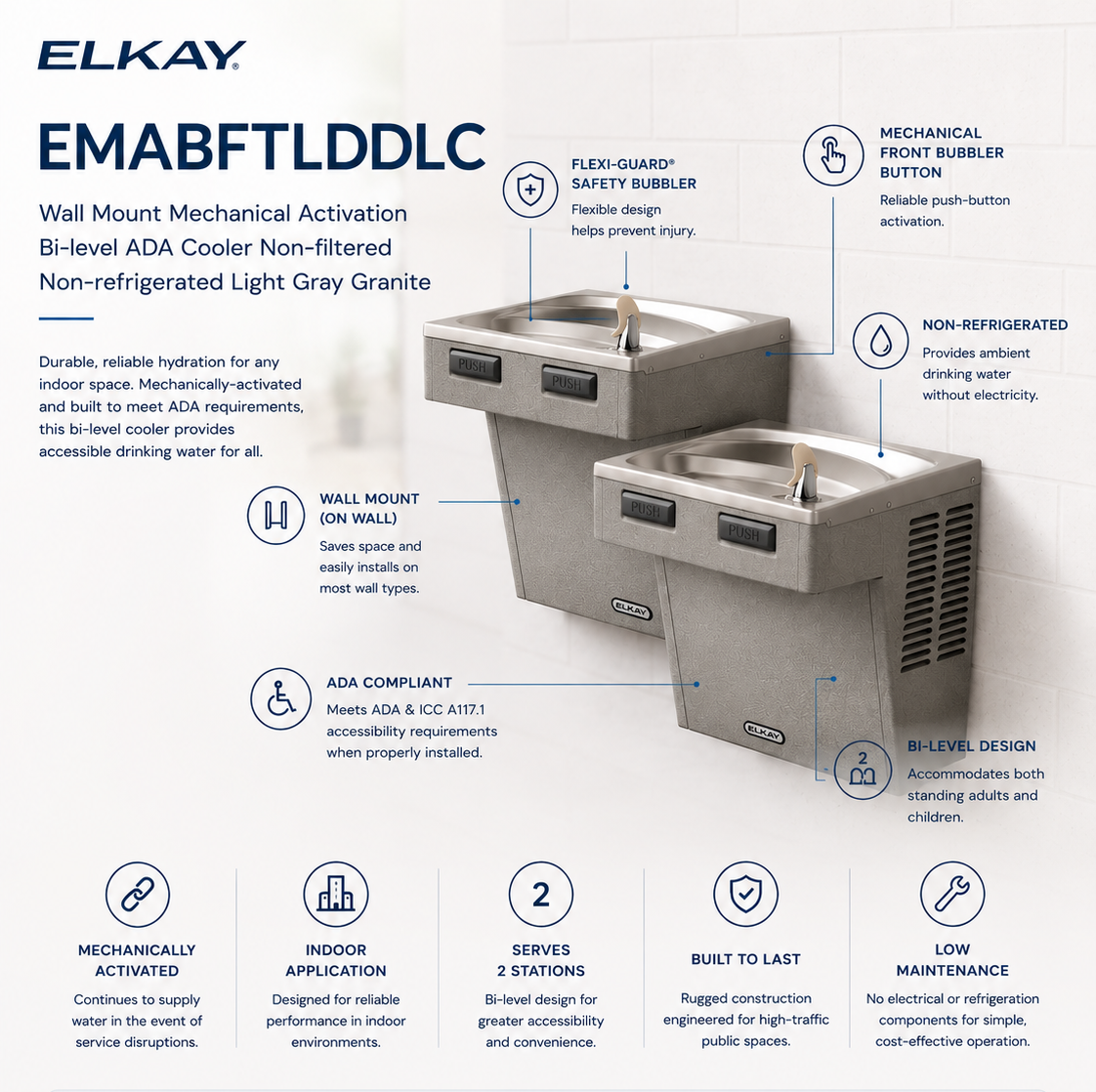

Features & Benefits:
- ADA Compliant: Meets ADA & ICC A117.1 accessibility requirements when installed properly
- Durable Construction: Rust‑resistant granite finish with optional stainless steel upgrade
- Reliable Hydration: Mechanical activation ensures water flow even during power outages
- Compact Installation: Wall‑mount design suitable for indoor commercial spaces
- Flexible Filtration: Compatible with Elkay retrofit kits and filtered model options
What's Included:
- EMABFTLDDLC Bi‑Level ADA Cooler
- Flexi‑Guard® Safety Bubblers
- Installation instructions (PDF)
- Warranty documentation
Comparison of Elkay Bi‑Level Coolers:
| Feature | EMABFTLDDLC (This Model) | EZOSTL8SC | EDFPBMV117C |
|---|---|---|---|
| Design | Bi‑level ADA, mechanical activation | Bi‑level ADA, dual hands‑free activation | Bi‑level in-wall vandal‑resistant drinking fountain |
| Finish | Light Gray Granite (optional stainless steel) | Stainless steel | Stainless steel SwirlFlo® design |
| Filtration | Non‑filtered, retrofit kits available | Non‑filtered, retrofit kits available | Non‑filtered, vandal‑resistant bubblers |
| Refrigeration | Non‑refrigerated (remote chiller optional) | 8 GPH refrigerated cooler | Non‑refrigerated |
| Best For | Schools, offices, public facilities needing ADA compliance | High‑traffic areas requiring hands‑free operation | Durable installations needing vandal‑resistant features |
FAQ
Q: What Applications Are Best Suited for the EMABFTLDDLC?
A: This cooler is ideal for schools, offices, and public facilities needing a durable, non‑refrigerated bi‑level ADA compliant drinking solution.
Q: Does the EMABFTLDDLC Require Electrical Power?
A: No. It is mechanically activated and continues to supply water even during service disruptions.
Q: Can the EMABFTLDDLC Be Converted into a Refrigerated Cooler?
A: Yes. It can be paired with a remote chiller such as the Elkay ER101Y to provide chilled water service.
Q: What Accessories Are Available?
A: Optional accessories include the MLP200 In‑Wall Carrier, 98313C Cane Apron, and Elkay filtration kits (EWF172, EWF3000).
Q: Is the EMABFTLDDLC ADA Compliant?
A: Yes. It complies with ADA & ICC A117.1 accessibility standards when installed according to guidelines.
Q: What Is the Station Capacity?
A: The EMABFTLDDLC serves two stations simultaneously, making it suitable for high‑traffic areas.
Q: Can the Bubbler Be Upgraded to a Vandal‑Resistant Option?
A: Yes. The Flexi‑Guard® bubbler can be replaced with the Elkay 97446C Vandal‑Resistant Bubbler Kit for added durability in high‑traffic environments.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
The Elkay EMABFTLDDLC is a bi‑level drinking fountain designed for durability and accessibility. This filterless unit delivers ambient water service with dual ADA‑compliant access points, making it suitable for schools, offices, and public facilities.
Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Supply line pressure: 20–105 PSI (regulator required if above 105 PSI)
- Drain connections required for both fountain basins
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Unit is filterless — delivers ambient water only
- Always depressurize water line before servicing
- Outdoor installation requires winterization or protection in extreme climates
- Ensure proper drainage to avoid water damage from spillage
- Secure fountains firmly to wall structure to resist vandalism
Basic Installation Overview:
- Install in‑wall carrier to support dual fountain weight
- Position fountain assembly and secure to wall structure
- Connect cold water supply line to inlet
- Connect drain lines from both basins to building drain system
- Pressurize system slowly and check for leaks
- Test bubbler stream height; adjust regulator if needed
- Install cover plates and finish trim
For complete specifications and installation guidelines, download the official EMABFTLDDLC Spec Sheet and the Installation Manual.
