Elkay EDFP214FPK | Wall-mounted Soft-sides Drinking Fountain | Filt...

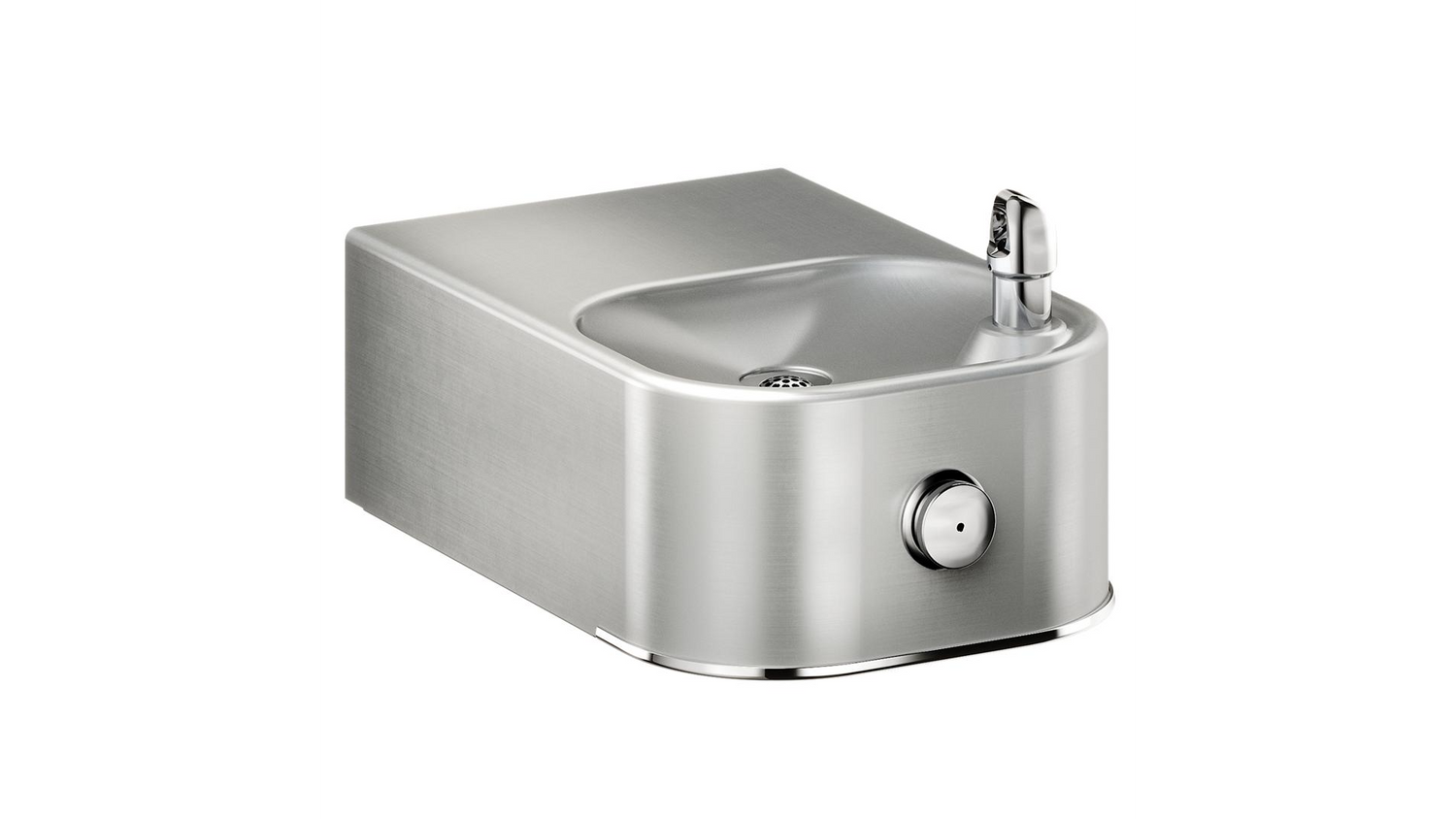

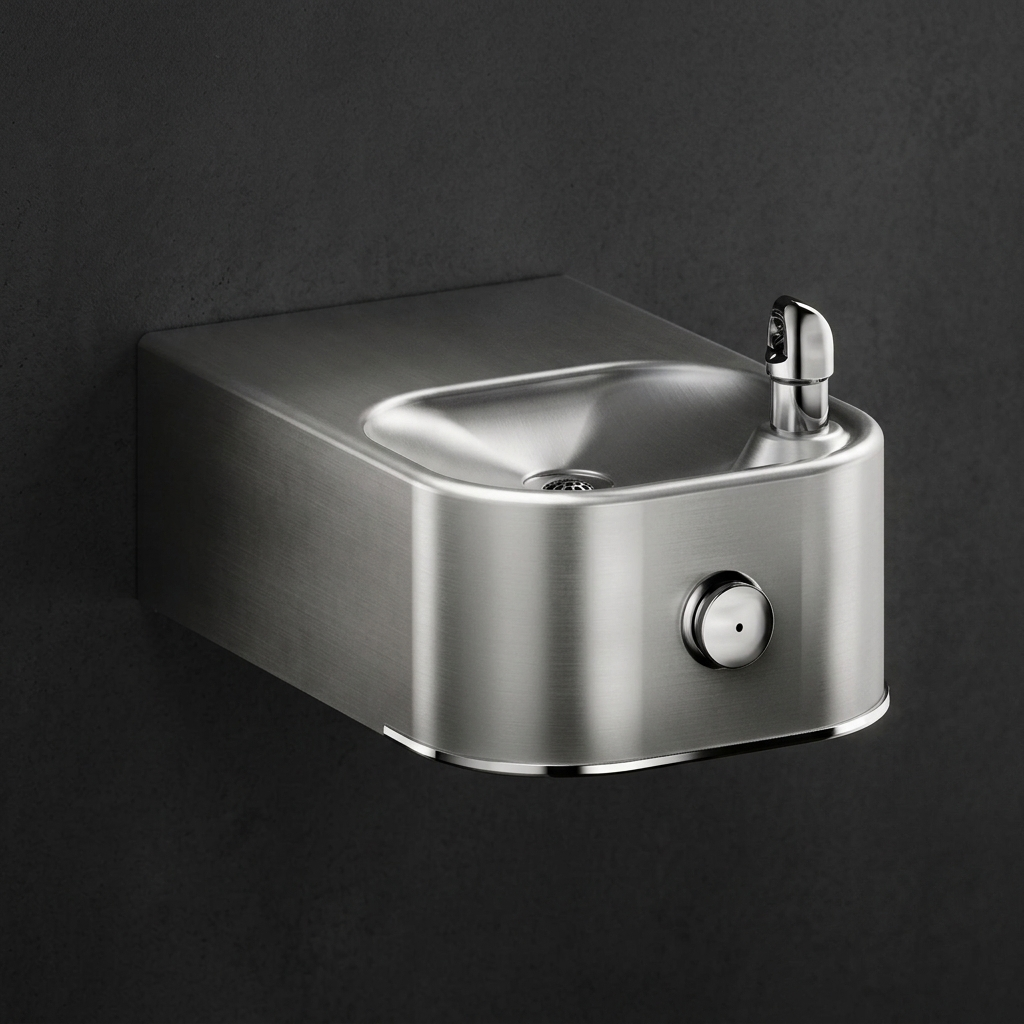

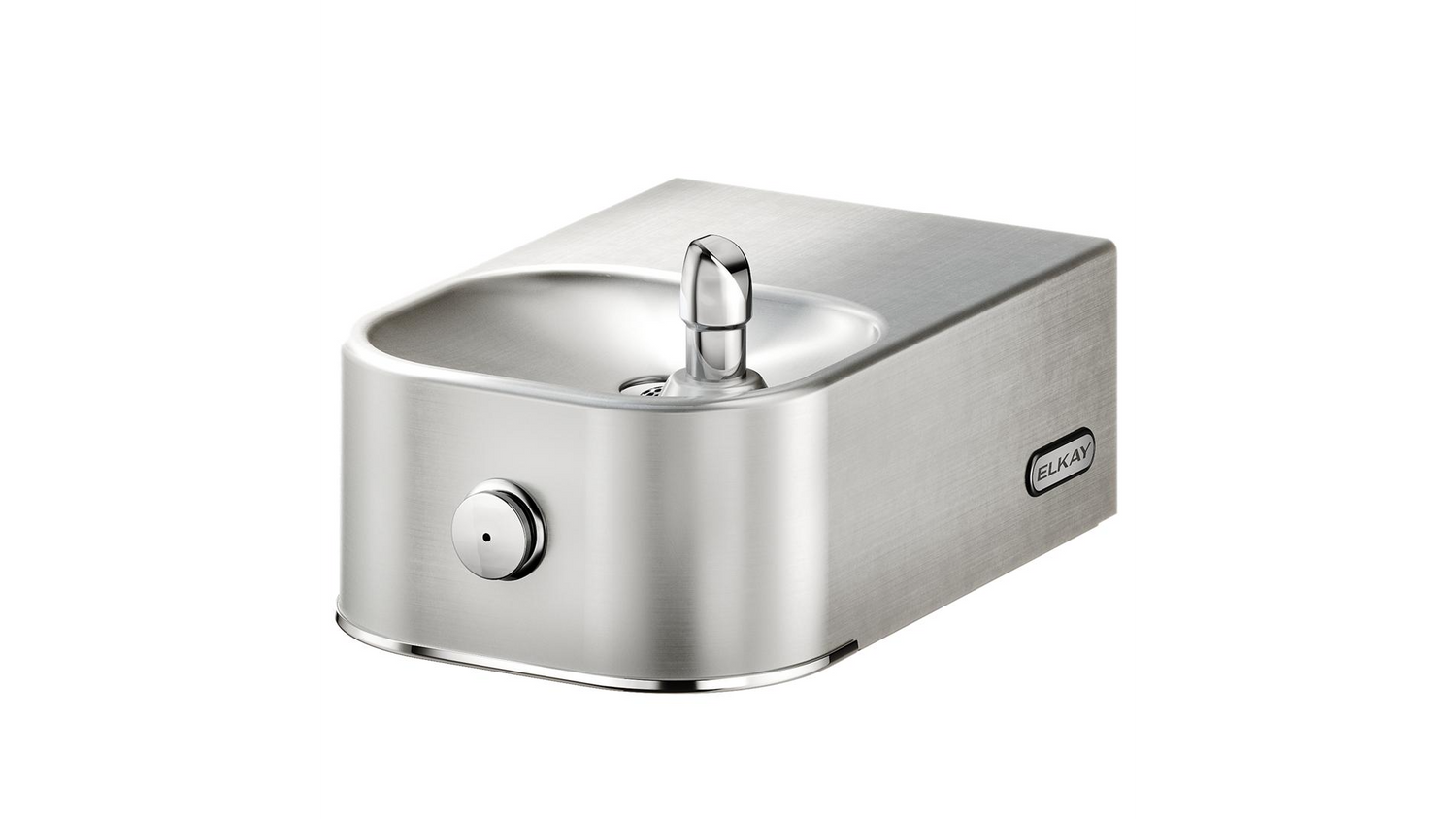

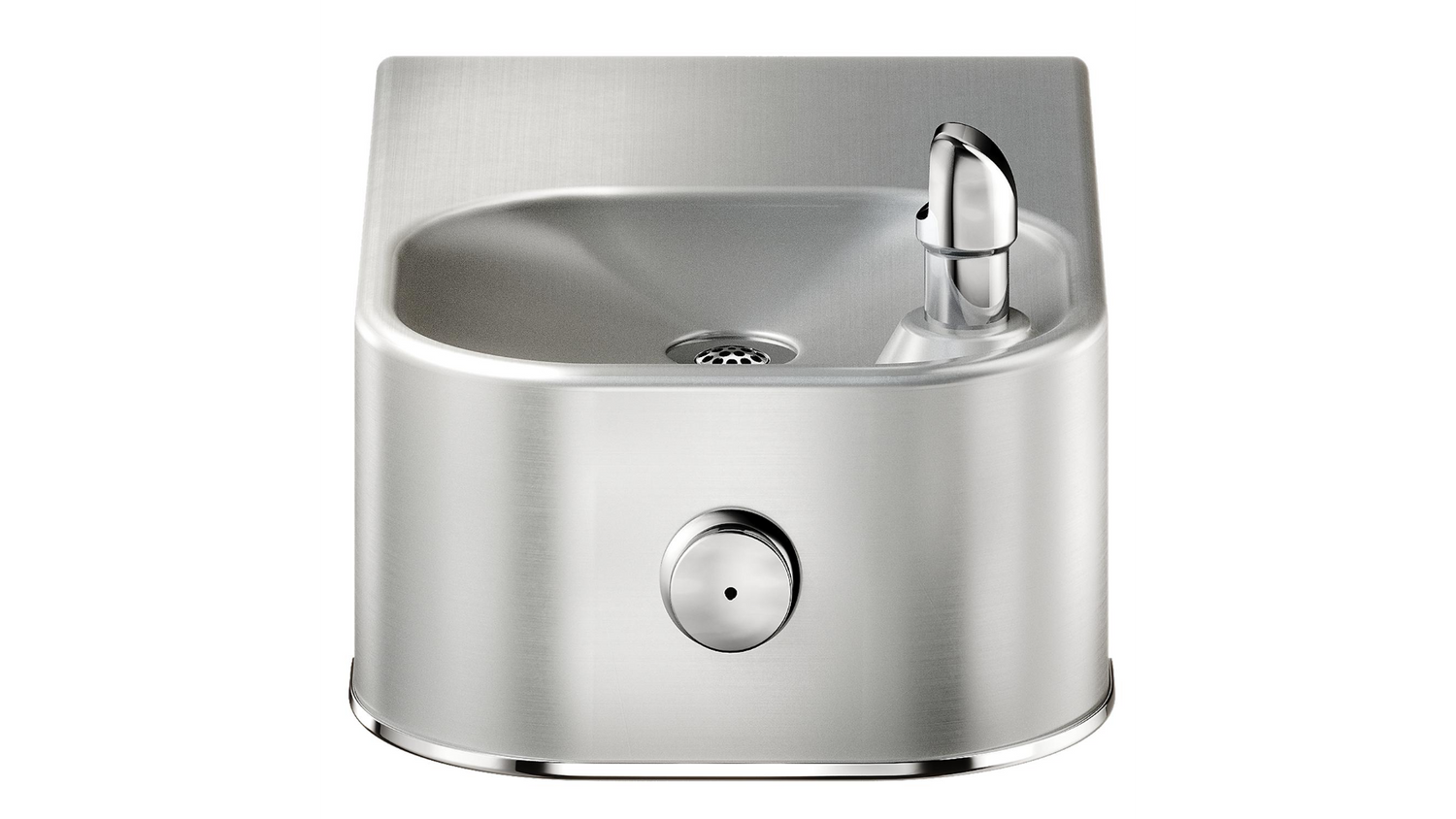

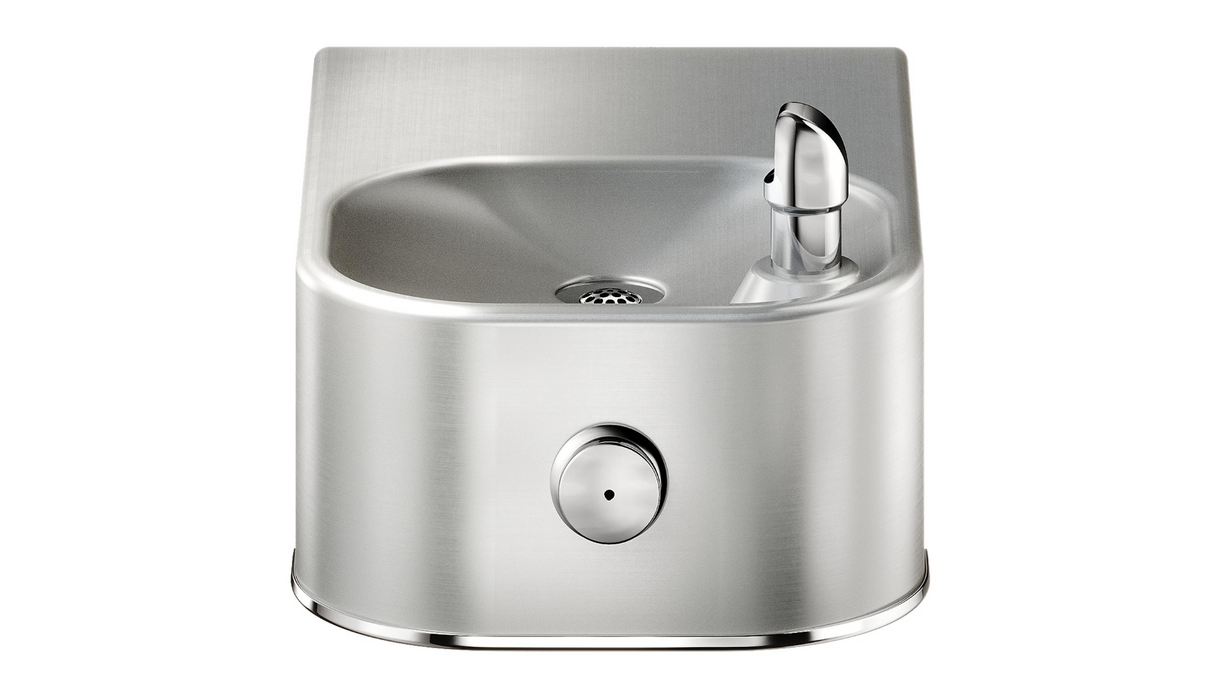

The Elkay EDFP214FPK Soft Sides® Single ADA Fountain is a freeze‑resistant, non‑filtered, non‑refrigerated stainless steel wall‑mount unit. Designed for both indoor and outdoor use, it provides reliable hydration in cold climates with mechanical activation and vandal‑resistant construction.
Key Specifications:
| Design | Soft Sides® single ADA fountain, freeze‑resistant |
| Finish | Stainless Steel |
| Filtration | Non‑filtered. Compatible with EWF172 Watersentry VII Filter Kit |
| Refrigeration | Non‑refrigerated |
| Stations Served | 1 |
Features & Benefits:
- Freeze Resistant: Designed for cold climates with freeze‑resistant system installed indoors or below frost line
- ADA Compliant: Meets ADA & ICC A117.1 accessibility requirements when installed properly
- Durable Construction: Stainless steel finish with vandal‑resistant bubbler
- Mechanical Activation: Front push button bubbler ensures reliable water flow without electricity
- Indoor/Outdoor Use: Suitable for both environments when properly winterized
What's Included:
- EDFP214FPK Soft Sides® Freeze Resistant Fountain
- Freeze Resistant Box
- Vandal‑Resistant Bubbler
- Installation instructions (PDF)
- Warranty documentation
Comparison of Elkay Wall‑Mount Drinking Fountains:
| Feature | EDFP214FPK (This Model) | EDFP214C | EHWM214C |
|---|---|---|---|
| Design | Soft Sides® single ADA fountain, freeze‑resistant | Soft Sides® wall‑mount drinking fountain | Soft Sides® heavy duty single fountain, vandal‑resistant |
| Finish | Stainless steel | Stainless steel | Stainless steel |
| Best For | Cold climate installations needing freeze‑resistant fountains | Indoor facilities needing standard Soft Sides® wall‑mount fountains | Heavy duty indoor/outdoor installations needing vandal‑resistant design |

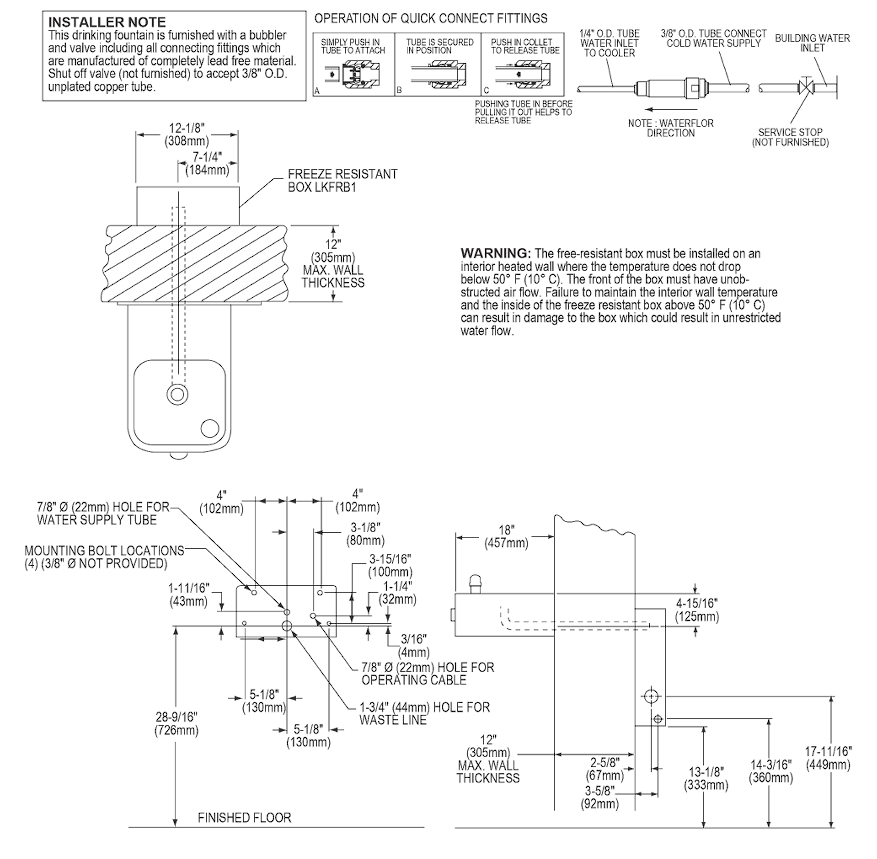

How to Install the EDFP214FPK:
- Frame wall to support fountain and freeze‑resistant box.
- Remove bottom cover and mount fountain securely.
- Install LKFRB1 freeze‑resistant box on heated interior wall.
- Connect drain tube and water supply using quick‑connect fittings.
- Run operating cable through wall into freeze‑resistant box.
- Adjust stream height via regulator (factory set at 35 PSI).
- Replace covers, insulate openings, and check for leaks.
How to Maintain the EDFP214FPK:
- Inspect bubbler, push button, and cable regularly.
- Clean bubbler orifice to remove mineral deposits.
- Verify stream height and adjust regulator if needed.
- Flush water lines periodically to clear sediment.
- Outdoor Note: Always winterize the freeze‑resistant box and keep interior temperature above 50°F (10°C).
FAQ
Q: What Applications Are Best Suited for the EDFP214FPK?

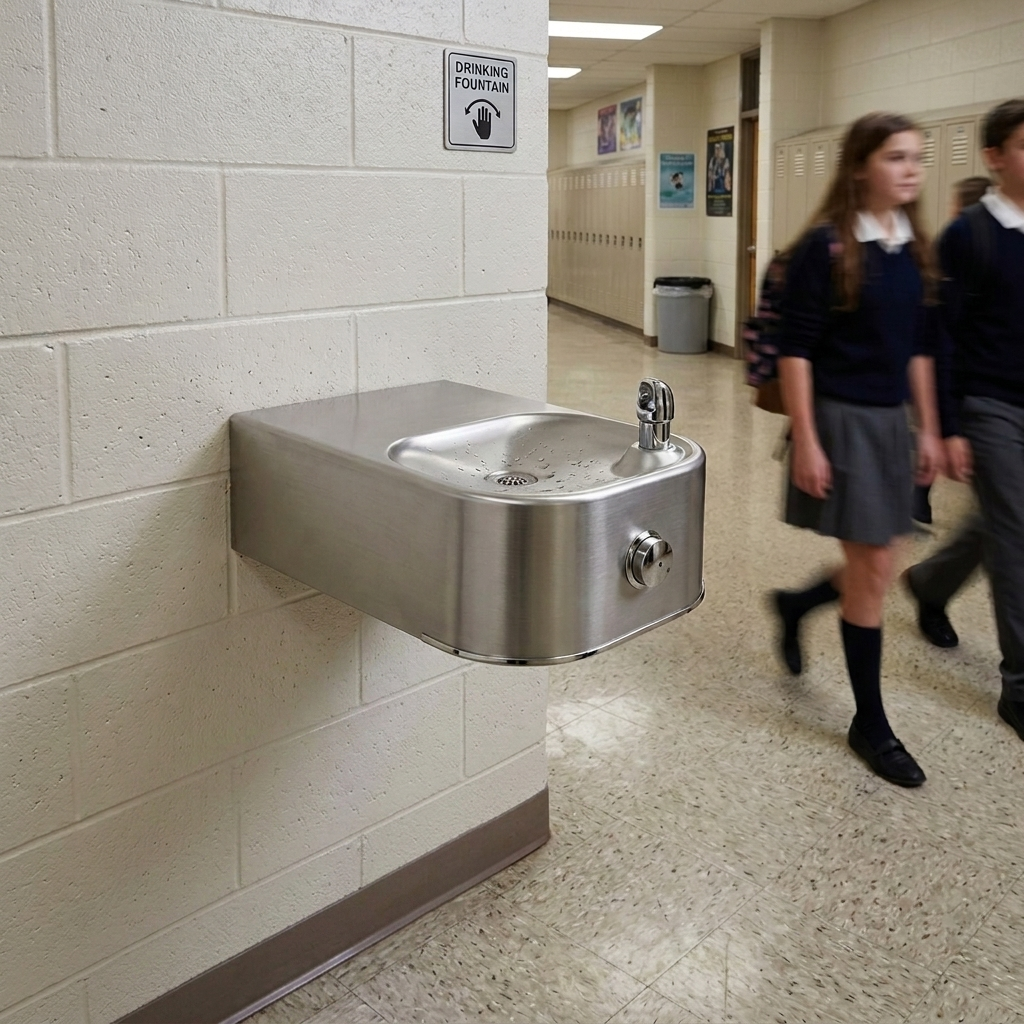

A: This fountain is ideal for schools, parks, and public facilities in cold climates needing a freeze‑resistant ADA compliant solution.
Q: Does the EDFP214FPK Include Filtration?
A: No. It is non‑filtered but compatible with the EWF172 Watersentry VII Filter Kit for added contaminant reduction.
Q: What Accessories Are Available?
A: Optional accessories include the MPW101 In‑Wall Mounting Plate, AP99 Access Panel, and the 98481C StreamSaver Vandal‑Resistant Bubbler Kit.
Q: Is the EDFP214FPK ADA Compliant?
A: Yes. It complies with ADA & ICC A117.1 accessibility standards when installed according to guidelines.
Q: Can the EDFP214FPK Be Installed Outdoors?
A: Yes. It is suitable for outdoor use when properly winterized and installed with the freeze resistant box.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
The Elkay EDFP214FPK is a freeze‑resistant, wall‑mounted Soft Sides® drinking fountain. Designed for outdoor use, this filterless unit delivers ambient water service with ADA‑compliant access and vandal‑resistant construction.
Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Freeze‑resistant valve box must be installed in a heated area
- Drain connection required for fountain basin

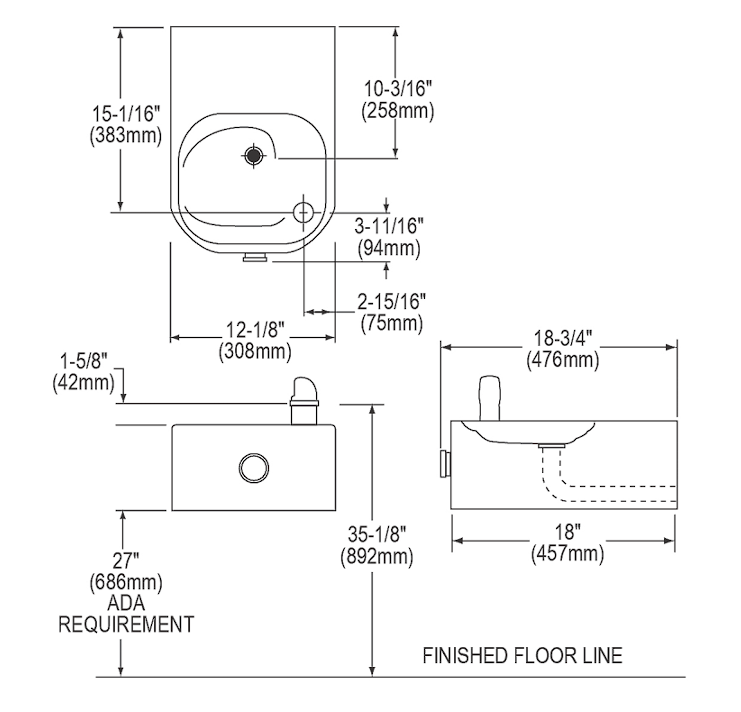

- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Unit is filterless — delivers ambient water only
- Always depressurize water line before servicing
- Ensure freeze‑resistant valve box is properly insulated and accessible
- Outdoor installation requires proper winterization procedures
- Secure fountain firmly to wall structure to resist vandalism
Basic Installation Overview:
- Install in‑wall carrier to support fountain weight
- Mount freeze‑resistant valve box in heated interior space
- Run supply line through wall to valve box; flush line thoroughly
- Position fountain assembly and secure to wall structure
- Connect cold water supply line to inlet
- Connect drain line from basin to building drain system
- Pressurize system slowly and check for leaks
- Test bubbler stream height; adjust regulator if needed
- Install cover plates and finish trim
For complete specifications and installation guidelines, download the official EDFP214FPK Spec Sheet and the Installation Manual.
