Elkay LMABF8WSLK | Wall-mount Bottle Filling Station | Filtered, Refrigerated, EMAB-style fountain, Granite Gray
Elkay LMABF8WSLK | Wall-mount Bottle Filling Station | Filtered, Refrigerated, EMAB-style fountain, Granite Gray is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.

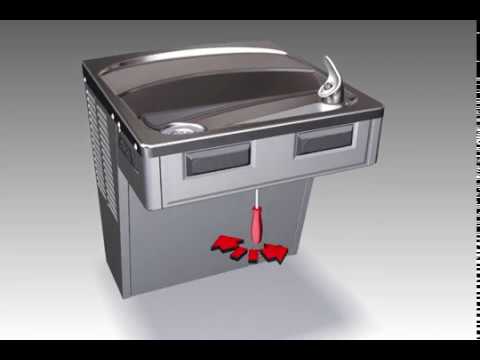

ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LMABF8WSLK | Wall-mount Bottle Filling Station | Filtered, Re...

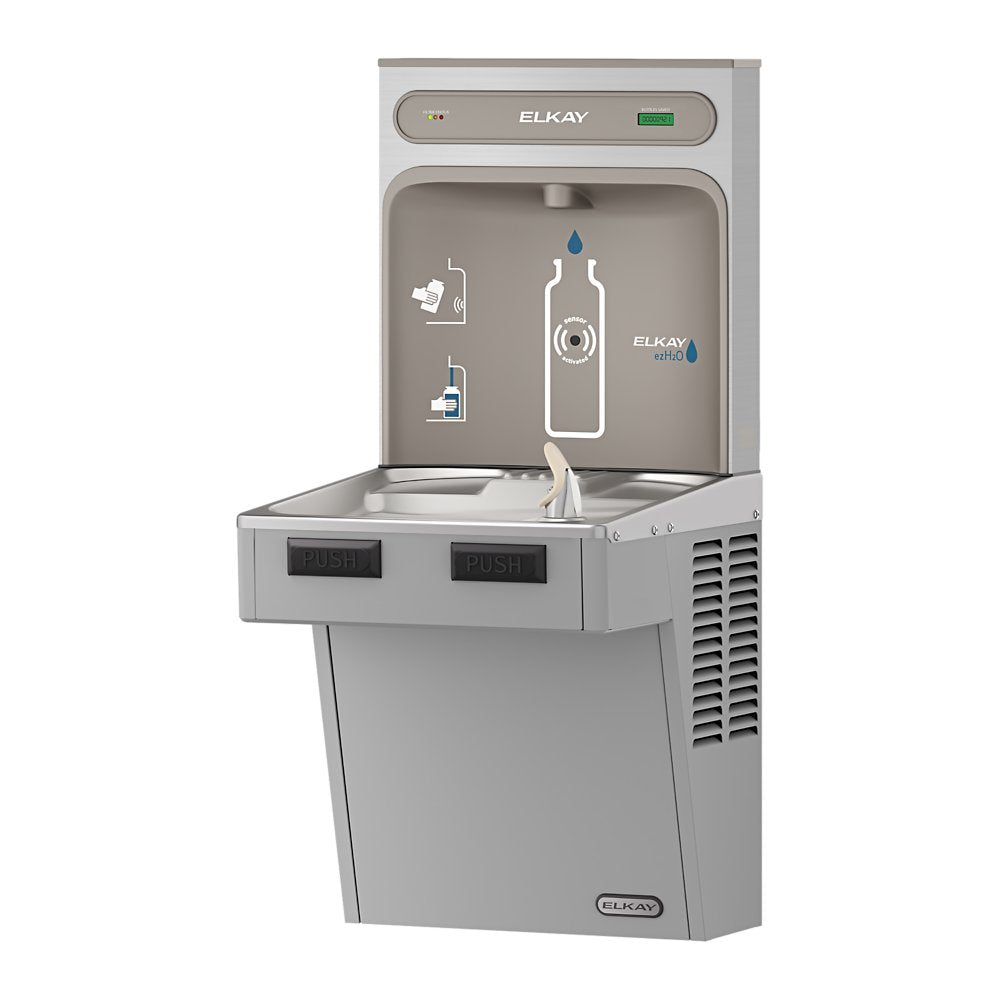

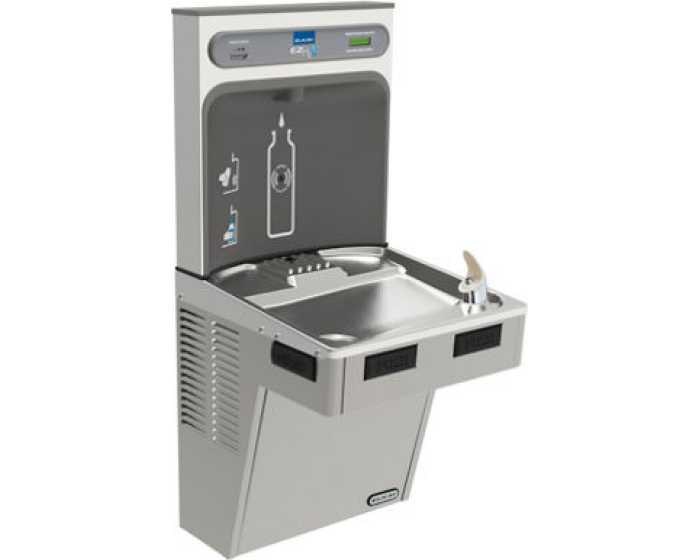

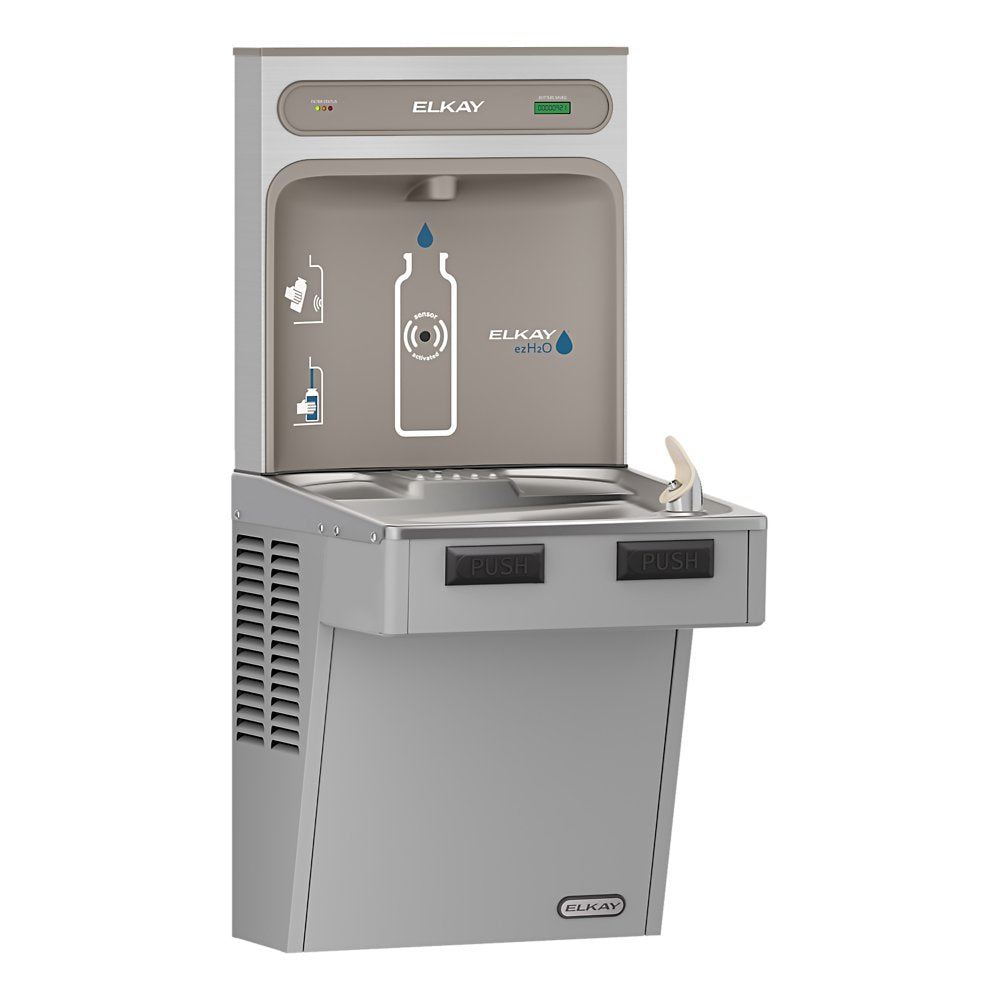

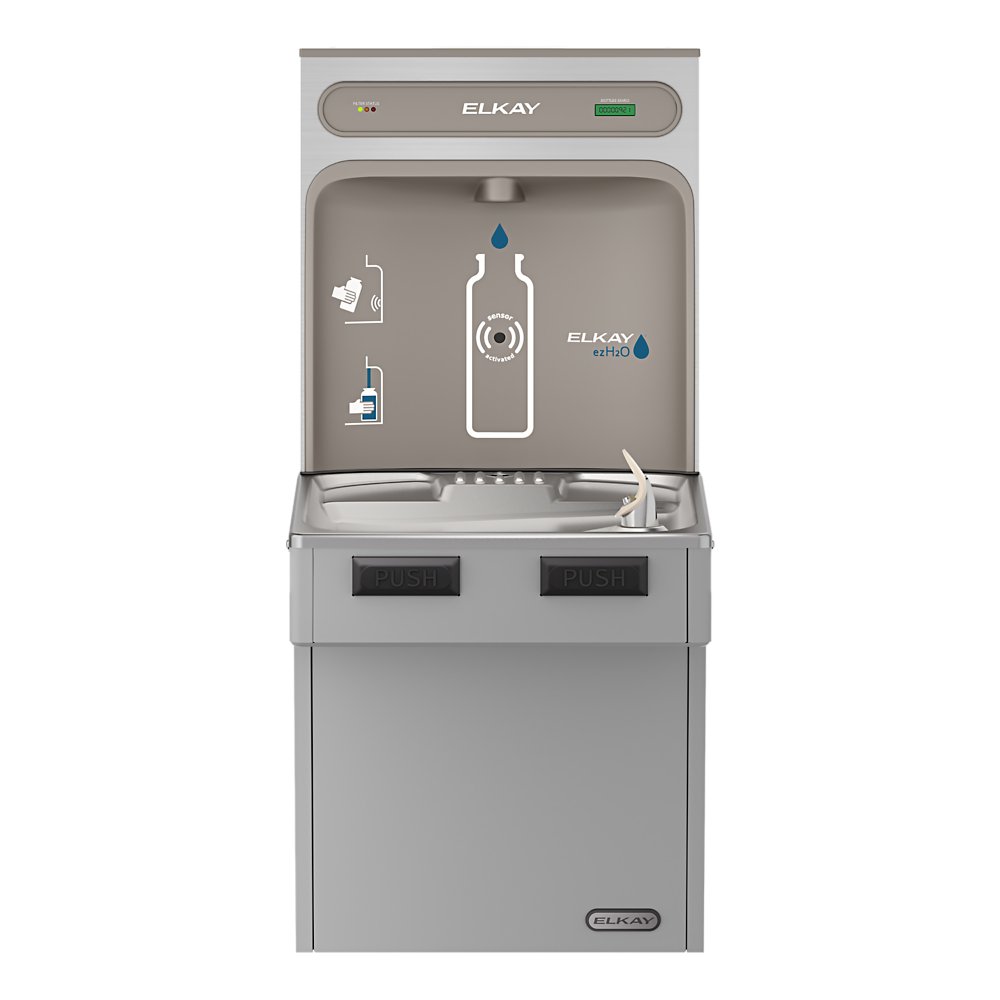

The Elkay LMABF8WSLK is an ezH2O® Bottle Filling Station with a mechanically activated single ADA cooler, filtered and refrigerated, delivering 8.0 GPH of chilled water. Finished in Light Gray Granite, it pairs an electronic bottle filler with mechanical front and side pushbars, laminar flow, Green Ticker™, Flexi-Guard® Safety Bubbler, Real Drain, and a visual LED filter monitor for reliable indoor hydration.
Key Specifications:
- Design: Wall-mounted indoor combo with electronic bottle filler sensor and mechanical front and side pushbar activation for the bubbler.
- Finish: Light Gray Granite.
- Filtration: Includes 51300C WaterSentry® Filter, 3,000-gallon capacity or 1 year. LED Visual Filter Monitor provides replacement status.
- Refrigeration: 8.0 GPH of 50°F drinking water (based on 80°F inlet and 90°F ambient). Uses R-134a refrigerant.
- Stations Served: 1.
Features & Benefits:
- Filtered Hydration: NSF/ANSI-certified WaterSentry® filter with LED Visual Filter Monitor for timely replacement.
- Hands-Free + Mechanical: Electronic sensor activation for bottle filler and mechanical pushbars for bubbler ensure accessibility and resilience during service disruptions.
- Sustainability: Green Ticker™ displays bottles saved from waste, encouraging reusable bottles.
- Laminar Flow & Real Drain: Clean, splash-free fills while eliminating standing water.
- Enhanced Hygiene: Flexi-Guard® Safety Bubbler; key plastic components incorporate silver-ion antimicrobial agents.
What's Included:
- Water Cooler (LMABF8WSL), Bottle Filler (LZWSR), and standard filter.
FAQ
Q: Does the LMABF8WSLK include filtration?
A: Yes. The included 51300C WaterSentry® Filter is certified to NSF/ANSI standards with a capacity of 3,000 gallons or 1 year. The LED Visual Filter Monitor indicates when replacement is needed.
Q: How do I reset the filter monitor after replacement?
A: Press the program button for ~2 seconds until “RST FLTR” appears, press again to show “FLTR =”, then confirm to “FLTR = 0”. The Green LED will illuminate when reset is complete.
Q: What warranty is included?
A: Elkay provides a 5‑year limited warranty on the refrigeration system and a 12‑month warranty on electrical components and the water system (drinking water applications).
Q: Can this unit be installed outdoors?
A: No. LMABF8WSLK is rated for indoor use only.
Q: Are accessories available for installation and maintenance?
A: Yes. Recommended accessories include the 51300C WaterSentry® Filter (replacement), and the MLP100 In‑Wall Carrier for structural support. A cane apron for EMABF Gray Granite (98313C) is also available—contact us for details.
Detailed Features & Benefits
Cooling System: Hermetically‑sealed reciprocating compressor with lifetime lubrication, fan‑cooled condenser, and copper tubing fully insulated with EPS foam. Uses R‑134a refrigerant metered by capillary tube. Factory‑preset thermostat requires minimal adjustment.
Accessibility & Resilience: Electronic bottle filler sensor reduces touchpoints; mechanical pushbars ensure water delivery even during electronic service interruptions. ADA and ICC A117.1 compliant when installed per standards.
Installation Notes: Maintain 6" minimum rear ventilation clearance; use dielectric coupling and non‑metallic strainer; installer‑provided plastic drain trap isolates from building plumbing. New installations require GFCI. Stream height for the bubbler is optimized to strike ~6‑1/2" from the spout into the basin; adjust CW to raise, CCW to lower.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
