Elkay MLP200 | Bi-level In-wall Carrier for Bottle Fillers & Fo...

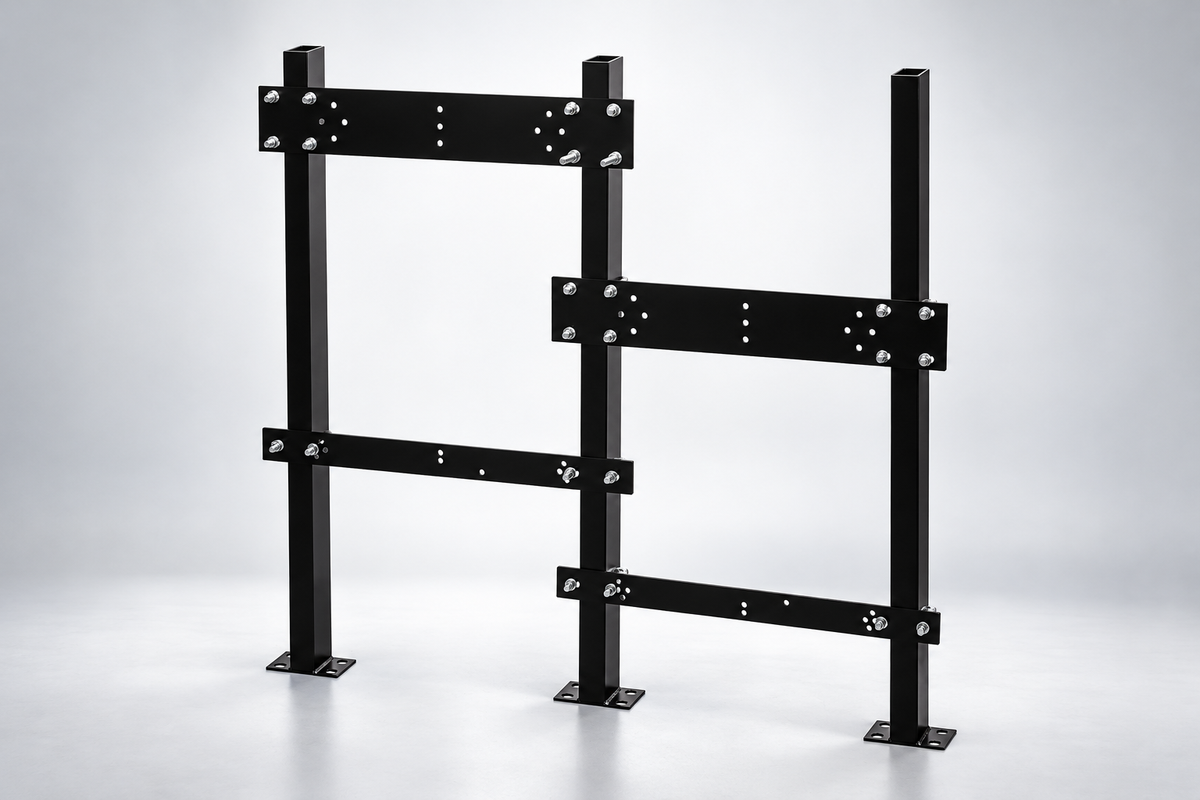

The Elkay MLP200 is an in-wall carrier for bi-level on-wall bottle fillers, coolers, and drinking fountains, providing secure support behind the finished wall in schools, offices, and other commercial facilities. Built in the USA, it secures directly to a variety of load-bearing surfaces for a sturdy, long-lasting installation.
Key Specifications:
| Compatibility | Bi-level on-wall bottle fillers, coolers, and fountains, including Elkay bi-level (TL) EZ, LZ, EMABF, LMABF, VRC, and LVRC series and Halsey Taylor bi-level (BL) HAC, HTVZ, and HVR series, including HydroBoost (HTHB) versions |
| Material | Heavy-gauge galvanized steel |
| Dimensions | 38-1/2" L x 2-11/16" W x 44-1/8" H |
| Weight Capacity | Supports up to 500 lbs |
| Wall Requirement | Installs in as little as a 2" x 4" wall |

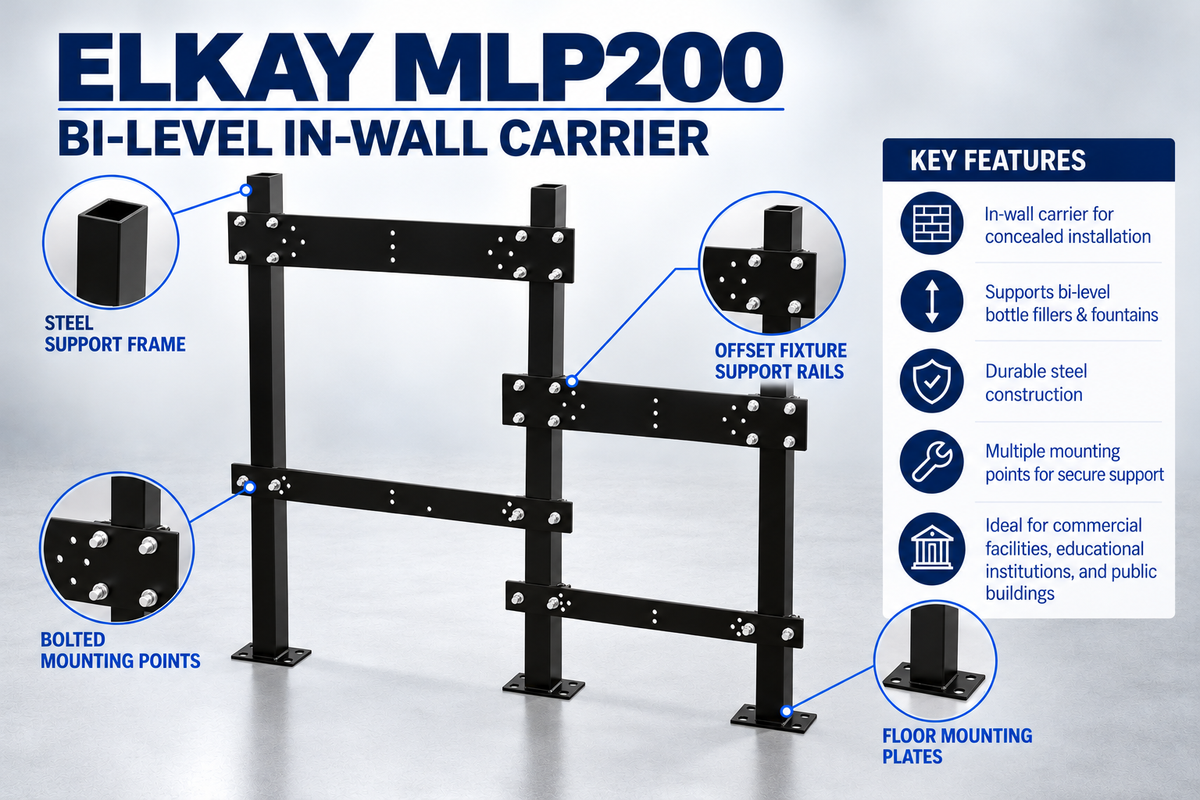

Elkay Model MLP200: Features & Benefits:
- Structural Support for Bi-level Fixtures: Universal carrier design adds extra support for on-wall bi-level coolers, fountains, and bottle filling stations, keeping them firmly in place in high-traffic schools, offices, and public buildings
- Flexible, ADA-Friendly Mounting Height: Adjustable height setting allows for adult or child ADA installation, so one carrier works for elementary schools and adult facilities alike
- Slim-Wall Installation: Fits standard 2" x 4" wall framing, so no deep chase wall is needed for new construction or renovations
- Clean, Concealed Look: Behind-the-wall design leaves only the drinking fountain or bottle filler visible, preserving the clean look of the finished wall
- Complete Hardware Kit: Mounting plates, support columns, and fasteners come together in one kit, simplifying installation with no separate carrier parts to source
What's Included in the Elkay MLP200:
- Upper mounting plate (1) and lower mounting plate (1)
- Support column assemblies (2)
- 3/8-16 U-bolts (6) and 1/4-20 × 6" threaded rods (8)
- Hex nuts: 32 × 1/4-20 and 12 × 3/8-16
- Flat washers: 32 × 1/4" and 12 × 3/8"
- Mounting plate instructions (98370C)
FAQ
Q: What Is the Elkay MLP200 In-Wall Carrier Used For?
A: It's installed inside the wall before the fixture goes up, giving bi-level on-wall bottle filling stations, water coolers, and drinking fountains a solid anchor point.
Q: Which Bottle Fillers and Drinking Fountains Fit the MLP200?
A: Any Elkay or Halsey Taylor bi-level on-wall model in the series listed under Key Specifications. Popular matches include the Elkay LZSTL8WSLK and the Halsey Taylor HTHBHVR8BL.
Q: Can the MLP200 Be Installed in a 2x4 Wall?
A: Yes. No deeper chase wall is needed, which makes it a good fit for renovations as well as new construction.
Q: Does the MLP200 Support ADA Installations?
A: Yes. The adjustable height setting allows for adult or child ADA installation. Final ADA compliance depends on the fixture model and on installing it to ADA & ICC A117.1 mounting heights.
Q: How Much Weight Can the Elkay MLP200 Support?
A: Up to 500 lbs, which is plenty for refrigerated bi-level coolers with bottle fillers.
Q: Does the MLP200 Require Electrical Power?
A: No. The carrier needs no electrical connection, but refrigerated fixtures mounted on it still need their own power supply.
Q: Which Carrier Do I Need for a Single-Level Bottle Filler or Fountain?
A: The MLP200 is built for bi-level units. For single-station on-wall models, Elkay offers the MLP100 in-wall carrier.
NOTICE: All service must be performed by an authorized technician. Always verify compatibility with your specific Elkay fixture model before installation.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

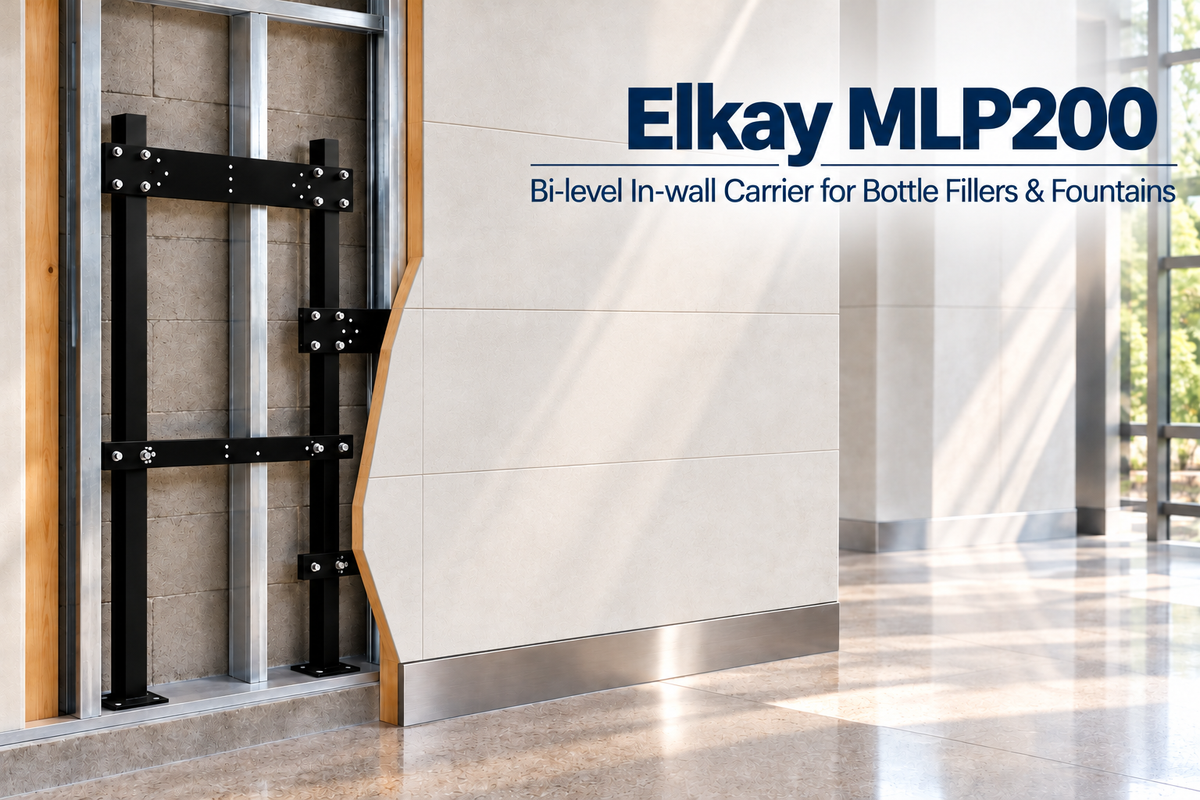

The Elkay MLP200 is installed inside the wall cavity before the wall is finished, so it's ready to receive the bi-level fixture later. Professional installation by a licensed plumber or contractor is strongly recommended to ensure the carrier is anchored correctly and set to the right mounting height.
Key Installation Requirements:
- In-wall (behind the finished wall) installation
- Framed wall cavity, 2" x 4" minimum
- Load-bearing surface for anchoring the carrier
- No electrical connection required for the carrier
Important Notes Before Installing the MLP200:
- The hanger bracket is furnished with the cooler, not the carrier. Check the cooler's rough-in for the correct bracket height.
- After installation, the U-bolts and threaded rods may need to be trimmed.
- Check the installation for compliance with plumbing, electrical, and other applicable codes.
- Always refer to the official Elkay MLP200 Spec Sheet for dimensions and product details.
Basic Installation Overview:
- Confirm your fixture is a compatible bi-level on-wall model and review its rough-in dimensions.
- Position the upper and lower mounting plates behind the finished wall according to the cooler’s rough-in dimensions (reduce the overall installation height by 3" for a children’s ADA cooler).
- Secure the carrier to the load-bearing structure using all provided mounting holes and hardware.
- Finish the wall, then hang the bi-level fixture on its hanger bracket according to the fixture's installation manual.
For complete step-by-step instructions, download the official Elkay MLP200 Mounting Plate Instructions (98370C)
Maintenance:
- Periodically check that the mounted fixture sits firmly on the carrier, and have the mounting hardware re-tightened if there's any movement.
- All service should be performed by an authorized service person, following Elkay's guidelines for repairs and replacement parts.
