Elkay EMABFTL8LC | Wall-mount Bi-level EMAB-style Drinking Fountain...

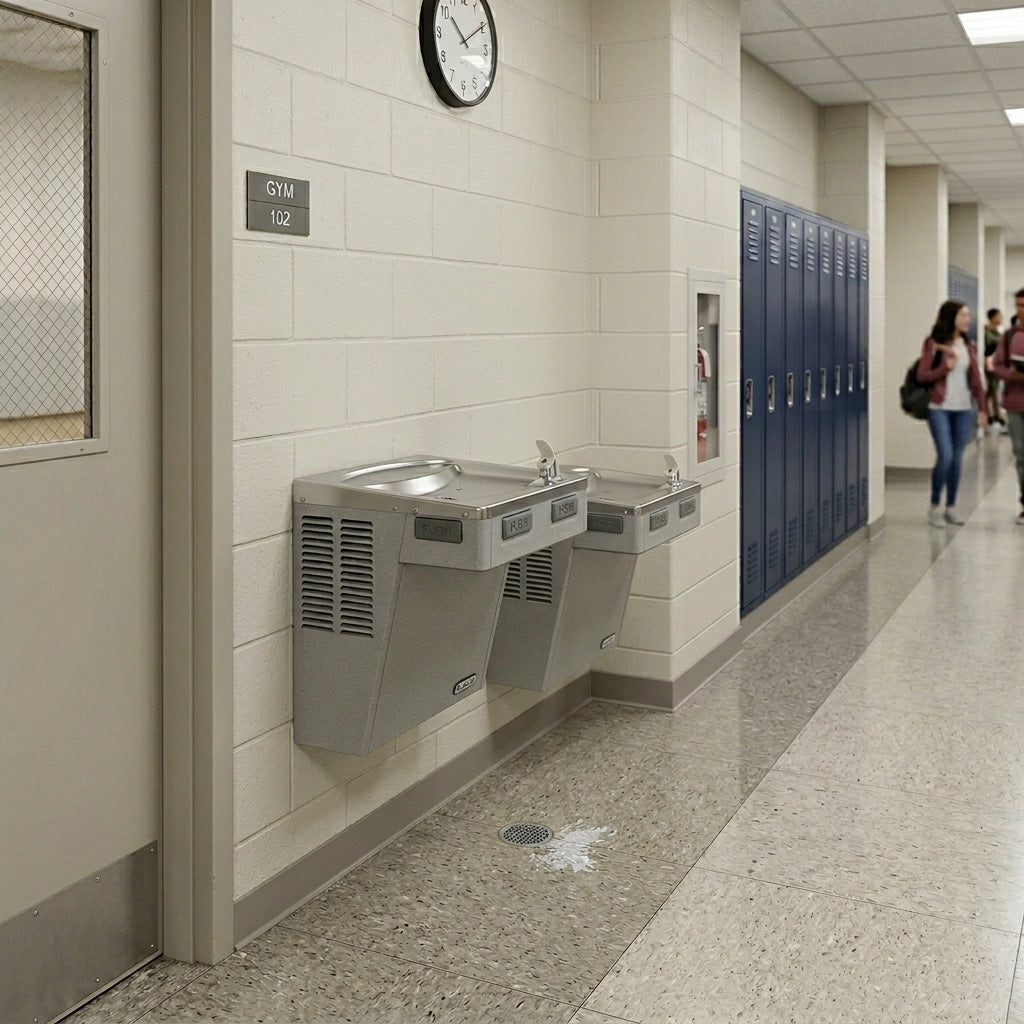

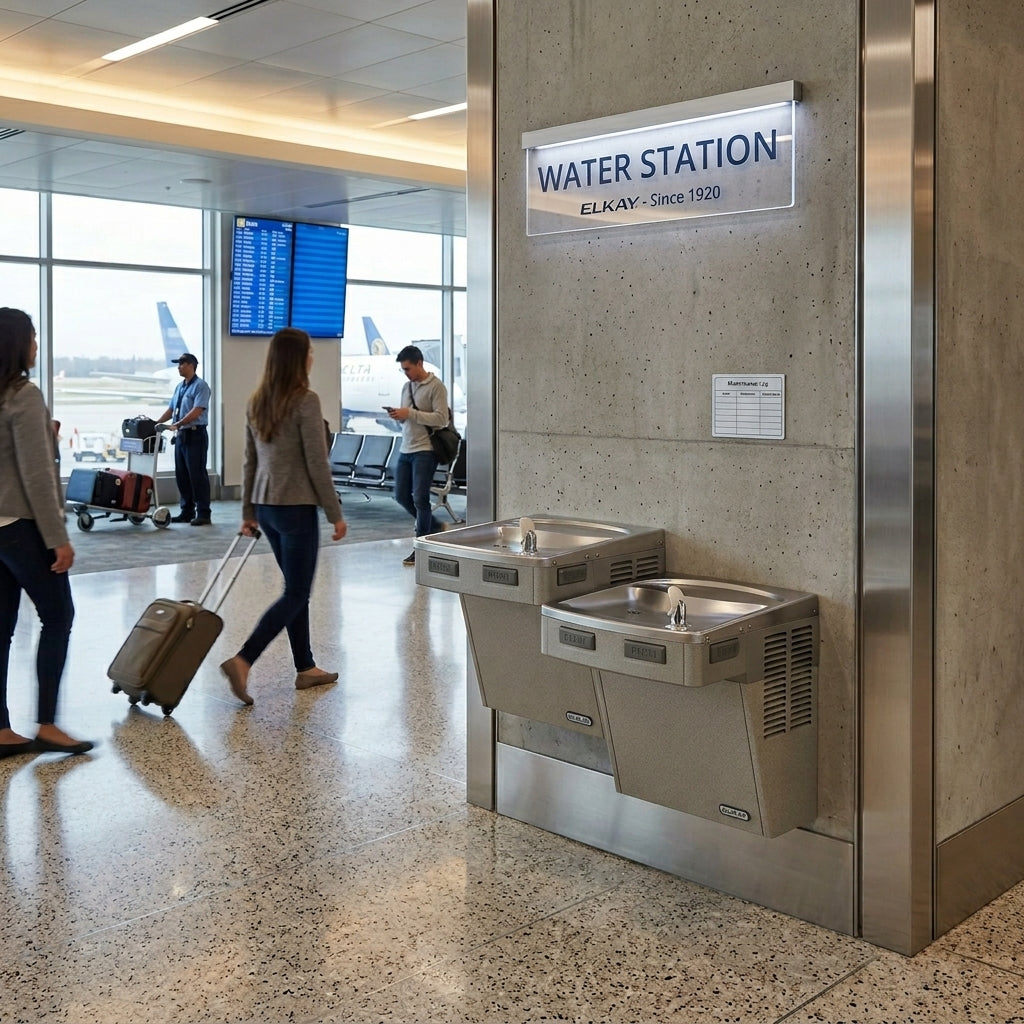

The Elkay EMABFTL8LC Wall Mount Bi‑Level ADA Cooler is a mechanically activated, non‑filtered, refrigerated unit finished in Light Gray Granite. Designed for indoor use, it delivers 8.0 GPH of chilled drinking water with Flexi‑Guard® safety bubblers and front/side pushbar activation, serving two stations in a durable ADA‑compliant design.
Key Specifications:
- Design: Wall mount bi‑level ADA cooler with mechanical front and side pushbar activation.
- Finish: Light Gray Granite (L). Also available in Stainless Steel.
- Filtration: Non‑filtered. For filtered options, choose the LMABFTL8LC.
- Refrigeration: 8.0 GPH chilled water capacity, 115V/60Hz, hermetically‑sealed compressor.
- Stations Served: 2 (Bi-level Station)
Features & Benefits:
- Bi‑level ADA design provides accessible hydration for all users.
- Flexi‑Guard® safety bubblers reduce accidental mouth injuries.
- Mechanical activation ensures reliable operation even during service disruptions.
- 8.0 GPH chilling capacity delivers consistent cold water in high‑traffic environments.
What's Included:
- Elkay EMABFTL8LC Bi‑Level ADA Cooler
- Factory‑installed refrigeration system (8.0 GPH capacity)
- Two Flexi‑Guard® safety bubblers
- Front and side mechanical pushbar activation panels
- Mounting hanger bracket and installation hardware
FAQ
Q: Does the EMABFTL8LC include filtration?
A: No. It is a non‑filtered model. For filtered options, see LMABFTL8LC.
Q: What accessories are available?
A: Compatible accessories include the MLP200 in‑wall carrier for secure installation, cane aprons, and vandal‑resistant bubbler kits.
Q: Is the unit ADA compliant?
A: Yes. The EMABFTL8LC meets ADA and ICC A117.1 accessibility requirements when installed correctly.
Q: Can both bubblers operate simultaneously?
A: Simultaneous operation requires a minimum of 65 PSI supply pressure. Lower pressure may limit dual use.
Q: What water pressure is required?
A: The cooler is designed to operate on 20–105 PSI supply line pressure. If pressure exceeds 105 PSI, a regulator must be installed.
Q: Can I change the Flexi‑Guard® bubbler to a vandal‑resistant bubbler?
A: Yes. While the EMABFTL8LC comes standard with Flexi‑Guard® safety bubblers, you can replace them with the Elkay 97446C Vandal‑Resistant Bubbler Replacement Kit for added durability in high‑traffic or public environments.
NOTICE: The cooler must be connected to the water supply using a dielectric coupling. Installer‑provided drain traps should be plastic to isolate the cooler from building plumbing systems.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

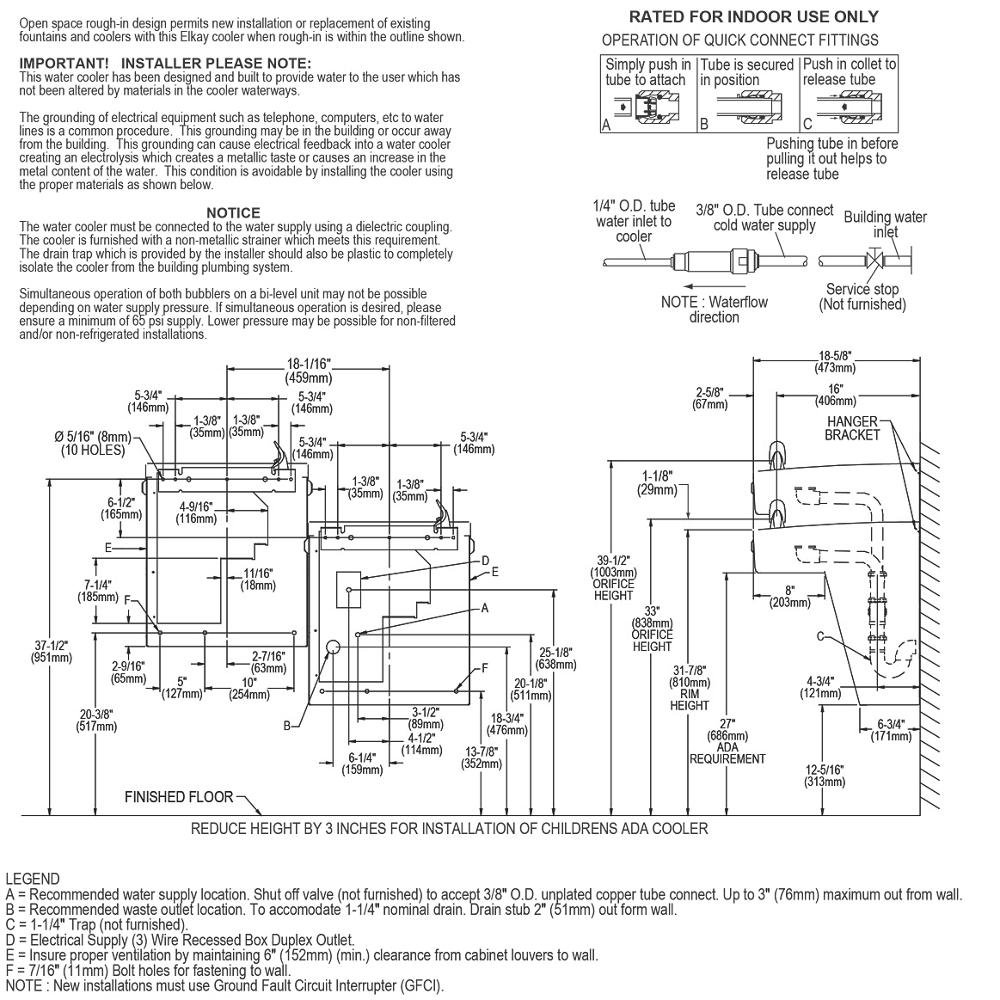

- Prepare wall framing and hanger bracket per rough‑in dimensions provided in the package manual.
- Mount hanger bracket securely using all designated holes; add support carrier if wall will not provide adequate support.
- Hang cooler on bracket, ensuring proper engagement with slots on the back panel.
- Remove front panel to access connections; connect water inlet line and install trap on waste outlet.
- If available, connect filter assembly and ensure proper orientation.
- If available, connect refrigeration components and verify ventilation clearance.
- Reconnect panel after plumbing is complete and check for leaks.
- Adjust bubbler stream height as needed; factory set at 35 psi.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber.
- Inspect bubbler orifice and regulator periodically; clean or adjust if flow is irregular.
- Check quick‑connect fittings and tubing for leaks; reseat if necessary.
- Clean basin and exterior surfaces with mild, non‑abrasive cleaner.
- If available, replace filter at recommended intervals.
- If available, service refrigeration components as required.
- For service or repairs, consult the manual or a licensed technician.
