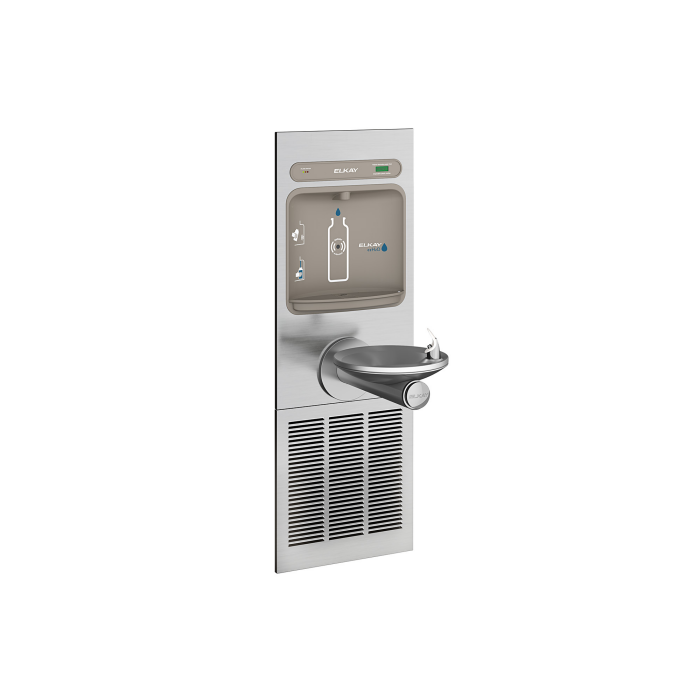

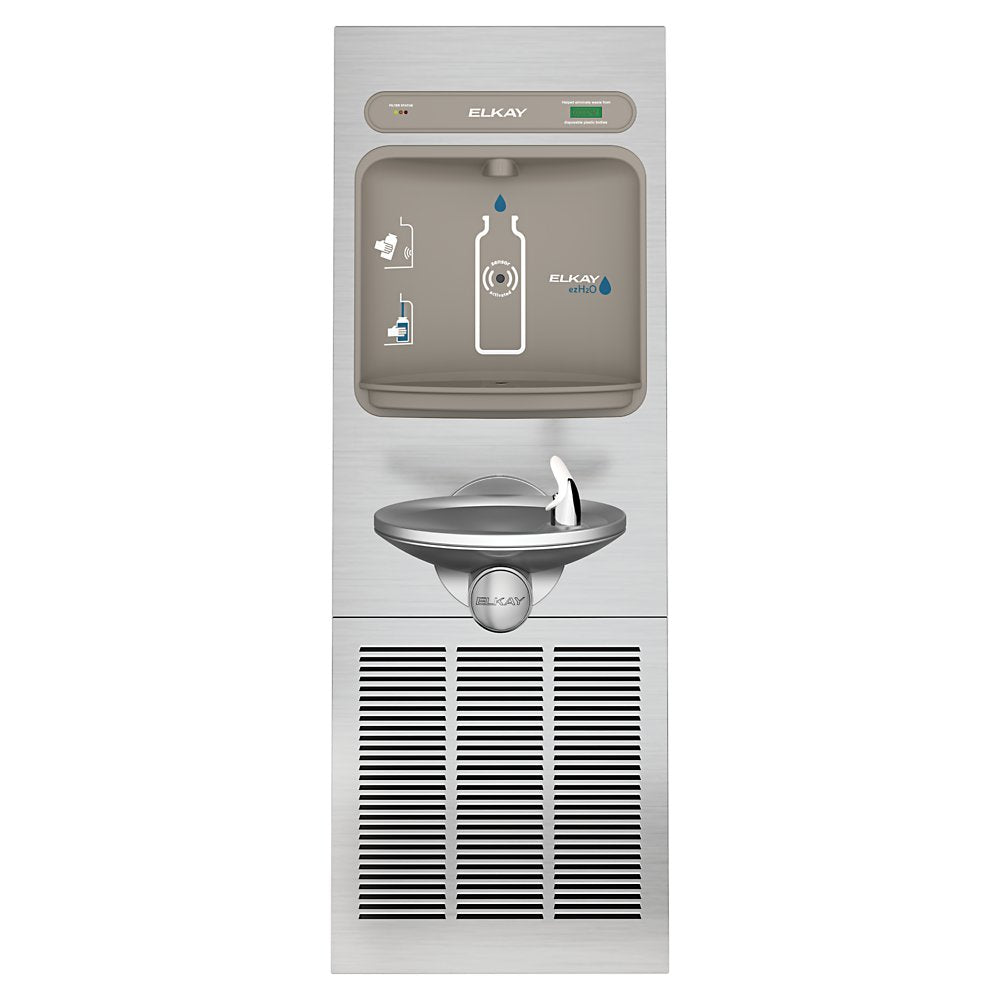

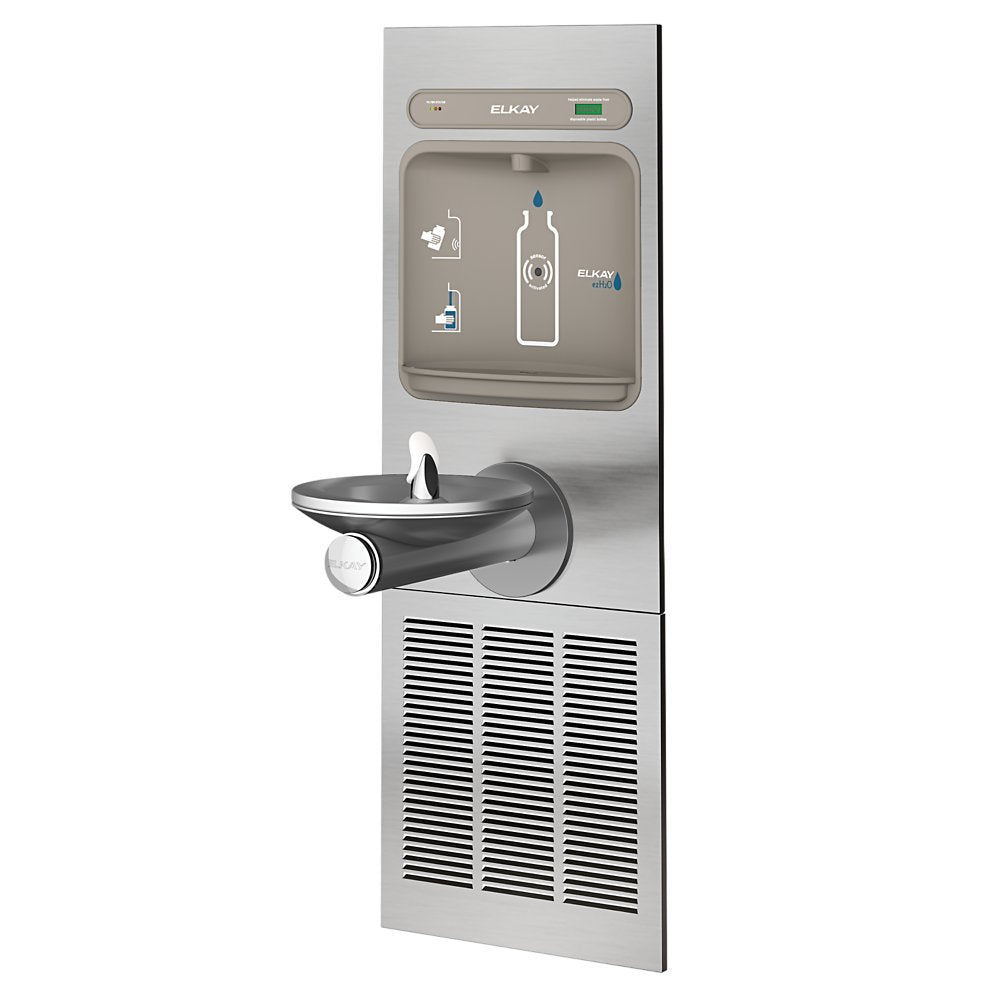

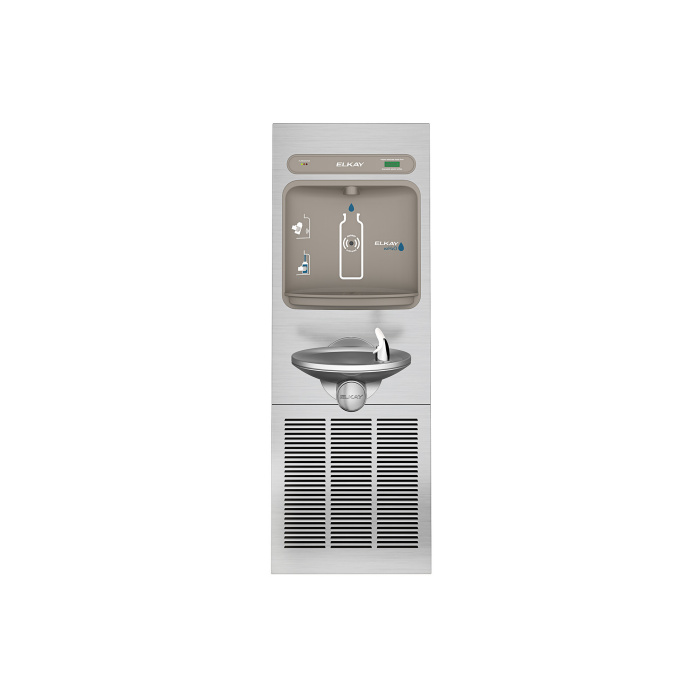

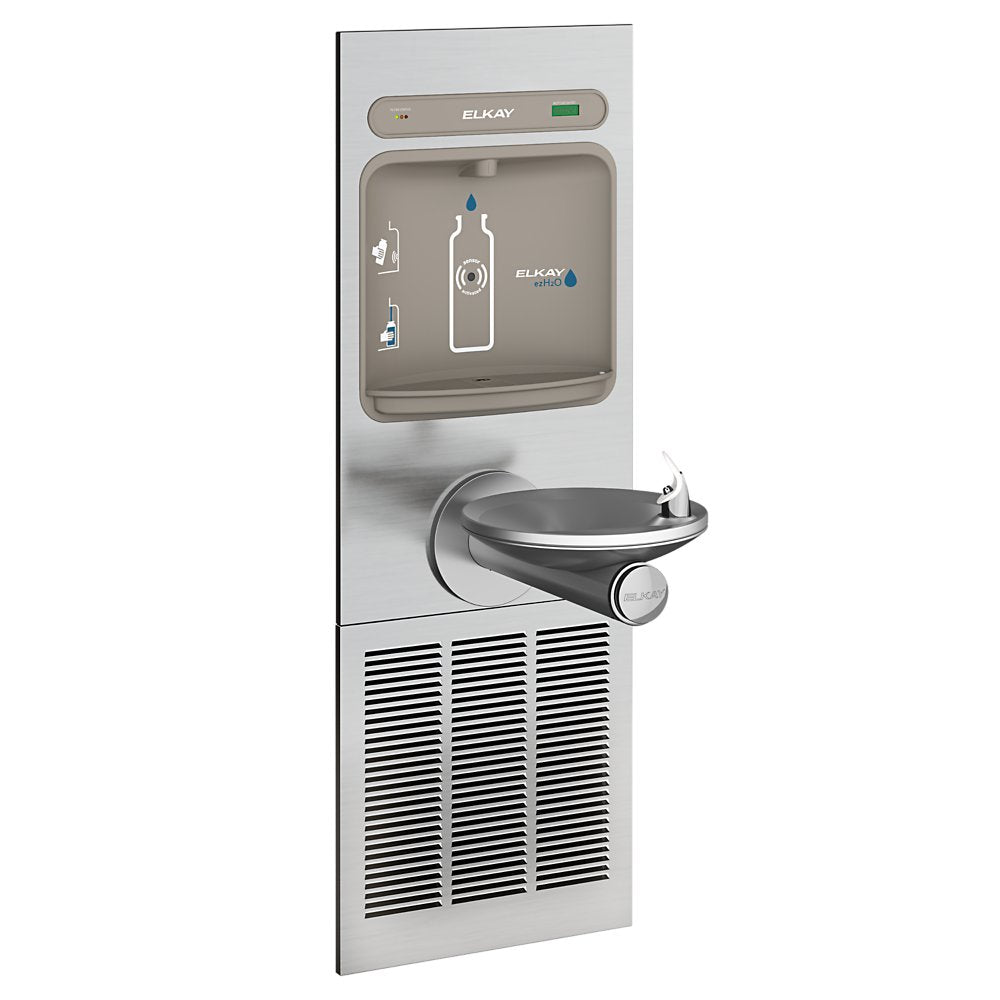

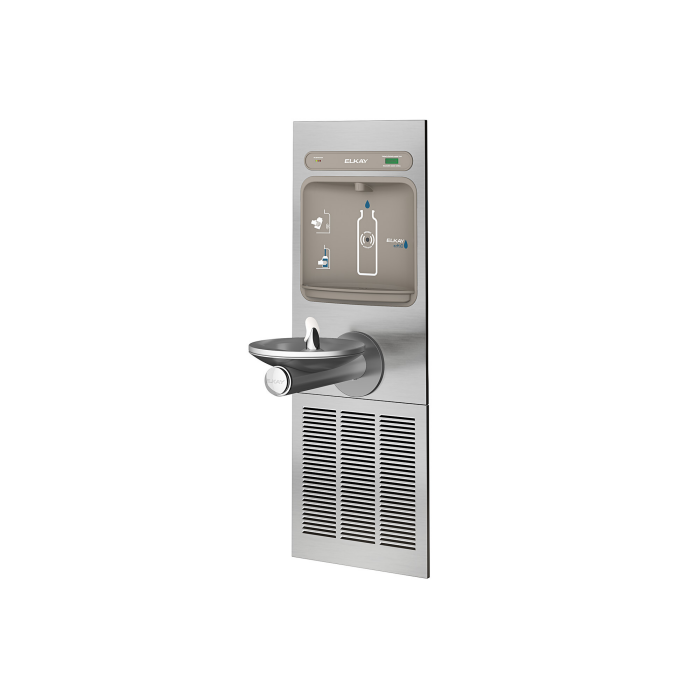

Elkay LZWS-LRPBM8K | In-wall Filtered Bottle Filler with Swirlflo Fountain, Filtered, Refrigerated
Elkay LZWS-LRPBM8K | In-wall Filtered Bottle Filler with Swirlflo Fountain, Filtered, Refrigerated is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LZWS-LRPBM8K | In-wall Filtered Bottle Filler with Swirlflo F...
Requires a minimum of 12" of wall depth for installation.

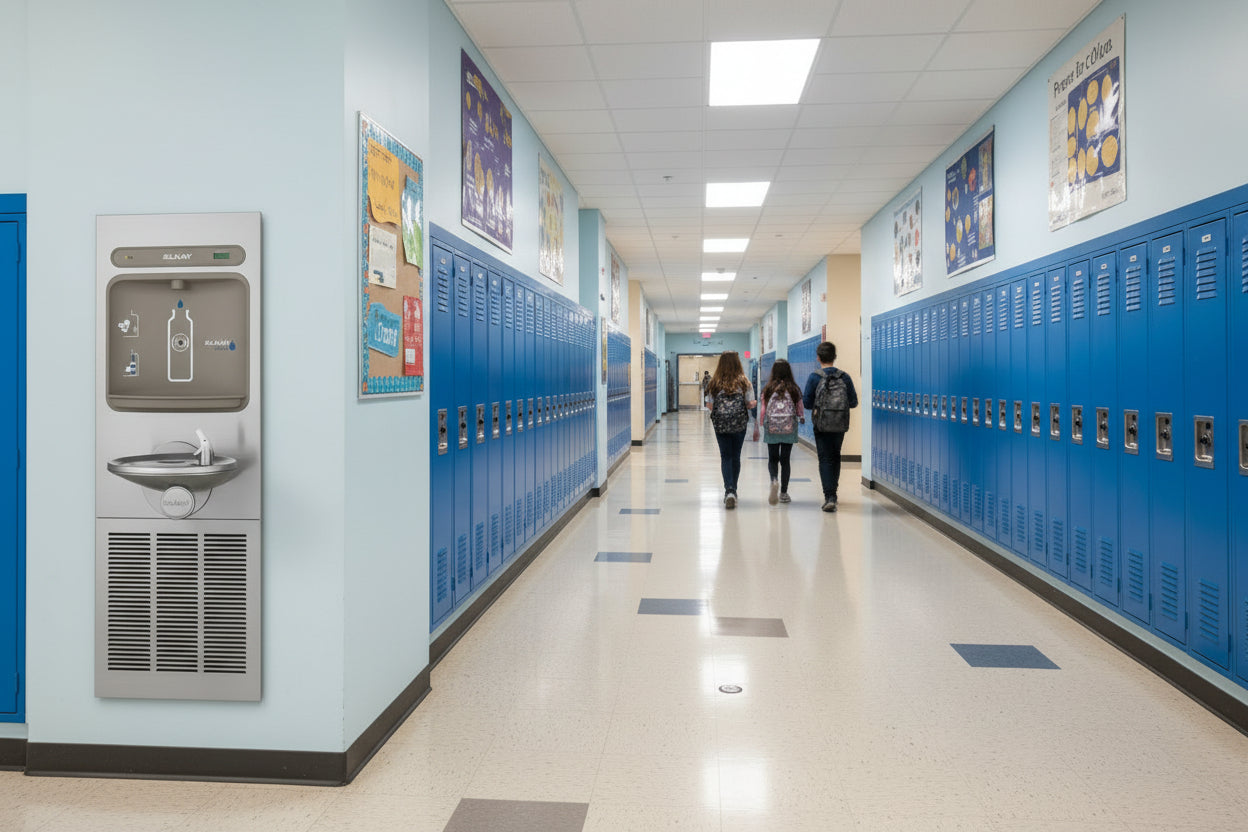

The Elkay LZWS-LRPBM8K ezH2O® Bottle Filling Station with Integral SwirlFlo® Fountain delivers filtered, refrigerated hydration in a durable stainless steel design. Featuring Flexi-Guard® safety bubblers, touchless bottle filler activation, and LED filter monitoring, this unit is ideal for schools, healthcare facilities, offices, and public spaces seeking reliable, ADA-compliant hydration solutions.
Key Specifications:
- Design: Integral SwirlFlo® fountain with bottle filling station, serving 1 station.
- Finish: Stainless Steel.
- Chilling Capacity: 8.0 GPH of 50°F drinking water (ASHRAE 18 tested, based on 80°F inlet and 90°F ambient).
- Activation: Electronic bottle filler sensor with mechanical front bubbler button.
- Bubbler Style: Flexi-Guard® Safety Bubbler.
- Power: 115V/60Hz, 370W, 1 full load amp.
- Filtration: Includes WaterSentry® Plus filter tested and certified to NSF/ANSI 42, 53, 372, and 401 for lead, microplastics, particulates, cysts, chlorine taste and odor. 3,000-gallon capacity or 1 year after installation. Compatible replacement filter: Elkay 51300C.
Features & Benefits:
- Filtered Hydration: Certified filter reduces lead, microplastics, particulates, cysts, chlorine taste and odor.
- Visual Filter Monitor: LED indicator alerts users when filter replacement is needed.
- Hands-Free Bottle Filling: Touchless sensor activation provides hygienic, convenient operation.
- Mechanical Bubbler Activation: Ensures water delivery even during service disruptions.
- Green Ticker™: Displays the number of 20 oz. plastic bottles saved from waste.
- Laminar Flow & Real Drain: Provides a clean, splash-free fill and eliminates standing water.
- Antimicrobial Components: Key plastic parts manufactured with silver ion antimicrobial agent to resist stains and odors.
- ADA Accessibility: Meets ADA requirements when installed correctly, providing inclusive access for all users.
What's Included:
- LRPBD8WSC Fountain with Integral Bottle Filling Station
- MFWSF110 Mounting Frame
- ECH8 Chiller
- WaterSentry® Plus Filter (included)
- Installation hardware
- Owner’s manual and warranty guide
FAQ
Q: How often should the filter be replaced?
A: The included WaterSentry® Plus filter should be replaced every 3,000 gallons or 12 months. Use the Elkay 51300C Replacement Filter for continued performance.
Q: Is this unit ADA compliant?
A: Yes, the LZWS-LRPBM8K meets ADA & ICC A117.1 accessibility requirements when installed according to standards.
Q: What warranty is included?
A: Elkay provides a 5-year limited warranty on the refrigeration system and 1-year coverage on electrical and water components.
Q: Are there accessories available for this model?
A: Yes. Elkay offers optional accessories including the 51300C Replacement Filter and the LKAPR1 Cane Apron for ADA compliance when mounted on exposed walls.
Q: What makes this model different from other ezH2O® units?
A: The LZWS-LRPBM8K integrates a SwirlFlo® fountain with the bottle filler, offering both bubbler and touchless hydration in one streamlined unit. It ships complete with mounting frame, chiller, and filter, making it a full-package solution.
Detailed Features & Benefits
Advanced Filtration: The LZWS-LRPBM8K includes a WaterSentry® Plus filter certified to reduce lead, microplastics, particulates, cysts, chlorine taste and odor. Optional 51300C filter provides additional replacement flexibility.
Integrated Design: Combines SwirlFlo® fountain and bottle filler in one unit, saving space and simplifying installation.
Energy Efficiency: Built-in chiller delivers 8.0 GPH of chilled water while minimizing power consumption.
ADA Accessibility: Designed to meet ADA requirements, providing inclusive hydration access for all users.
Durability: Stainless steel construction and Flexi-Guard® safety bubblers ensure long-lasting performance in demanding environments such as schools, hospitals, and public facilities.
Enhanced User Experience: LED filter monitor and Green Ticker™ encourage use and promote sustainability by tracking bottles saved.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
