Elkay LZSTL8WSSP | Wall-mount Enhanced EZH2o Versatile Bi-level Bo...

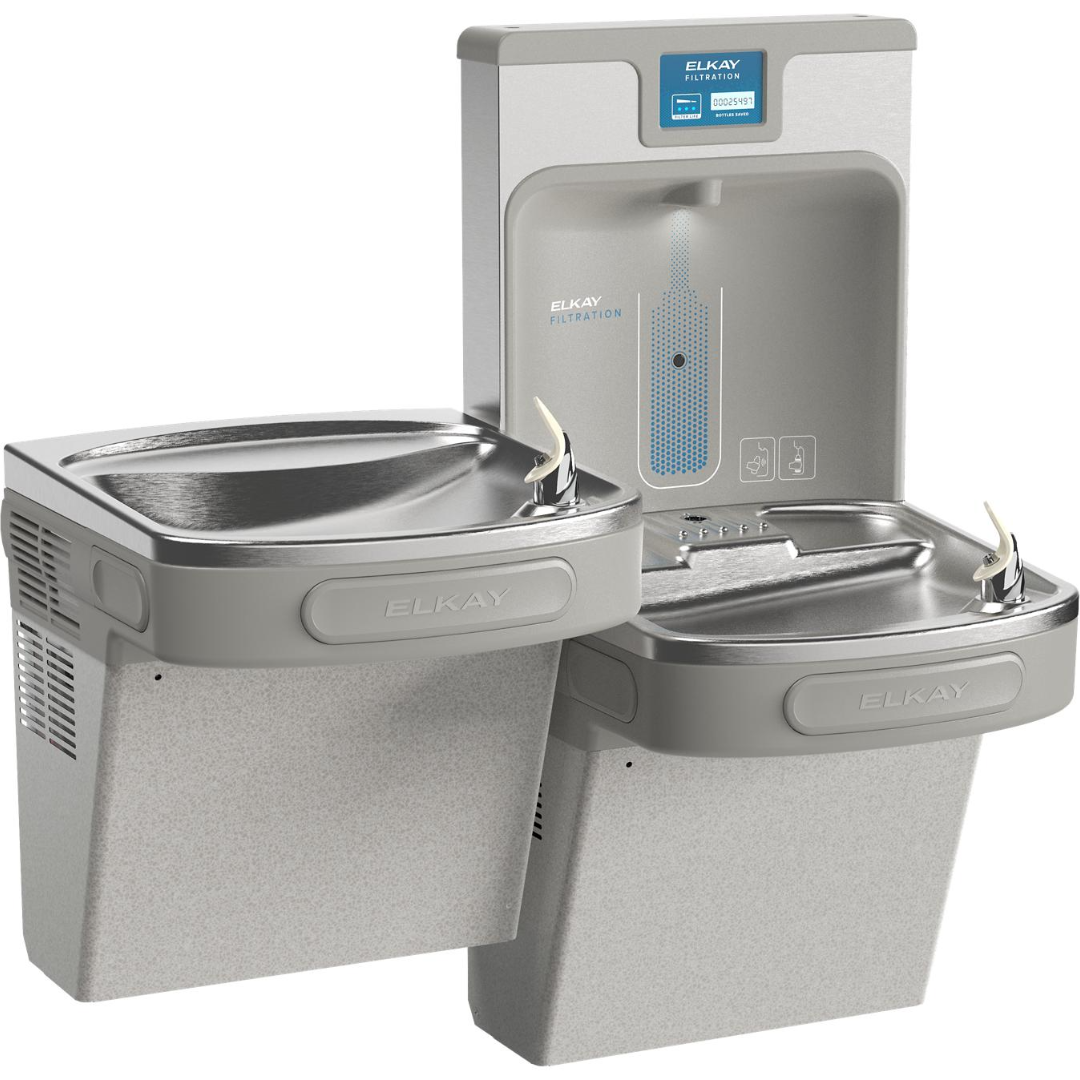

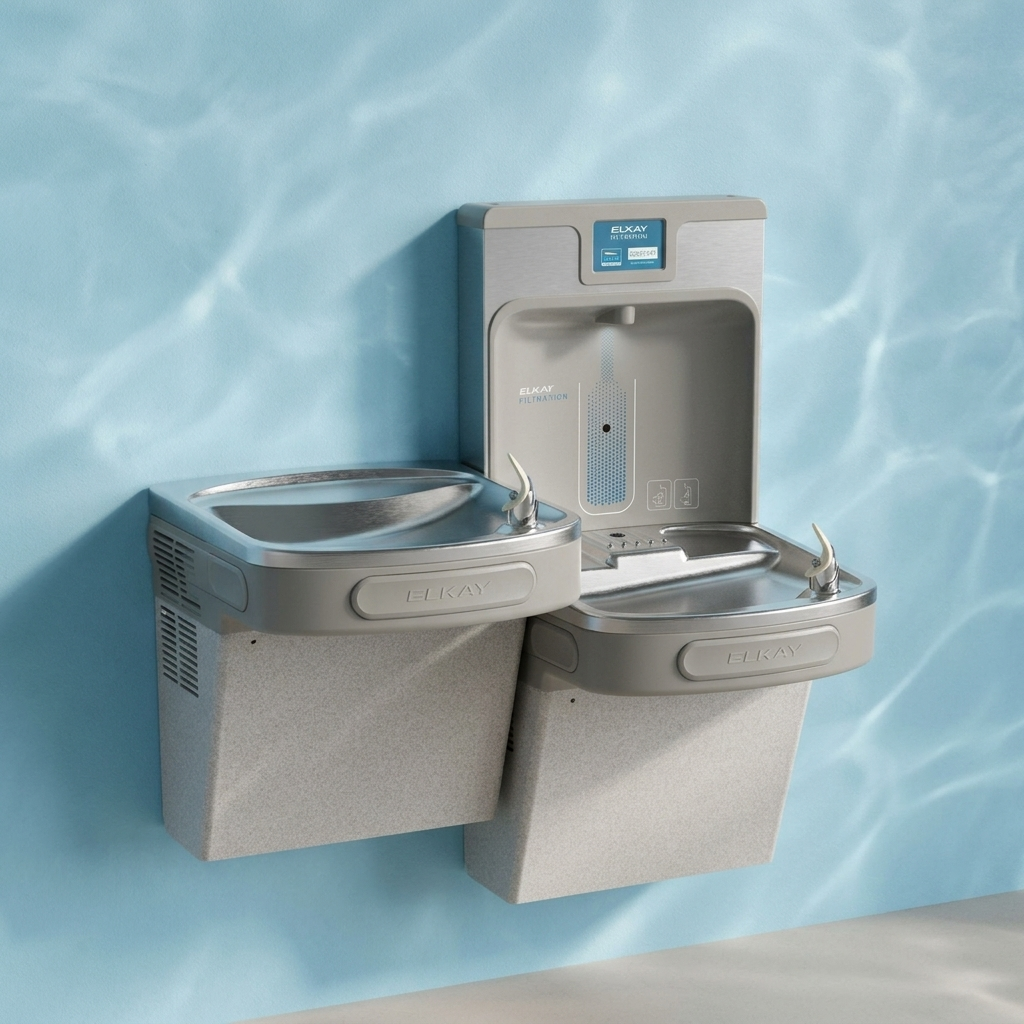

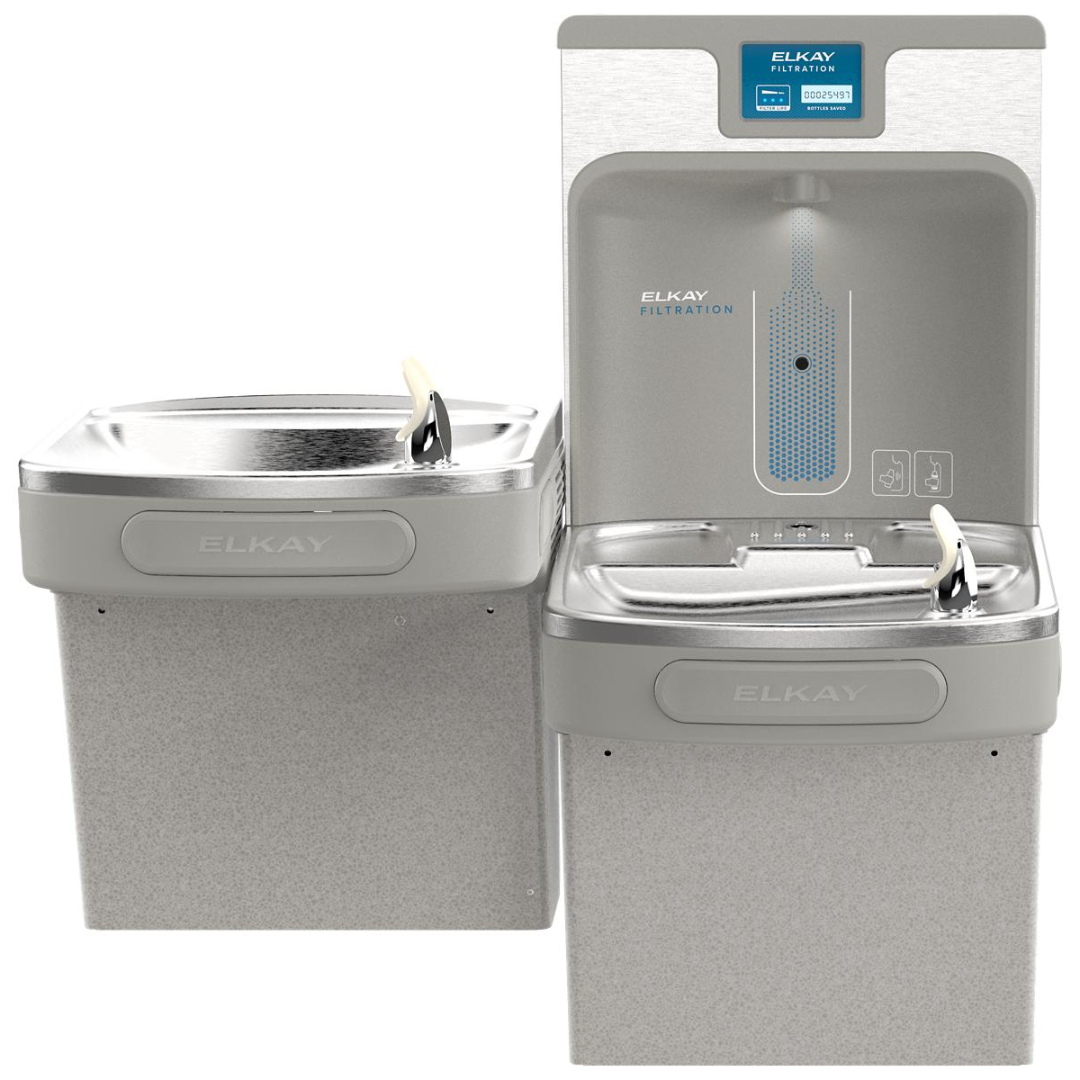

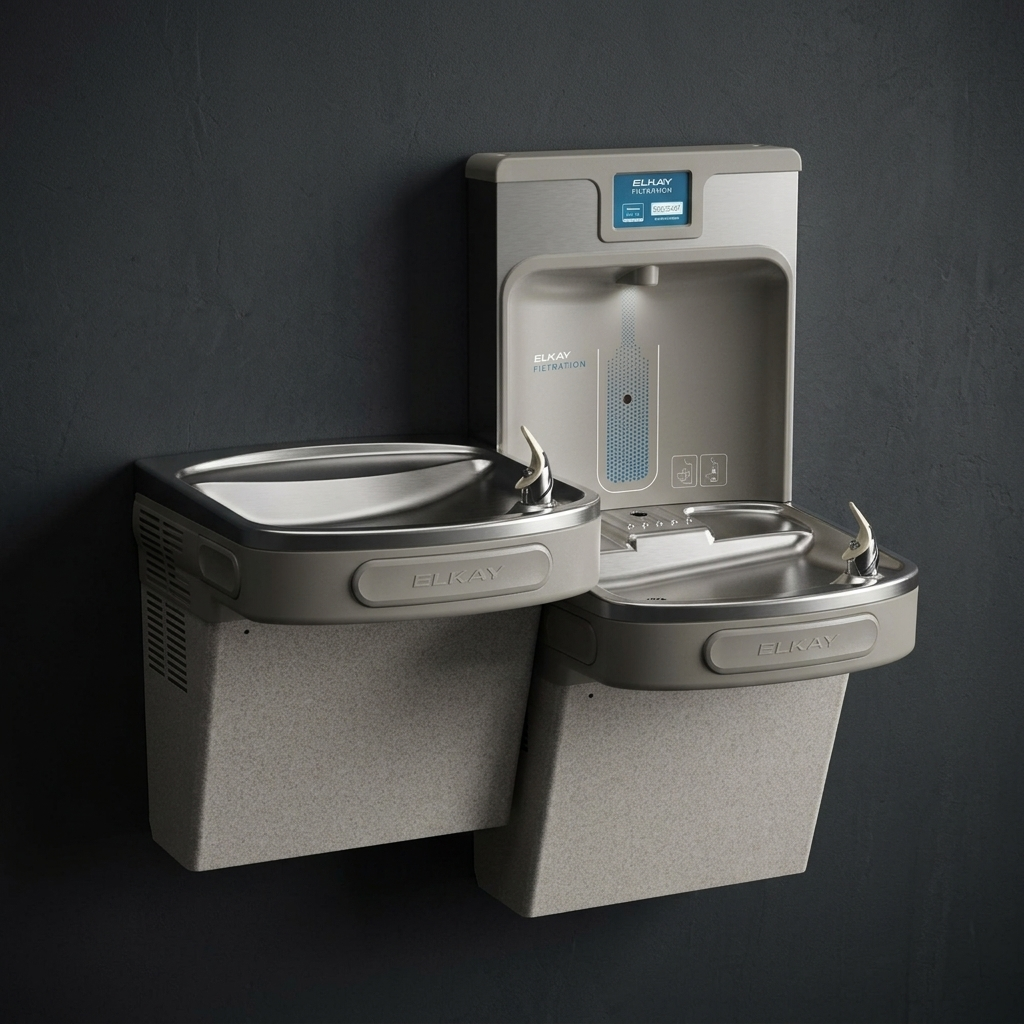

The Elkay LZSTL8WSSP Enhanced EZH2O® Bottle Filling Station & Versatile Bi-Level ADA Cooler combines a touchless bottle filler with dual ADA-compliant drinking fountains in a single wall-mounted unit. Finished in Stainless Steel, it delivers chilled, filtered water and includes the high-capacity 6,000-gallon 51600C WaterSentry® Plus filter.
Key Specifications:
| Design | Enhanced EZH2O® Bi-Level ADA Cooler with Integrated Bottle Filler and Sensor Activation |
| Finish | Stainless Steel. Also available in Arctic White, Midnight Black, and Light Gray Granite. |
| Filtration | Includes 51600C WaterSentry® Filter, certified for reduction of lead, microplastics, chlorine taste and odor, particulates, cysts, and more. |
| Refrigeration | 8.0 GPH chilled water at 50°F (based on 80°F inlet water and 90°F ambient air) |
| Stations Served | 2 (Bi-Level ADA Coolers with Integrated Bottle Filler) |

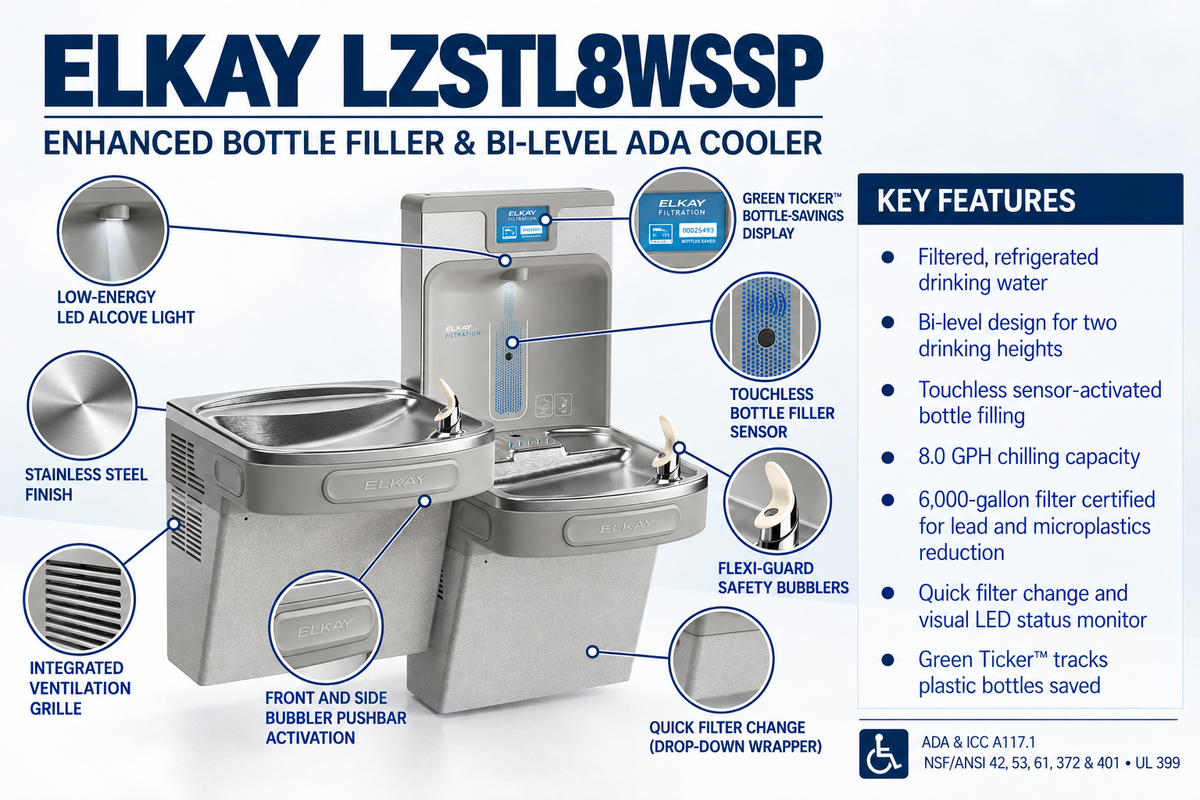

Features & Benefits:
- Hands-Free Operation: Electronic bottle filler sensor and front/side bubbler pushbar activation promote hygienic hydration.
- Energy Savings Mode: Reduces power consumption during periods of inactivity.
- Visual Filter Monitor: LED status indicator notifies users when filter replacement is needed.
- Quick Filter Change: Drop-down wrapper design provides easy filter access for changes in under a minute.
- Green Ticker™ & Real Drain: Displays bottles saved from waste while eliminating standing water in the basin.
What's Included:
- LZSTL8WSSP Bottle Filling Station & Bi-Level ADA Cooler
- 51600C WaterSentry® Filter (6,000-gallon capacity)
- Flexi-Guard® Safety Bubbler
Comparison of Elkay Enhanced Bottle Filling Stations:
| Feature | LZSTL8WSSP (This Model) | LZSTL8WSSP-W1 | LZSTL8WSLK |
|---|---|---|---|
| Finish | Stainless Steel | Stainless Steel | Light Gray Granite |
| Filtration | 51600C, 6,000-Gallon Capacity | 51600C, 6,000-Gallon Capacity | 51600C, 6,000-Gallon Capacity |
| Connected Monitoring | No | Yes (Factory Connected) | No |
| Stations Served | 2 (Dual Fountains + Bottle Filler) | 2 (Dual Fountains + Bottle Filler) | 2 (Dual Fountains + Bottle Filler) |
| Best For | High-traffic facilities seeking Enhanced EZH2O® performance | Facilities requiring remote monitoring and maintenance alerts | Schools and offices preferring a Light Gray Granite finish |
FAQ
Q: What New Features Are Included in the Enhanced Series?
A: Enhanced models feature Energy Savings Mode, built-in diagnostics, automatic filter status reset, a Quick Filter Change wrapper for faster service, Real Drain technology, and an upgraded user interface.
Q: What Filter Does This Model Use?
A: The LZSTL8WSSP ships with the 51600C WaterSentry® Filter (6,000-gallon capacity). Alternative replacement options include the 51300C and the PFAS-reducing 71300C.
Q: How Long Do Filters Last?
A: Standard filters last approximately 3,000 gallons or 1 year, while high-capacity filters last up to 6,000 gallons or 1 year. Actual lifespan depends on water conditions and usage volume.
Q: What Water Pressure Is Required?
A: Supply line pressure must be maintained between 20 and 105 PSI.
Q: What Is the Difference Between the LZSTL8WSSP and the LZSTL8WSLP?
A: The LZSTL8WSSP features a Stainless Steel finish, while the LZSTL8WSLP features a Light Gray Granite finish. Both models offer similar filtration, cooling, and hydration performance.
Q: What Is the Difference Between the LZSTL8WSSP and LZSTL8WSSP-W1?
A: Both models offer the same Enhanced EZH2O® bi-level bottle filling station design, refrigerated filtered water, dual ADA-compliant drinking fountains, stainless steel construction, and 6,000-gallon filtration. The LZSTL8WSSP-W1 includes factory-enabled connected monitoring for usage tracking, maintenance alerts, and remote management capabilities. The standard LZSTL8WSSP does not include these connected features.
Q: What Accessories Are Recommended?
A: Popular accessories include the 51600C Filter, the LKAPREZL Cane Apron, the MLP200 In-Wall Carrier, and the STLBFUP Universal Back Panel Assembly Kit.
Q: What Warranty Coverage Is Included?
A: Elkay provides a 5-year limited warranty on the refrigeration system and a 12-month warranty on electrical components and the water system.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

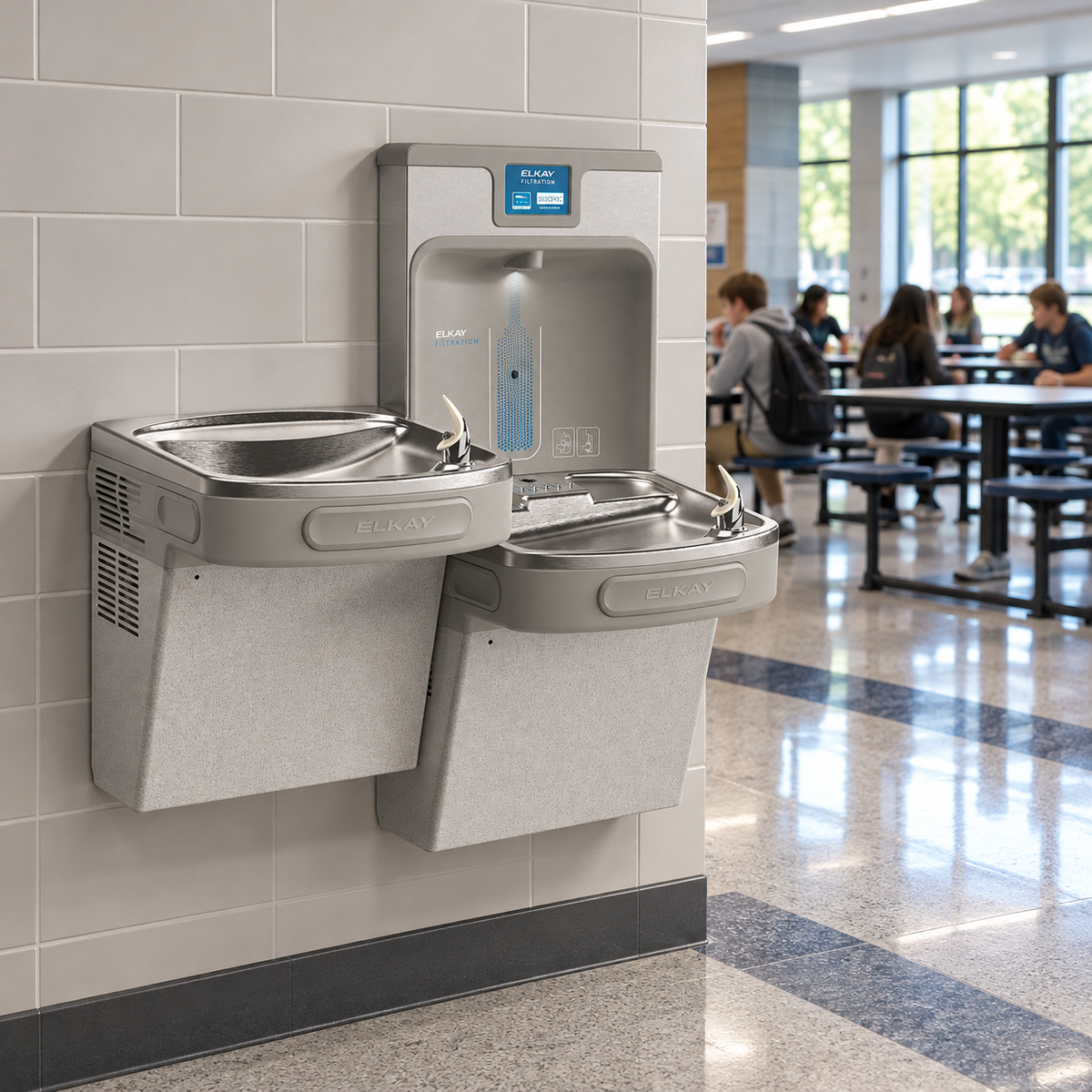

The Elkay LZSTL8WSSP is an enhanced bi‑level bottle filling station with integrated coolers and filtration. Designed for schools, offices, healthcare facilities, and other commercial environments, it provides chilled, filtered water through a touchless bottle filler while offering dual ADA‑compliant drinking stations.
Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connections required for both cooler basins and bottle filler
- Maintain clearance for filter replacement and refrigeration service
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Always depressurize the water line before servicing or replacing the filter
- Use only genuine Elkay replacement filters to maintain certification and performance
- Ensure sensor activation areas remain unobstructed for reliable operation
- Provide adequate ventilation clearance around refrigeration components
- Inspect all plumbing and electrical connections before placing the unit into service
Basic Installation Overview:
- Install the in‑wall carrier securely according to manufacturer specifications
- Connect the cold water supply line and flush plumbing thoroughly
- Install the filter head and filter cartridge assembly
- Connect drain lines from both fountain basins to the building drainage system
- Mount the cooler and bottle filler assembly to the carrier
- Connect electrical power to a grounded outlet
- Pressurize the system and inspect all connections for leaks
- Test bottle filler sensor activation, water flow, and cooling performance
- Install access panels and complete final adjustments
For complete specifications and installation guidelines, download the official LZSTL8WSSP Spec Sheet and the Installation Manual.
