Elkay LZSTL8WSLP | Wall-mount Enhanced EZH2o Bi-level Bottle Fillin...

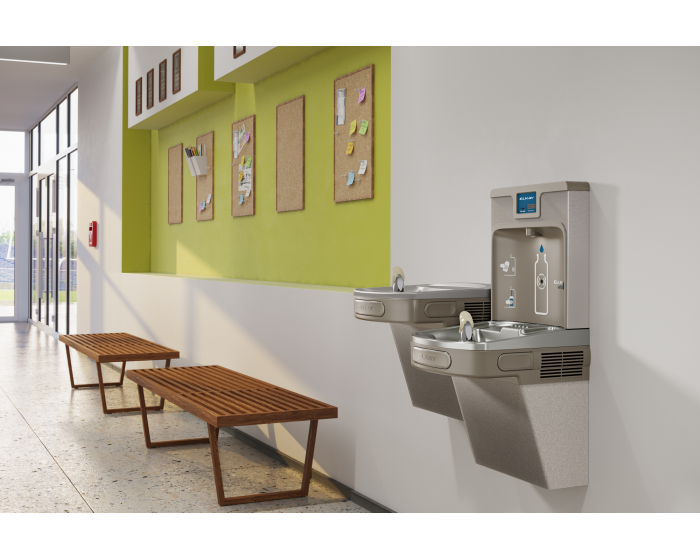

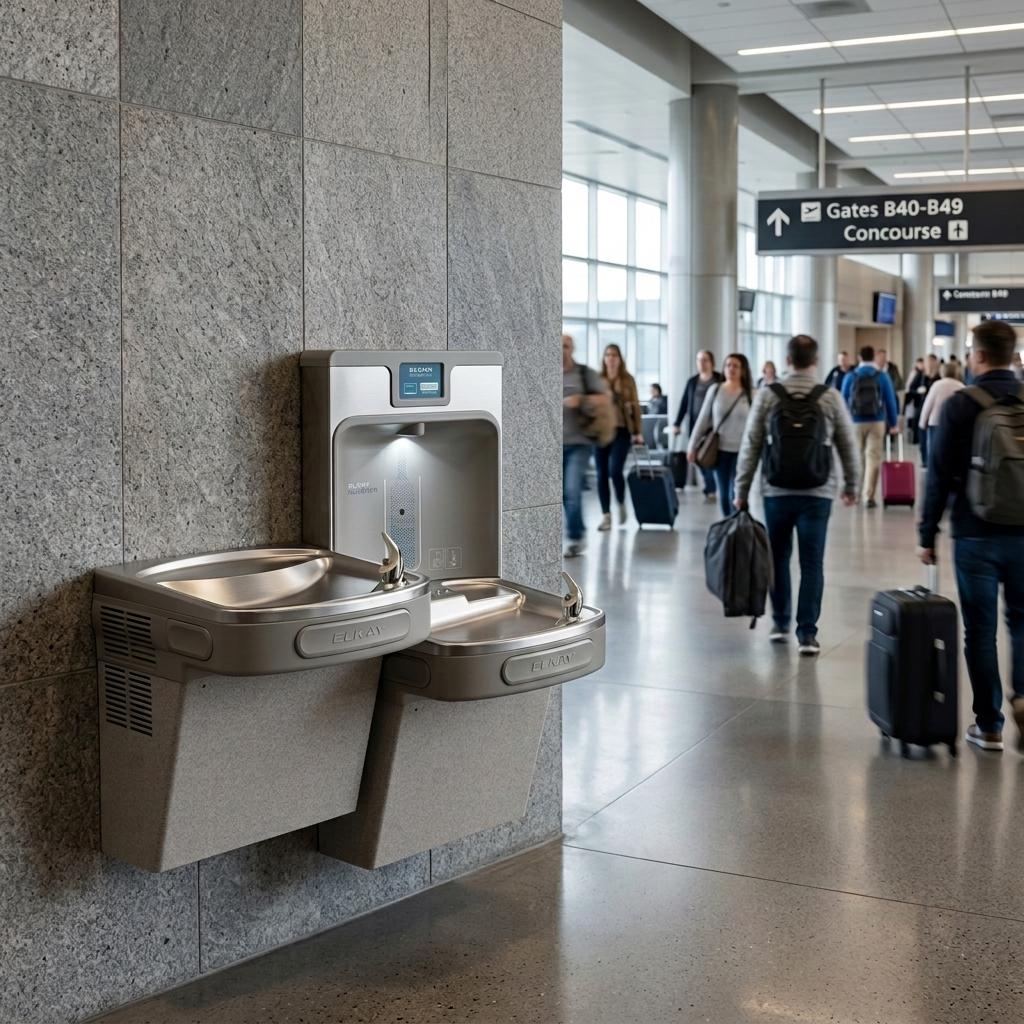

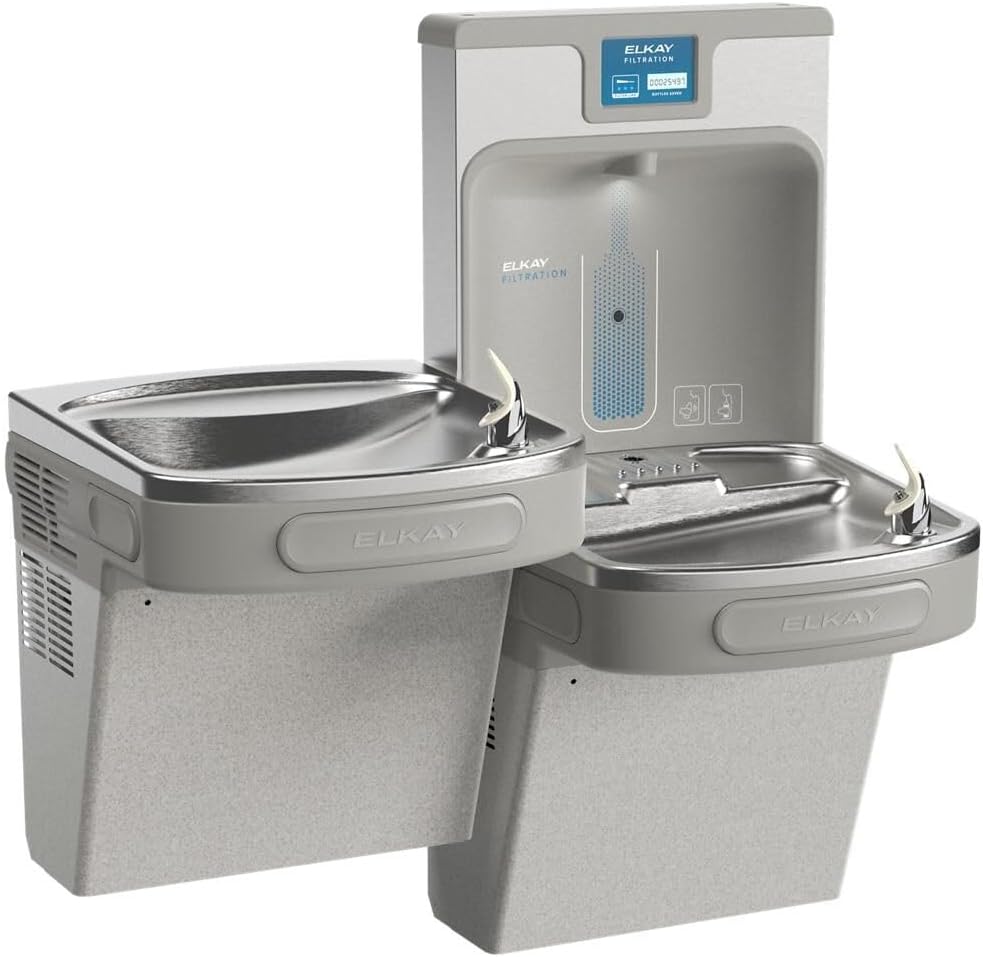

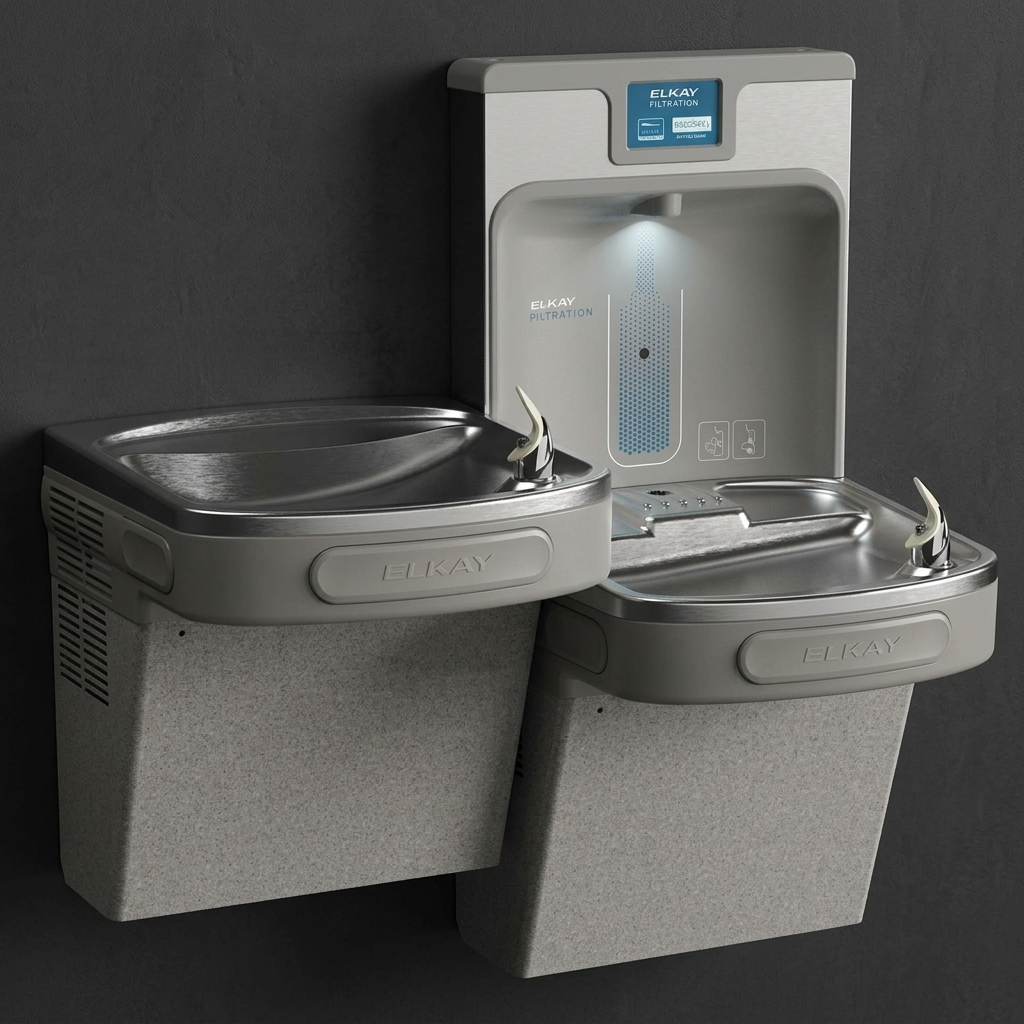

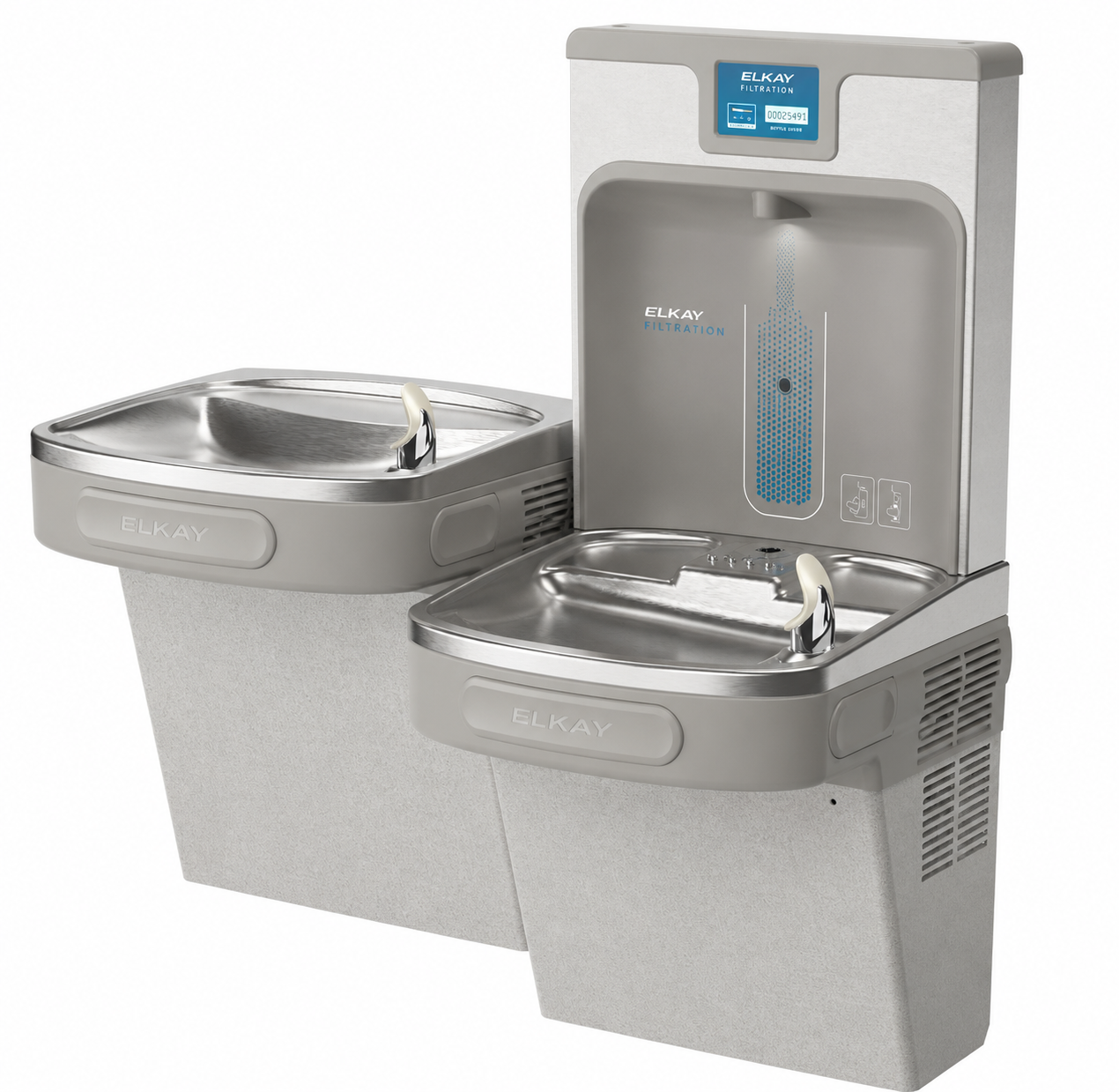

The Elkay LZSTL8WSLP Enhanced Bi-Level Bottle Filler & ADA Cooler delivers clean, filtered water through a fast-filling bottle filler and dual drinking fountains. Designed for high traffic indoor environments such as schools and airports.
Key Specifications:
| Design | Bi-level ADA cooler with integrated bottle filler, sensor activation, and push-bar bubblers |
| Finish | Light Gray Granite; also available in Arctic White, Midnight Black, and Stainless Steel |
| Filtration | Includes 51600C WaterSentry® Plus Filter, 6,000-gallon high-capacity NSF/ANSI 42, 53, 401 certified |
| Refrigeration | 8.0 GPH chilled water capacity using R-134a refrigerant |
| Stations Served | 2 (bi-level ADA coolers with integrated bottle filler) |

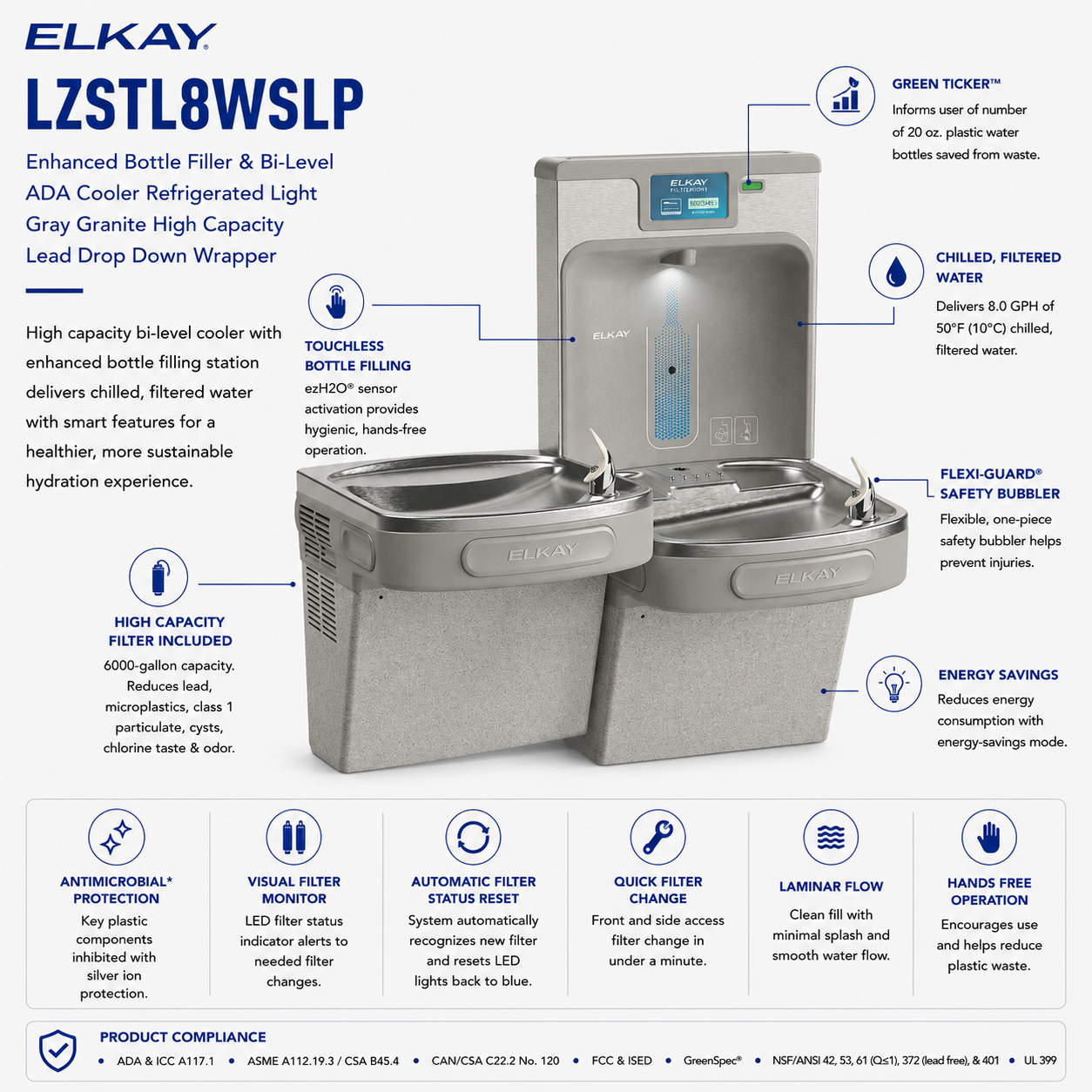

Features & Benefits:
- LED Screen: Displays filter status and Green Ticker™ tracking bottles saved from waste
- Automatic Reset: FillSafe recognition resets LED light upon filter replacement
- Sustainability: Green Ticker™ encourages reusable bottle use and reduces plastic waste
- Guided Filling: Low-energy LED light assists users during bottle fill
- Hygiene: Flexi-Guard® safety bubbler and antimicrobial components inhibit mold and microorganisms
What's Included:
- LZSTL8WSLP Bottle Filling Station and Bi-Level Cooler unit
- WaterSentry® Plus Filter Cartridge (51600C, 6,000-gallon capacity)
- Flexi-Guard® safety bubbler
- Installation instructions
Comparison of Elkay Bi-Level Bottle Filling Stations:
| Feature | LZSTL8WSLP (This Model) | LZSTL8WSSP | LZSTL8WSBPRO |
|---|---|---|---|
| Finish | Light Gray Granite (also Arctic White, Midnight Black) | Stainless Steel | Black Stainless |
| Filtration | 51600C WaterSentry® Plus Filter, 6,000-gallon capacity | 51600C WaterSentry® Plus Filter, 6,000-gallon capacity | FL10 Pro Filtration Ultra-Capacity Filter, 10,000-gallon capacity |
| Special Features | Quick Filter Change wrapper, LED alcove light, antimicrobial surfaces | Energy-savings mode, LED lighting, one-box packaging | Pro Filtration system, automatic filter flush, LCD filter life gauge, smart connected monitoring, tempered glass display |
| Best For | Indoor facilities needing ADA-compliant hydration with standard filtration | Facilities preferring stainless steel finish and energy savings | High-traffic facilities needing ultra-capacity filtration, advanced monitoring, and premium design |
How to Maintain Elkay LZSTL8WSLP:
- Clean exterior panels with mild soap and water; avoid abrasive or petroleum-based cleaners.
- Inspect and sanitize the bottle filler nozzle and Flexi-Guard® bubblers regularly to maintain hygiene.
- Check the LED filter monitor and replace the 51600C WaterSentry® Plus Filter when capacity is reached or indicator alerts.
- Vacuum or wipe down condenser coils and ventilation louvers to ensure proper airflow for refrigeration.
- Test sensor activation and pushbar bubblers periodically to confirm consistent water flow and ADA compliance.
FAQ
Q: What New Features Are Included In The Elkay LZSTL8WSLP Enhanced Series?
A: Enhanced models feature energy savings mode, built-in diagnostics, automatic LED reset upon filter replacement, Quick Filter Change wrapper for faster service, and Real Drain system to eliminate standing water.
Q: What Filter Does The Elkay LZSTL8WSLP Use?
A: The Elkay LZSTL8WSLP ships with the 51600C WaterSentry® Plus Filter (6,000-gallon high capacity).
Q: How Long Do Filters Last On The Elkay LZSTL8WSLP?
A: The high-capacity filter lasts 6,000 gallons or 1 year, whichever comes first. Actual lifespan depends on usage and water quality.
Q: What Water Pressure Is Required For The Elkay LZSTL8WSLP?
A: Supply line pressure must be between 20–105 psi.
Q: What Accessories Are Available For The Elkay LZSTL8WSLP?
A: Optional accessories include the LKAPREZL Cane Apron, the STLBFUP Universal Back Panel Assembly Kit, and the MLP200 In-Wall Carrier for added installation support.
Q: Can The Elkay LZSTL8WSLP Be Upgraded For Connected Monitoring?
A: Yes. It can be paired with the PLZSRK-W1 Connected Retrofit Kit to enable cloud monitoring, water usage tracking, and filter status alerts.
Q: Can The Bottle Filler Position Be Adjusted On The Elkay LZSTL8WSLP?
A: Yes. The bottle filler can be moved to the left side using the VersatileBFKit accessory.
Q: What Warranty Coverage Is Included For The Elkay LZSTL8WSLP?
A: Elkay provides a 5-year limited warranty on the refrigeration system and 12 months on electrical components and water system.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
The Elkay LZSTL8WSLP is a bi‑level, filtered bottle filling station with integrated coolers. Designed for high‑traffic indoor environments, it delivers chilled, cleaner water with dual ADA‑compliant access points and hands‑free sensor activation.
Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connections required for both cooler basins and bottle filler
- Maintain clearance for filter replacement and servicing
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Always depressurize water line before servicing or replacing filter
- Ensure sensor lenses are unobstructed for accurate activation
- Use only genuine Elkay filters to maintain certification and performance
- Provide adequate ventilation clearance around louvers
- Secure unit firmly to wall structure to resist vandalism
Basic Installation Overview:
- Install in‑wall carrier securely to support dual cooler and bottle filler weight
- Plumb water supply with service stop and union connection; flush line thoroughly
- Install filter head and cartridge into bracket, connect tubing per routing diagram
- Mount cooler and bottle filler assembly to carrier, ensuring wires and tubing are not pinched
- Connect drain lines from both coolers and bottle filler to building drain system
- Wire electrical supply to grounded outlet; verify LCD bottle counter illuminates
- Test bottle filler sensor activation and bubbler stream height; adjust regulator if needed
- Install bottom cover plates and tighten back panel screws
For complete specifications and installation guidelines, download the official LZSTL8WSLP Spec Sheet and the Installation Manual.
