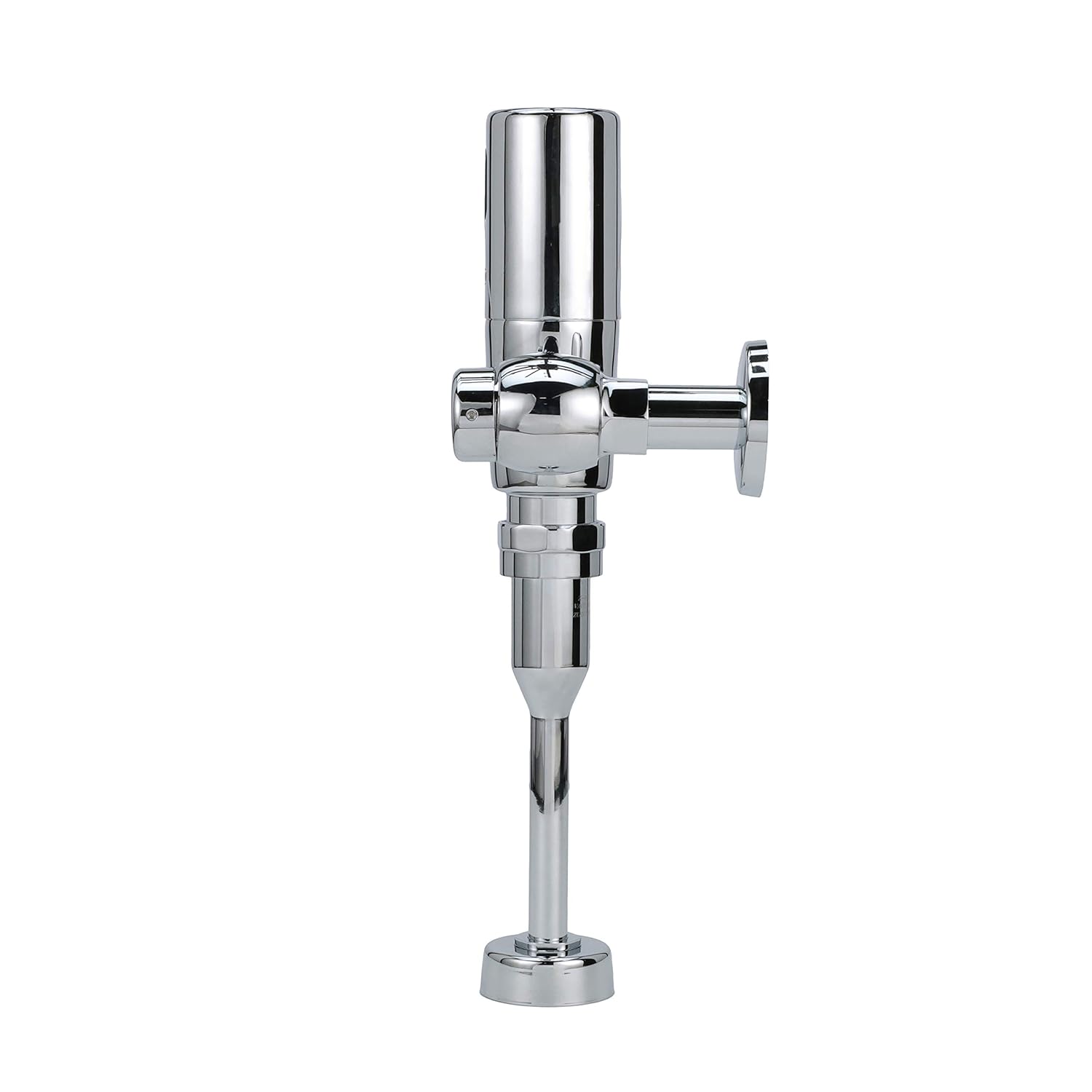

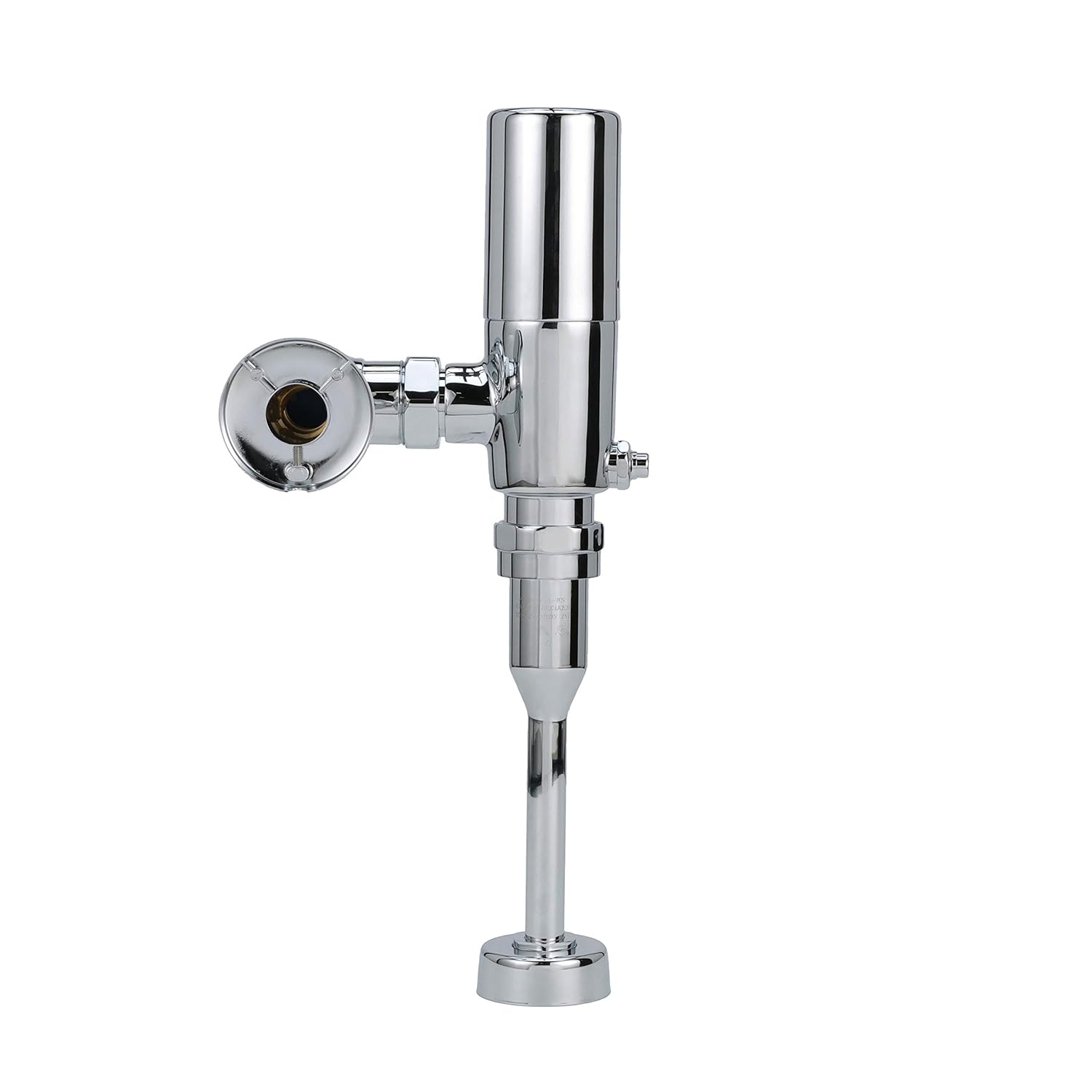

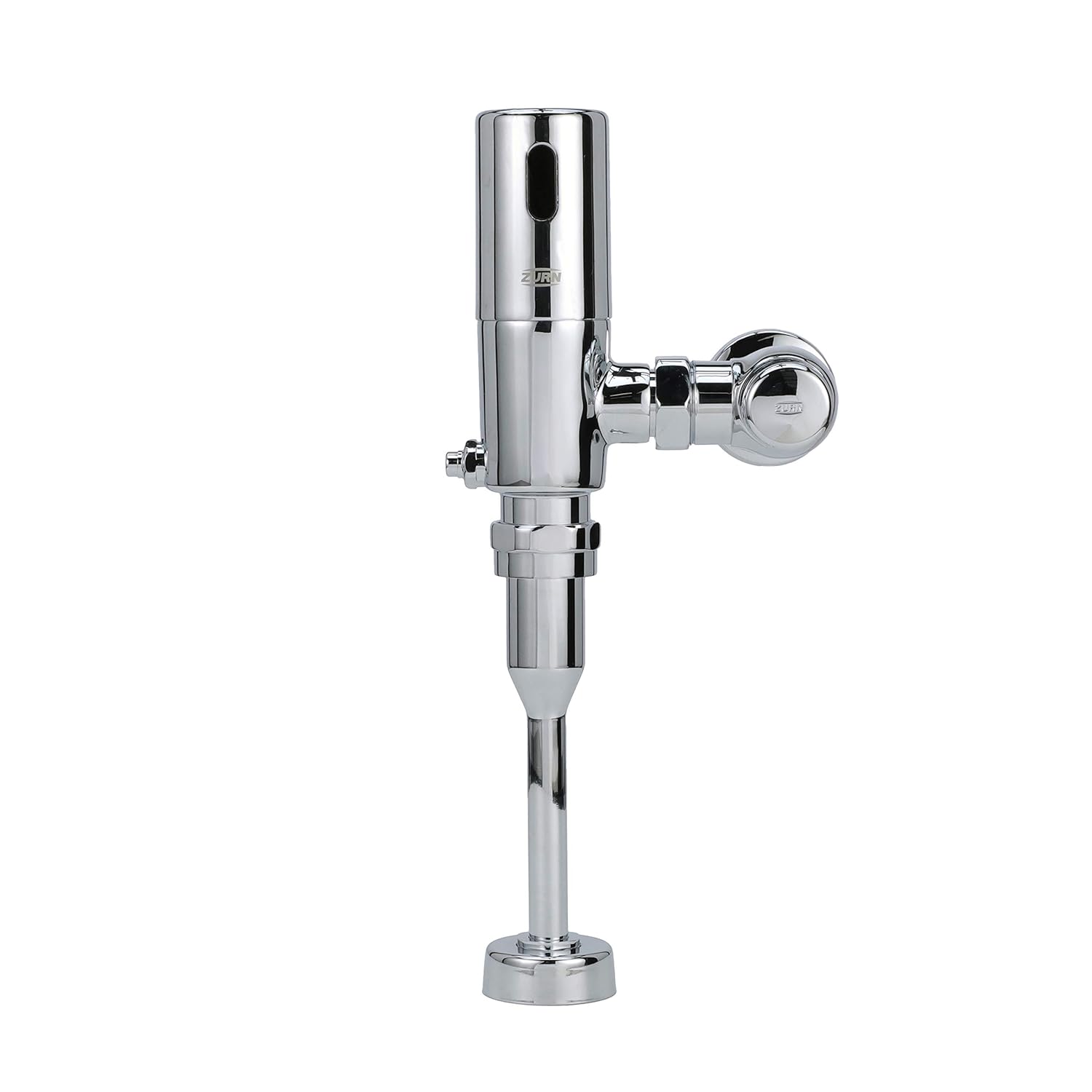

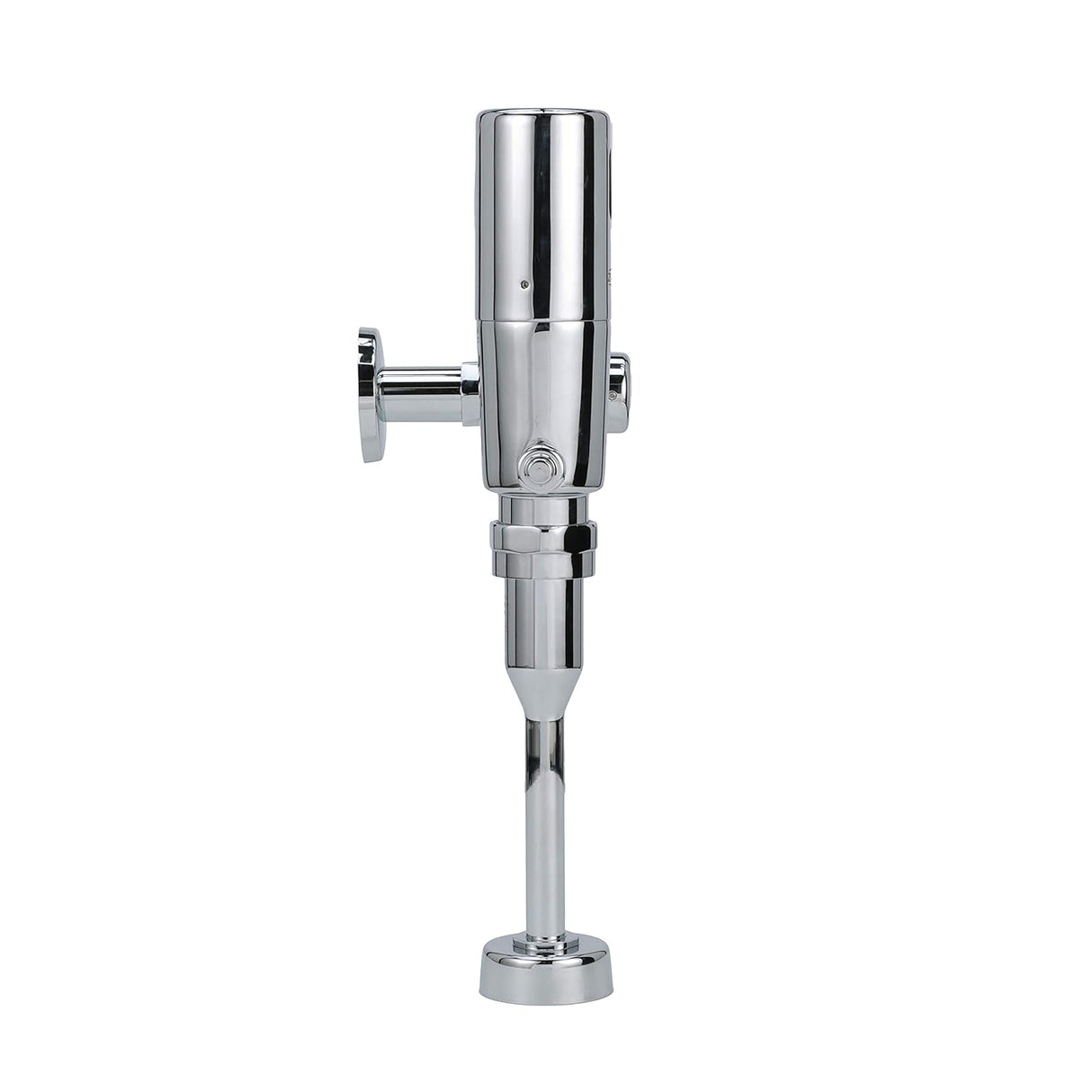

Zurn ZTR6203-WS1 | EcoVantage ZTR Exposed Sensor Piston Flush Valve, 1.0 GPF, Chrome
Zurn ZTR6203-WS1 | EcoVantage ZTR Exposed Sensor Piston Flush Valve, 1.0 GPF, Chrome - Standard is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn ZTR6203-WS1 | EcoVantage ZTR Exposed Sensor Piston Flush Valve...
The ZTR6203-WS1 is a battery-powered, sensor-operated flush valve designed for urinals with a 1.0 gallon per flush rating. Built for standard commercial applications, this model supports ADA compliance and WaterSense labeling when paired with compatible fixtures.
Key Specifications:
- Flow Rate: 1.0 gallons per flush (WS1 designation).
- Operation: Sensor-activated flush with mechanical override button (MOB).
- Battery Type: 4 AA alkaline batteries (included).
- Construction: Chrome-plated brass body with chloramine-resistant internal seals.
- Dimensions: 11-1/2" valve height; top spud connection.
Features & Benefits:
- Reliable Performance: The 1.0 gpf flush volume balances water efficiency with effective fixture clearance.
- Touchless Hygiene: Infrared sensor enables hands-free operation. Manual override button allows flushing during maintenance or sensor recalibration.
- Durable Design: Vandal-resistant metal sensor cap, filtered piston kit, and dezincification-resistant brass body ensure long-term reliability in public environments.
What's Included:
- 1 x ZTR6203-WS1 Exposed Urinal Flush Valve
- 1 x Sensor Cap Assembly with Manual Override
- 1 x High Back Pressure Vacuum Breaker with One-Piece Hex Coupling Nut
- 1 x Adjustable Tailpiece
- 1 x Spud Coupling and Flange for Top Spud Connection
- 1 x Sweat Solder Kit
- 1 x Cast Wall Flange with Set Screw
- 1 x Installation Hardware
- 4 x AA Batteries (Standard Alkaline)
Options Available:
- ZTR6203-WS1-LL: Long Life battery version with 10-year lithium cell for reduced maintenance
FAQ
Q: Is this valve compatible with all urinals?
A: The ZTR6203-WS1 is designed for 3/4" top spud urinals rated for 1.0 gpf. Always confirm fixture compatibility before installation.
Q: Can I upgrade to a long-life battery?
A: Yes. The ZTR6203-WS1-LL variant includes a factory-installed lithium battery rated for up to 10 years, ideal for high-use environments with limited maintenance access.
Detailed Features & Benefits
Sensor Accuracy: Factory-calibrated infrared sensor with courtesy flush and LED indicators. DIP switch settings allow customization for specific restroom layouts.
Water Efficiency: The WS1 model supports WaterSense labeling when paired with compatible fixtures, helping facilities meet conservation goals.
Maintenance Flexibility: Standard alkaline batteries are included, but facilities may opt for the LL variant to reduce service intervals.
NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained. Decorative finishes warranted for one year.
