Zurn ZER6003PL-EWS-SM | ZER Series Sensor Flush Valve | ADA Compliant, Chloramine Resistant, 0.5 gpf
Zurn ZER6003PL-EWS-SM | ZER Series Sensor Flush Valve | ADA Compliant, Chloramine Resistant, 0.5 gpf is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.

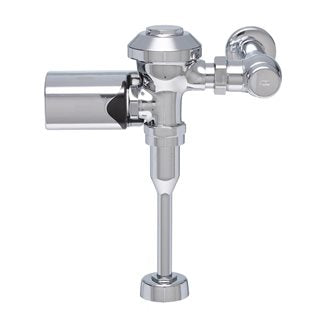

The Zurn ZER6003PL-EWS-SM is an advanced sensor-operated flush valve designed specifically for urinals in commercial settings. This ADA-compliant, battery-powered valve features a 0.5 gallon per flush (GPF) flow rate, making it an ideal solution for facilities looking to maximize water efficiency while maintaining high hygiene standards. Its durable construction, quiet operation, and advanced sensor technology make it a standout choice for high-traffic restrooms seeking to minimize water usage and enhance user experience.
Key Specifications:
- Flush Volume: Efficient 0.5 GPF (1.9 LPF) for water conservation
- Power Source: Battery-powered with 4 C-size batteries
- Sensor Technology: Infrared convergence-type proximity sensor for reliable activation
- Material: Chrome-plated, vandal-resistant metal cover for durability
- Operating Pressure: 25 psi (running) to 80 psi (static) maximum
- Compliance: ADA compliant and meets ASSE 1037 / ASME A112.1037 / CSA B125.37 standards
- Diaphragm: Chloramine-resistant with dual seal technology for longevity
- By-pass System: Clog-resistant, triple-filtered for reliable performance
- Manual Override: True mechanical override button for backup operation
Features & Benefits:
- Water Conservation: 0.5 GPF design significantly reduces water usage compared to standard flush valves
- Hygienic Operation: Touchless activation minimizes the spread of germs, enhancing restroom hygiene
- Reliable Performance: Dual seal diaphragm and clog-resistant by-pass ensure consistent flushing
- Easy Maintenance: Mechanical override button allows for manual flushing if needed
- Versatile Installation: Adjustable tailpiece accommodates various rough-in options
- Quiet Operation: Engineered for minimal noise, ideal for sensitive environments
- Durability: Robust construction withstands high-traffic commercial use
What’s Included:
- ZER6003PL-EWS-SM Flush Valve
FAQ
Q: Is the ZER6003PL-EWS-SM compatible with existing plumbing fixtures?
A: Yes, the ZER6003PL-EWS-SM is designed to be compatible with a wide range of existing plumbing fixtures. It features an adjustable tailpiece and various rough-in options to accommodate different installations. However, it's crucial to ensure that your urinal is rated for 0.5 GPF operation to maintain proper flushing performance. We recommend consulting with a professional plumber to verify compatibility and ensure optimal installation for your specific setup.
Q: How long do the batteries typically last, and is there a low battery indicator?
A: The battery life of the ZER6003PL-EWS-SM typically lasts for 2-3 years in standard commercial settings, depending on usage. The flush valve is equipped with a low battery indicator light that will flash when the batteries need to be replaced, ensuring continuous operation. This feature allows for proactive maintenance, reducing the risk of unexpected downtime.
Q: How does the water-saving feature of this flush valve compare to traditional flush valves?
A: The ZER6003PL-EWS-SM is designed for high efficiency, featuring a 0.5 GPF flow rate that can significantly reduce water usage compared to standard flush valves, which typically use 1.6 GPF or more. This design not only conserves water but also helps facilities lower their utility bills while maintaining effective flushing performance. The touchless operation further enhances water savings by ensuring that water flows only when necessary, contributing to overall sustainability efforts.
Detailed Features & Benefits
Advanced Sensor Technology and Water Efficiency: The ZER6003PL-EWS-SM incorporates state-of-the-art infrared convergence-type proximity sensor technology that ensures reliable and precise activation. This touchless operation enhances hygiene by eliminating the need for physical contact, significantly reducing the potential for cross-contamination in public restrooms. The sensor's design minimizes false activations and cut-offs, providing a seamless user experience while preventing water waste. Coupled with the 0.5 GPF flow rate, this flush valve can save thousands of gallons of water annually per fixture, translating to substantial cost reductions and a smaller environmental footprint. For facility managers and building owners, this means not only lower utility bills but also alignment with green building standards and certifications, potentially contributing to LEED points or other sustainability recognitions.
Durability and Low Maintenance Design: Built to withstand the demands of high-traffic commercial environments, the ZER6003PL-EWS-SM offers exceptional durability and ease of maintenance. Its chrome-plated, vandal-resistant metal cover protects the internal components from tampering and wear. The chloramine-resistant diaphragm with dual seal technology ensures long-lasting performance even in challenging water conditions. The clog-resistant, triple-filtered by-pass minimizes the risk of malfunction due to debris in the water supply, reducing the need for frequent servicing. Additionally, the true mechanical override button provides a failsafe option for manual flushing, ensuring continuous operation even in the rare event of sensor or battery failure. The battery-powered design eliminates the need for electrical wiring, simplifying installation and maintenance. With an expected battery life of 2-3 years under normal use, maintenance can be planned proactively, minimizing downtime and reducing long-term operational costs.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
