Zurn ZER6003AV-WS1-HYD-MB | HydroX Power Sensor Urinal Flush Valve ...
NOTICE: Product images may vary from the actual item due to differences in suffix configuration options.
The Zurn ZER6003AV-WS1-HYD-MB is a hydropower sensor urinal flush valve built for hands-free, battery-free commercial use.
Key Specifications:
- Flush Volume: 1.0 GPF
- WaterSense Compliant: No (1.0 GPF variant is not WaterSense certified; use -ULF or -EWS for WaterSense compliance)

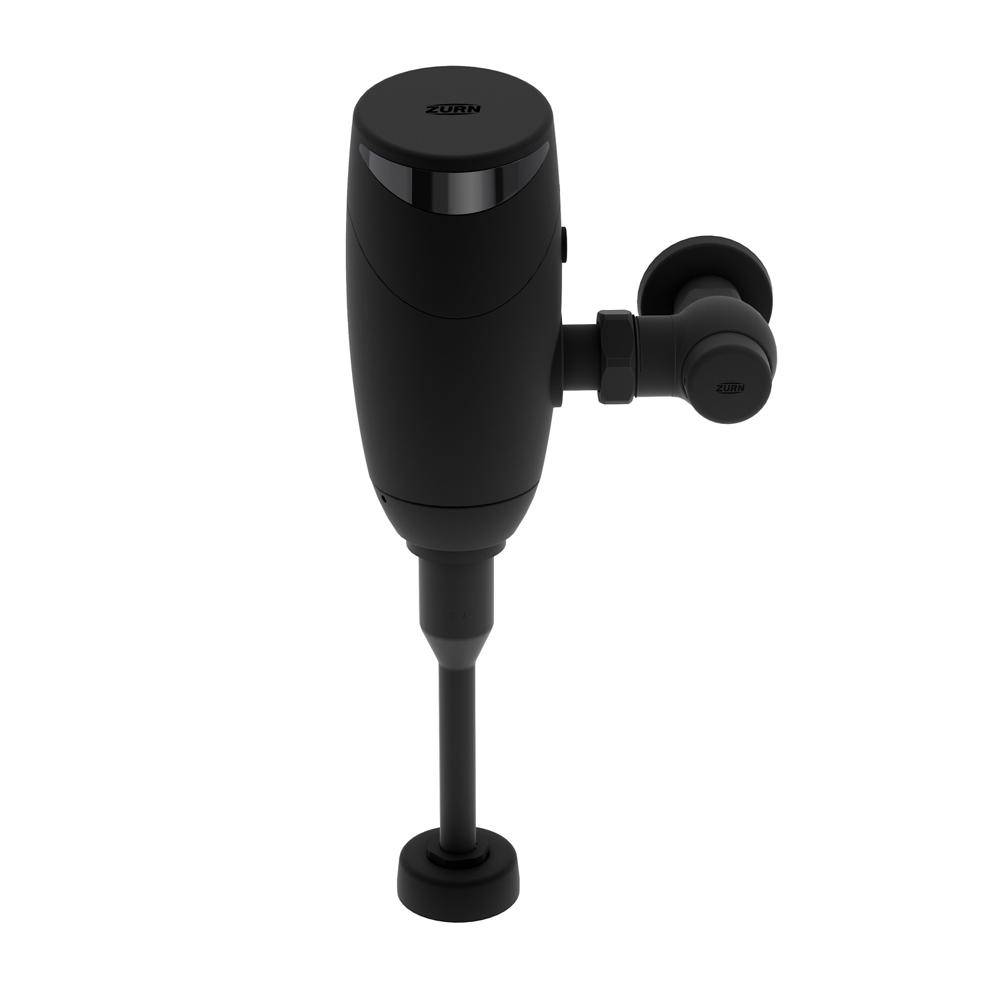

- Finish: Matte Black

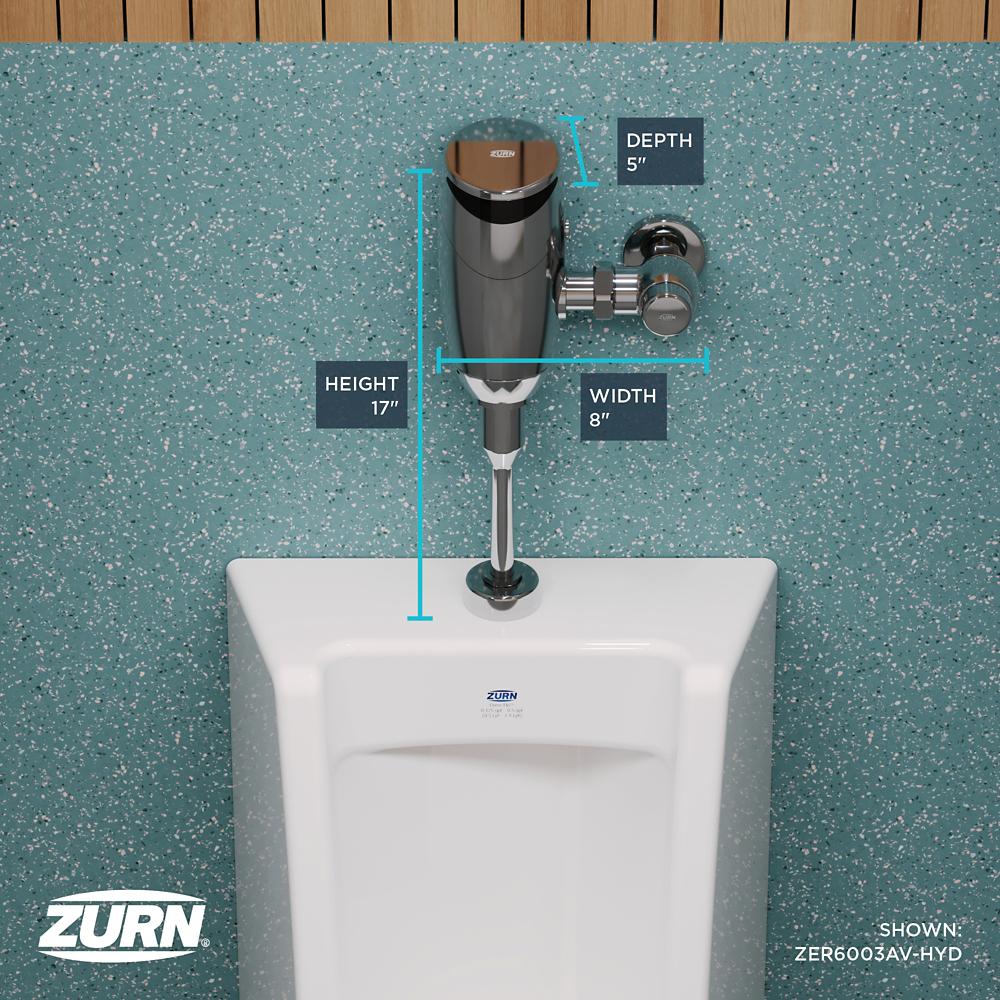

- Dimensions: Standard valve height (Dimension A): 11-1/2" [292mm]; Overall height: 16-7/8" [428mm]; Min. wall clearance: 2-1/4" [57mm]; Width: 4-3/4" ± 1/2" [121 ± 13mm]
- Activation: Infrared touchless sensor with mechanical override button
Related Variants
| SKU | Flush Volume | Water Sense | Finish |
|---|---|---|---|
| ZER6003AV-WS1-HYD-MB | 1.0 GPF | No | Matte Black |
| ZER6003AV-WS1-HYD-BN | 1.0 GPF | No | Brushed Nickel |
| ZER6003AV-EWS-HYD | 0.5 GPF | Yes | Chrome |
| ZER6003AV-ULF-HYD | 0.125 GPF | Yes | Chrome |
Features & Benefits:
- HydroX® Power Technology: Generates renewable hydropower from water flow — no batteries or hardwiring needed, reducing installation and long-term maintenance costs.
- EZ Gear Ceramic Cartridge: Gear-driven ceramic cartridge is highly resistant to debris and buildup, outlasting and outperforming traditional solenoid-based systems.
- Triple Filtered AquaVantage Diaphragm: Chemical-resistant thermoplastic elastomer components last 8–10× longer than rubber, significantly lowering service frequency and costs.
- 24-Hour Automatic Line Flushing: Built-in daily flush cycle minimizes stagnation and maintains trap seals to prevent sewer gas intrusion during low-use periods.
Compliance and Certifications:
- Complies with ASSE 1037 / ASME A112.1037 / CSA B125.37
- ADA Compliant
FAQ
Q: Does the ZER6003AV-WS1-HYD-MB require batteries or hardwired electrical connections?
A: No. The ZER6003AV-WS1-HYD-MB uses HydroX® Power technology, which harvests energy from the water supply itself, eliminating the need for batteries or hardwired electrical connections.
Q: What is the operating pressure range for this flush valve?
A: The valve operates between 25 psi (running) and 80 psi (static). Higher running pressure may be required for certain fixtures — consult the fixture manufacturer for details.
Q: Can the valve be activated manually if the sensor is not triggered?
A: Yes. A true mechanical override button is included on the ZER6003AV-WS1-HYD-MB, allowing on-demand manual flushing independent of the sensor.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
