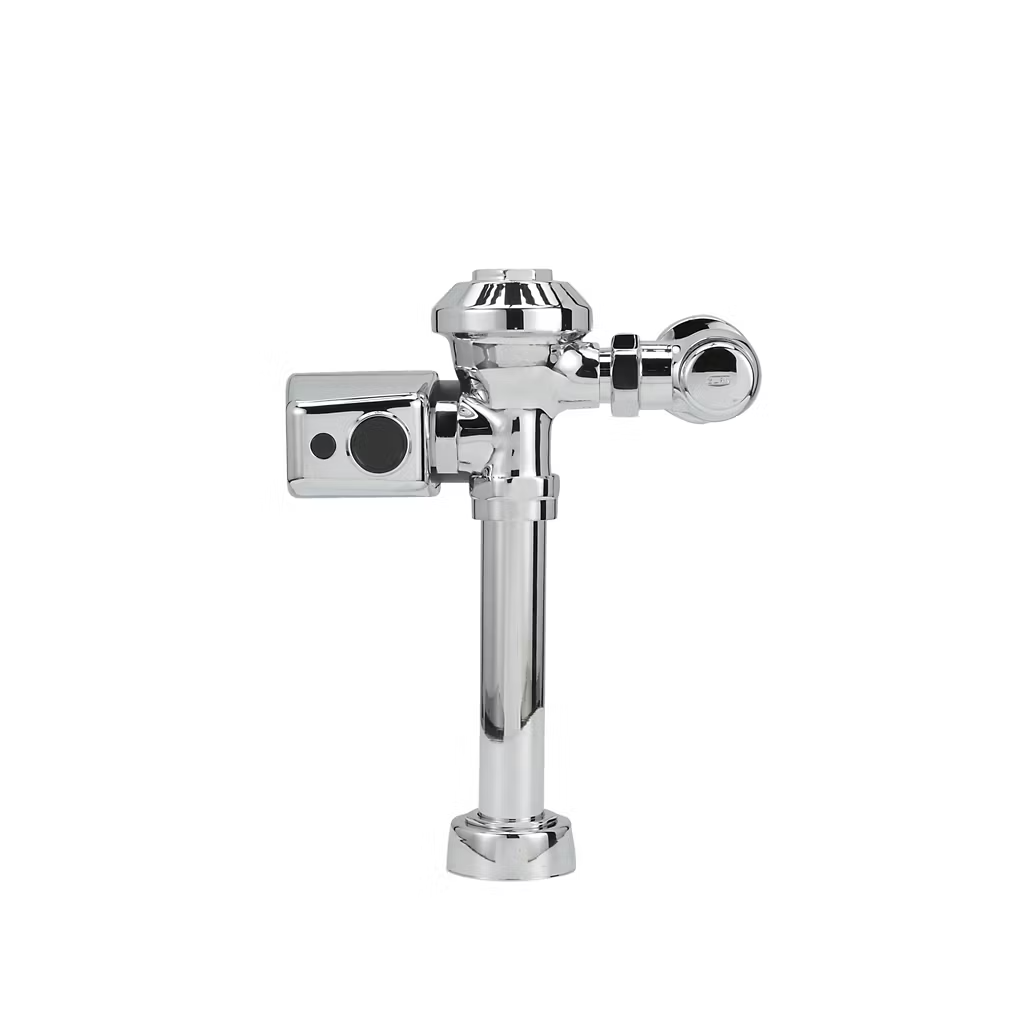

Zurn ZER6000PL-WS1-CPM | AquaSense Series Sensor Flush Valve | Battery-Powered, 1.6 gpf
Zurn ZER6000PL-WS1-CPM | AquaSense Series Sensor Flush Valve | Battery-Powered, 1.6 gpf is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
The Zurn ZER6000PL-WS1-CPM is a cutting-edge, sensor-operated battery-powered flush valve designed for water closets. This innovative product combines water efficiency, hygiene, and durability, featuring a 1.6 GPF flow rate and a range of advanced technologies that make it an ideal solution for modern, high-traffic restroom facilities. Its blend of touchless operation and reliable performance sets a new standard in commercial bathroom fixtures.
Key Specifications:
- Flow Rate: 1.6 gallons per flush (WS1), balancing water conservation with effective flushing.
- Power: 6VDC motor with battery-powered sensor operation.
- Body: AquaFlush Plus chrome-plated brass for enhanced durability.
- Sensor: Infrared with 10-degree angle for optimal detection.
Features & Benefits:
- Touchless Operation: Sensor activation eliminates cross-contamination in public restrooms, enhancing hygiene.
- Water Conservation: The 1.6 GPF design significantly reduces water usage compared to traditional 3.5 GPF models.
- Premium Components: AquaFlush Plus body offers enhanced durability and dezincification resistance in aggressive water conditions.
- Smart Sensing: 3-second delay prevents false flushes with 24-hour auto-flush capability for maximum efficiency.
- Vandal Resistance: Includes a vandal-resistant stop cap and high-impact resistant polycarbonate housing for commercial environments.
What's Included:
- 1 x ZER6000PL-WS1-CPM Sensor Flush Valve
- 1 x AquaVantage® TPE Diaphragm Assembly
- 1 x High Back Pressure Vacuum Breaker
- 1 x Adjustable Tailpiece and Coupling Assembly
- 1 x Spud Coupling Assembly
- 1 x Sweat Solder Kit with Cast Wall Flange
- 4 x "C" Size Batteries
- 1 x Installation Wrench
- 1 x Allen Key for Battery Compartment
Options Available:
- ZER6000PL-CPM: Standard sensor-operated flush valve with chloramine-resistant internal seals for long-term commercial reliability.
- ZER6000PL-HET-CPM: High-efficiency sensor flush valve with 1.28 gpf for maximum water savings and LEED certification requirements.
FAQ
Q: Is this flush valve compatible with existing water closet fixtures?
A: The ZER6000PL-WS1-CPM is designed to be compatible with most standard water closet fixtures. However, it's always recommended to verify your specific toilet model's requirements before installation. The adjustable tailpiece provides flexibility to fit various rough-in dimensions, making it suitable for a wide range of installations. For optimal performance, ensure the existing fixture is compatible with a 1.6 gpf flow rate and consult with a professional plumber when retrofitting.
Q: How does the battery-powered system compare to hardwired options in terms of reliability and maintenance?
A: The battery-powered system of the ZER6000PL-WS1-CPM offers several advantages over hardwired options. It eliminates the need for electrical wiring, making installation simpler and more cost-effective, especially in retrofit situations. The batteries typically last for up to a year under normal use conditions, requiring minimal maintenance. Additionally, the manual override push button ensures functionality even in rare cases of battery depletion, providing a reliable backup option for continuous operation.
Q: How does this flush valve contribute to water conservation?
A: The ZER6000PL-WS1-CPM operates at 1.6 gallons per flush, reducing water usage by over 50% compared to older 3.5 gpf fixtures. In high-traffic settings, this can save thousands of gallons annually per fixture. The sensor activation prevents unnecessary flushes, while the 3-second delay feature eliminates false activations when someone briefly walks by. The AquaVantage technology ensures effective performance despite the lower water volume, making this an excellent choice for facilities aiming to reduce water consumption without sacrificing performance.
Detailed Features & Benefits
Advanced Sensor Technology: The ZER6000PL-WS1-CPM utilizes a sophisticated infrared sensor system with precision-engineered components for reliable operation. The 10-degree angled sensor optimizes detection range while minimizing false activations. A 3-second delay prevents unnecessary flushes when someone briefly walks by, and the 24-hour auto-flush feature ensures fresh bowl conditions even in low-use periods. The high-impact polycarbonate housing with chrome-plated metal cover protects the electronics while maintaining an upscale appearance. A convenient manual override button provides backup operation when needed.
Premium AquaFlush Plus Construction: The AquaFlush Plus designation indicates this model features Zurn's premium valve body constructed of proprietary dezincification-resistant low-lead brass alloy. This enhanced material composition provides superior durability in aggressive water conditions and extends the product lifecycle in demanding commercial environments. Combined with the AquaVantage TPE diaphragm featuring a triple filtered by-pass, this flush valve delivers exceptional resistance to chloramines, debris, and water pressure fluctuations. The system comes complete with a vandal-resistant stop cap and internal siphon-guard protection to prevent tampering and maintain reliable operation.
Water-Efficient Performance: Operating at 1.6 gallons per flush, this water-saving flush valve strikes an ideal balance between conservation and powerful flushing performance. The efficient design helps buildings meet water conservation regulations while providing consistent, reliable operation in high-traffic environments. Despite using less water than traditional models, the advanced engineering ensures complete bowl evacuation and minimal maintenance requirements. The battery-powered operation provides reliable service even during power outages, with long-lasting batteries that typically require replacement only once per year in normal commercial applications. This combination of water efficiency and dependable performance makes it an ideal choice for facilities seeking to reduce water usage without sacrificing flushing power.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
