Zurn ZER6000AV-SM | Exposed Sensor Diaphragm Flush Valve | 3.5 GPF

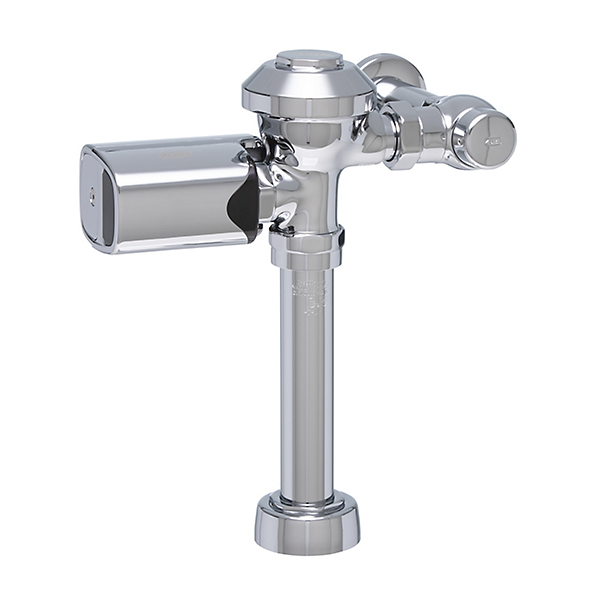

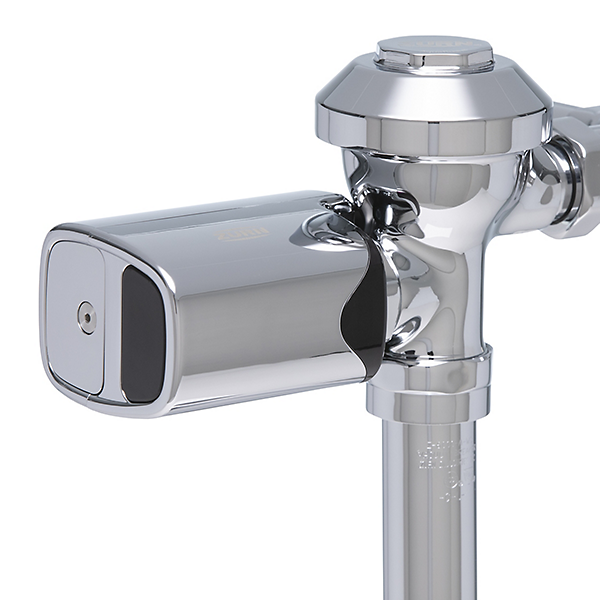

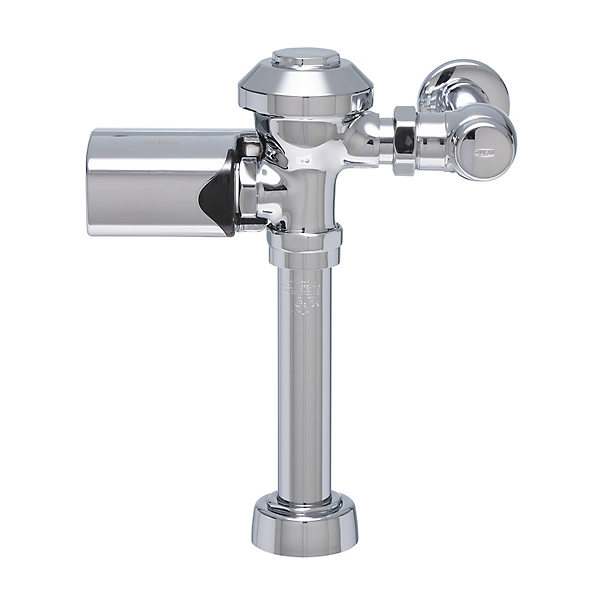

The Zurn ZER6000AV-SM Series is an exposed, battery-powered sensor flush valve designed for water closets, offering quiet, reliable operation.
Key Specifications:
- Flush Volume: 3.5 gpf (Standard)
- WaterSense Compliant: No
- Finish: Chrome-plated
- Dimensions: Rough-in heights: Standard 11-1/2 in, -1: 16 in, -2: 24 in, -3: 27 in
- Activation: Battery-powered automatic sensor with diaphragm-type operation
Related Variants
| SKU | Flush Volume | Water Sense | Activation |
|---|---|---|---|
| ZER6000AV-SM | 3.5 gpf | No | Sensor |
| ZER6000AV-SM-ONE | 1.1 gpf | Yes | Sensor |
| ZER6000AV-SM-HET | 1.28 gpf | Yes | Sensor |
| ZER6000AV-SM-WS1 | 1.6 gpf | No | Sensor |
Features & Benefits:
- Quiet Diaphragm Operation: Exposed diaphragm-type design provides exceptionally quiet flushing performance in high-traffic restrooms.
- Chloramine Resistance: Dual-seal diaphragm and internal seals resist chloramine degradation for extended service life.
- Clog-Resistant Design: Triple-filtered by-pass system minimizes clogs and reduces maintenance requirements.
- True Manual Override: Mechanical push button allows manual activation independent of sensor operation for reliability.
Compliance and Certifications:
- ASSE 1037/ASME A112.1037/CSA B125.37
- IPC Compliant
- WaterSense Compatible (when paired with matching fixture)
- ADA Compliant
FAQ
Q: What is the flush volume of the ZER6000AV-SM Series?
A: The standard model flushes at 3.5 gpf. Additional flow options include 1.1 gpf, 1.28 gpf, and 1.6 gpf variants for water conservation.
Q: Does the ZER6000AV-SM have a manual override option?
A: Yes, it features a true mechanical manual override push button that allows activation independent of the sensor system.
Q: What type of power does this flush valve use?
A: The ZER6000AV-SM operates on a 6VDC motor actuator with battery power for automatic sensor operation.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
