Zurn ZER6000AV-HET-CPM | ZER Series Sensor Flush Valve | Battery-Powered, 1.28 gpf
Zurn ZER6000AV-HET-CPM | ZER Series Sensor Flush Valve | Battery-Powered, 1.28 gpf is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn ZER6000AV-HET-CPM | ZER Series Sensor Flush Valve | Battery-Po...

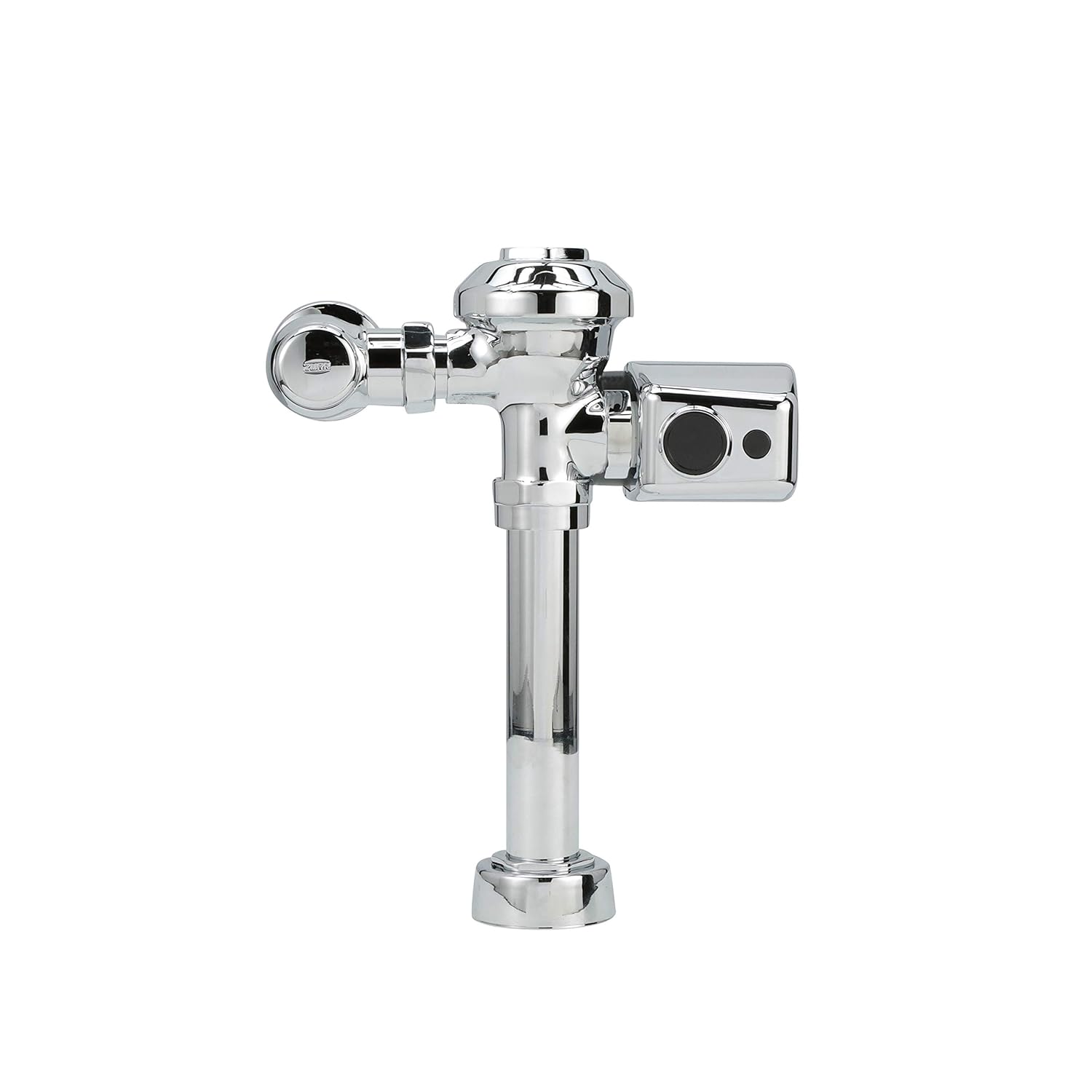

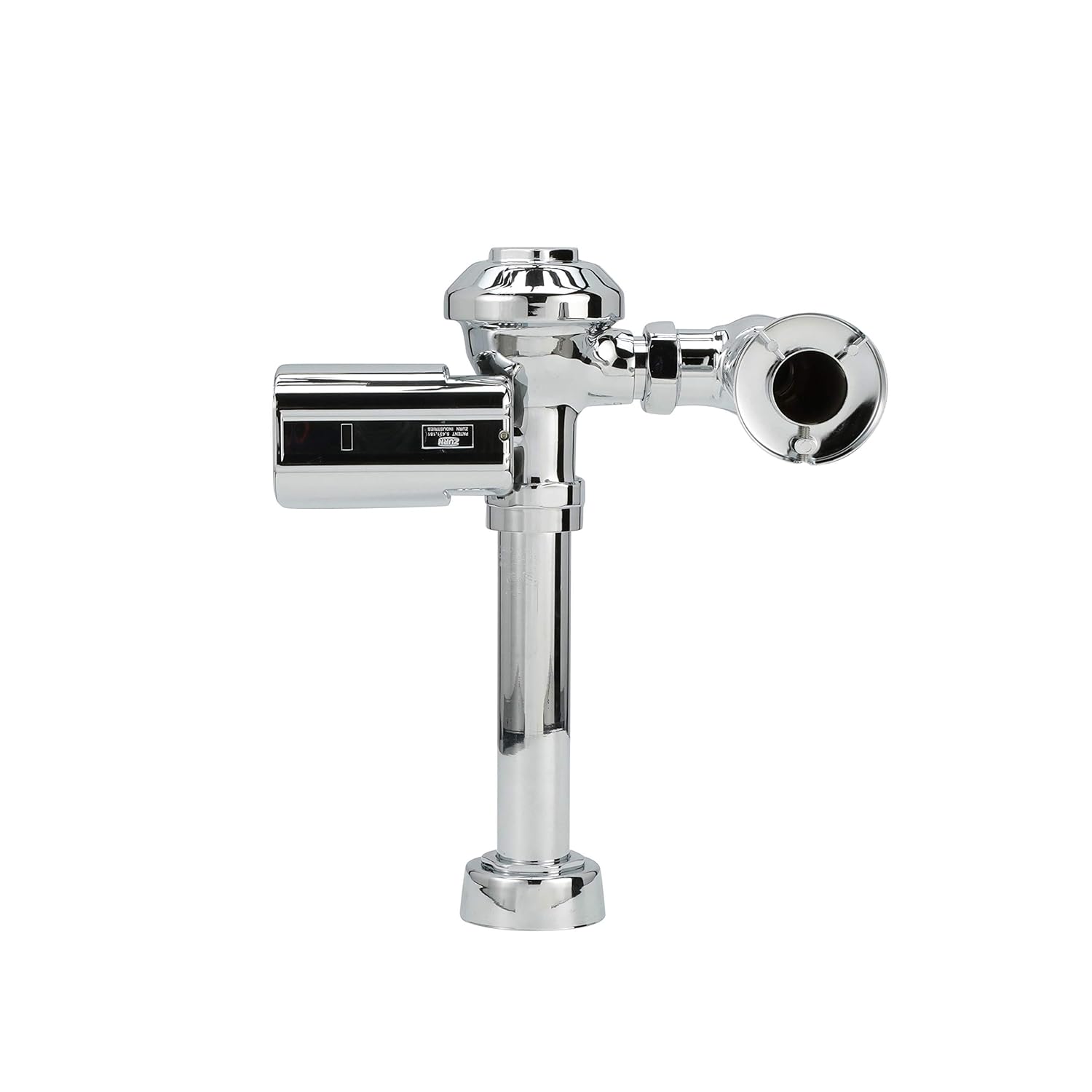

The Zurn ZER6000AV-HET-CPM AquaSense® Exposed Sensor Flush Valve delivers hands-free operation with high-efficiency water conservation for commercial restrooms. This battery-powered automatic flush valve combines touchless technology with Zurn's proven AquaVantage® performance, creating a hygienic solution ideal for high-traffic facilities.
Key Specifications:
- Flow Rate: 1.28 gallons per flush (High-Efficiency Toilet).
- Power: 6VDC motor actuator with battery operation (4 "C" batteries included).
- Sensor: Automatic infrared with 10-degree angle for optimal detection.
- Construction: Chrome-plated valve with vandal-resistant components.
- Operation: Touchless activation with manual override button.
Features & Benefits:
- Touchless Hygiene: Sensor operation eliminates cross-contamination in public restrooms.
- Water Conservation: HET 1.28 gpf design meets WaterSense standards, reducing water usage by 20% compared to standard 1.6 gpf models.
- Smart Technology: User-in-view L.E.D. indicator, low battery light, and 3-second delay to prevent false flushing.
- Energy Efficient: Ultra-efficient electronics maximize battery life in commercial settings.
- Durable Performance: AquaVantage® TPE diaphragm with triple filtered by-pass prevents clogs and extends service life.
What's Included:
- 1 x ZER6000AV-HET-CPM Sensor Flush Valve
- 1 x AquaVantage® TPE Diaphragm Assembly
- 1 x High Pressure Vacuum Breaker
- 1 x Adjustable Tailpiece and Coupling Assembly
- 1 x Spud Coupling Assembly
- 1 x Sweat Solder Kit with Cast Wall Flange
- 4 x "C" Size Batteries
- 1 x Installation Wrench
- 1 x Allen Key for Battery Compartment
FAQ
Q: How does the sensor technology work?
A: The ZER6000AV-HET-CPM uses an infrared sensor with a 10-degree angle for optimal user detection. It includes a 3-second delay to prevent false flushes when someone walks by, and features a 24-hour auto-flush option. The user-in-view LED indicator confirms detection, while a courtesy flush button provides manual operation when needed.
Q: What makes this a water-efficient option?
A: This High-Efficiency Toilet (HET) model operates at just 1.28 gallons per flush, exceeding federal water conservation requirements and earning WaterSense certification. This represents a 20% water savings compared to standard 1.6 gpf models and over 60% compared to older 3.5 gpf fixtures, while still providing effective flushing performance.
Detailed Features & Benefits
Advanced Sensor Technology: The ZER6000AV-HET-CPM features sophisticated battery-powered electronics that make it ideal for commercial applications. The infrared sensor is precisely angled to detect users while minimizing false activations. A 3-second delay prevents unnecessary flushes when someone briefly passes by. The system includes visual indicators with a yellow LED that confirms when a user is detected and a red LED that signals when batteries need replacement.
AquaVantage® Performance: At the heart of this flush valve is Zurn's premium AquaVantage® technology. The TPE (Thermoplastic Elastomer) diaphragm with triple filtered by-pass delivers superior resistance to chloramine deterioration and prevents clogging. This ensures consistent, reliable operation even in harsh water conditions or high-demand environments. The valve maintains quiet operation and effective flushing performance despite using only 1.28 gallons of water per cycle.
NOTICE: Do not use with water that is microbiologically unsafe or of unknown quality.
