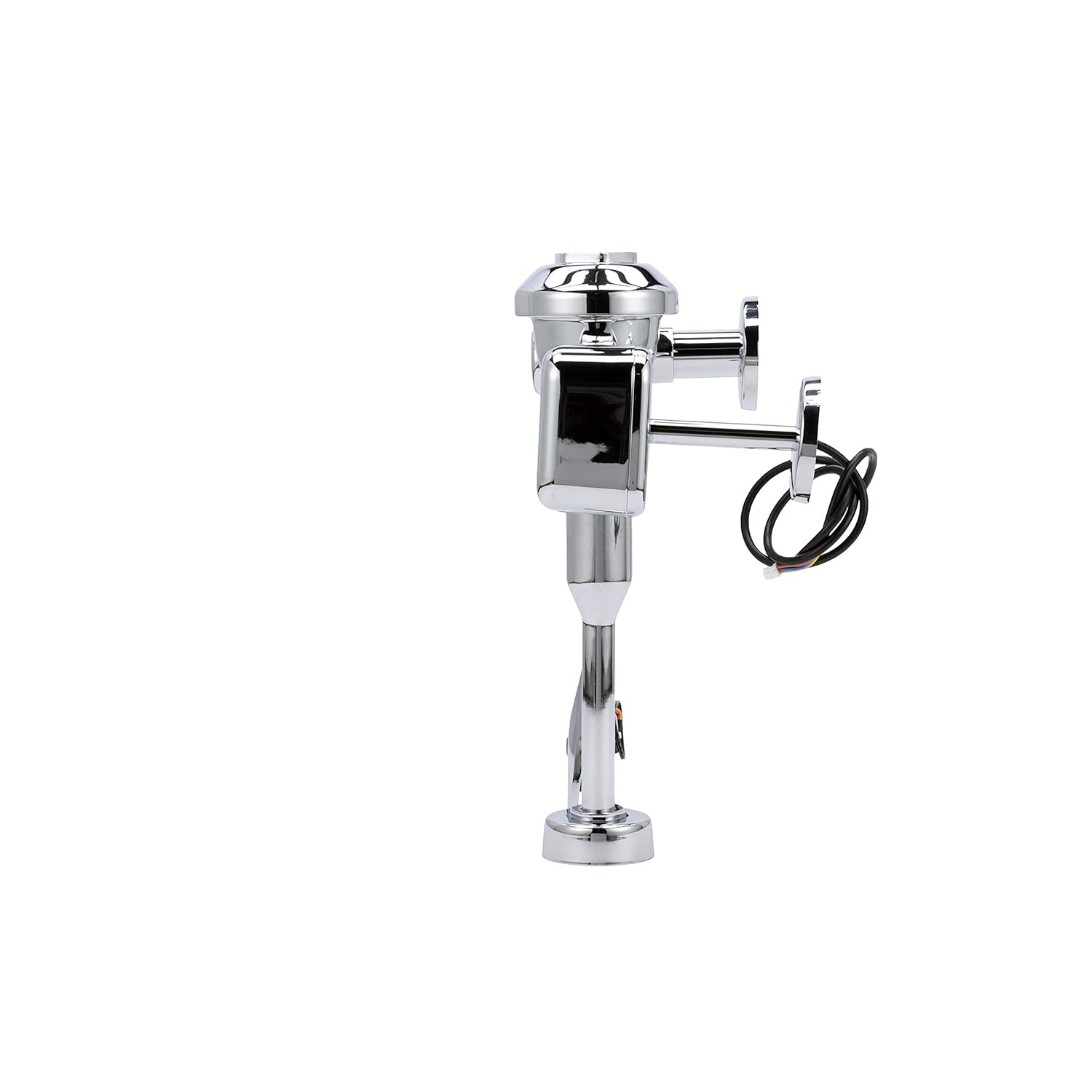

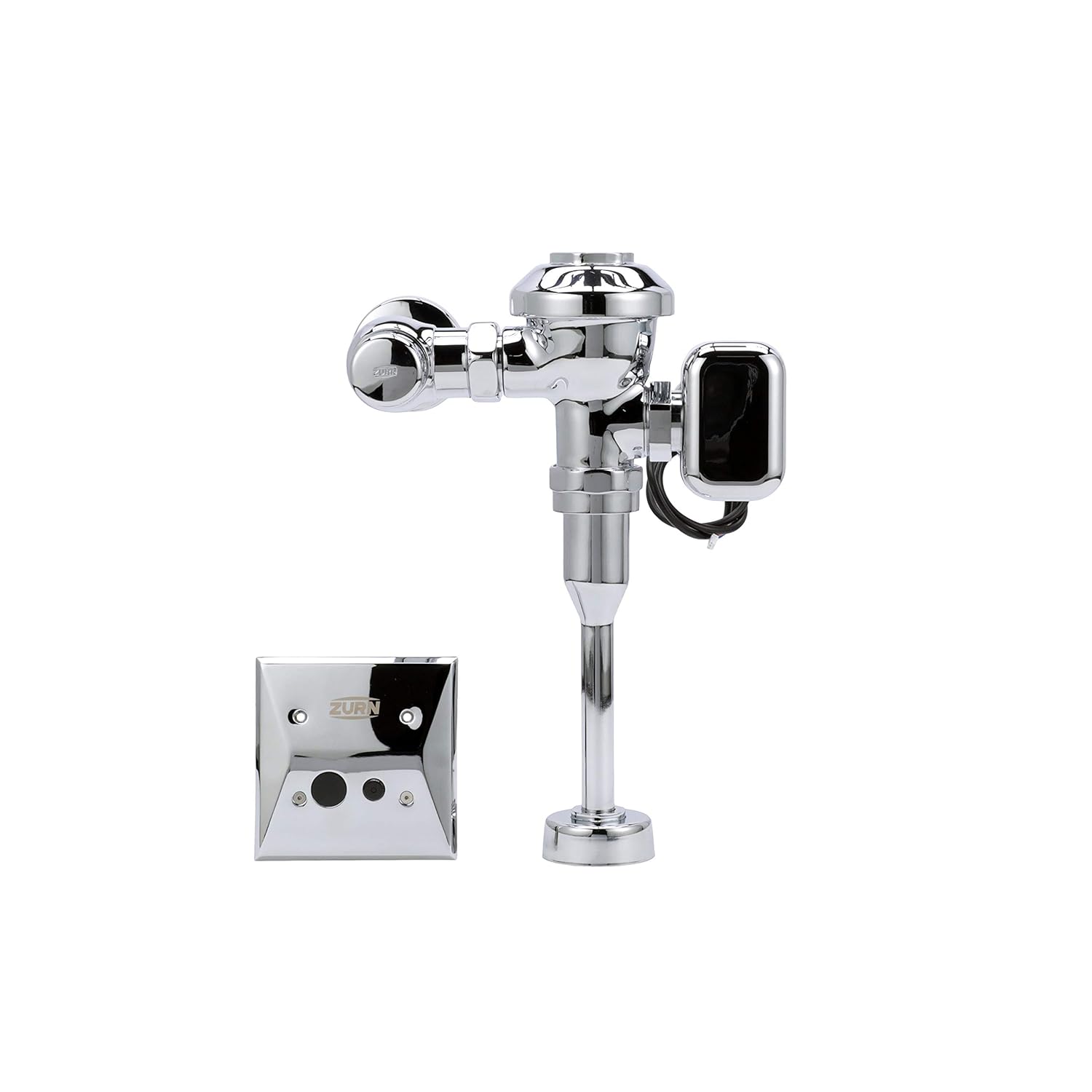

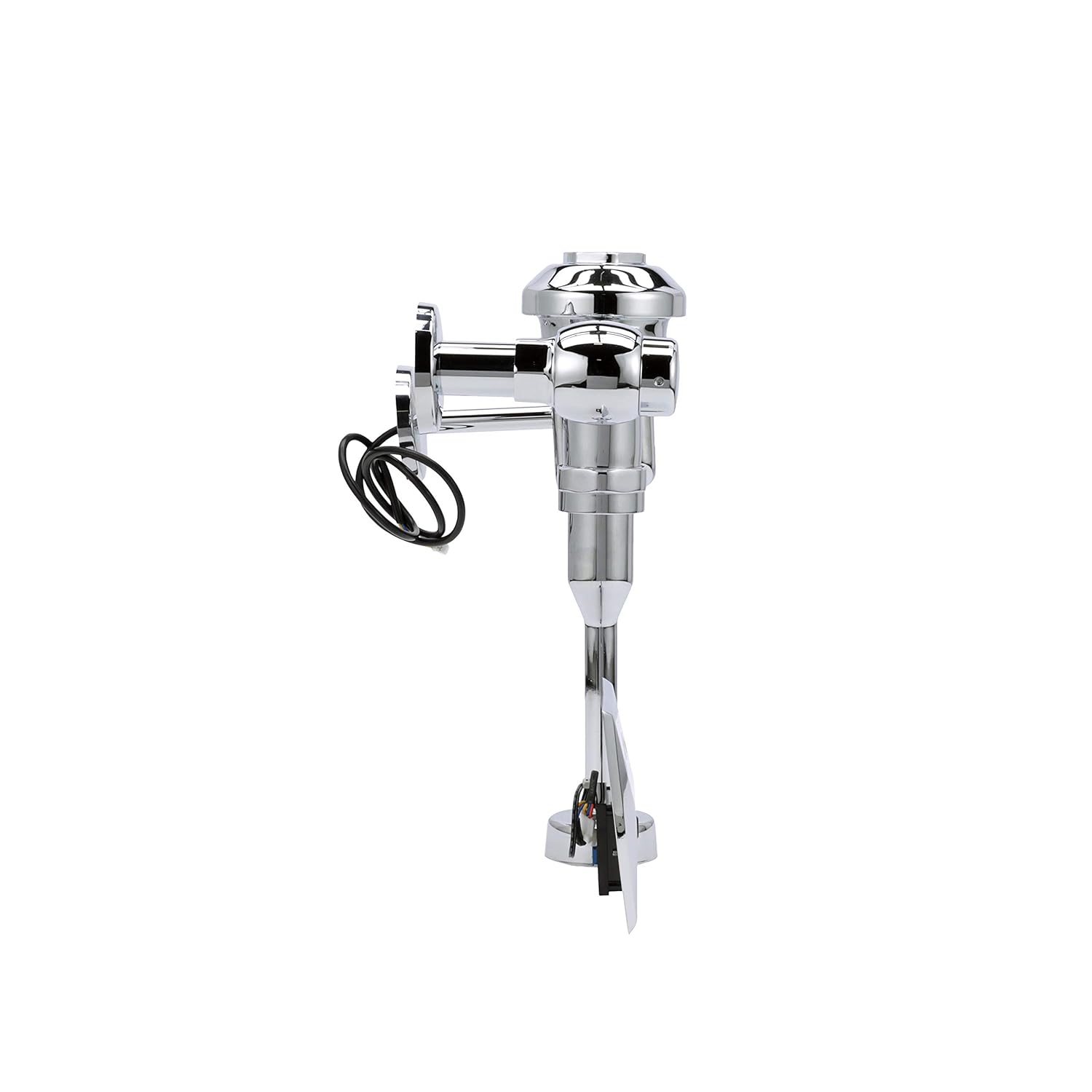

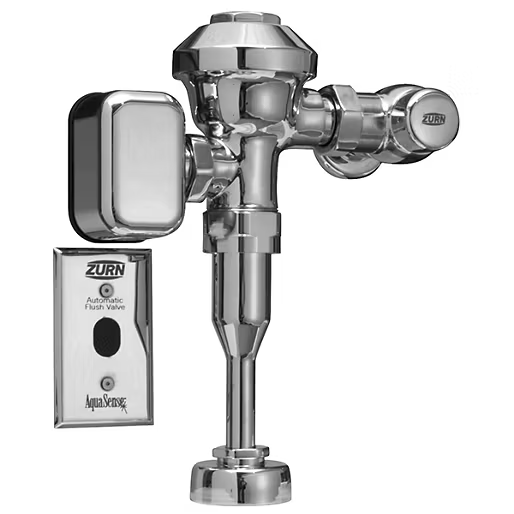

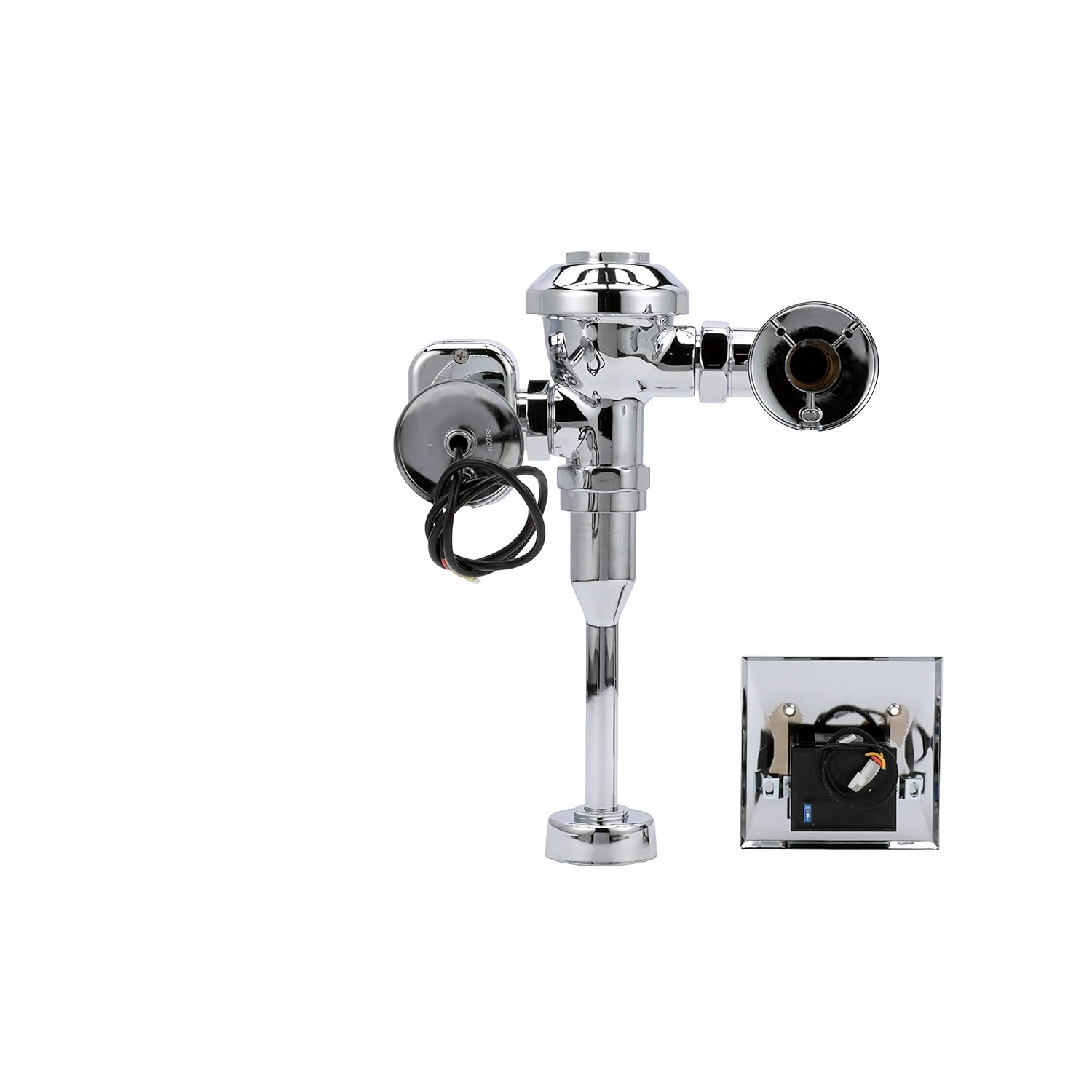

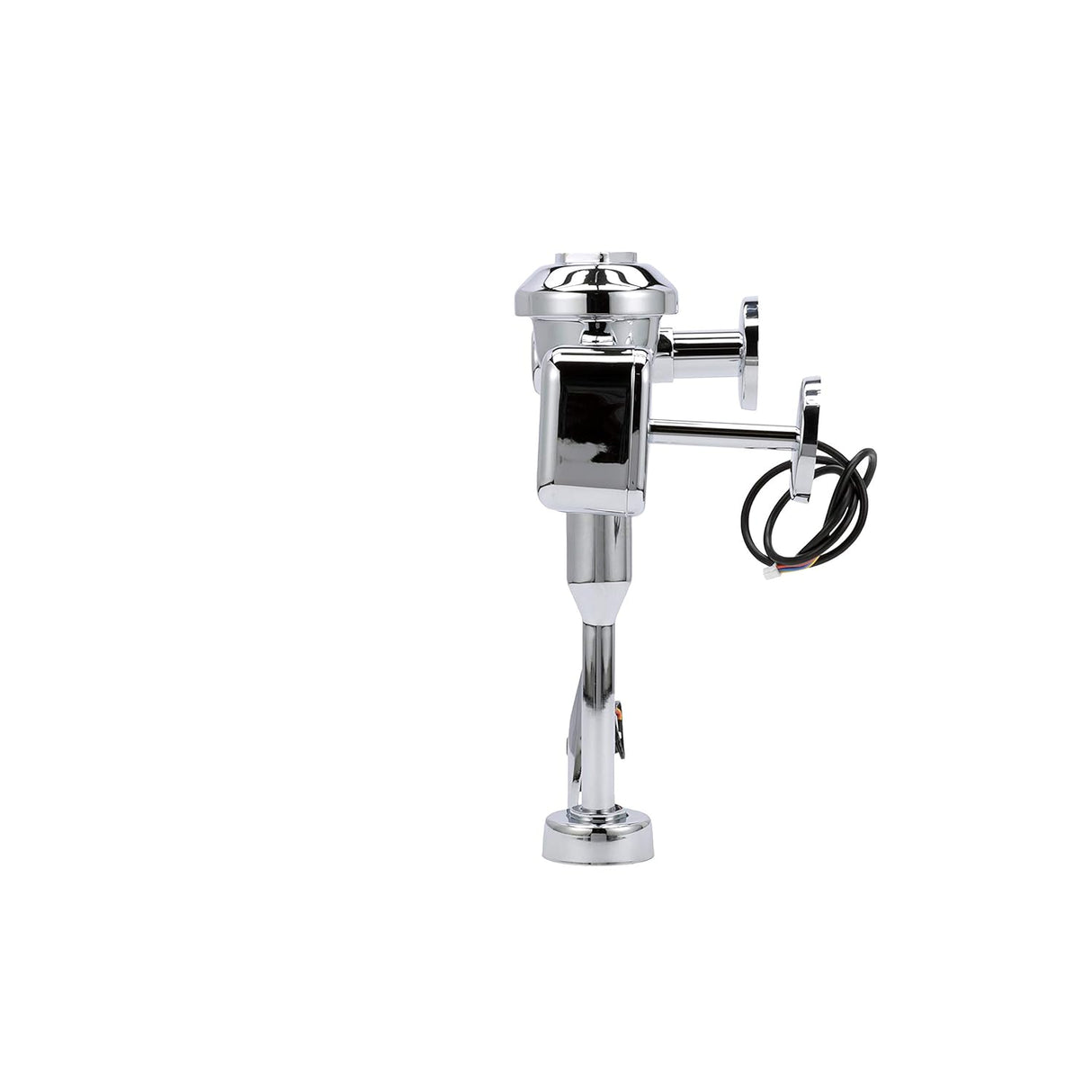

Zurn ZEMS6003AV-EWS | AquaVantage AV Series Sensor Flush Valve | Hardwired Exposed Urinal, 0.5 gpf
Zurn ZEMS6003AV-EWS | AquaVantage AV Series Sensor Flush Valve | Hardwired Exposed Urinal, 0.5 gpf is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn ZEMS6003AV-EWS | AquaVantage AV Series Sensor Flush Valve | Ha...
The Zurn ZEMS6003AV-EWS is an advanced, exposed sensor-operated flush valve designed for urinals, combining water efficiency with cutting-edge technology. This AquaVantage® AV ZEMS model features a hardwired sensor and diaphragm flush valve system, offering reliable performance and hygiene in commercial restroom settings.
Key Specifications:
- Flow Rate: 0.5 gallons per flush (GPF), promoting significant water conservation
- Power: Hardwired low voltage system with side mount motor operator for consistent performance
- Body: Chrome-plated brass with polished exterior for durability and easy maintenance
- Sensor: Fully configurable automatic sensor with 10-degree angled design for optimal detection
Features & Benefits:
- Water Conservation: WaterSense compliant design significantly reduces water usage and utility costs
- Hygienic Operation: Touchless sensor activation minimizes the spread of germs in public restrooms
- AquaVantage® Technology: Durable diaphragm with chloramine-resistant internal seals for long-lasting performance
- Smart Sensing: Configurable sensor range prevents false activations with 24-hour auto-flush capability
- Manual Override: Includes a capacitive sensing push button for manual flushing when needed
What's Included:
- 1 x ZEMS6003AV-EWS Flush Valve
- 1 x AquaVantage® Diaphragm Assembly
- 1 x Hardwired Sensor Module with Chrome Cover
- 1 x Motor Actuator
- 1 x High Back Pressure Vacuum Breaker
- 1 x Spud Coupling Assembly (3/4")
- 1 x Adjustable Tailpiece
- 1 x Control Stop with Vandal-Resistant Cap
Options Available:
- ZEMS6003AV-EWS.0004: Enhanced model featuring the same reliable performance with additional water-saving features and updated sensor technology for maximum efficiency.
FAQ
Q: Is this flush valve compatible with existing urinal fixtures?
A: Yes, the ZEMS6003AV-EWS features a 3/4" spud size compatible with most standard urinal fixtures. We recommend verifying your specific model's requirements before installation for optimal performance.
Q: How does the sensor range adjustment work?
A: The configurable sensor allows facility managers to fine-tune the detection range based on specific restroom layouts and traffic patterns. Simply follow the calibration instructions to adjust sensor sensitivity, preventing false activations while ensuring reliable operation.
Q: What are the advantages of a hardwired system?
A: The hardwired design eliminates battery replacements, reducing maintenance costs and downtime. It provides consistent performance without voltage fluctuations, making it ideal for high-traffic facilities where reliable operation is essential.
Detailed Features & Benefits
Advanced Sensor Technology: The sophisticated hardwired sensor system offers reliable performance without battery replacements. With adjustable range settings and a 10-degree angled sensor, it ensures accurate user detection while preventing false activations, balancing efficiency with consistent performance.
Water-Efficient Design: At just 0.5 gallons per flush, this valve significantly reduces water consumption in high-traffic areas. WaterSense compliance may qualify facilities for conservation rebates and contribute to green building certifications, reducing environmental impact and utility costs.
Commercial-Grade Durability: Built for demanding environments with proprietary dezincification resistant low lead brass alloy construction, the chrome-plated exterior resists corrosion and withstands frequent use. The vandal-resistant control stop cap and ADA compliance make this an ideal solution for high-traffic commercial restrooms.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
