Zurn ZEMS6000PL-WS1-IS | Exposed Sensor Diaphragm Flush Valve | 1.6 GPF
Zurn ZEMS6000PL-WS1-IS | Exposed Sensor Diaphragm Flush Valve | 1.6 GPF is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
Contact us at support@bottlefillingstations.com with any questions.
Zurn ZEMS6000PL-WS1-IS | Exposed Sensor Diaphragm Flush Valve | 1.6...

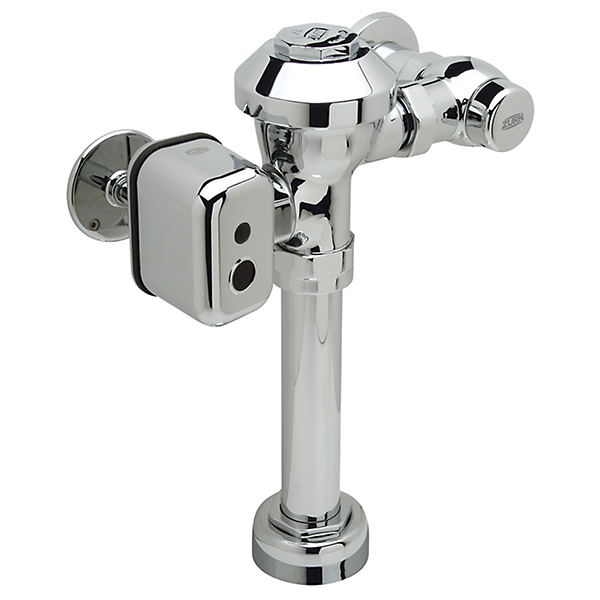

The Zurn ZEMS6000PL-WS1-IS is an exposed sensor-activated diaphragm flush valve designed for water closets with reliable performance and water efficiency.
Key Specifications:
- Flush Volume: 1.6 GPF
- WaterSense Compliant: No
- Finish: Chrome-plated polished exterior
- Dimensions: 11 1/2" height, 9 7/8" projection
- Activation: Infrared sensor with capacitive-sensing push button override, diaphragm-type
Related Variants
| SKU | Flush Volume | Water Sense | Activation |
|---|---|---|---|
| ZEMS6000PL-WS1-IS | 1.6 GPF | No | Infrared Sensor |
| ZEMS6000PL-ONE-IS | 1.1 GPF | Yes | Infrared Sensor |
| ZEMS6000PL-HET-IS | 1.28 GPF | Yes | Infrared Sensor |
| ZEMS6000PL-Standard-IS | 3.5 GPF | No | Infrared Sensor |
Features & Benefits:
- Aquaflush Plus Upgrade: Features vandal-resistant stop cover and dezincification-resistant low-lead brass body for enhanced durability and security.
- Infrared Sensor Technology: Motor actuator with integral convergence-type proximity sensor and 10-degree angled sensor ensures reliable touchless activation.
- Chloramine-Resistant Components: Dual-seal diaphragm with clog-resistant bypass and chloramine-resistant internal seals provide long-lasting performance.
- Manual Override Capability: High-impact polycarbonate housing with capacitive-sensing push button override allows manual operation when needed.
Compliance and Certifications:
- ADA Compliant
- Certified by IAPMO R&T
FAQ
Q: What power supply options are compatible with the ZEMS6000PL-WS1-IS?
A: The valve works with the P6900-ACA-BA 7.6VDC plug-in power supply (up to 4 valves) or P6000-HW6 7.6VDC hardwired power converter (up to 8 valves), both sold separately.
Q: Does this valve include a vacuum breaker?
A: Yes, it includes a high back-pressure vacuum breaker with one-piece hex coupling nut for backflow prevention.
Q: What upgrade options are available for this flush valve?
A: The ZEMS6000PL-WS1-IS comes with the Aquaflush Plus upgrade standard. Additional triple filter bypass (-TFB) and various suffix options including floor mount, manual override button, and pipe supports are available.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
