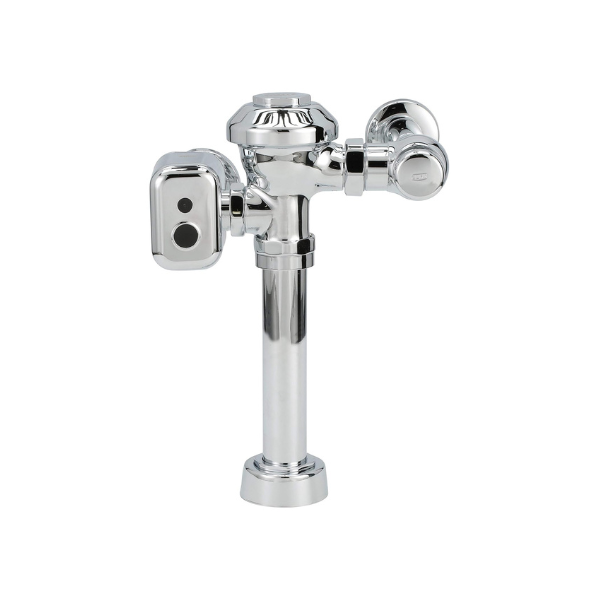

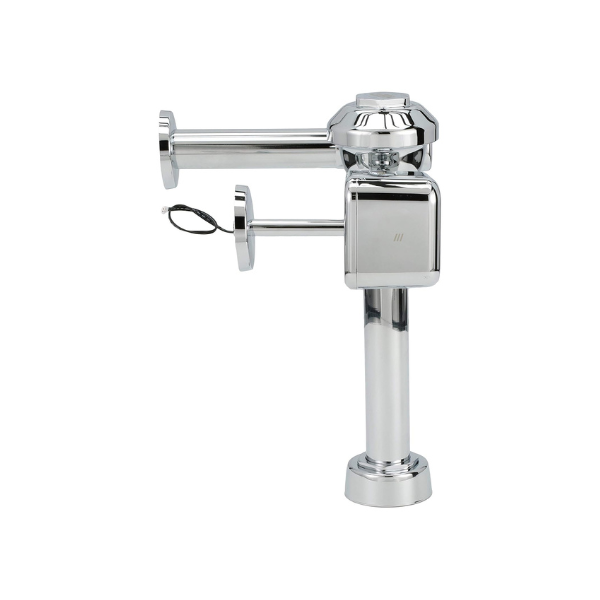

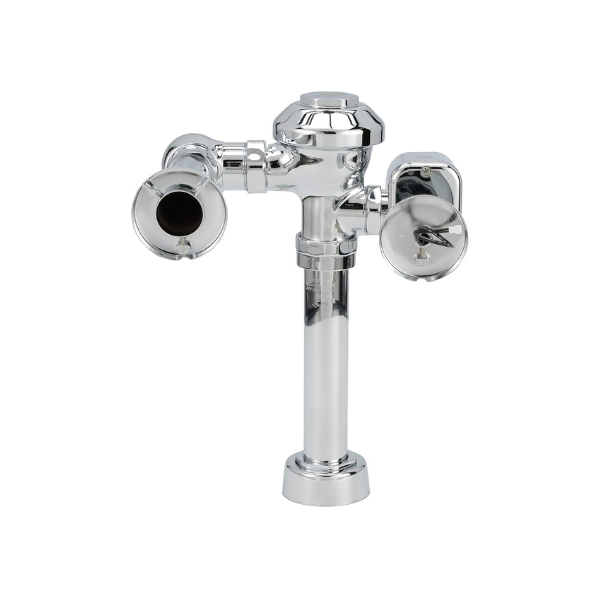

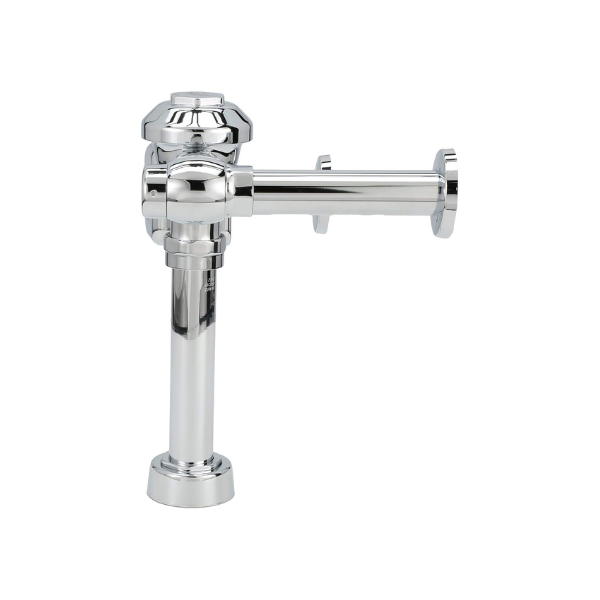

Zurn ZEMS6000PL-HET-IS | ZEMS Series Sensor Flush Valve | Hardwired Automatic, 1.28 gpf
Zurn ZEMS6000PL-HET-IS | ZEMS Series Sensor Flush Valve | Hardwired Automatic, 1.28 gpf is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn ZEMS6000PL-HET-IS | ZEMS Series Sensor Flush Valve | Hardwired...
The ZEMS6000PL-HET-IS delivers reliable sensor-operated performance with exceptional water conservation for water closets in commercial restrooms. Its AquaFlush Plus technology combines with hardwired operation and vandal-resistant features for dependable hands-free flushing that maximizes hygiene and minimizes maintenance.
Key Specifications:
- Flow Rate: High-Efficiency 1.28 gpf for optimal water conservation.
- Power: Hardwired 6VDC motorized actuator for reliable operation.
- Body: Chrome-plated brass with polished exterior.
- Sensor: Infrared with 10° angle and manual override button.
Features & Benefits:
- Water Conservation: The 1.28 gpf HET design significantly reduces water consumption compared to standard models, leading to substantial cost savings and environmental benefits.
- Enhanced Hygiene: Touchless operation minimizes cross-contamination, promoting better hygiene standards in public restrooms.
- Vandal Protection: Control stop has internal siphon-guard protection and vandal resistant features for high-traffic installations.
- Versatile Installation: Includes adjustable tailpiece, spud coupling, and flange for top spud connection to fit a variety of fixture configurations.
- Durable Design: Constructed from proprietary dezincification-resistant low lead brass alloy for extended service life in aggressive water conditions.
What's Included:
- 1 x ZEMS6000PL-HET-IS Sensor Operated Hardwired Flush Valve
- 1 x AquaFlush Diaphragm Assembly
- 1 x High Back Pressure Vacuum Breaker
- 1 x Adjustable Tailpiece
- 1 x Spud Coupling and Flange for Top Spud Connection
- 1 x Sweat Solder Kit with Cast Wall Flange
- 1 x Vandal Resistant Stop Cap
- 1 x Installation Hardware
FAQ
Q: Is the ZEMS6000PL-HET-IS compatible with existing plumbing systems?
A: Yes, the ZEMS6000PL-HET-IS is designed for versatile installation, making it suitable for both new construction and retrofit applications. It features a standard top spud connection and comes with an adjustable tailpiece, allowing it to adapt to various plumbing configurations. The exposed design simplifies installation and maintenance. However, when retrofitting, it's important to ensure that the existing fixture is compatible with the 1.28 gpf flow rate and that there's an appropriate power source for the hardwired operation. For optimal performance and to ensure compliance with local codes, we recommend consulting with a professional plumber, especially when retrofitting this valve into an existing system.
Q: What are the power requirements for the ZEMS6000PL-HET-IS?
A: The ZEMS6000PL-HET-IS is a hardwired model that requires a consistent power supply. It's designed to work with Zurn's power converters, specifically the P6000-HW6 7.6VDC Hardwired Power Converter, which can power up to 8 valves, or the P6900-ACA-BA 7.6VDC Plug-In Power Supply, which can power up to 4 valves. These power supplies are sold separately and should be ordered along with the flush valve to ensure proper installation and operation. It's important to have a qualified electrician handle the power connection to comply with local electrical codes and ensure safe operation.
Detailed Features & Benefits
Advanced Sensor Technology: The 10-degree angled sensor provides optimal user detection while minimizing false activations. The fully customizable range settings can be calibrated to your specific installation requirements, and the manual override button ensures operation in all scenarios. Its high-impact housing protects the electronics while maintaining an attractive appearance in modern commercial restrooms.
Water-Efficient Performance: At 1.28 gpf, this model reduces water usage by 20% compared to standard flush valves. The system is WaterSense labeled when used with compatible fixtures, helping facilities meet strict water conservation standards while maintaining effective performance. The chloramine-resistant components ensure reliable operation even with reduced water volume.
AquaFlush Plus Reliability: The premium PL designation features dezincification-resistant brass alloy construction for superior durability in demanding environments. Hardwired operation eliminates battery maintenance concerns, while chloramine-resistant internal components prevent premature deterioration. This robust design ensures consistent, long-term performance in high-traffic facilities like schools, stadiums, and transportation hubs.
NOTICE: All products come with a limited three-year warranty on materials and factory workmanship when properly installed and maintained according to instructions. Decorative finishes warranted for one year.
