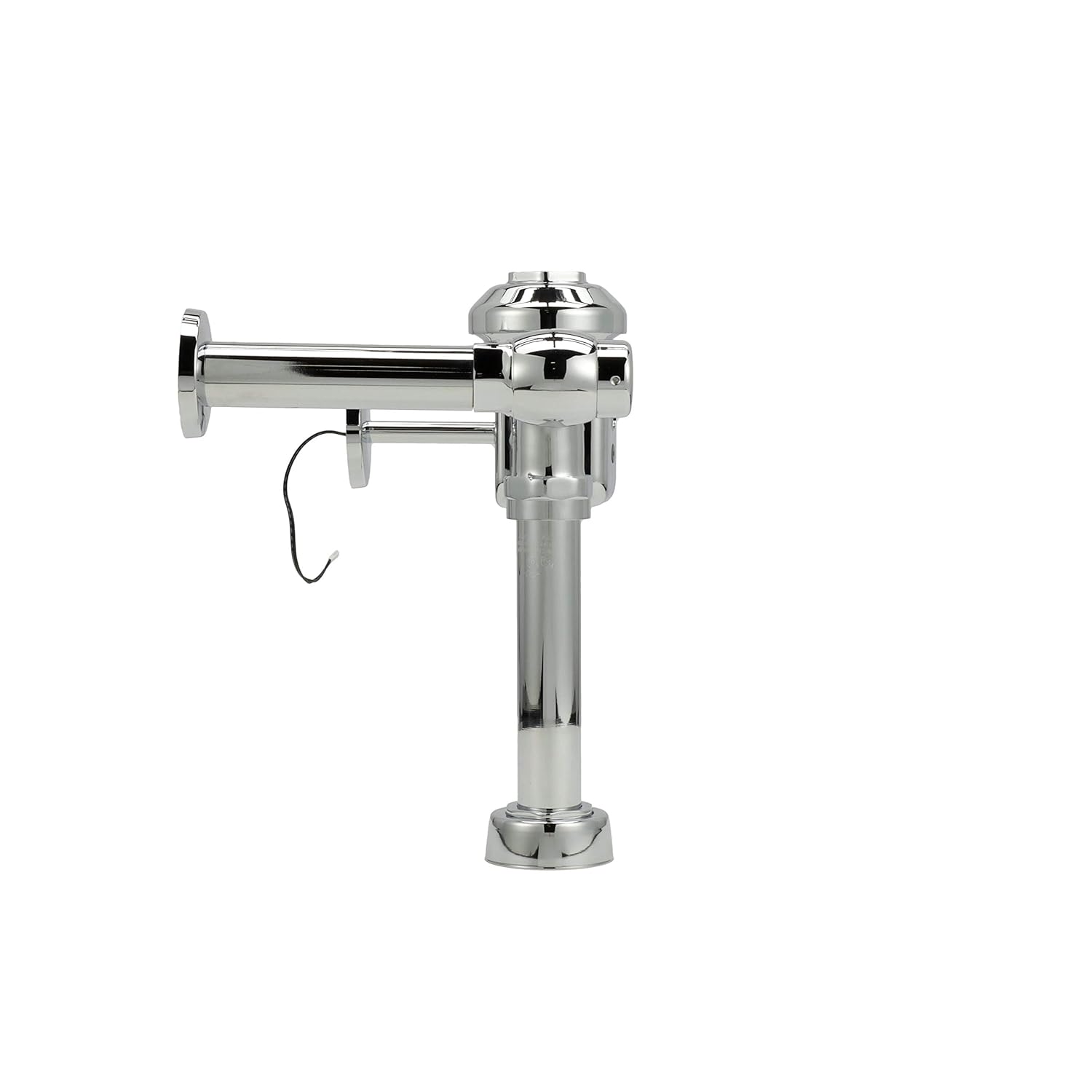

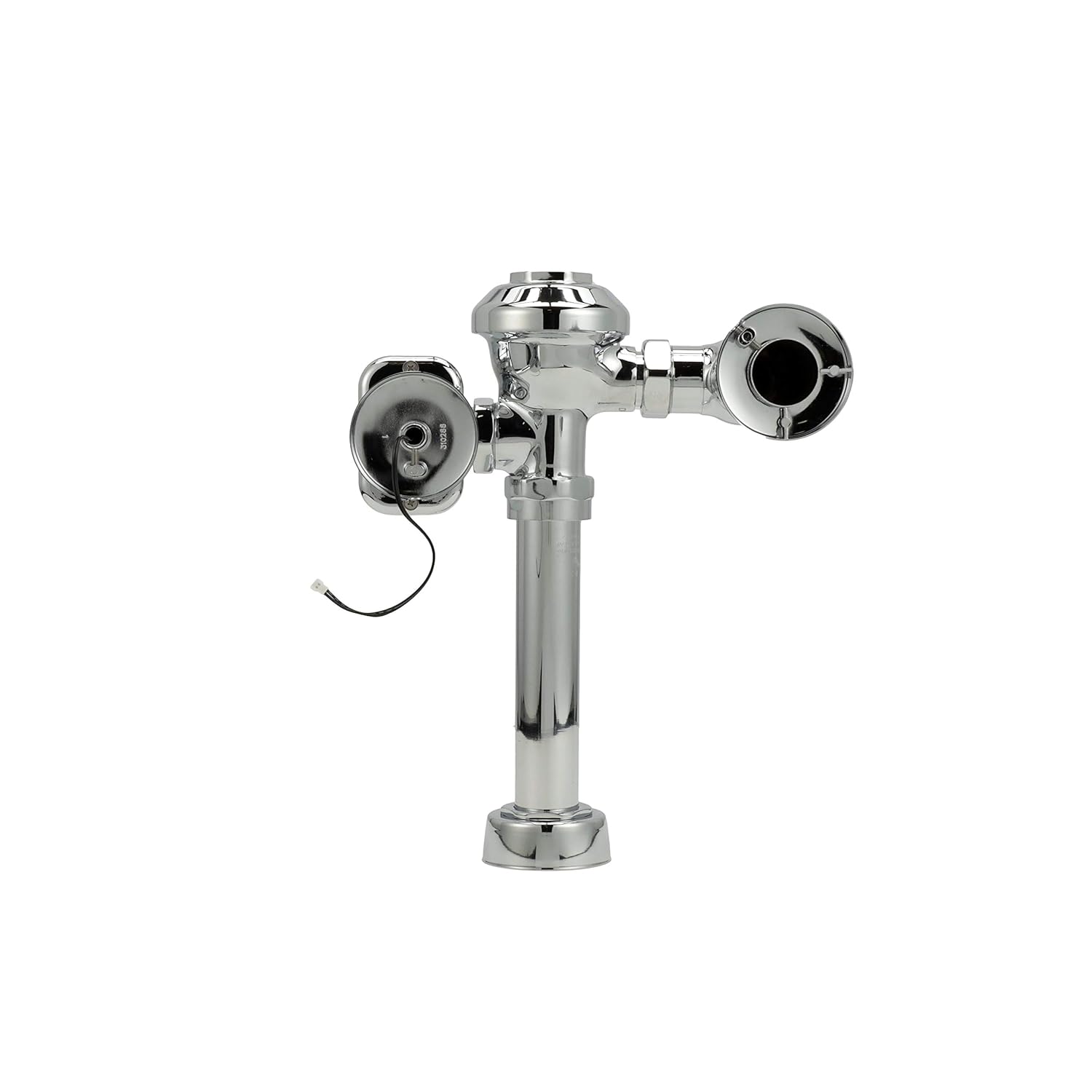

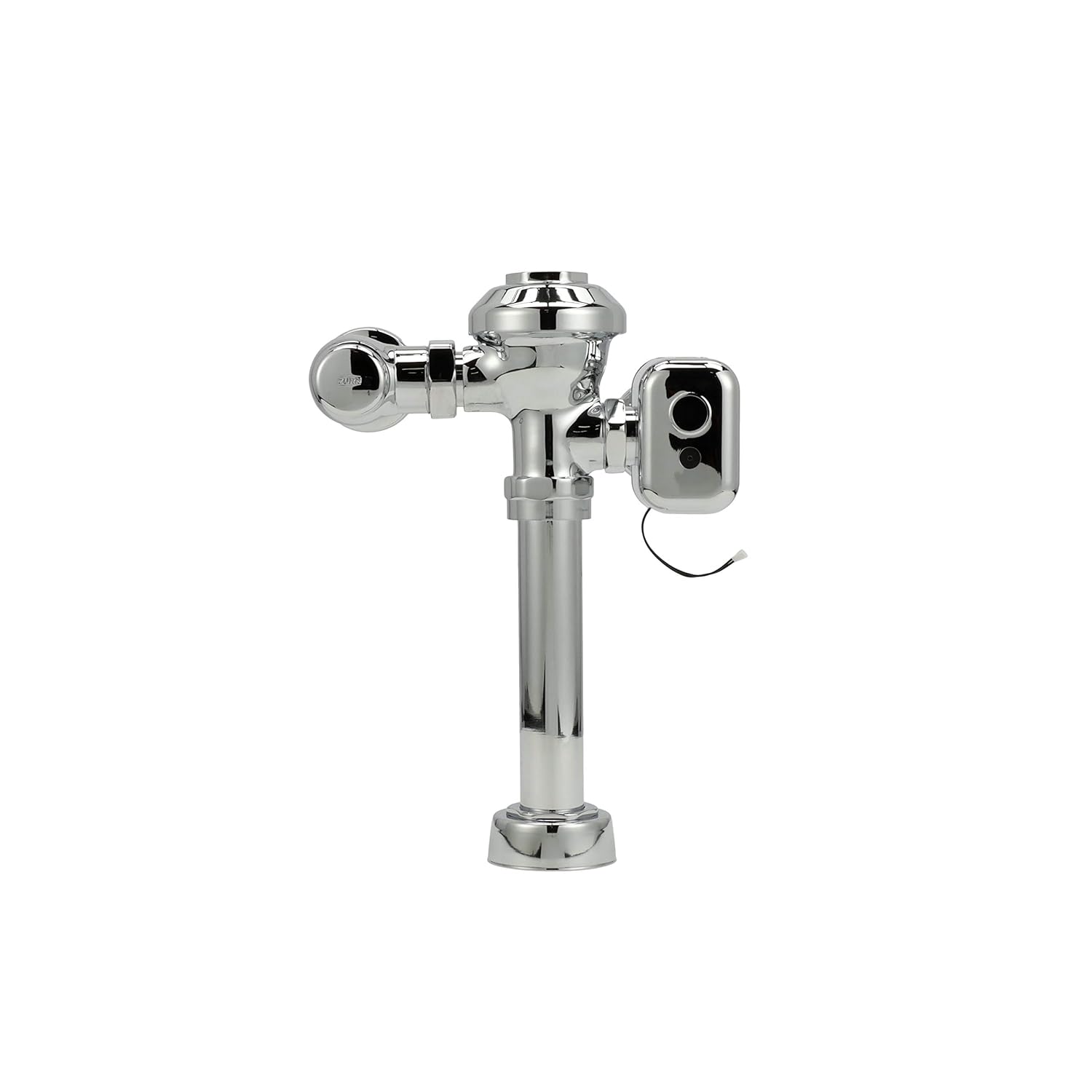

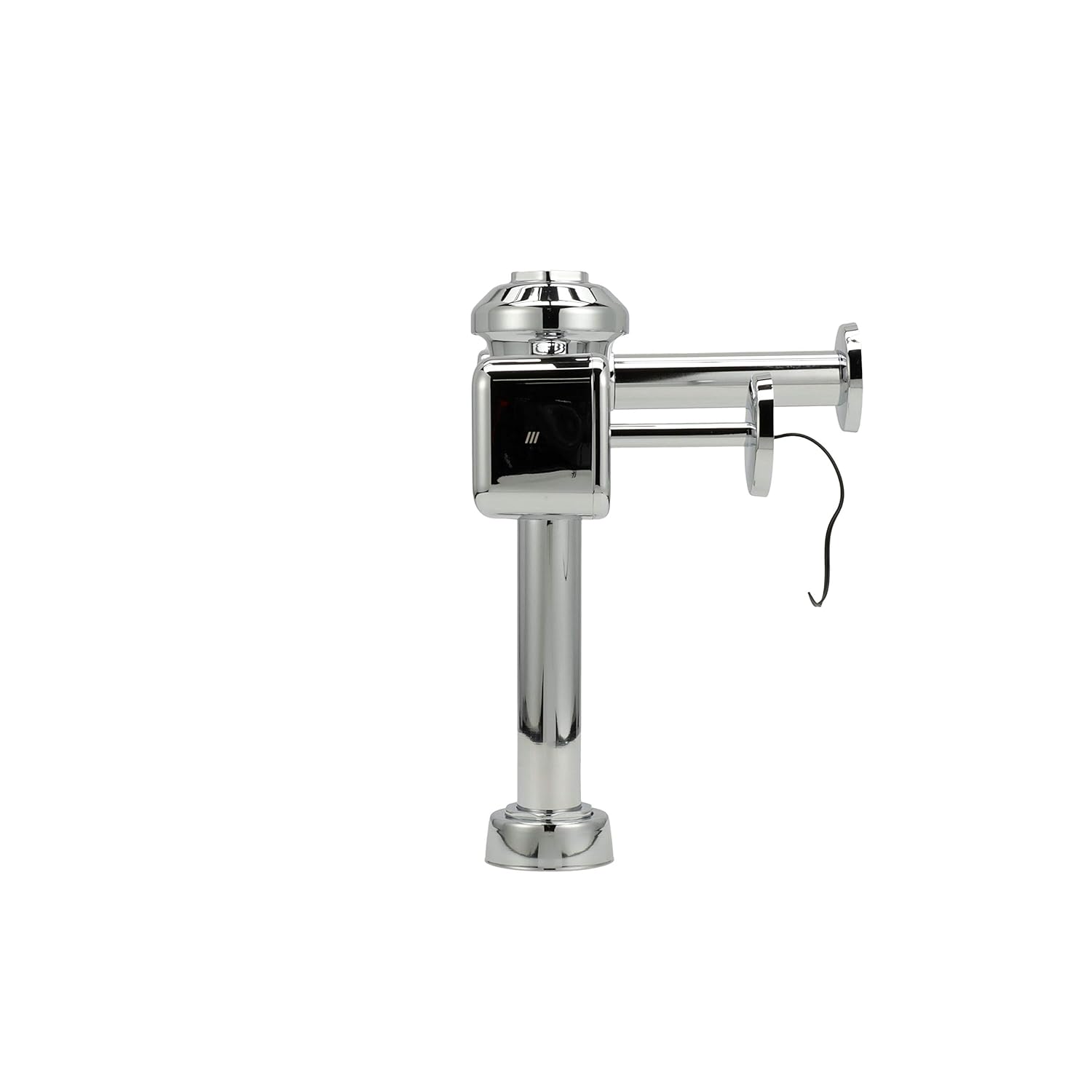

Zurn ZEMS6000AV-WS1-IS | AquaVantage Exposed Hardwired Sensor Flush Valve, Top Spud, In-Wall Sensor, Chrome
Zurn ZEMS6000AV-WS1-IS | AquaVantage Exposed Hardwired Sensor Flush Valve, Top Spud, In-Wall Sensor, Chrome is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn ZEMS6000AV-WS1-IS | AquaVantage Exposed Hardwired Sensor Flush...
The Zurn ZEMS6000AV-WS1-IS combines touchless operation with water-saving efficiency for commercial restrooms. This hardwired sensor flush valve features Zurn's advanced AquaVantage® technology and infrared sensing capabilities, making it the ideal solution for facilities seeking reliable performance and improved hygiene with reduced maintenance.
Key Specifications:
- Flow Rate: 1.6 gallons per flush (WaterSense certified).
- Power Supply: Hardwired 7.6 VDC power converter for continuous operation.
- Construction: Chrome-plated brass with proprietary dezincification-resistant low lead brass alloy.
- Activation: Infrared convergence-type proximity sensor with manual override button.
- Compliance: ADA compliant and meets ASSE 1037/ASME A112.1037/CSA B125.37 standards.
Features & Benefits:
- Touchless Operation: The infrared sensor technology eliminates cross-contamination in public restrooms, promoting better hygiene and user experience.
- Water Conservation: The 1.6 gpf design reduces water consumption by up to 54% compared to standard 3.5 gpf flush valves while maintaining effective flushing performance.
- Continuous Power: The hardwired design eliminates battery replacement for reliable, uninterrupted operation in high-traffic environments.
- Durable Construction: The chrome-plated brass body with proprietary dezincification-resistant low lead brass alloy ensures long-term reliability in demanding commercial settings.
- Triple Filtered Bypass: Equipped with Zurn's AquaVantage® TPE, chloramine-resistant, dual seal diaphragm with a clog-resistant, triple filtered bypass for extended service life.
What's Included:
- 1 x ZEMS6000AV-WS1-IS Sensor Flush Valve
- 1 x Control Stop with Internal Siphon-Guard Protection
- 1 x High Back Pressure Vacuum Breaker
- 1 x Adjustable Tailpiece
- 1 x Spud Coupling and Flange for Top Spud Connection
- 1 x Sweat Solder Kit with Cast Wall Flange
- 1 x Vandal Resistant Stop Cap
- 1 x Power Connection Cable
- 1 x Installation Hardware
FAQ
Q: What are the advantages of a hardwired sensor flush valve for commercial applications?
A: The ZEMS6000AV-WS1-IS hardwired system eliminates battery replacement concerns completely, providing continuous, uninterrupted operation even in the highest-traffic environments. This translates to reduced maintenance costs, improved reliability, and consistent performance without the periodic downtime associated with battery replacement. For busy commercial facilities, the hardwired system ensures that restrooms remain fully functional at all times.
Q: What makes this flush valve suitable for water conservation initiatives?
A: Operating at 1.6 gallons per flush, the ZEMS6000AV-WS1-IS meets WaterSense certification requirements and can help facilities achieve LEED credits for water efficiency. The sensor-activated operation prevents unnecessary flushes, while the precision-engineered diaphragm assembly ensures consistent water delivery with each activation. In high-traffic facilities, this can translate to significant water savings—up to 54% compared to standard 3.5 gpf models—without sacrificing performance.
Detailed Features & Benefits
Advanced Sensor Technology: The ZEMS6000AV-WS1-IS features an integral infrared convergence-type proximity sensor that provides reliable detection for touchless operation. The sensor is positioned at a 10-degree angle to optimize user detection while minimizing false activations. The system includes a manual override push button to ensure operation even during power outages or in case of sensor malfunction.
Premium AquaVantage® Performance: Equipped with Zurn's AquaVantage® TPE, chloramine-resistant, dual seal diaphragm and triple filtered bypass, this flush valve delivers exceptional performance even in facilities with challenging water conditions. The filtered bypass design prevents clogging from debris and sediment, while the chloramine-resistant components ensure longevity in treated water systems. These features combine to reduce maintenance requirements and extend the service life of the valve.
Flexible Installation Options: The ZEMS6000AV-WS1-IS offers multiple rough-in height options and can be installed with the Zurn P6000-HW6 hardwired power converter, which powers up to 8 flush valves from a single converter. This design flexibility makes it adaptable to various commercial restroom layouts while ensuring ADA compliance for accessibility. The included sweat solder kit and adjustable tailpiece further simplify installation in both new construction and retrofit applications.
NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained according to instructions. Decorative finishes warranted for one year.
