Zurn ZEMS6000AV-HET | Automatic Sensor Flush Valve | 1.28 GPF

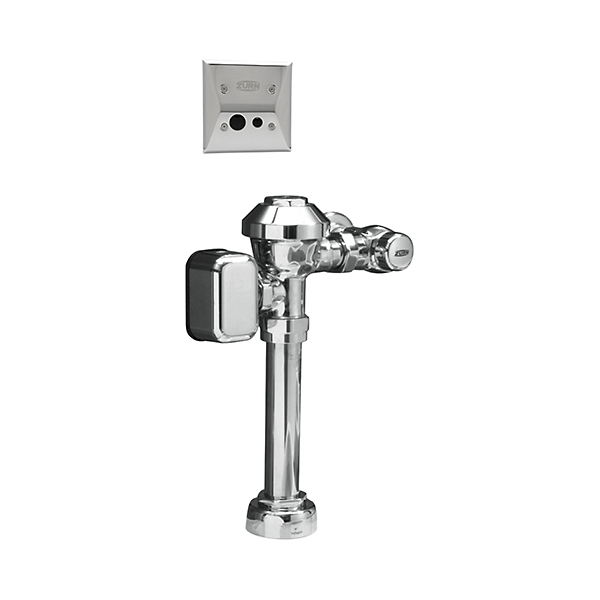

The Zurn ZEMS6000AV-HET Series is a hardwired automatic sensor flush valve designed for water closets, delivering reliable, touchless operation.
Key Specifications:
- Flush Volume: 1.28 gpf (HET model)
- WaterSense Compliant: Yes
- Finish: Chrome-plated
- Dimensions: 8-1/2" [216"] Vacuum Tube Length, 11-1/2" [292] Rough Height
- Activation: Automatic capacitive sensor with manual override button, diaphragm-type
Related Variants
| SKU | Flush Volume | WaterSense | Activation |
|---|---|---|---|
| ZEMS6000AV-ONE | 1.1 gpf | Yes | Automatic Sensor |
| ZEMS6000AV-HET | 1.28 gpf | Yes | Automatic Sensor |
| ZEMS6000AV-WS1 | 1.6 gpf | No | Automatic Sensor |
| ZEMS6000AV-Standard | 3.5 gpf | No | Automatic Sensor |
Features & Benefits:
- Touchless Hygiene: Capacitive sensor technology with manual override button ensures hands-free operation, reducing cross-contamination in high-traffic restrooms.
- Water Conservation: The ZEMS6000AV-HET flush valve achieves significant water savings with 1.28 gpf WaterSense certified performance, reducing facility water costs.
- Superior Durability: Constructed with dezincification-resistant low-lead brass alloy and chloramine-resistant seals for extended service life in demanding commercial applications.
- AquaVantage Technology: Features TPE dual-seal diaphragm with triple-filtered bypass and 6VDC motor actuator for quiet, reliable operation with minimal maintenance requirements.
Compliance and Certifications:
- ASSE 1037/ASME A112.1037/CSA B125.37
- ASSE 1037
- CSA B125.37
- ADA & IPC
- WaterSense Certified
FAQ
Q: What power options are available for the ZEMS6000AV-HET?
A: This hardwired model requires a power converter (-HW6) or mini junction box (-MJ), both sold separately, to operate the 6VDC motor actuator.
Q: Can the flush volume be adjusted after installation?
A: Yes, the valve features adjustable tailpiece and can be ordered with different flow options (-ONE for 1.1 gpf, -HET for 1.28 gpf, -WS1 for 1.6 gpf, or -Standard for 3.5 gpf).
Q: What type of vacuum breaker is included?
A: The ZEMS6000AV-HET includes a high back-pressure vacuum breaker with one-piece hex coupling nut for reliable backflow prevention and easy installation.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
