Zurn Z86500-XL | 4" Centerset Metering Faucet | 1.0 GPM
Zurn Z86500-XL | 4" Centerset Metering Faucet | 1.0 GPM is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
Contact us at support@bottlefillingstations.com with any questions.
Zurn Z86500-XL | 4" Centerset Metering Faucet | 1.0 GPM

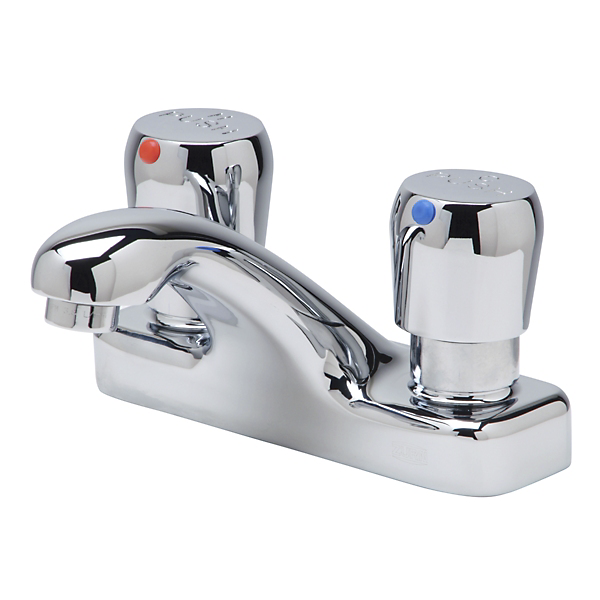

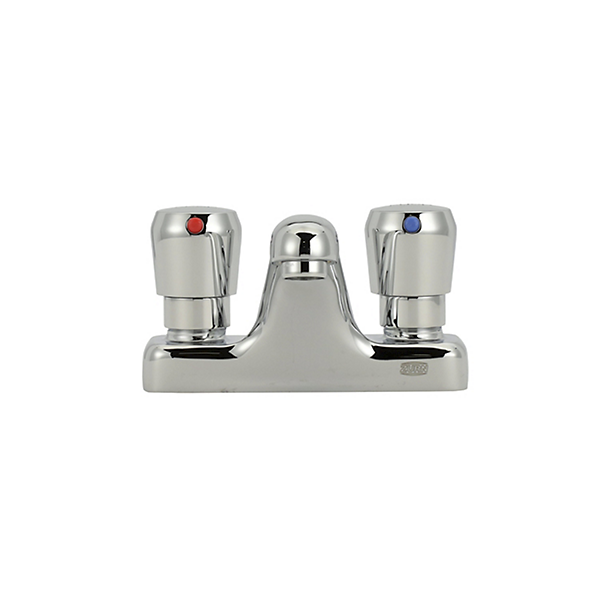

The Zurn Z86500-XL Series is a deck-mount metering faucet featuring temperature control, vandal-resistant handles, and lead-free brass construction.
Key Specifications:
- Flow Rate: 1.0 GPM
- Vandal Resistant: Yes
- Outlet Type: Spray
- Finish: Polished chrome-plated cast brass
- Activations: Manual Activation
Related Option
| SKU | Flow Rate | Vandal Resis. | Water Sense | Outlet Type |
|---|---|---|---|---|
| Z86500-XL | 1.0 GPM | Spray | ||
| Z86500-XL-16M | 1.0 GPM | ✔️ | ✔️ | Spray |
| Z86500-XL-22M | 1.0 GPM | ✔️ | Laminar | |
| Z86500-XL-3M | 0.5 GPM | ✔️ | Spray | |
| Z86500-XL-7M | 1.0 GPM | ✔️ | Spray | |
| Z86500-XL-25M | 0.35 GPM | ✔️ | ✔️ | Spray |
| Z86500-XL-28M | 0.5 GPM | ✔️ | Laminar |
Features & Benefits:
- Temperature Control: Provides safe water delivery with adjustable hot and cold water mixing, protecting users from scalding while ensuring comfort.
- ADA Compliant Operation: Requires less than 5 pounds of force to activate, making the Z86500-XL Series accessible for all users including those with limited hand strength.
- Vandal-Resistant Design: Color-coded brass metering handles and durable construction withstand heavy use in high-traffic public facilities, reducing maintenance costs.
- Water Conservation: Adjustable cycle timing preset to 10 seconds with multiple low-flow aerator options conserve water without compromising functionality.
Compliance and Certifications:
- ADA
- ASME A112.18.1/CSA B125.1
- NSF 372
- CEC
- IPC
FAQ
Q: What is the cycle time for the Z86500-XL Series metering faucet?
A: The Z86500-XL Series comes preset to a 10-second cycle time at 80 PSI, but the timing is easily adjustable to meet specific facility requirements.
Q: Is this faucet lead-free and safe for drinking water applications?
A: Yes, the Z86500-XL features lead-free brass construction compliant with SDWA Section 1417, containing ≤0.25% lead and certified to NSF 372 standards for safe drinking water use.
Q: Can I replace the aerator to change the flow rate?
A: Absolutely. The Z86500-XL Series offers multiple aerator options ranging from 0.35 GPM to 1.0 GPM with various outlet types including spray and laminar, allowing you to customize water flow for your needs.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
