Zurn Z86300-XL-CP4-3M | Deck-Mount Metering Faucet | 0.5 GPM
Zurn Z86300-XL-CP4-3M | Deck-Mount Metering Faucet | 0.5 GPM is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
Contact us at support@bottlefillingstations.com with any questions.
Zurn Z86300-XL-CP4-3M | Deck-Mount Metering Faucet | 0.5 GPM

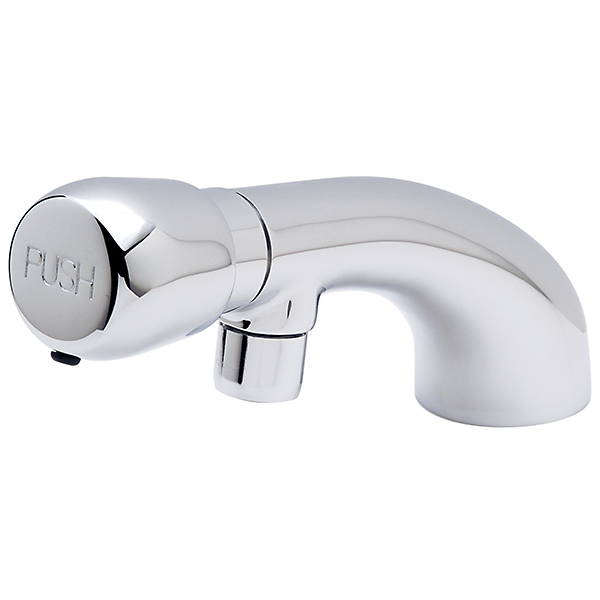

The Zurn Z86300-XL-CP4-3M Series is a deck-mount temperature-control metering faucet featuring slow-closing operation, vandal-resistant design, 0.5 GPM spray outlet, with chrome plated 4" cover plate.
Key Specifications:
- Flow Rate: 0.5 GPM
- Vandal Resistant: Yes
- Outlet Type: Spray
- Finish: Polished chrome-plated cast brass
- Activations: Manual Activation
Features & Benefits:
- Water Conservation: Ultra-low flow rates ranging from 0.35 to 1.0 GPM help reduce water consumption and operational costs while meeting environmental standards.
- ADA Compliance: Vandal-resistant, color-coded handle requires less than 5 pounds activation force, ensuring accessibility for all users including those with disabilities.
- Durable Construction: Polished chrome-plated cast brass body with polymer metering cartridge sleeve delivers long-lasting performance in high-traffic commercial environments.
- Adjustable Operation: Slow-closing metering action with adjustable 10-second cycle time at 80 PSI provides controlled water delivery and prevents waste.
Compliance and Certifications:
- ADA & ICC A117.1 Compliant
- ASME A112.18.1/CSA B125.1
- NSF 372 (Lead-Free ≤0.25%)
- CEC & IPC Compliant
FAQ
Q: What is the cycle time and can it be adjusted?
A: The Z86300-XL-CP4-3M features an adjustable cycle time preset to 10 seconds at 80 PSI. The timing can be easily adjusted to meet specific application requirements.
Q: Is this faucet suitable for commercial applications requiring vandal resistance?
A: Yes, the Z86300-XL-CP4-3M includes vandal-resistant features with a durable color-coded handle and robust chrome-plated cast brass construction designed for high-traffic commercial environments.
Q: What aerator options are available if I need different flow rates?
A: Multiple aerator options are available including -16M (1.0 GPM spray, VR), -22M (1.0 GPM laminar, VR), -7M (1.0 GPM spray), -25M (0.35 GPM spray, VR), and -28M (0.5 GPM laminar, VR) to meet various performance needs.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
