Zurn Z831B4-XL | Widespread Gooseneck Faucet | 2.2GPM
Zurn Z831B4-XL | Widespread Gooseneck Faucet | 2.2GPM is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
- Place gasket and base through sink center hole; secure with washer, lockwasher, and mounting nut.
- Install valve body assemblies from underside of sink and hand‑tighten retaining hardware. Do not overtighten.
- Attach escutcheons and cartridge caps to secure body to sink.
- Install spout into base and tighten nut; connect handles to cartridge stems and insert index buttons.
- Connect lavatory supplies to faucet using coupling nuts, then install aerator on spout end.
- Turn on water supply and check for leaks. If installation is difficult, contact a licensed plumber or authorized Zurn Elkay service technician.
- Clean chrome finish with mild soap and water; avoid harsh chemicals or acids.
- Ceramic disk cartridges are maintenance‑free but can be removed for cleaning if supply lines clog.
- Inspect aerator periodically; remove and clean if flow is reduced.
- Check handle operation during routine facility maintenance to ensure smooth quarter‑turn function.
- Replace cartridges or index buttons only with genuine Zurn Elkay parts for proper fit and performance.
Zurn Z831B4-XL | Widespread Gooseneck Faucet | 2.2GPM

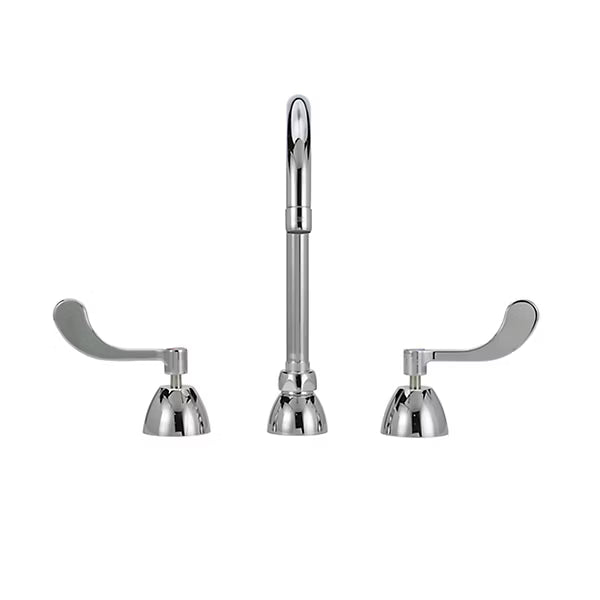

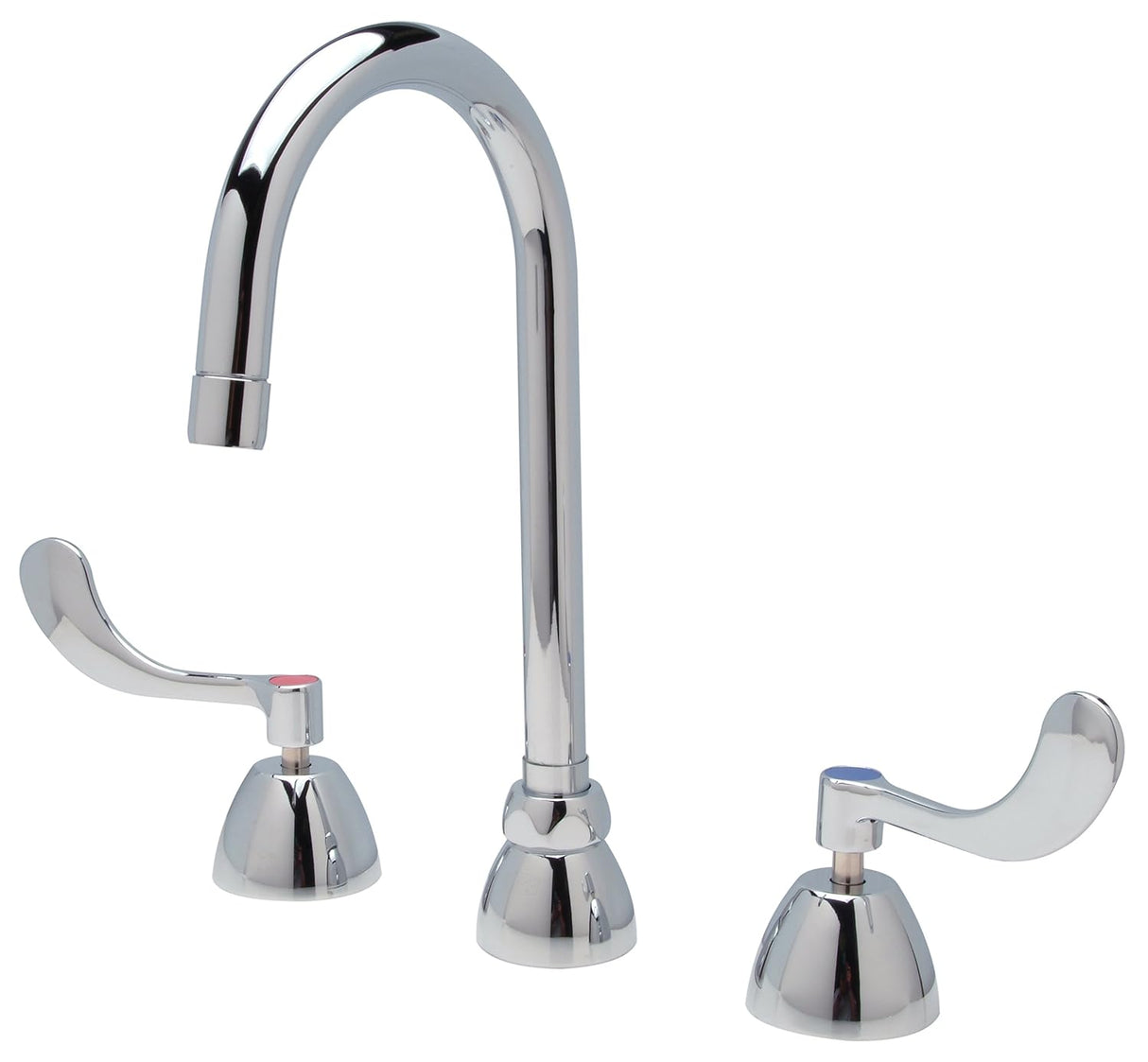

The Zurn Z831B4-XL Series is a polished chrome-plated widespread faucet with a 5-3/8" gooseneck spout and 4" vandal-resistant wrist blade handles. Built with a durable cast brass body and quarter-turn ceramic disc cartridges, this faucet is designed for commercial and institutional restrooms requiring reliability, accessibility, and compliance with ADA standards.
Key Specifications:
- Flow Rate: Standard 2.2 GPM with multiple optional aerator configurations (0.35–2.2 GPM)
- Finish: Polished chrome-plated cast brass body
- Handles: 4" vandal-resistant, color-coded wrist blade handles
- Cartridge: Quarter-turn ceramic disc cartridges for leak-resistant operation
- Activation: Manual wrist blade handle operation
Related Option
| SKU | Flow Rate | Vandal Resis. | Water Sense | Outlet Type |
|---|---|---|---|---|
| Z831B4-XL | 2.2 GPM | ✔️ | Aerator | |
| Z831B4-XL-FC | 2.0 GPM | Laminar | ||
| Z831B4-XL-FC1.5 | 1.5 GPM | Laminar | ||
| Z831B4-XL-2F | 2.2 GPM | ✔️ | Aerator | |
| Z831B4-XL-3F | 0.5 GPM | ✔️ | Spray | |
| Z831B4-XL-4F | 2.2 GPM | ✔️ | Laminar | |
| Z831B4-XL-7F | 1.0 GPM | ✔️ | Spray | |
| Z831B4-XL-16F | 1.0 GPM | ✔️ | ✔️ | Spray |
| Z831B4-XL-17F | 1.5 GPM | ✔️ | ✔️ | Aerator |
| Z831B4-XL-18F | 1.5 GPM | ✔️ | ✔️ | Laminar |
| Z831B4-XL-22F | 1.0 GPM | ✔️ | Laminar | |
| Z831B4-XL-25F | 0.35 GPM | ✔️ | Spray | |
| Z831B4-XL-28F | 0.5 GPM | ✔️ | Laminar |
Features & Benefits:

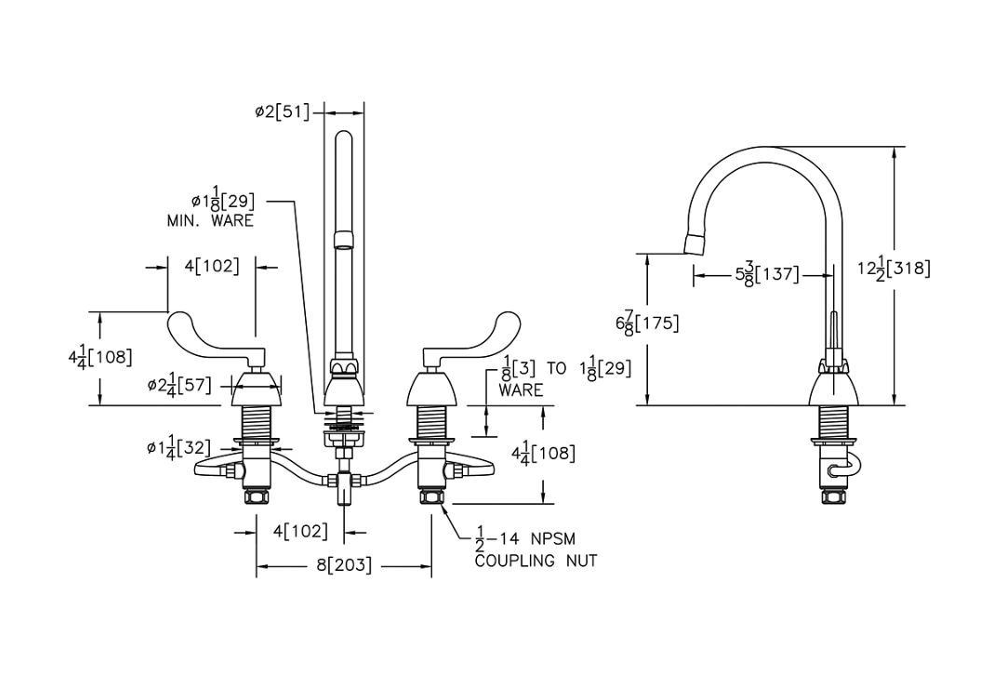

- Adjustable Installation: Accommodates widespread installations with adjustable centers from 6" to 20", providing flexible mounting options for various sink configurations up to 1-1/8" thick.
- Vandal-Resistant Design: Features durable 4" color-coded metal wrist blade handles that resist tampering and damage, ensuring long-lasting performance in high-traffic environments.
- Water Conservation: Equipped with pressure-compensating aerator technology and multiple WaterSense-eligible flow options, reducing water consumption without compromising performance.
- Durable Construction: Chrome-plated cast brass body with quarter-turn ceramic disc cartridges delivers reliable, leak-resistant operation and maintains aesthetic appeal over time.
FAQ
Q: What installation thickness does the Z831B4-XL accommodate?
A: The Z831B4-XL accommodates installations up to 1-1/8" thick and features adjustable centers from 6" to 20", making it compatible with a wide range of sink and countertop configurations.
Q: Are different flow rate and outlet options available?
A: Yes. The Z831B4-XL offers multiple aerator configurations ranging from 0.35 GPM to 2.2 GPM, including spray, aerator, and laminar outlets. Several options are WaterSense-labeled for water conservation compliance.
Q: Is this faucet ADA compliant?
A: Yes. The Z831B4-XL meets ADA and ICC A117.1 accessibility requirements when installed according to the proper mounting standards, making it suitable for commercial and institutional restrooms.
Q: What replacement parts are available?
A: Replacement ceramic disc cartridges, index buttons, and mounting hardware are available for the Z831B4-XL. These parts ensure long-term serviceability and easy maintenance.
Q: How should the faucet be cleaned and maintained?
A: The polished chrome finish should be cleaned with mild soap and water or a cleaner safe for chrome plating. Avoid harsh chemicals or acids, as they may damage the finish. The ceramic disc cartridges require no routine maintenance.
Detailed Features & Benefits
Flexible Installation: The Z831B4-XL accommodates widespread installations with adjustable centers from 6" to 20". This flexibility ensures compatibility with a variety of sink and countertop configurations up to 1-1/8" thick.
Durable Construction: Built with a chrome-plated cast brass body, the faucet is engineered for long-term performance in demanding environments. Quarter-turn ceramic disc cartridges provide reliable, leak-resistant operation and reduce maintenance needs.
Water Conservation Options: Equipped with a standard 2.2 GPM aerator, the faucet also offers multiple optional flow rates down to 0.35 GPM. Pressure-compensating aerators maintain consistent performance while supporting WaterSense compliance for sustainability goals.
Vandal-Resistant Design: The 4" wrist blade handles are color-coded and built to resist tampering or damage. This makes the faucet ideal for high-traffic commercial and institutional restrooms where durability and security are essential.
ADA Compliant: Designed to meet ADA and ICC A117.1 accessibility requirements when properly installed. This ensures usability for all users and compliance with accessibility standards in public facilities.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
