Zurn  |  SKU: Z6950-XL-IM-S-F

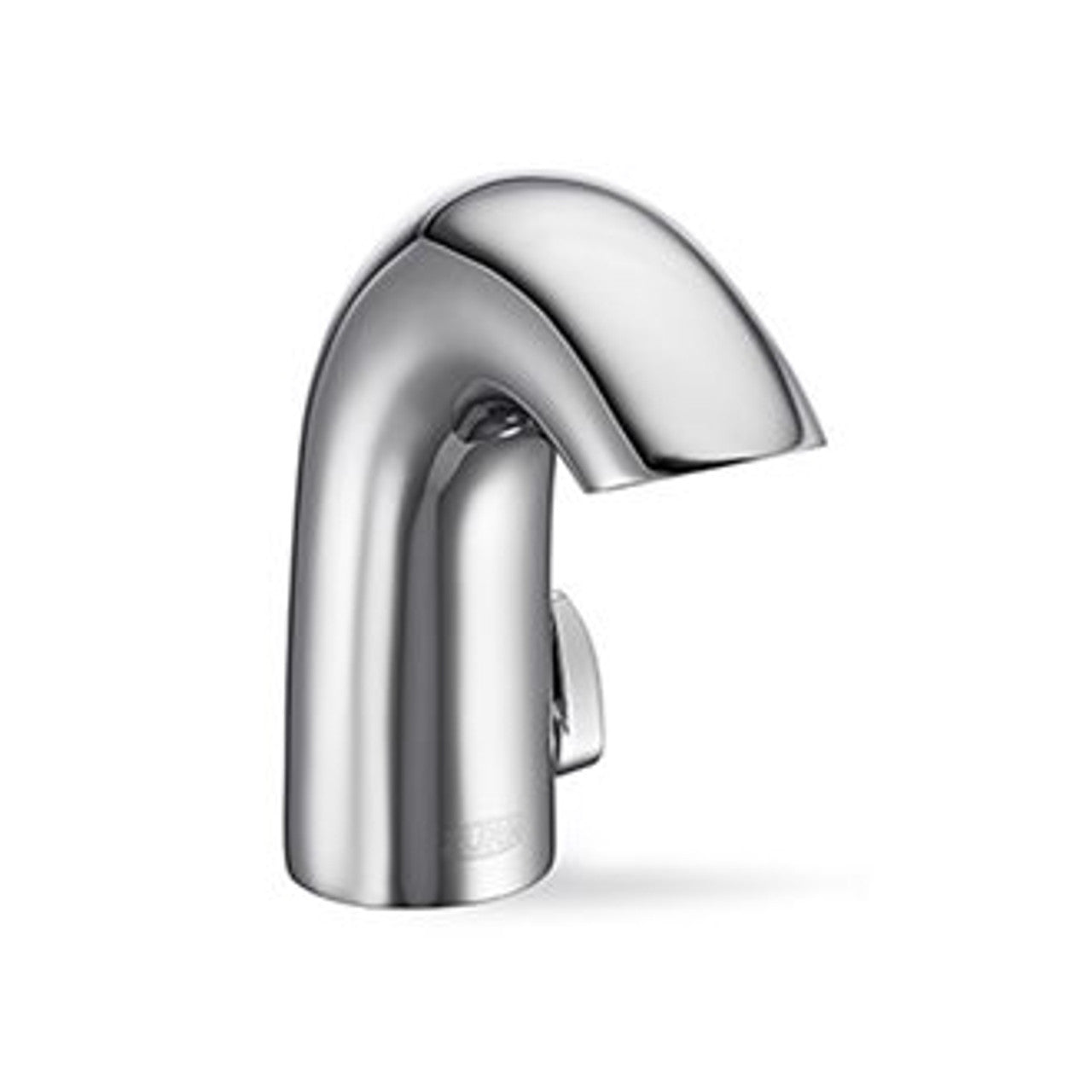

Zurn Z6950-XL-IM-S-F | Aqua-FIT Serio Series Single Post Faucet, Integral Mixing Valve, Chrome

$ 1,000.80
Shipping calculated at checkout.

Product Care Information
Installation
  • Insert six new AA alkaline batteries, ensuring not to combine old and new batteries.
  • Mount the dispenser on a smooth wall surface, making sure to clean the area first.
  • Ensure that there is a distance greater than 10 inches (25 centimeters) between the bottom of the dispenser and the sink basin or any object directly below it.
  • Do not place items like stainless steel utensils or photoelectric sensors beneath the sensor window of the dispenser.
  • Place the dispenser in a location that receives minimal exposure to sunlight.

Soap Fill

  • Unlock and open the upper cover using the key.
  • Unplug the connector from the battery case.
  • Open the container and pour out the liquid or soap.
  • Please remove any excess liquid or soap.
  • Reattach the connector to the battery case, replace the upper cover, and secure it with the key.
  • Position your hand beneath the sensor window. The LED indicator will illuminate, and the liquid will be dispensed.
  • Press the settings button and hold your hand under the sensor for over 2 seconds until the fluid is dispensed.



ZURN Z6950-XL-IM-S-F

Zurn Aqua-Fit® faucets are perfect for high-use settings requiring durability and hands-free functionality. They are ADA-compliant, battery-operated, and feature polished chrome-plated cast brass with an infrared proximity sensor, suitable for both retrofit and new constructions. The Zurn Lead-Free series (-XL) offers a range of robust, high-quality brass faucets and fixtures engineered to meet Section 1417 of the Safe Drinking Water Act (SDWA), ensuring a weighted average lead content not exceeding 0.25% on the wetted surfaces.

Product Benefit

  • Touch-free operation with an infrared proximity sensor.
  • Durable construction with a heavy-duty cast brass body
  • Enjoy peace of mind with a 3-year warranty
  • Promotes water conservation and sanitation with a water-saving automatic sensor.
  • Suitable for retrofit applications.
  • Compliance with ASME A112.18.1 / CSA B125.1 is ensured

DOWNLOADS

SPEC SHEET MANUAL
WARRANTY
Zurn

Zurn Z6950-XL-IM-S-F | Aqua-FIT Serio Series Single Post Faucet, Integral Mixing Valve, Chrome

$ 1,000.80

ZURN Z6950-XL-IM-S-F

Zurn Aqua-Fit® faucets are perfect for high-use settings requiring durability and hands-free functionality. They are ADA-compliant, battery-operated, and feature polished chrome-plated cast brass with an infrared proximity sensor, suitable for both retrofit and new constructions. The Zurn Lead-Free series (-XL) offers a range of robust, high-quality brass faucets and fixtures engineered to meet Section 1417 of the Safe Drinking Water Act (SDWA), ensuring a weighted average lead content not exceeding 0.25% on the wetted surfaces.
