Zurn Z6915-XL-N | 4" AquaSense® Battery-Powered Sensor Faucet ...

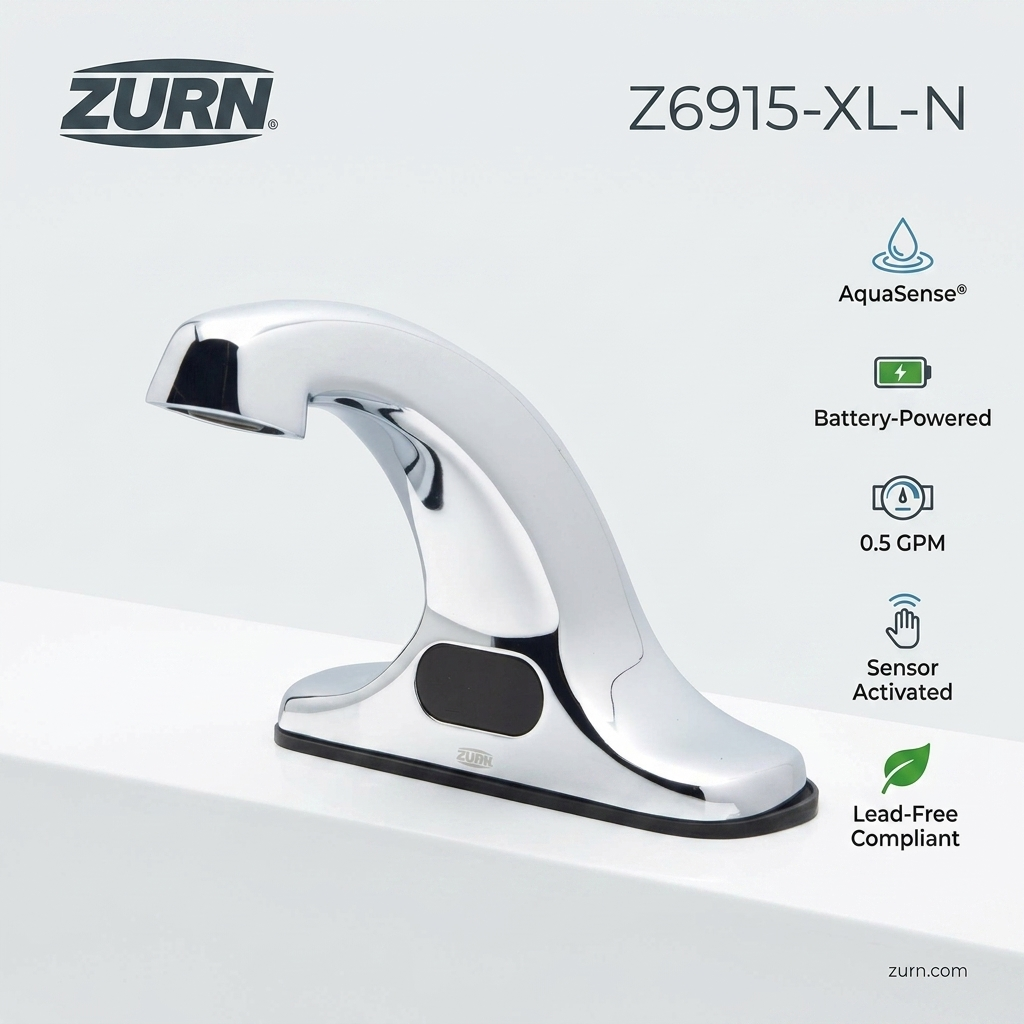

The Zurn Z6915-XL-N Series is a battery-powered sensor faucet with infrared proximity detection, delivering hands-free operation at 0.5 GPM laminar flow. Designed for high-use commercial environments, it combines water efficiency with reliable touchless hygiene.
Key Specifications:
- Flow Rate: 0.5 GPM, optimized for water savings without compromising effective handwashing
- Outlet Type: Laminar, delivers a clear, non-splashing stream ideal for hygienic applications
- Finish: Polished chrome-plated cast brass. Resists corrosion and maintains a professional appearance
- Activation: Infrared proximity sensor. Ensures reliable touchless operation with a 30-second timeout
- Power: Battery-powered with 4 AA batteries. Simplifies installation, with optional plug-in or hardwire converters available
Features & Benefits:
- Touchless Hygiene: Infrared sensor enables hands-free operation, reducing cross-contamination
- Water Conservation: 0.5 GPM flow rate with automatic shutoff reduces water usage while maintaining effective handwashing
- Durable Build: Chrome-plated cast brass construction ensures longevity in high-traffic facilities
- Easy Installation: Battery-powered design simplifies retrofit and new construction installations
- Flexible Options: Compatible with multiple aerator and power configurations to suit facility needs
Related Variants:
| SKU | Flow Rate | Outlet Type |
|---|---|---|
| Z6915-XL | 0.5 GPM | Aerator |
| Z6915-XL-N | 0.5 GPM | Laminar |
| Z6915-XL-W2 | 0.5 GPM | Connected Faucet with Monitor |
| Z6915-XL-HYD | 0.5 GPM | Hydrogenerator Powered |
| Z6915-XL-TMV-1 | Varies | Thermostatic Mixing Valve |
| Z6915-XL-SSH | Varies | Three Supply Hoses for Mixing Valve |
| Z6915-XL-MV | Varies | Temperature Mixing Valve |
| Z6915-XL-CWB | 0.5 GPM | Connector Wire for Plug-In Converter |
| Z6915-XL-ACA | 0.5 GPM | Plug-In Power Converter |
What's Included:
- 1 x Z6915-XL-N Sensor Faucet Spout Assembly
- 1 x 0.5 GPM Laminar Aerator (installed)
- 1 x Base Gasket and Shank Mounting Kit
- 1 x In-line Filter
- 4 x AA Batteries (for battery-powered operation)
- Installation Hardware
FAQ
Q: What type of power source does the Z6915-XL-N require?
A: Operates on 4 AA batteries included with the unit. Optional plug-in (P6000-ACA) or hardwire (P6000-HW6) converters are available separately.
Q: Is the Z6915-XL-N compatible with existing plumbing installations?
A: Yes, it connects to standard 1/2" ball risers and fits retrofit or new construction. Recommended through-hole diameter is 1-1/8" to 1-1/4".
Q: Can I adjust the flow rate on this faucet?
A: The -N version is fixed at 0.5 GPM laminar flow. Other aerator options (0.35–1.5 GPM) are available in spray, laminar, and aerator outlets.
Q: Does the faucet include a timeout feature?
A: Yes, it has a 30-second automatic timeout to prevent water waste and accidental continuous flow.
Q: Is the Z6915-XL-N ADA compliant?
A: Yes, when installed according to ADA and ICC A117.1 accessibility requirements.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

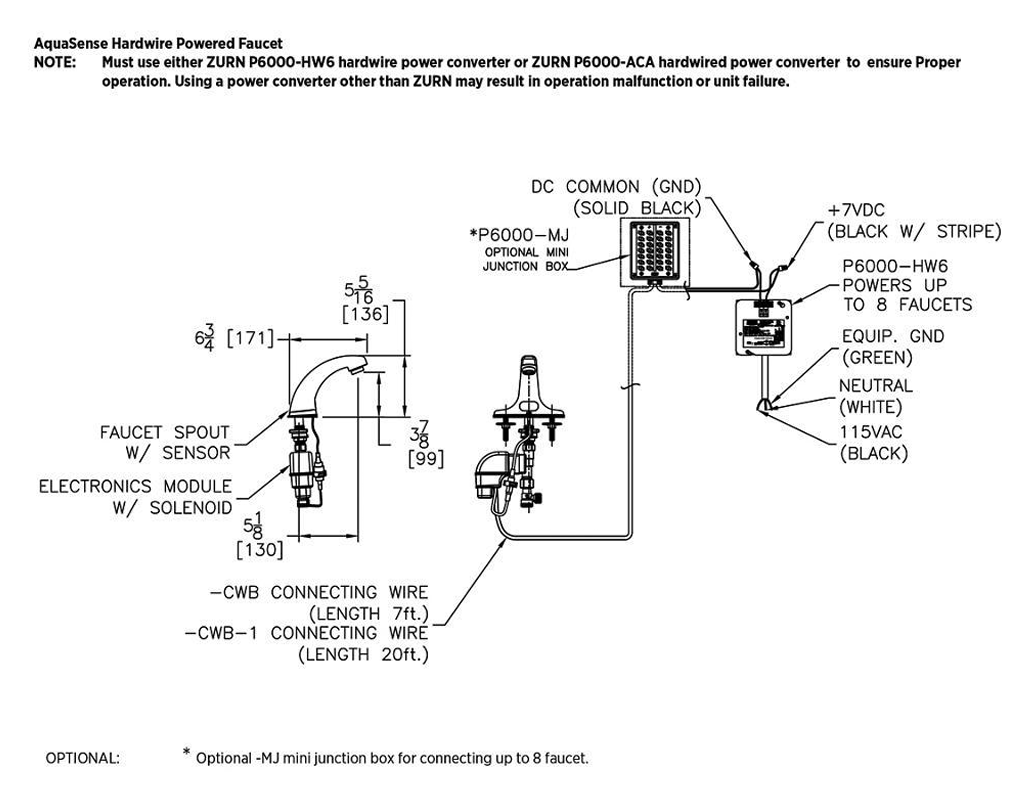

- Turn off the water supply and remove any existing faucet; flush supply lines to clear debris.
- Place the sensor connector wire and shank through the gasket and lavatory hole; secure with mounting washer, star washer, and nut. Ensure sensor wires pass through the slot without pinching.
- Attach the electronics module to the shank using the provided hex nut and gasket; connect sensor wire to the module before installing batteries or plug‑in adapter.
- Install either the battery pack (4 AA alkaline) or the ACA plug‑in adapter as specified; secure covers properly.
- Connect the supplied inlet filter to the electronics module water inlet. If using a mixing tee or mixing valve option, connect hot and cold supplies to the compression inlets and attach the outlet to the module.
- Connect tempered water supply using a 3/8" x 1/2" ball riser (by others) to the inlet filter or mixing assembly.
- Turn on water supply and check for leaks; verify sensor activation and proper water flow.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber/electrician.
- Replace batteries when the sensor LED flashes red; use 4 new alkaline AA batteries.
- Clean or replace the inlet filter periodically to maintain proper flow.
- Inspect solenoid valve for debris if faucet fails to shut off or continues running; rebuild or replace using the solenoid repair kit if necessary.
- Check sensor cable connections for secure engagement; reseat if loose.
- Clean exterior surfaces with mild soap and water; avoid abrasive or chemical cleaners that may damage finishes.
- Verify water pressure remains within the recommended 20–80 psi range for consistent operation.
- Disconnect water supply before servicing internal components to avoid hazards.
- For service or repairs, consult the manual or a certified service representative.
