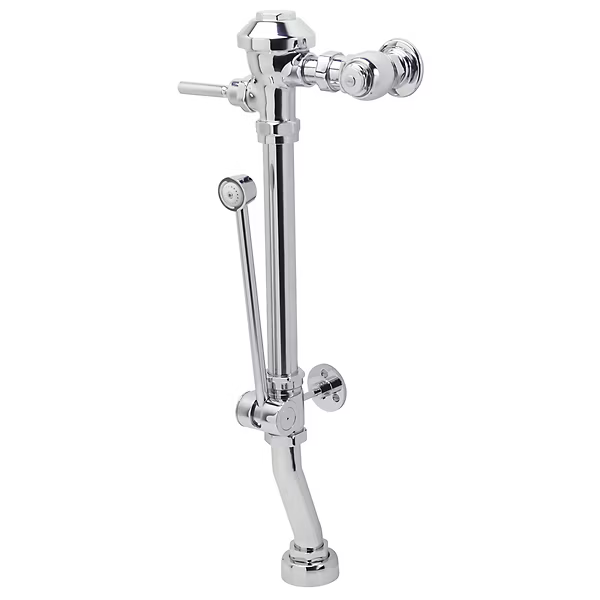

Zurn Z6011AV-BWN | Exposed Flush Valve with Bedpan Washer
Zurn Z6011AV-BWN | Exposed Flush Valve with Bedpan Washer - Standard is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn Z6011AV-BWN | Exposed Flush Valve with Bedpan Washer
The Z6011AV-BWN delivers reliable performance for healthcare facilities requiring specialized bedpan washing capabilities in accessible restroom environments. Its handicap grab bar design combines with Zurn's AquaVantage technology, providing a durable solution for medical facilities seeking both ADA compliance and effective sanitation.
Key Specifications:
- Application: Bedpan washer flush valve for water closets with handicap grab bar.
- Construction: Chrome-plated brass with polished exterior and vandal-resistant features.
- Technology: AquaVantage TPE chloramine resistant dual seal diaphragm with triple filtered by-pass.
- Height Options: Available in three mounting heights for different installation requirements.
Features & Benefits:
- ADA Compliant Design: Specifically engineered for handicap grab bar applications with proper clearances and accessible operation.
- Bedpan Washer System: Complete with wall bracket, support rod, and spray arm assembly for effective bedpan cleaning in healthcare environments.
- Durable Construction: Proprietary dezincification-resistant low lead brass alloy ensures long-term reliability even in aggressive water conditions.
- Vandal Resistant: Internal siphon-guard protection and vandal-resistant stop cap provide security in institutional settings.
- Sanitary Operation: Non-hold open and no leak handle features prevent water waste while maintaining hygienic conditions.
Options Available:
- Z6011AV-HET-BWN: High-Efficiency Toilet model at 1.28 gallons per flush for water conservation with WaterSense certification.
- Z6011AV-WS1-BWN: Water Saver model at 1.6 gallons per flush with dual flush capability option (1.6/1.1 gpf).
- Z6011AV-BG-BWN: Model featuring BioCare ADA Handle for enhanced accessibility and infection control.
What's Included:
- 1 x Z6011AV-BWN Exposed Flush Valve
- 1 x Bedpan Washer Assembly
- 1 x Wall Bracket and Support Rod
- 1 x High Back Pressure Vacuum Breaker
- 1 x Vacuum Breaker Tube and Nut
- 1 x Adjustable Tailpiece
- 1 x Spud Coupling and Flange for Top Spud Connection
- 1 x Sweat Solder Kit with Cast Wall Flange
- 1 x Vandal Resistant Stop Cap
- 1 x Installation Hardware
FAQ
Q: What are the available height options for this flush valve?
A: The Z6011AV-BWN is available in three different mounting heights to accommodate various installation requirements: standard height at 26-1/2" [673mm], Z6011AV-BWN1 at 34-3/8" [873mm], and Z6011AV-BWN2 at 37-1/2" [953mm]. This flexibility ensures proper placement in relation to handicap grab bars while maintaining ADA compliance for healthcare facilities.
Q: How does the bedpan washer function operate?
A: The bedpan washer features a diverter valve with a spray arm that redirects water flow when activated. By pulling the diverter arm down, water is diverted from the toilet bowl to the spray arm, creating a pressurized spray for thorough bedpan cleaning. When not in use, the system functions as a standard flush valve. The spray disc and screen can be easily cleaned or replaced to maintain optimal performance.
Detailed Features & Benefits
Healthcare-Specific Design: The Z6011AV-BWN is specifically engineered for healthcare applications where bedpan cleaning capabilities must be integrated with ADA-compliant fixtures. The system includes a complete bedpan washer assembly with wall bracket and support rod, designed to provide stability and durability in demanding healthcare environments. The optional BioCare ADA handle provides enhanced infection control features particularly valuable in medical settings.
Precision Engineered Water Delivery: Available in multiple flow rate options to meet specific water conservation goals while maintaining effective waste removal and cleaning power. The high back pressure vacuum breaker with one-piece hex coupling nut ensures reliable operation and prevents backflow contamination, a critical feature in healthcare settings where cross-contamination prevention is essential.
Accessibility Focused: Designed specifically for installation with handicap grab bars, this model ensures proper clearances and easy operation for users with mobility challenges. The ADA-compliant handle provides comfortable operation with minimal force required, while the bedpan washer component is positioned for easy access by healthcare professionals. The multiple height options ensure compatibility with various grab bar configurations and fixture installations.
NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained according to instructions. Decorative finishes warranted for one year.
