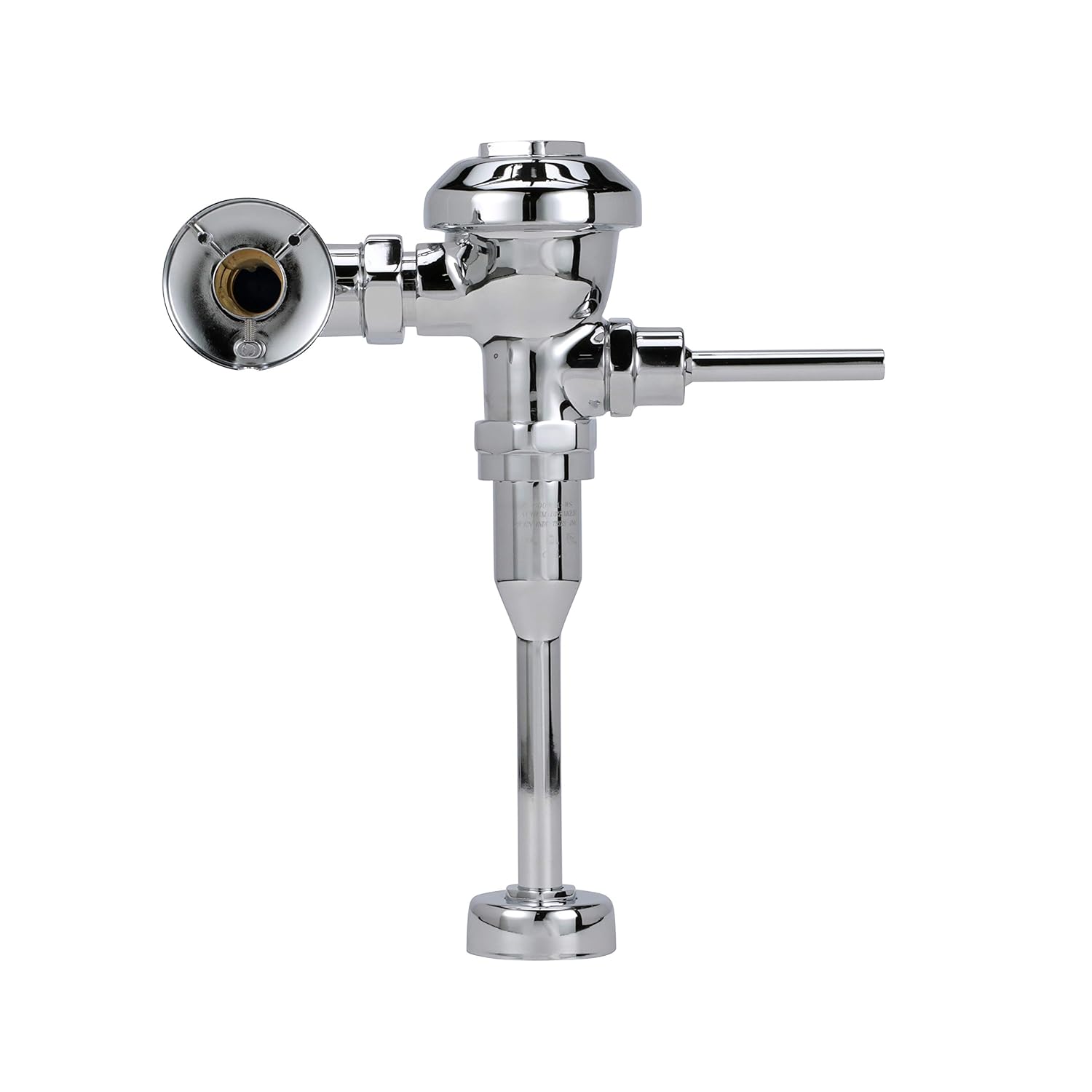

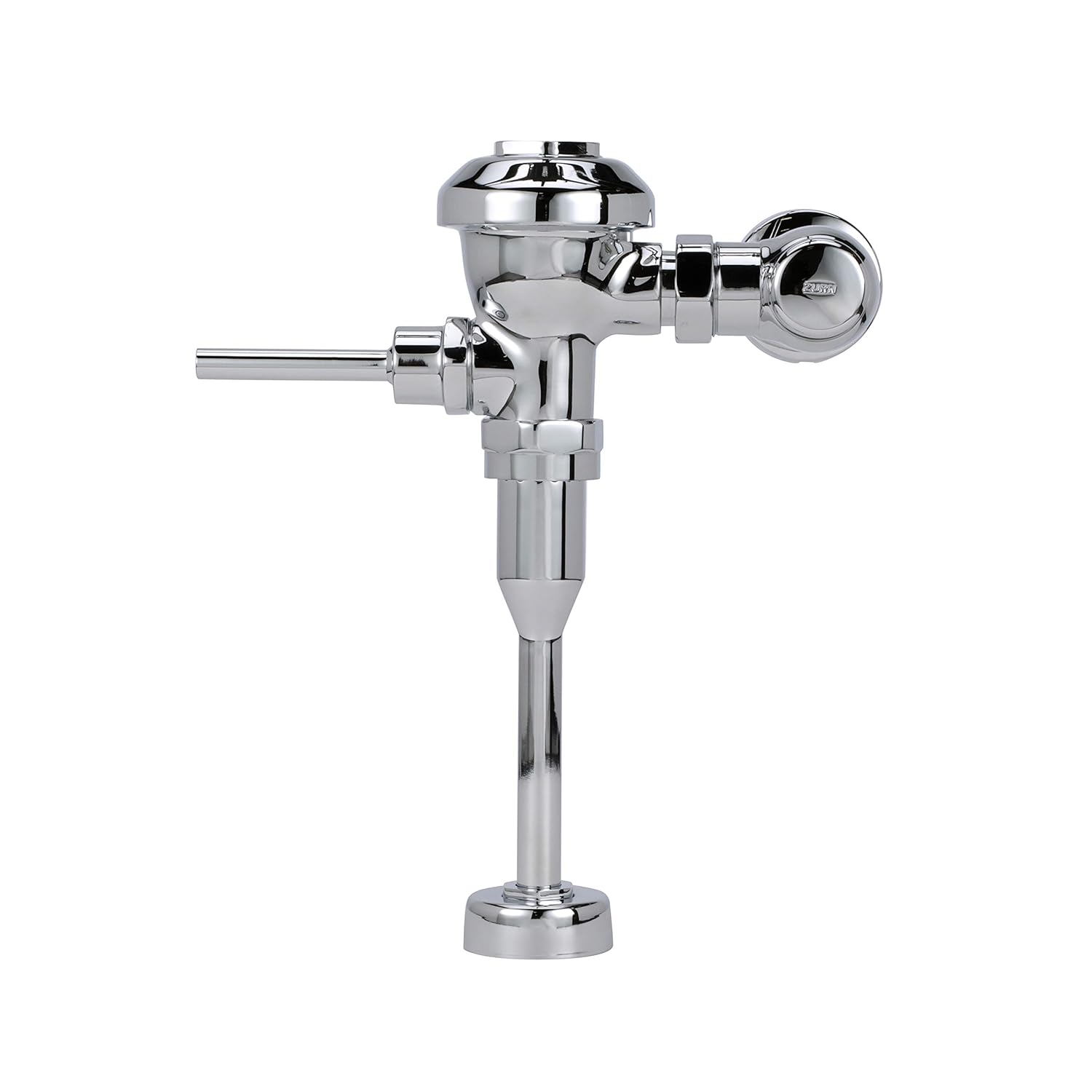

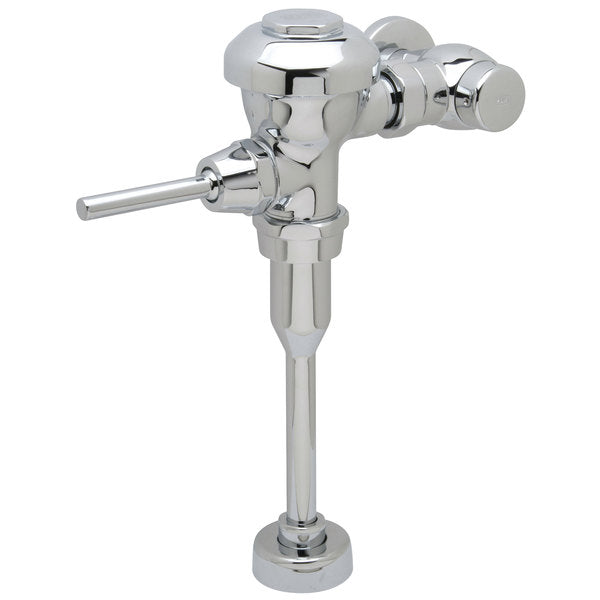

Zurn Z6003AV-EWS | AquaVantage AV Exposed Manual Diaphragm Flush Valve with 0.5 GPF, Chrome

The Zurn Z6003AV-EWS Exposed Flush Valve delivers reliable performance with exceptional water conservation for urinals in commercial restrooms. Its Extra Water Saver 0.5 gpf design combines proven AquaVantage diaphragm technology with durable construction, making it an ideal solution for facilities seeking to balance water efficiency with dependable operation.

Key Specifications:

• Flow Rate: 0.5 gallons per flush (Extra Water Saver).
• Connection Size: 3/4" urinal valve with top spud connection.
• Construction: Chrome-plated brass with polished exterior.
• Diaphragm: AquaVantage TPE, chloramine resistant, dual seal with clog-resistant triple filtered by-pass.
• Handle: ADA compliant with non-hold open and no leak features.

Features & Benefits:

• Water Conservation: The 0.5 gpf flow rate reduces water consumption by up to 50% compared to standard 1.0 gpf urinal flush valves.
• Reliable Performance: The AquaVantage diaphragm with triple filtered by-pass prevents clogging and ensures consistent flushing.
• Durable Construction: Proprietary dezincification-resistant low lead brass alloy ensures long-term reliability even in aggressive water conditions.
• Vandal Resistant: Internal siphon-guard protection and vandal-resistant stop cap provide security in public restrooms.
• Easy Maintenance: Adjustable tailpiece and serviceable components simplify routine maintenance and adjustments.

Options Available:

• Z6003AV-ULF: Ultra Low Flow model at 0.125 gallons per flush for maximum water conservation in facilities with compatible fixtures.
• Z6003AV-WS1: Water Saver model at 1.0 gallon per flush for applications requiring additional flushing power while still meeting modern efficiency standards.

What's Included:

• 1 x Z6003AV-EWS Exposed Urinal Flush Valve
• 1 x AquaVantage TPE Diaphragm
• 1 x High Back Pressure Vacuum Breaker
• 1 x Adjustable Tailpiece
• 1 x Spud Coupling and Flange for Top Spud Connection
• 1 x Sweat Solder Kit with Cast Wall Flange
• 1 x Vandal Resistant Stop Cap
• 1 x Installation Hardware

FAQ

Q: Will this flush valve work with my existing urinal fixture?

A: The Z6003AV-EWS is designed to work with most standard urinals rated for 0.5 gpf operation. Before installation, it's important to verify your fixture manufacturer's minimum flow requirements to ensure proper evacuation. The valve operates optimally between 10 and 100 psi water pressure, with a recommended minimum of 25 psi for proper fixture evacuation. If your fixture requires more flushing power, consider the Z6003AV-WS1 model which provides 1.0 gpf while still offering significant water savings compared to older 1.5-3.0 gpf models.

Q: How much water can I save by switching to this flush valve?

A: The Z6003AV-EWS operates at 0.5 gallons per flush, which can reduce water consumption by up to 50% compared to standard 1.0 gpf models and up to 85% compared to older 3.0 gpf models. In a typical commercial setting with 100 uses per day, this can translate to savings of approximately 18,250 gallons of water annually when replacing a standard 1.0 gpf valve, or 91,250 gallons annually when replacing an older 3.0 gpf valve. The dual seal diaphragm with triple filtered by-pass also prevents water waste from leakage, further enhancing water conservation.

Detailed Features & Benefits

Advanced Diaphragm Technology: The Z6003AV-EWS utilizes Zurn's AquaVantage TPE diaphragm with dual seal design and triple filtered by-pass. This chloramine-resistant construction prevents premature deterioration in treated water supplies, while the triple filtered by-pass protects against debris that can cause malfunction. The result is consistent water delivery and reliable shut-off, minimizing maintenance requirements and extending the service life of the valve.

Precision Engineered Water Delivery: The 0.5 gpf flow rate is precisely calibrated to provide effective bowl cleaning while conserving water. The high back pressure vacuum breaker with one-piece hex coupling nut ensures reliable operation and prevents backflow contamination. The control stop features internal siphon-guard protection and can be easily adjusted to fine-tune the flow for optimal performance with your specific fixture and water pressure conditions.

Durable, Vandal-Resistant Design: Constructed from proprietary dezincification-resistant low lead brass alloy, the Z6003AV-EWS is built to withstand the rigors of commercial restroom environments. The vandal-resistant stop cap prevents unauthorized adjustments, while the ADA-compliant handle with non-hold open and no leak features ensures reliable operation for all users. The polished chrome finish not only provides an attractive appearance but also offers excellent resistance to corrosion and wear.

NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained according to instructions. Decorative finishes warranted for one year.
