Zurn  |  SKU: Z6000AV-BWN

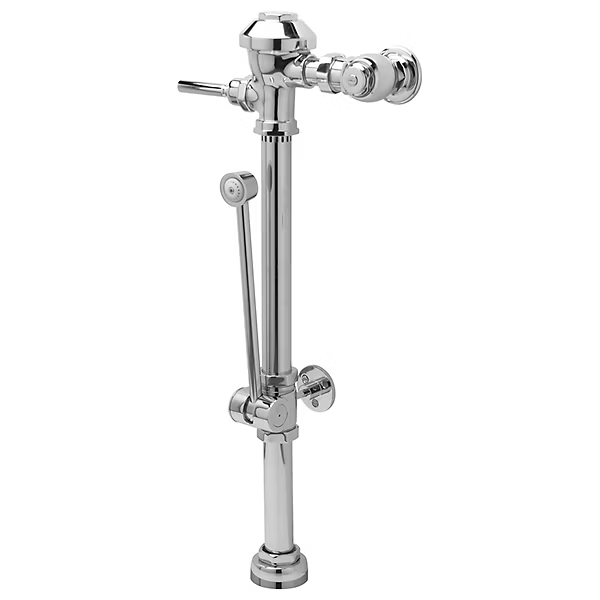

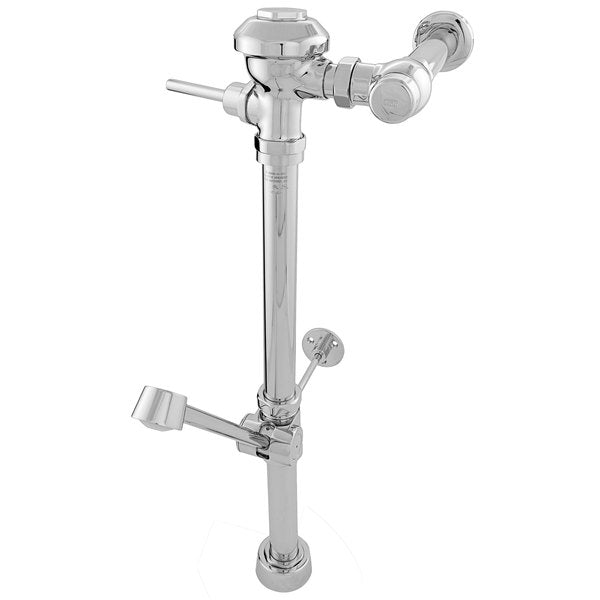

Zurn Z6000AV-BWN | AquaVantage AV 3.5 gpf exposed flush valve with bedpan diverter valve for 1-1/2" top spud water closets

$ 636.99
Shipping calculated at checkout.
Choose Flow Options

Product Care Information
Installation
  • All plumbing is to be installed according to state and local codes and regulations.
  • Water supply lines need to allow proper water flow for each fixture.
  • Flush all lines of any debris before making connections.
  • Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.

The Z6000AV-BWN delivers reliable performance for healthcare facilities requiring specialized bedpan washing capabilities. Its durable design combines with Zurn's AquaVantage technology, providing an effective solution for medical facilities seeking both sanitation efficiency and water conservation in standard water closet installations.


Key Specifications:

  • Flow Rate: Standard 3.5 gpf with dual flush capability (3.5/2.4 gpf).
  • Construction: Chrome-plated brass with polished exterior and vandal-resistant features.
  • Technology: AquaVantage TPE chloramine resistant dual seal diaphragm with triple filtered by-pass.
  • Height Options: Available in three mounting heights for different installation requirements.


Features & Benefits:

  • Healthcare-Specific Design: Complete bedpan washer assembly with wall bracket and support rod for effective bedpan cleaning in medical environments.
  • Reliable Operation: ADA compliant with non-hold open and no leak handle features to prevent water waste while maintaining hygienic conditions.
  • Durable Construction: Proprietary dezincification-resistant low lead brass alloy ensures long-term reliability even in aggressive water conditions.
  • Vandal Resistant: Internal siphon-guard protection and vandal-resistant stop cap provide security in institutional settings.
  • Simple Maintenance: Spray disc and screen can be easily cleaned or replaced using a standard phillips head screwdriver for continued optimal performance.


Options Available:

  • Z6000AV-WS1-BWN: Water Saver model at 1.6 gallons per flush with dual flush capability option (1.6/1.1 gpf).


What's Included:

  • 1 x Z6000AV-BWN Exposed Flush Valve
  • 1 x Bedpan Washer Assembly
  • 1 x Wall Bracket and Support Rod
  • 1 x High Back Pressure Vacuum Breaker
  • 1 x Vacuum Breaker Tube and Nut
  • 1 x Adjustable Tailpiece
  • 1 x Spud Coupling and Flange for Top Spud Connection
  • 1 x Sweat Solder Kit with Cast Wall Flange
  • 1 x Vandal Resistant Stop Cap
  • 1 x Installation Hardware


FAQ


Q: What are the available height options for this flush valve?

A: The Z6000AV-BWN is available in three different mounting heights to accommodate various installation requirements: standard height at 26-1/2" [673mm], Z6000AV-BWN1 at 34-3/8" [873mm], and Z6000AV-BWN2 at 37-1/2" [953mm]. This flexibility ensures proper placement in relation to fixtures and wall constraints in healthcare facilities.

Q: How does the bedpan washer function operate?

A: The bedpan washer features a diverter valve with a spray arm that redirects water flow when activated. By pulling the diverter arm down, water is diverted from the toilet bowl to the spray arm, creating a pressurized spray for thorough bedpan cleaning. When not in use, the system functions as a standard flush valve. The spray disc and screen can be easily cleaned or replaced to maintain optimal performance.


Detailed Features & Benefits


Healthcare-Specific Design: The Z6000AV-BWN is engineered for healthcare applications where bedpan cleaning capabilities are essential. The system includes a complete bedpan washer assembly with a 12" spray arm, wall bracket and support rod, designed to provide stability and durability in demanding healthcare environments. The diverter mechanism allows healthcare professionals to easily switch between normal flush operation and bedpan cleaning with a simple pull of the diverter arm.

Precision Engineered Water Delivery: The standard 3.5 gpf flow rate provides powerful waste removal and cleaning capability for institutional settings. The high back pressure vacuum breaker with one-piece hex coupling nut ensures reliable operation and prevents backflow contamination, a critical feature in healthcare settings where cross-contamination prevention is essential.

Durable Institutional Construction: Built specifically for the demands of healthcare environments, the Z6000AV-BWN features a chrome-plated brass body with polished exterior that resists corrosion and maintains its appearance even with frequent use. The valve operates effectively with water pressure from 10 to 100 psi (69 to 689 kPa), with a recommended minimum of 25 psi for optimal performance with low consumption flush volumes.


NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained according to instructions. Decorative finishes warranted for one year.
