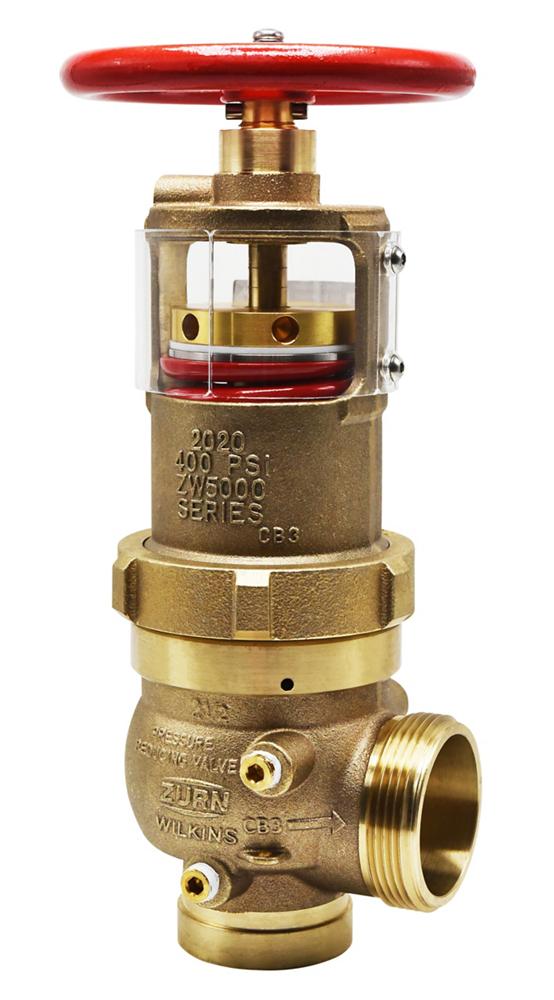

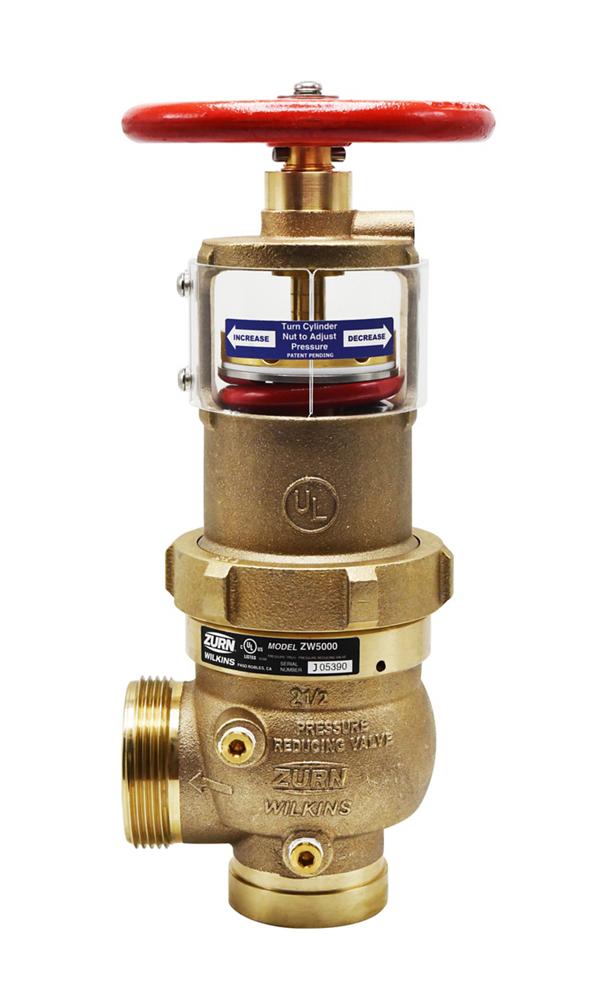

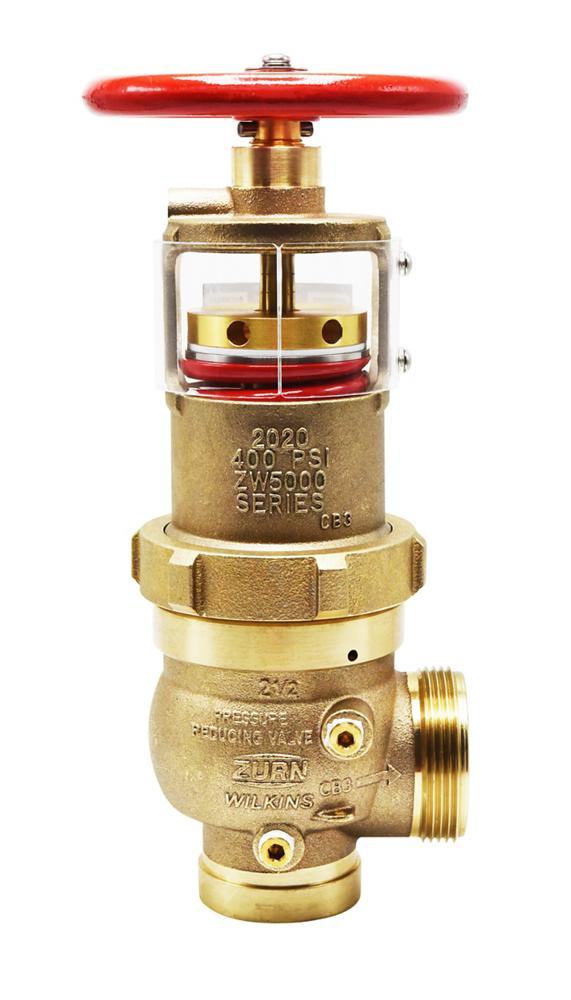

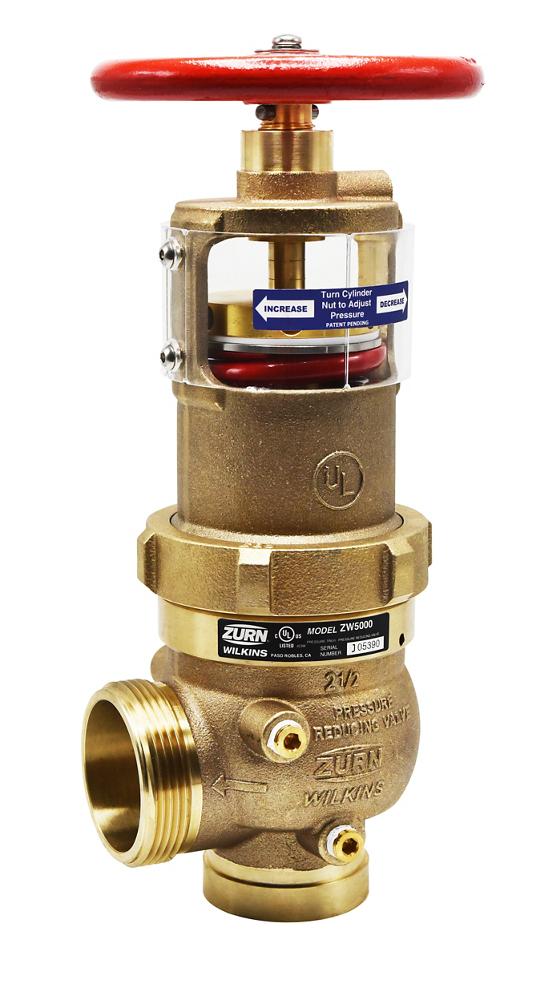

Wilkins ZW5000G | Pressure-Tru® Fire Hose Valve, 2 1/2 Inches Grooved
The Wilkins ZW5000G is a UL-listed Pressure-Tru® field adjustable pressure reducing valve designed for CLASS I and CLASS III standpipe hose stations.
Key Specifications:
- Size: 2 1/2 Inches
- Maximum Inlet Pressure: 400 psi
- Notable Certifications: UL and C-UL Listed
- Connection Type: Grooved inlet, male hose outlet
- Body Type: Angle body configuration
Other Related Variants:
- ZW5000: Standard FNPT x male hose version
- ZW5000CCCH: Cap and chain version
- ZW5000IL: In-line globe body version
- ZW5000ILG: In-line globe body with grooved connections
Materials:
- Main valve body: Cast bronze ASTM B806
- Stem: Cast bronze ASTM B806
- Flange: Cast bronze ASTM B806
- Elastomers: Buna Nitrile (FDA approved)
- Elastomers: EPDM (FDA approved)
- Springs: Chrome silicon, ASTM A401 powder coated
Typical Installation:
Individual hose stations in CLASS I and CLASS III standpipe systems where pressure regulation is required under both flow and no-flow conditions with grooved piping connections.
Standards Compliance:
UL Listed; C-UL Listed; ANSI B1.20.1; AWWA C606; NFPA 1963
Features & Benefits:
- Field Adjustable Design: Allows immediate pressure adjustments on-site with low torque requirements for easy commissioning and maintenance.
- Dual Condition Pressure Regulation: Maintains stable pressure under both flow and no-flow conditions for reliable standpipe operation.
- Simplified Installation: Grooved end connections streamline piping and reduce installation time compared to threaded connections.
- Fire Protection Compliance: UL and C-UL listed specifically for standpipe hose valve applications ensuring code compliance.
FAQ
Q: Can the Zurn ZW5000G be adjusted after installation?
A: Yes, the Zurn ZW5000G features field adjustable design allowing pressure adjustments to be made on-site with minimal effort and low torque tools.
Q: What is the difference between the ZW5000G and the standard ZW5000?
A: The ZW5000G features grooved inlet connections per AWWA C606, while the standard ZW5000 has FNPT inlet connections. Both have male hose outlets.
Q: What pressure range can the Wilkins ZW5000G handle?
A: The valve can handle maximum inlet pressure of 400 psi and provides adjustable outlet pressure regulation suitable for standpipe hose stations.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
