Wilkins ZW5000CCCH | Pressure-Tru® Fire Hose Valve, 2 1/2 Inches
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.

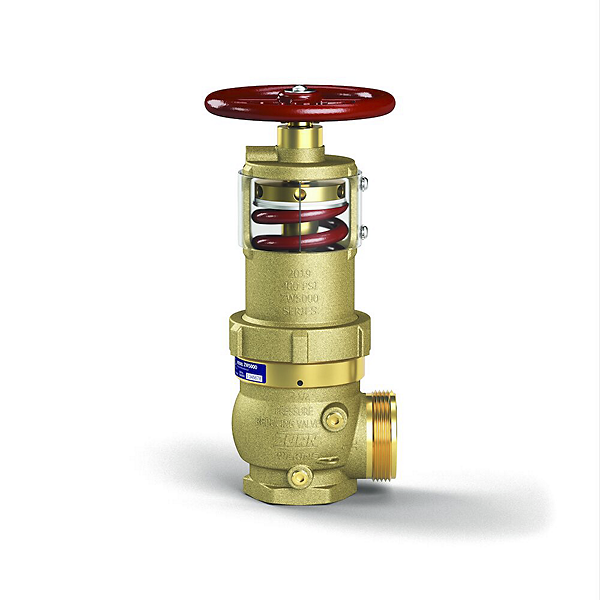

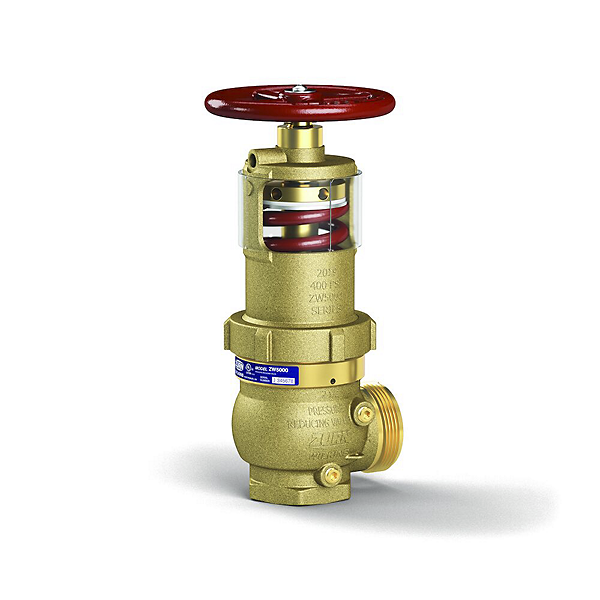

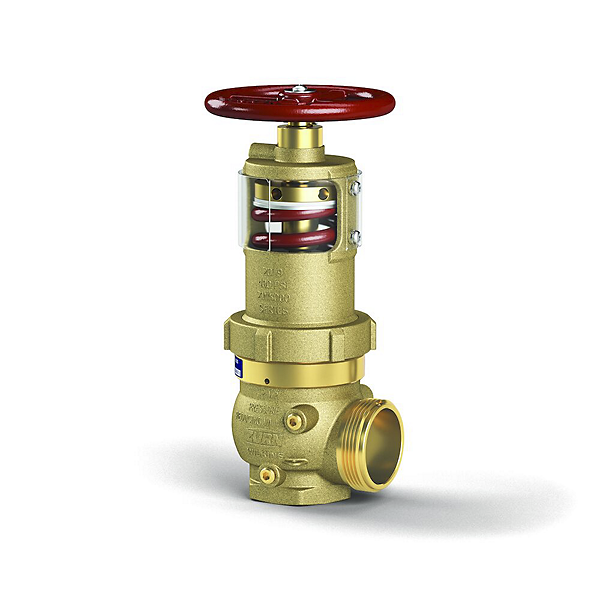

The Wilkins ZW5000CCCH is a field-adjustable pressure reducing fire hose valve designed for CLASS I and CLASS III standpipe systems, regulating pressure under flow and no-flow conditions with chrome finish and protective cap and chain.
Key Specifications:
- Size: 2 1/2 Inches
- Maximum Inlet Pressure: 400 psi
- Notable Certifications: UL and C-UL Listed
- End Connections: FNPT inlet, male hose outlet
- Body Type: Angle body configuration
Other Related Variants:
- ZW5000: Standard angle version without cap and chain
- ZW5000G: Grooved inlet/outlet version
- ZW5000IL: In-line globe body version
Materials:
- Cast bronze ASTM B806 body
- Cast bronze ASTM B806 stem
- Cast bronze ASTM B806 flange
- Buna Nitrile elastomers (FDA approved)
- EPDM elastomers (FDA approved)
- Chrome silicon springs ASTM A401 powder coated
- Chrome coating finish
- Stainless steel trim
Typical Installation:
Designed for individual hose stations in CLASS I and CLASS III standpipe fire protection systems where field-adjustable pressure regulation is required under both flow and no-flow conditions. Ideal for applications requiring immediate field adjustments and can be factory set or adjusted in the field as needed.
Standards Compliance:
UL Listed; C-UL Listed; ANSI B1.20.1; AWWA C606; NFPA1963
Features & Benefits:
- Field Adjustable Design: Allows for easy pressure adjustments on-site with low torque requirements, eliminating the need for factory returns.
- Comprehensive Protection: Includes cap and chain to protect the male hose outlet from damage and contamination when not in use.
- Dual Condition Regulation: Maintains consistent pressure regulation under both flow and no-flow conditions for reliable fire protection performance.
- Durable Construction: Features bronze body with chrome coating and stainless steel trim for corrosion resistance and long service life in demanding fire protection applications.
FAQ
Q: What is the difference between the Zurn ZW5000CCCH and the standard ZW5000 model?
A: The Wilkins ZW5000CCCH includes both a protective cap and chain (CC suffix) and chrome finish (CH suffix), while the standard ZW5000 has a bronze finish without cap and chain accessories.
Q: Can the ZW5000CCCH be adjusted after installation?
A: Yes, the Zurn ZW5000CCCH is designed for field adjustment with low torque requirements, allowing pressure settings to be modified on-site without removing the valve from service.
Q: What thread standards does this fire hose valve use?
A: The inlet connection uses FNPT (Female National Pipe Thread) per ANSI B1.20.1, and the male hose outlet connection conforms to NFPA1963 fire hose coupling thread standards.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
