Wilkins ZW4004ILGSS-R | 2 1/2" Fire Control PRV, Grooved, Prof...
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.

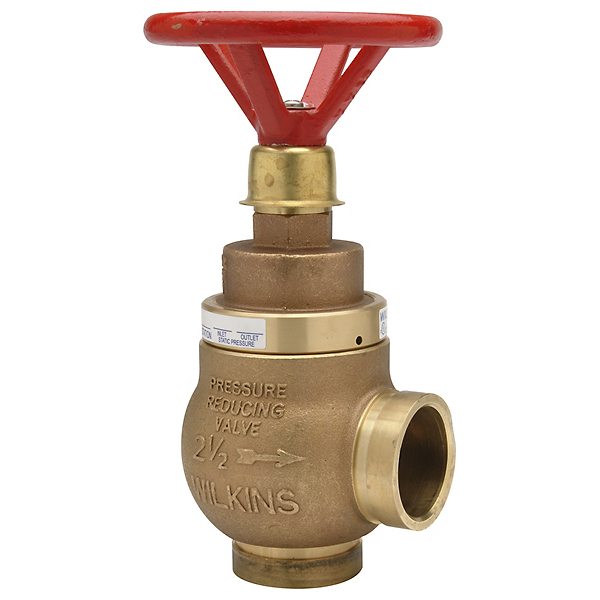

The Wilkins ZW4004ILGSS-R is a 2 1/2" Pressure-Tru™ automatic fire control pressure reducing valve designed for reliable pressure regulation in automatic sprinkler and standpipe systems.
Key Specifications:
- Size: 2 1/2 Inches
- Maximum Inlet Pressure: 400 psi
- Connection Type: Grooved inlet and outlet
- Notable Certifications: UL, C-UL, NYC MEA
- Flow Capacity: Up to 500 GPM
Other Related Variants:
- ZW4004ILGSS-S: Pressure setting S
- ZW4004ILGSS-T: Pressure setting T
- ZW4004ILGSS-U: Pressure setting U
Materials:
- Cast bronze body - ASTM B 584
- Buna Nitrile elastomers - FDA approved
- EPDM elastomers - FDA approved
Typical Installation:
The Zurn ZW4004ILGSS-R is listed as a floor control valve, an indicating valve, and a check valve in automatic sprinkler systems as well as a standpipe valve for CLASS I and CLASS III systems. It regulates pressure under both flow and no-flow conditions.
Standards Compliance:
UL Listed; C-UL Listed; NYC MEA 325-06-E; City of Los Angeles Approved; California State Fire Marshal Listed
Features & Benefits:
- Accurate Pressure Control: Regulates pressure under both flow and no-flow conditions for consistent system performance.
- Factory Set Non-Adjustable: Pre-calibrated pressure profile R eliminates field adjustment needs and ensures reliable operation.
- Integrated Supervisory Switch: Built-in listed supervisory switch with 3A @ 125 VAC rating provides valve position monitoring and tamper-resistant cover for enhanced security.
- Grooved Connections: AWWA C606 grooved inlet and outlet connections allow for faster installation and easy maintenance access.
FAQ
Q: What is the difference between pressure profile settings R, S, T, and U?
A: Each pressure profile (R, S, T, U) is factory set to deliver different outlet pressure ranges at various inlet pressures and flow rates. Profile R has a maximum inlet pressure of 290 psi. Refer to the residual pressure charts to select the appropriate profile for your specific system requirements based on required GPM and inlet/outlet pressures.
Q: Can this valve be field-adjusted after installation?
A: No, the Wilkins ZW4004ILGSS-R is non-field adjustable and comes factory set to pressure profile R. This ensures consistent, reliable performance and maintains listing compliance. If a different pressure setting is required, you must order the appropriate model variant.
Q: What is the purpose of the integral supervisory switch?
A: The integral listed supervisory switch monitors the valve position and provides a contact rating of 3 amps @ 125 VAC. It alerts building management systems when the valve is tampered with or closed, ensuring compliance with fire safety monitoring requirements and preventing unauthorized valve closure.
